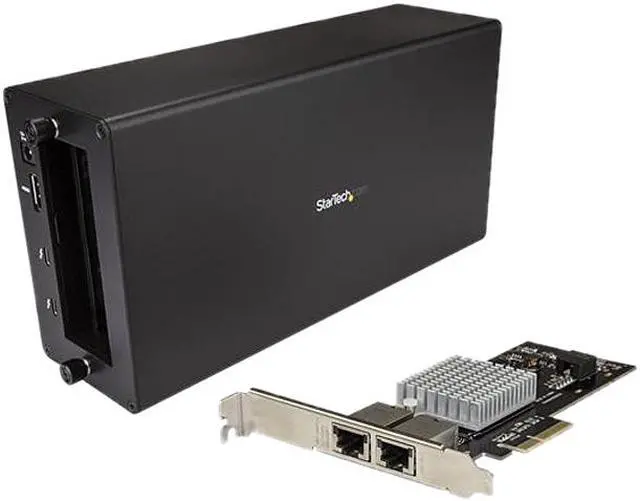

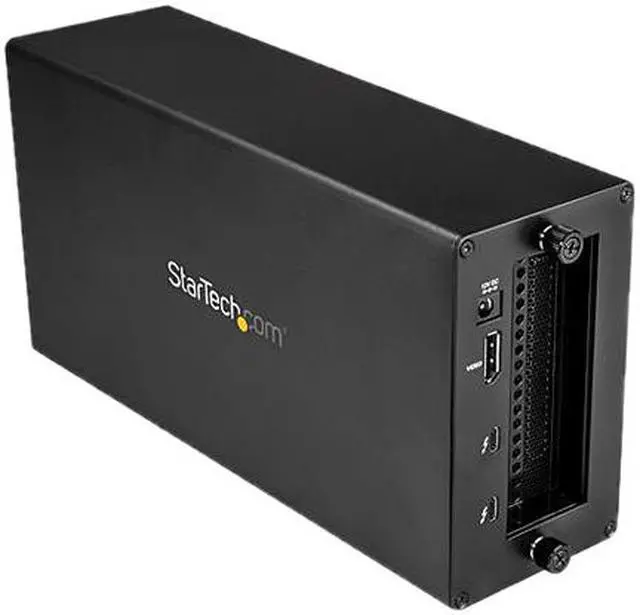

StarTech BNDTB310GNDP Thunderbolt 3 to 10 Gbe NIC - 2 port - External PCIe Enclosure plus Card - with DisplayPort Monitor Port - Thunderbolt 3 to Ethernet

Be the first to review this product...

Add 10GbE connectivity to your Thunderbolt 3 computer
Flexible solution with a removable PCIe network card

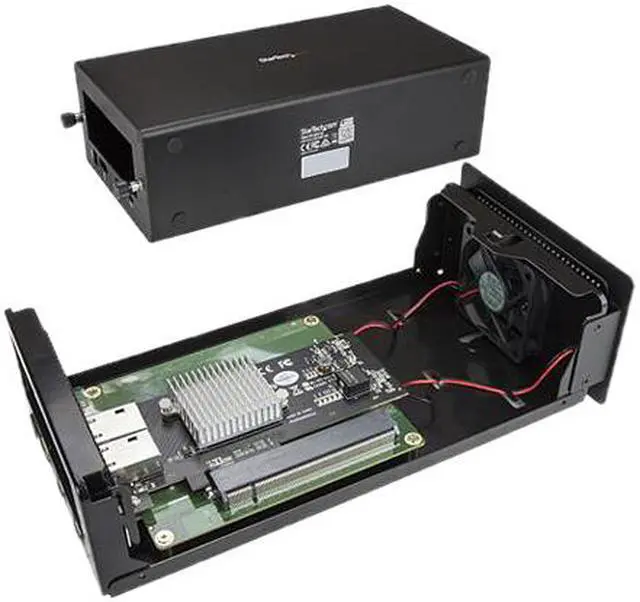

Assemble with just a screwdriver
Thunderbolt 3 10 GbE NIC / Thunderbolt 3 10GbE / Thunderbolt 3 expansion chassis / Thunderbolt 3 PCIe box / Thunderbolt 3 PCIe enclosure / Thunderbolt 3 PCIe expansion chassis / PCIe expansion slot / PCIe slot / PCIe ssd / Thunderbolt 3 network adapter / Thunderbolt 3 to 10Gb Ethernet / Thunderbolt 3 to 10GbE adapter / Thunderbolt 3 to Ethernet

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

NIC & CHASSIS - TB3 TO 2-PORT 10GBE

Model
Brand	StarTech.com
Model	BNDTB310GNDP

Details
Color	Black
Type	Enclosure
AC Adapter	Yes
Material	Aluminum / Steel
Thunderbolt 3	Yes
Internal Interface	1 x PCI Express x4 Male

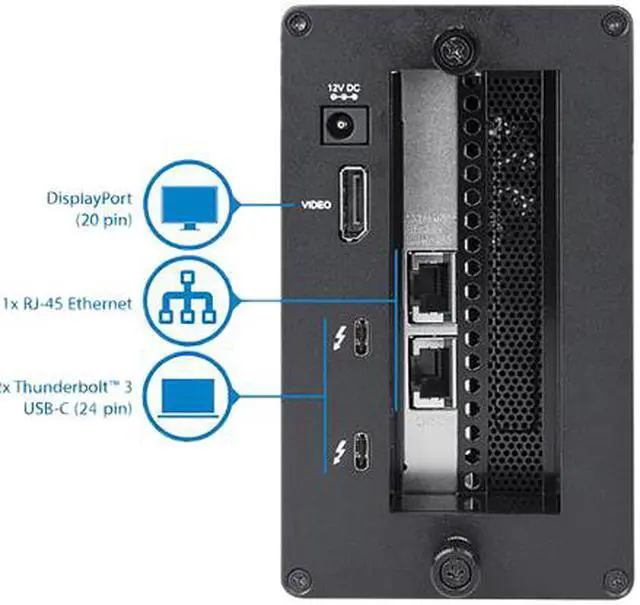

External Interface	2 x RJ-45 Female 2 x Thunderbolt 3 USB-C Female 1 x DisplayPort Female
Fan	1 x 92mm Sleeve Bearing Fan
Power	Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included

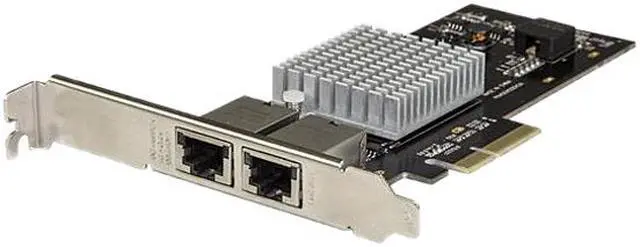

Specifications	Auto MDIX: Yes Compatible Networks: 10 Gbps/5G/2.5G/1G/100 Mbps Full Duplex Support: Yes Jumbo Frame Support: 9K max. Maximum Data Transfer Rate: 40 Gbps (Thunderbolt 3) Promiscuous Mode: Yes Supported Protocols: IEEE 802.3X (Flow Control Support), IEEE 802.1q (VLAN tagging) Type and Rate: Thunderbolt 3 - 40 Gbit/s This Thunderbolt 3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network. This adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the 2-port PCI Express 10G NIC (ST10GPEXNDPI), giving you one DisplayPort output, one additional Thunderbolt 3 port and two 10GbE ports. Reliable, high-performance and versatile multimode connectivity This 10G network card utilizes the Intel X550 chipset with Intel® Virtualization Technology (Microsoft Hyper-V) for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections. Install and assemble with ease Requiring only a Phillips type screwdriver, you can assemble this Thunderbolt 3 to 10GbE NIC chassis in minutes. It connects easily through a single Thunderbolt 3 port on your computer. Change up your chassis The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC -- the card can be swapped for other PCIe cards to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly.

Compatibility
Operating Systems Supported	Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016 Linux 3.x to 4.11 LTS Versions only

Features
Features	This Thunderbolt 3 PCIe expansion chassis lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network via an external PCIe enclosure Add 10GbE connectivity to your Thunderbolt 3 desktop or laptop computer Upgrade your peripherals without having to upgrade your chassis by just switching out your PCIe card Assemble and install easily with just a screwdriver Note: The expansion chassis does not support video cards. This expansion chassis does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as MacBook Pro. When the dock is connected to your host laptop, a charging icon may appear on your laptop's screen. This is only sufficient enough to charge your laptop in sleep state, and charging will require an extended time period. 5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work with this expansion chassis. A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz). When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display. Secondary Thunderbolt 3 port can also be used to connect USB 3.1 (10Gbps) USB-Type C devices, such as USB 3.1 Hubs. Backwards compatible with USB 3.0 (USB 3.1 Gen 1), and USB 2.0.

Dimensions & Weight
Dimensions	11.00" x 5.60" x 3.20"
Weight	3.60 lbs.

Package Contents
Package Contents	1 x Thunderbolt 3 PCIe expansion box 1 x Thunderbolt 3 cable 4 x rubber feet 1 x network card 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x low-profile bracket 2 x quick-start guides

Additional Information
Date First Available	February 12, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
