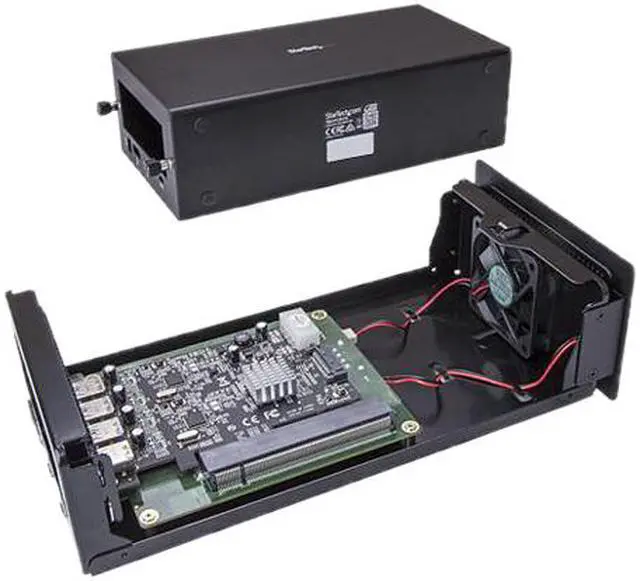

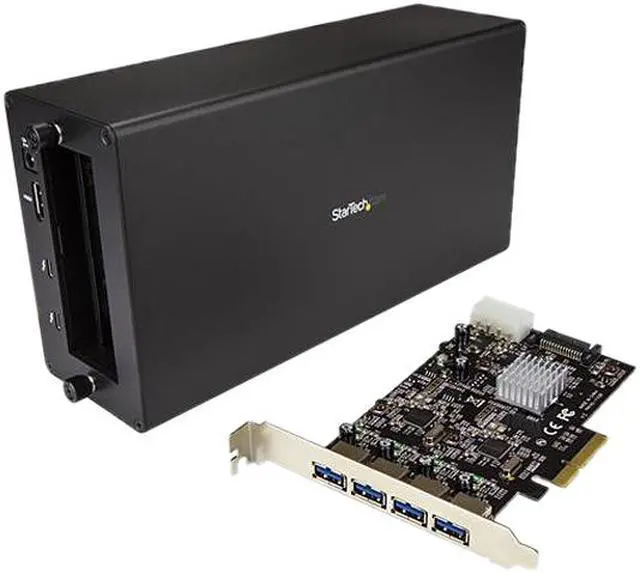

Main image of StarTech BNDTBUSB3142 Thunderbolt 3 to USB 3.1 Adapter - 4 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Alt view image 2 of 4 - StarTech BNDTBUSB3142 Thunderbolt 3 to USB 3.1 Adapter - 4 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Alt view image 3 of 4 - StarTech BNDTBUSB3142 Thunderbolt 3 to USB 3.1 Adapter - 4 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Alt view image 4 of 4 - StarTech BNDTBUSB3142 Thunderbolt 3 to USB 3.1 Adapter - 4 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Shop All STARTECH Products

StarTech BNDTBUSB3142 Thunderbolt 3 to USB 3.1 Adapter - 4 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Be the first to review this product...

This Thunderbolt 3 to PCIe USB 3.1 hub connects Thunderbolt 3 enabled computer to an external USB 3.1 (Gen 2) devices via an external PCIe enclosure
Up to 10Gbps throughput
Extra displays with DisplayPort output and TB3 port
Thunderbolt 3 to USB 3.1 adapter / Thunderbolt 3 to USB 3 adapter / Thunderbolt 3 PCIe enclosure / Thunderbolt 3 PCIe expansion / Thunderbolt 3 to PCIe / Thunderbolt 3 to PCIe adapter / Thunderbolt 3 PCIe box / Thunderbolt 3 PCIe expansion chassis

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Thunderbolt 3 to PCIe USB 3.1 Adapter - Chassis + 4 Port Card

Model
Brand	StarTech.com
Model	BNDTBUSB3142

Details
Color	Black
Type	Enclosure
AC Adapter	Yes
Material	Aluminum / Steel
Thunderbolt 3	Yes
Internal Interface	1 x PCI Express x4 Male
External Interface	4 x USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female 2 x Thunderbolt 3 USB-C Female 1 x DisplayPort Female
Fan	1 x 92mm Sleeve Bearing Fan
Power	Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included
Specifications	Maximum Data Transfer Rate : 40 Gbps (Thunderbolt 3) Type and Rate: Thunderbolt 3 - 40 Gbit/s / USB 3.1 Gen 2 - 10 Gbit/s UASP Support: Yes Connect your Thunderbolt 3 enabled computer to external USB 3.1 (Gen 2) devices using this Thunderbolt 3 to PCIe USB 3.1 adapter. Providing up to 10Gbps throughput, the adapter offers four USB 3.1 ports on two independent bus channels, an additional TB3 port, and a DisplayPort output. The adapter combines the StarTech.com USB 3.1 PCIe card (PEXUSB314A2V) and the TB3 chassis (TB31PCIEX16). Faster USB performance With two host controller chipsets, shared across two ports instead of four, this 4-port Thunderbolt 3 to USB 3.1 adapter dedicates up to 10Gbps for each set of two USB ports. It reduces performance bottlenecks and doubles your total available bandwidth to 20Gbps. Increase productivity with Thunderbolt 3 Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer. Install and assemble with ease Requiring only a Phillips type screwdriver, this Thunderbolt 3 to PCIe USB 3.1 adapter can be assembled and connected in minutes.

Compatibility
Operating Systems Supported	Windows 7, 8, 8.1, 10 macOS 10.12 - 10.13 Windows Server 2008 R2, 2012, 2016 Mac OS X 10.9 to 10.10 Linux 3.5 to 4.11.x LTS version only

Features
Features	This Thunderbolt 3 to 4 port PCIe USB 3.1 hub connects your Thunderbolt 3 enabled computer to external USB 3.1 (Gen 2) devices by combining a chassis with PCIe card Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput Create an efficient work station with extra displays using the DisplayPort output and additional Thunderbolt 3 port Upgrade your peripherals without having to upgrade you chassis by just switching out your PCIe card Assemble and install easily with just a screwdriver Note: USB power is limited to 900mA per port and is not recommended for charging external devices

Dimensions & Weight
Dimensions	11.00" x 5.60" x 3.20"
Weight	3.60 lbs.

Package Contents
Package Contents	1 x Thunderbolt 3 PCIe expansion box 1 x Thunderbolt 3 cable 4 x rubber feet 1 x 4-port USB 3.1 card 1 x universal power adapter (NA/JP, UK, EU, ANZ) 2 x quick-start guides

Additional Information
First Listed on Newegg	February 12, 2018
