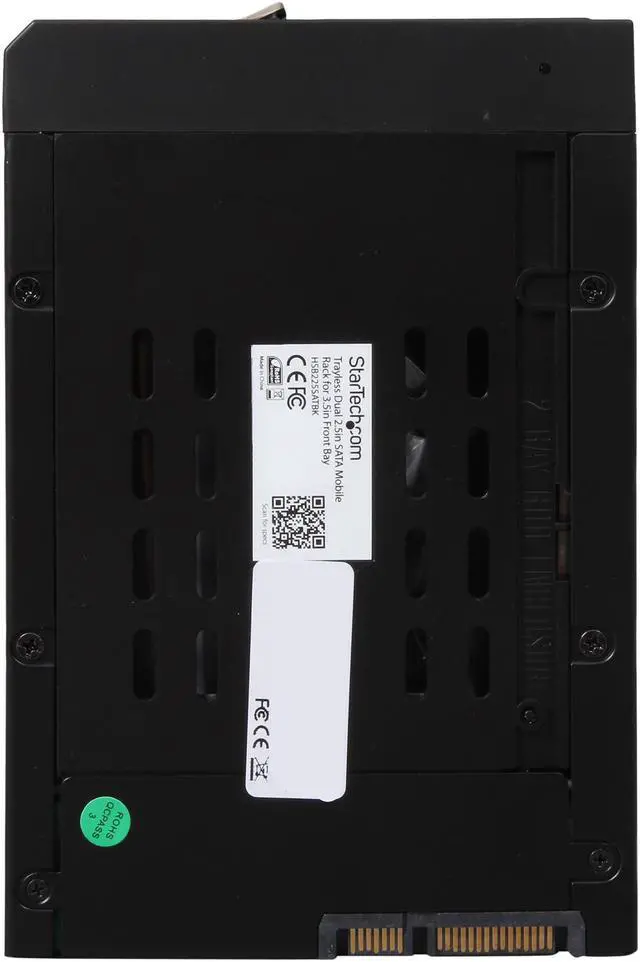

Does this module have mounting screw holes on the bottom for bottom mount case bays?

There are mounting of the bottom of the StarTech HSB225SATBK. Only on the sides.

Home
Components & Storage
Hard Drive
HDD / SSD Accessories
STARTECH
Item#: N82E16817998207

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

Main image of StarTech HSB225SATBK 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

100%

Alt view image 2 of 5 - StarTech HSB225SATBK 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

Alt view image 3 of 5 - StarTech HSB225SATBK 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

Alt view image 4 of 5 - StarTech HSB225SATBK 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

Alt view image 5 of 5 - StarTech HSB225SATBK 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

360^°

Shop All STARTECH Products

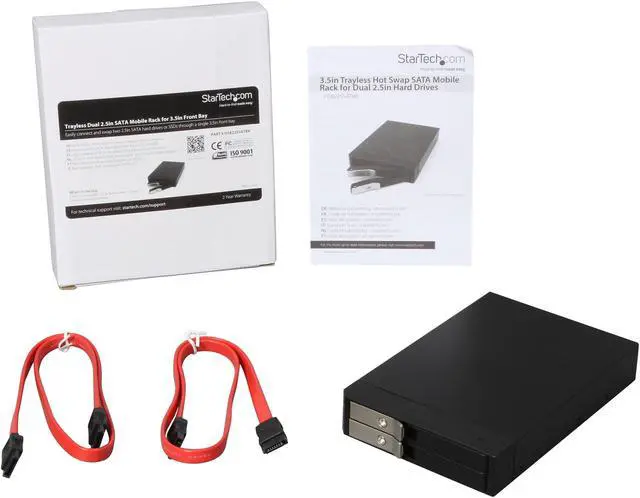

StarTech HSB225SATBK 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

(18) Write a Review

Easily connect and swap two 2.5in SATA hard drives through a single 3.5in front bay
2.5in Mobile Rack
2.5" SATA Rack
2.5 Hot Swap Bay
2.5 SATA Backplane
2.5 SATA Internal Enclosure
Storage Mobile Rack

Overview

Specs

Reviews (18)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	StarTech.com
Model	HSB225SATBK

Details
Mobile Rack Drives Support	Multi 2.5" Drives to 3.5" Bay
Mobile Rack Interface	SATA I/II/III
Specifications	Hardware Regulatory Approvals: UL94 V-0 Rated Plastic Key Lock: Yes Number of Drives: 2 Drive Size: 2.5in Drive Type: SATA Connector(s) Drive Connectors: 2 - SATA Data & Power Combo (7+15 pin) Receptacle Host Connectors: 1 - SATA (7 pin; Data) Plug 1 - SATA Data & Power Combo (7+15 pin) Plug Performance Temperature Alarm: No Hot Swap Capability: Yes Insertion Rating: 15,000 Cycles Software OS Compatibility: OS independent; No software or drivers required Physical Characteristics Color: Black Enclosure Type: Steel and Plastic Max Drive Height: 0.4 in [9.5 mm] Product Length: 5.9 in [150 mm] Product Width: 3.9 in [100 mm] Product Height: 1 in [25 mm] Product Weight: 8.8 oz [250 g] Indicators LED Indicators: 2 - Drive Power/Activity (Blue-Power, Red-Activity) Environmental Operating Temperature: 5 degrees C to 70 degrees C (41 degrees F to 158 degrees F) Storage Temperature: -40 degrees C to 80 degrees C (-40 degrees F to 176 degrees F) Humidity: 8~90% RH Special Notes / Requirements System and Cable Requirements: 1 x SATA power from system PSU 2 x SATA data ports Available 3.5 inch front bay

Features
Features	Easily connect and swap two 2.5in SATA hard drives or SSDs through a single 3.5in front bay. The HSB225SATBK 3.5in SATA Mobile Rack lets you install two 2.5in SATA (SATA, SATA II, SATA III-6Gbps) hard drives (HDD) or solid state drives (SSD) into an available/unused 3.5in floppy drive bay. The mobile rack delivers quick and easy access to hard drive contents, using a convenient "no mounting required/easy eject" feature which eliminates the need for the drives to be installed in a tray - a time-saving solution for instant drive removals and insertions, as part of a system building process or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller. For added safety, the mobile rack is made from UL94 V-0 rated plastics and equipped with locking bay doors to help prevent accidental or unauthorized removal of the swappable hard drives. Also a perfect addition for operating system image deployment and any task that requires being able to access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

Additional Information
First Listed on Newegg	December 12, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-265-1844
Support Email: [email protected]
Support Website
View other products from STARTECH

StarTech HSB225SATBK 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

Learn more about the STARTECH HSB225SATBK
