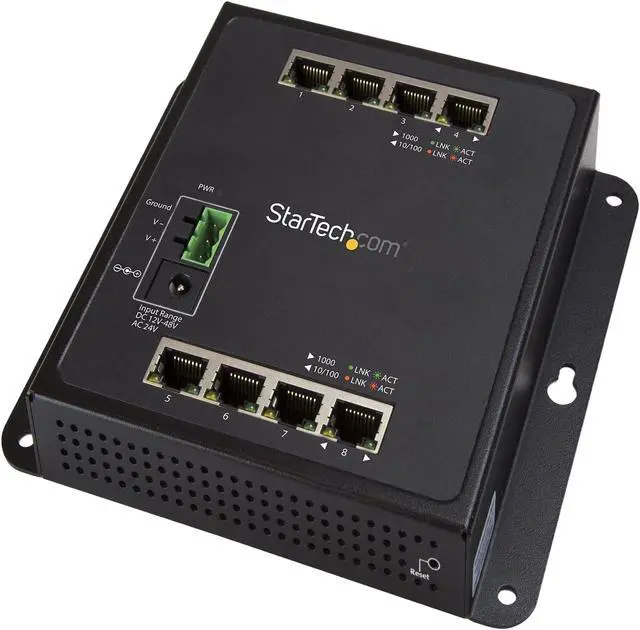

Main image of StarTech IES81GW StarTech.com Gigabit Ethernet Switch - 8 port - Wall Mount - Industrial - Gigabit Switch - Managed Switch - Network Switch

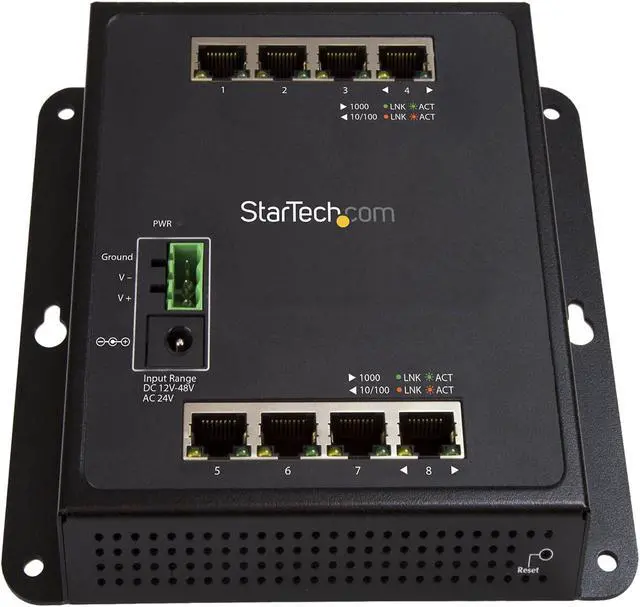

Alt view image 2 of 3 - StarTech IES81GW StarTech.com Gigabit Ethernet Switch - 8 port - Wall Mount - Industrial - Gigabit Switch - Managed Switch - Network Switch

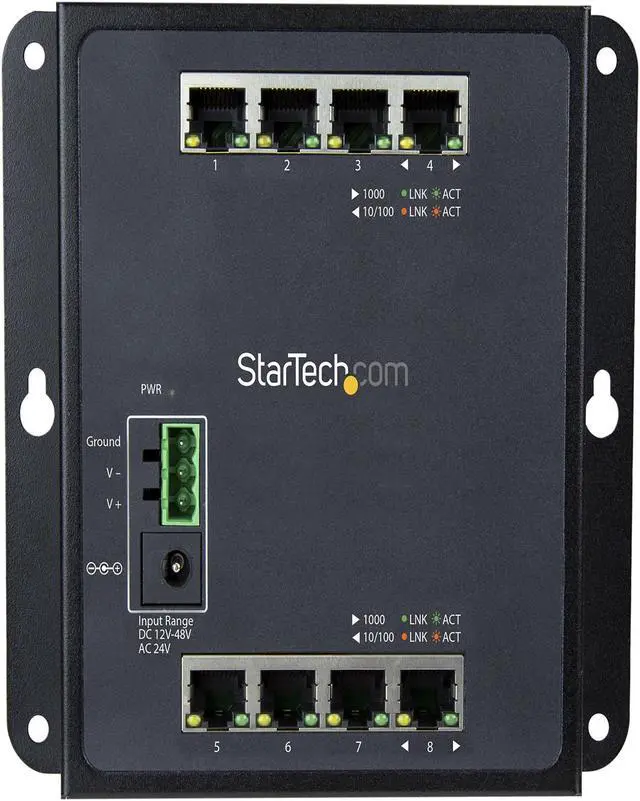

Alt view image 3 of 3 - StarTech IES81GW StarTech.com Gigabit Ethernet Switch - 8 port - Wall Mount - Industrial - Gigabit Switch - Managed Switch - Network Switch

Shop All STARTECH Products

StarTech IES81GW StarTech.com Gigabit Ethernet Switch - 8 port - Wall Mount - Industrial - Gigabit Switch - Managed Switch - Network Switch

Be the first to review this product...

Connect up to 8 GbE devices using this IP30 industrial Ethernet switch with intelligent Layer 2 management
8-Port Gigabit Ethernet Switch
Expand your network with 8 x RJ45 ports in one convenient Gigabit network switch
Rugged IP30 industrial design with metal housing and extended temperature range (-40 degree to +75 degree C)
Wall mount with front access or DIN-rail mount (magnetic mounts)
L2 Managed Network Switch / Gigabit Switch / Managed Switch / 8 port Switch / 8 port Gigabit switch

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Connect up to 8 GbE devices using this IP30 industrial Ethernet switch with inte

Model
Brand	StarTech.com
Model	IES81GW

Format & Standards
Format	Wall Mountable
Standards	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control
Network Management Type	Managed

Ports & Interface
Primary Ports	8 x RJ45
Primary Port Speed	10/100/1000Mbps

Data Transmission
Switching Method	Store and Forward
Jumbo Frames	9000 bytes

Details
Buffer Memory	512KB
Protocols	TCP/IP
Layer	2
LEDs	1-Power 8-10/100 Mbps and Link / Activity (yellow) 1000 Mbps and Link / Activity (green)
Power	Center Tip Polarity: Positive Input Voltage: 100~240 AC Output Current: 1.5A Output Voltage: 12 DC Plug Type: M Power Source: AC Adapter Included

Features
Features	Expand your network with 8 x RJ45 ports in one convenient Gigabit network switch Rugged IP30 industrial design with metal housing and extended temperature range (-40 degree to +75 degree C) Wall mountable with front access, or DIN-rail mountable (magnetic mounts) Layer 2 management capabilities, for improved network control, efficiency, and stability Compatible with 10/100/1000 Mbps networks Redundant power design (terminal block / DC plug) IPv4 and IPv6 dual stack management IGMP and MLD support Supports link aggregation, VLAN tagging, spanning tree protocol, port-based network access control

Dimensions & Weight
Dimensions	0.98" x 5.83" x 5.28"
Weight	1.09 lbs.

Environmental
Temperature	Operating Temperature: -40 ~ 75 degree Celsius (-40 ~ 167 degree Fahrenheit) Storage Temperature: -40 ~ 90 degree Celsius (-40 ~ 194 degree Fahrenheit)
Humidity	5~95% RH (Non-Condensing)

Packaging
Package Contents	1 x network switch 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x terminal block connector 4 x screw anchors 4 x screws 4 x attaching pins 4 x locking clips 4 x washers 4 x magnets 1 x DIN rail 3 x DIN-rail screws 8 x dust caps 1 x quick-start guide

Additional Information
First Listed on Newegg	May 22, 2017
