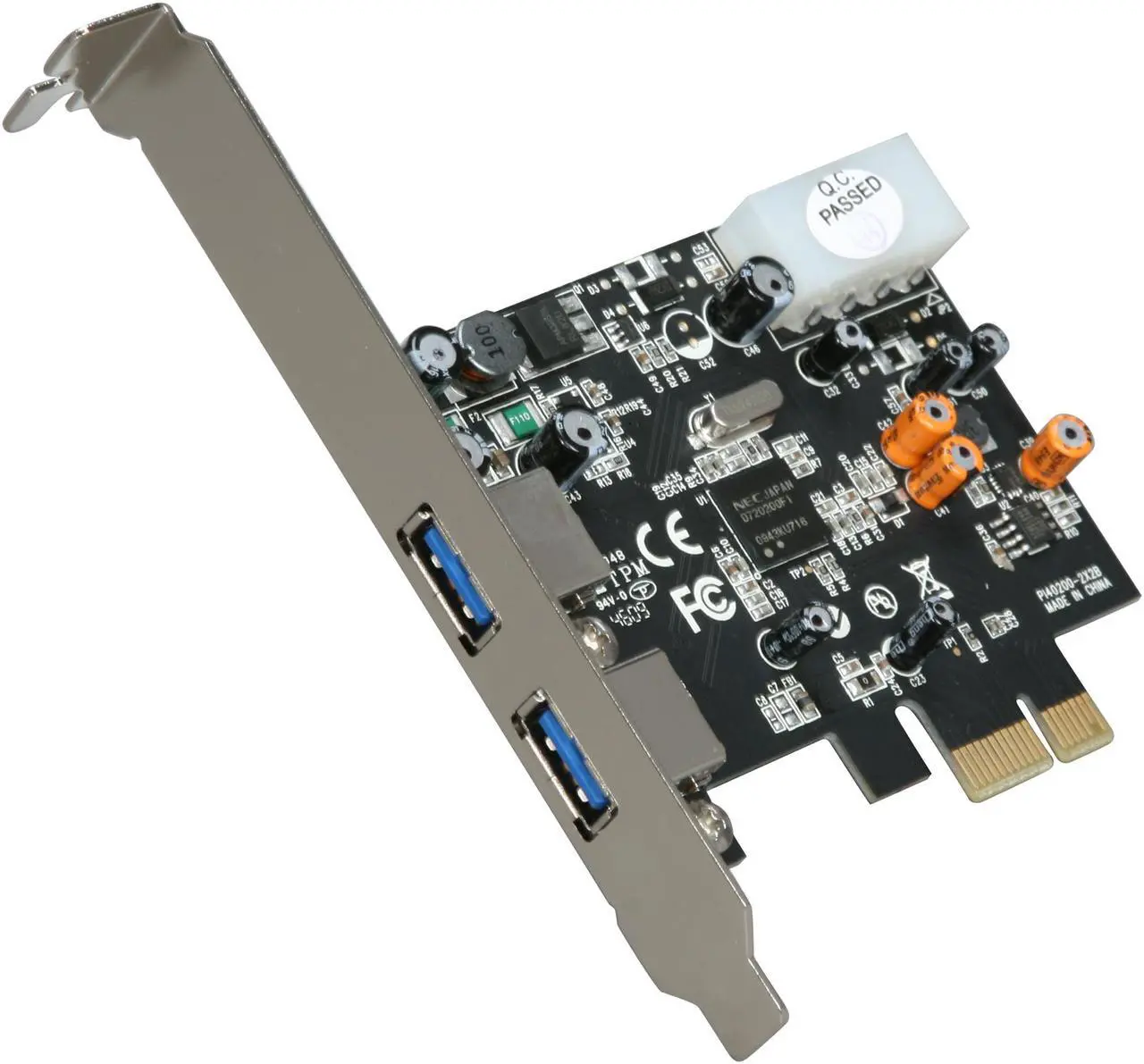

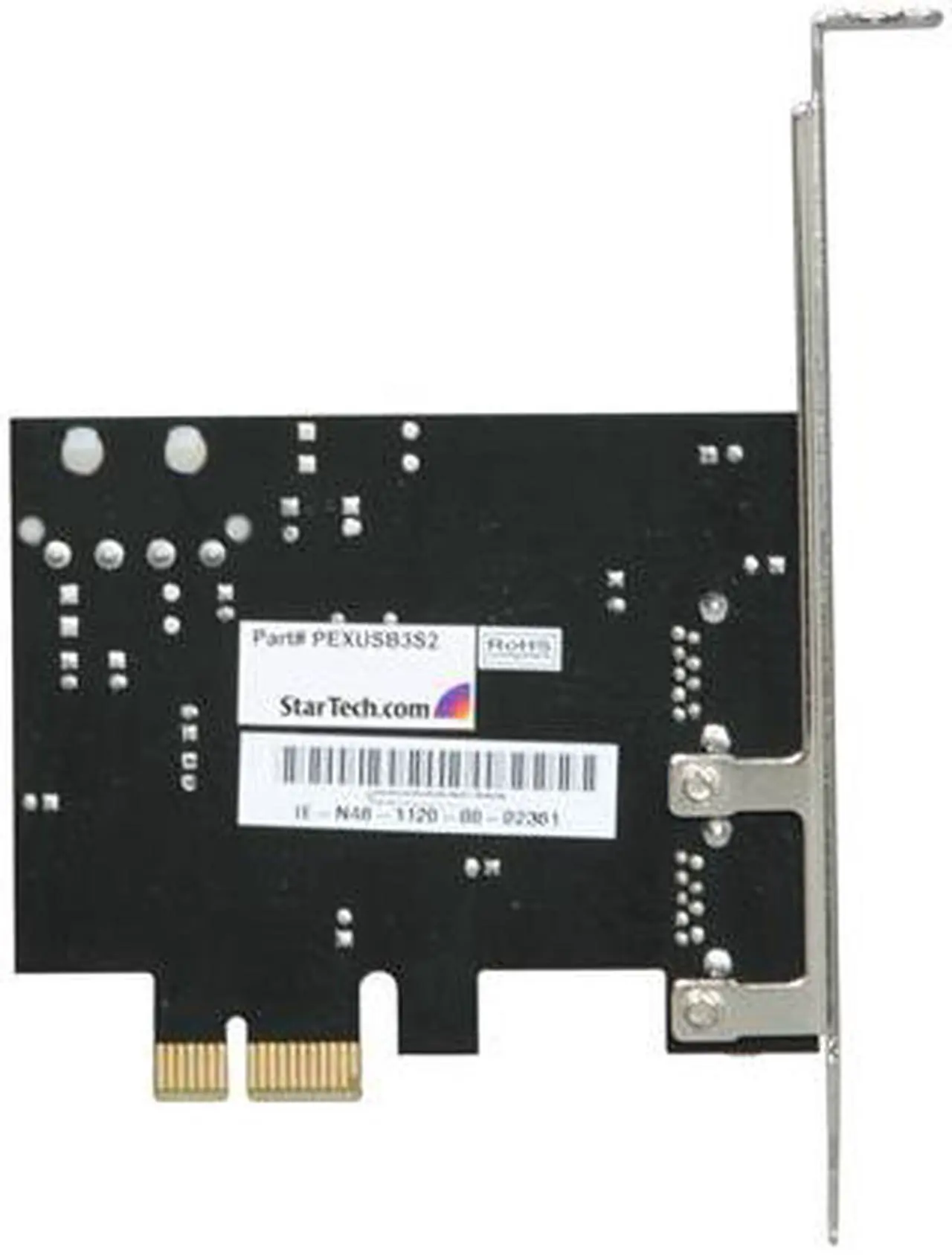

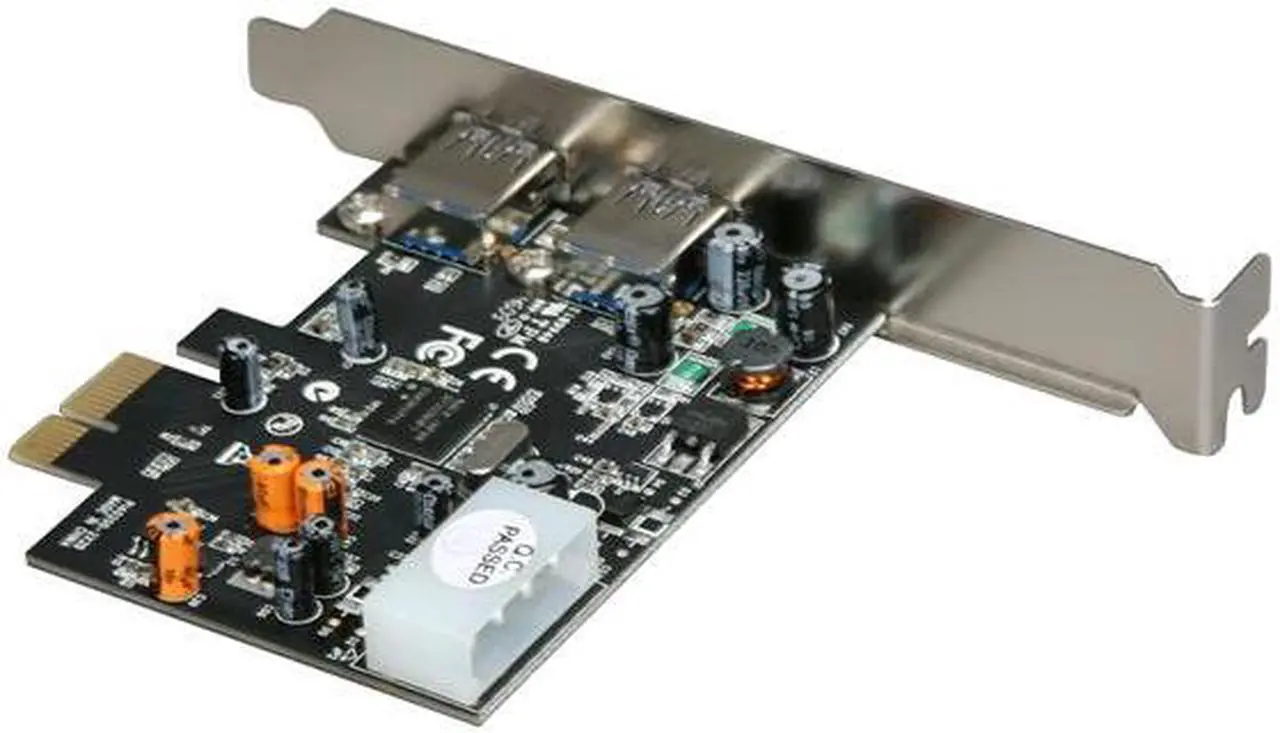

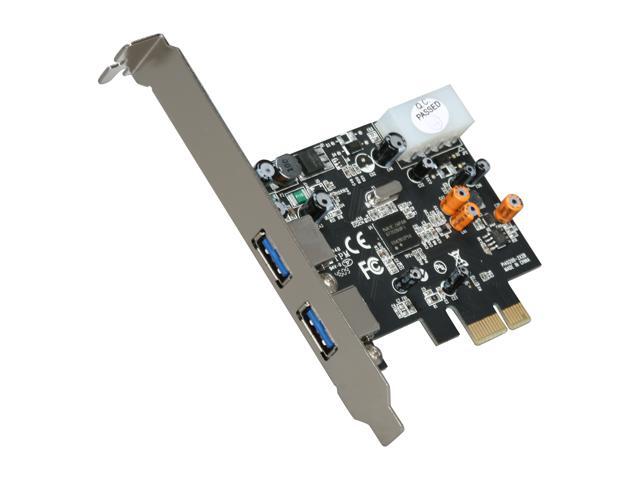

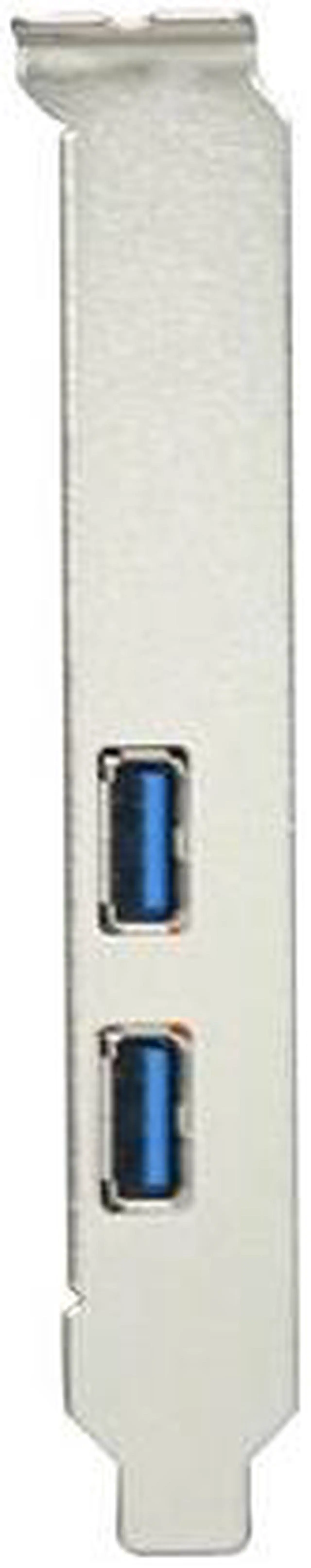

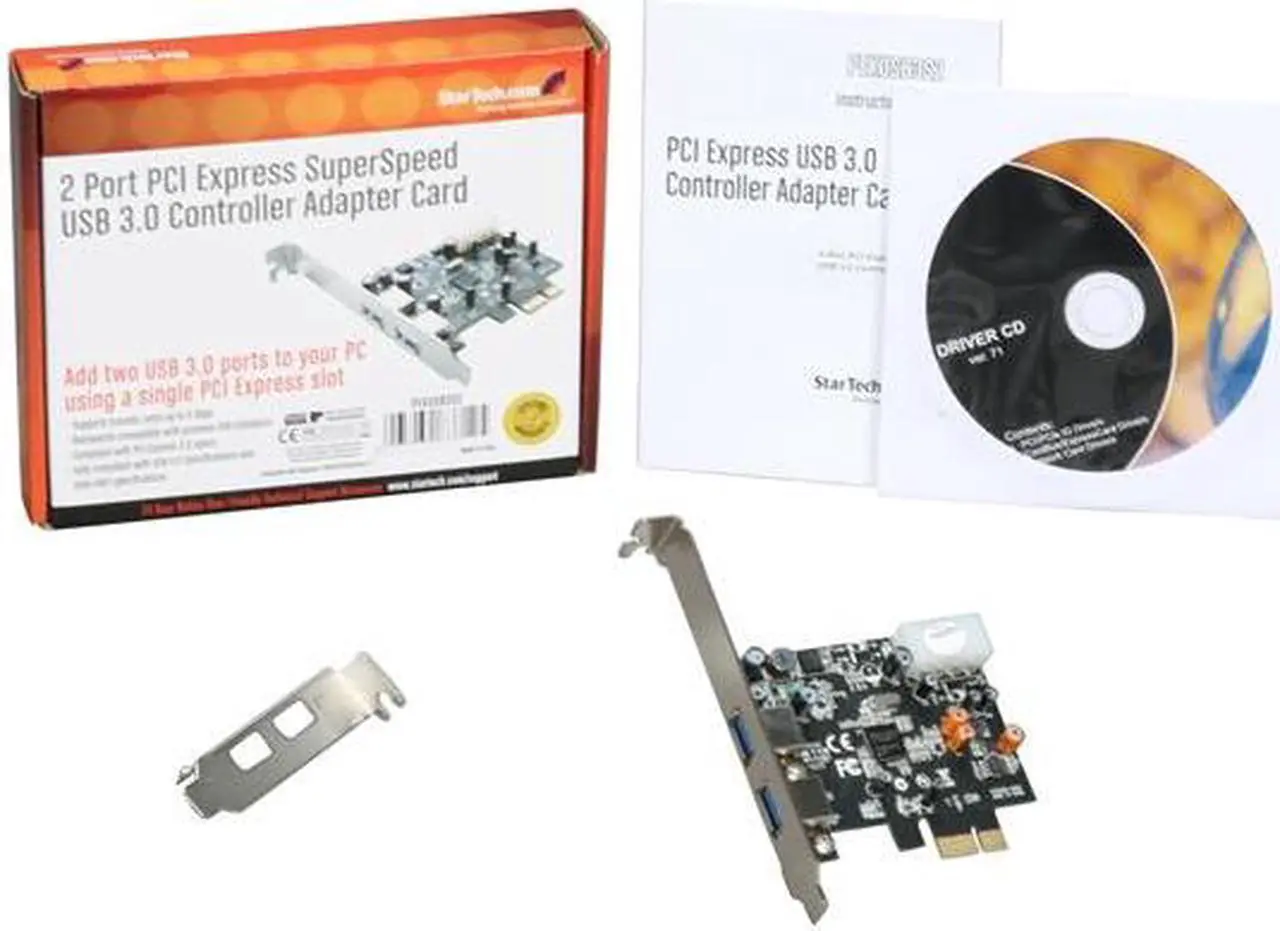

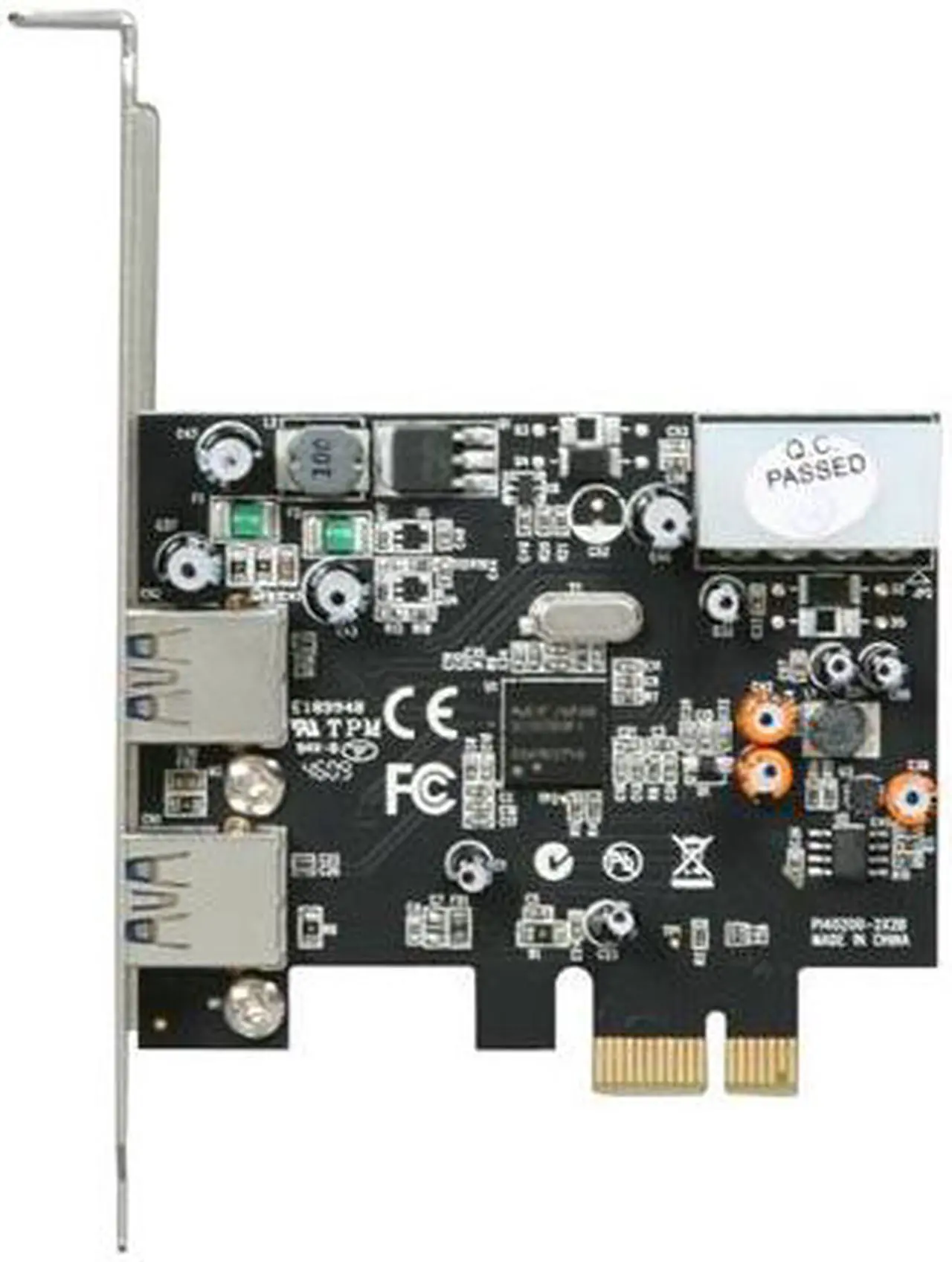

Providing speeds up to 10x faster than that of USB 2.0, this PCI Express USB 3.0 card enables you to access your data and transfer files much faster than USB 2.0, by adding two USB 3.0 ports to your PCI Express capable PC.
Featuring a native NEC PCI Express host controller chipset, the new USB 3.0 standard supports transfer rates of up to 5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices.
In addition to providing a much faster transfer rate the PEXUSB3S2 USB 3.0 card also supplies 900mA of power per USB port, allowing more and more external devices to operate without the need of an additional power source.
Learn more about the STARTECH PEXUSB3S2
Model
Brand
StarTech.com
Model
PEXUSB3S2
Details
Type
PCI Express to USB Card
External USB Ports
2x USB Ports
Standard
USB 3.0
Data Transfer Rate
Up to 5.0 Gbps
Operating Systems Supported
Windows 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2
Features
Features
Backwards compatible with previous USB standards Compliant with PCI Express 2.0 specs Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.96 specifications Fully supports the following USB Communication Types: Control/Bulk/Interrupt/Isochronous Transfer Provides up to 900mA per USB port Support USB transfer speeds of 5Gbps (Super Speed), 480Mbps (High Speed), 12Mbps (Full Speed), and 1.5Mbps (Low Speed) Supports PCI Bus Power Management Interface Specification revision 1.2 Supports up to 127 USB devices connected to a single interface. (Requires additional USB hubs to obtain this number) USB ports are Hot Swapping and Plug-and-Play compliant
