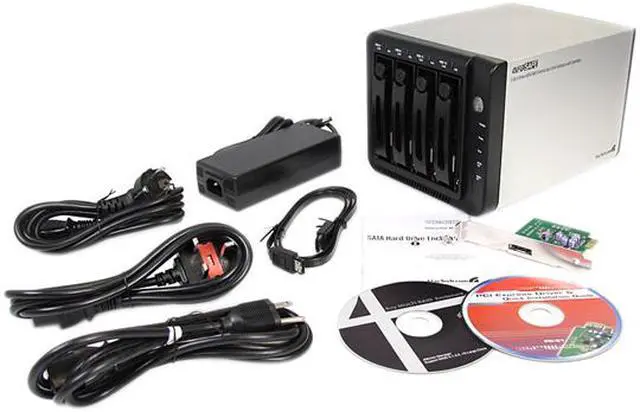

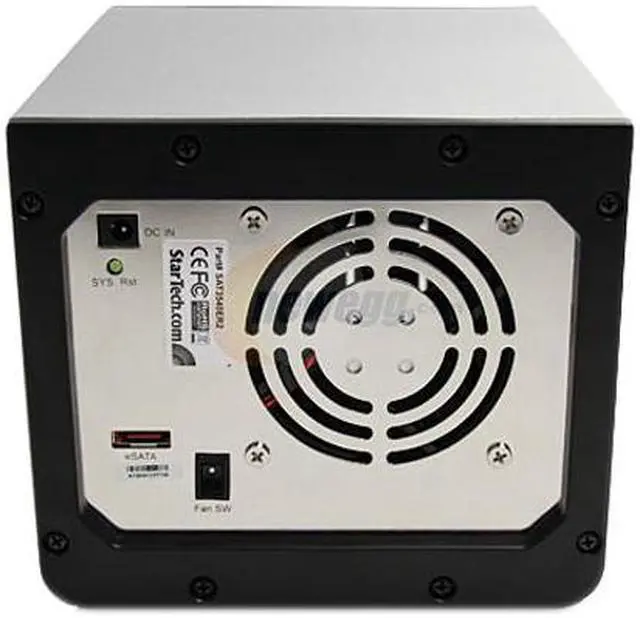

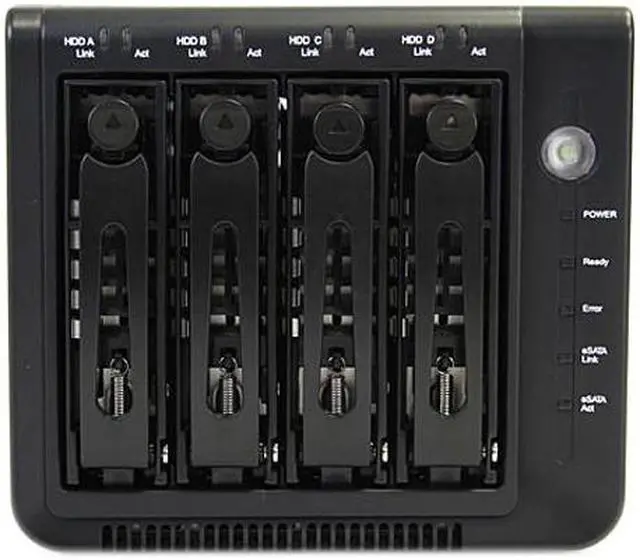

StarTech.com SAT3540ER2 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the STARTECH SAT3540ER2
| Brand | StarTech.com |
|---|---|
| Model | SAT3540ER2 |
| Specifications | Color: Black & Silver Carton Quantity: 4 Shipping (Package) Weight: 10.78 lb [4.88 kg] Enclosure Type: Aluminum LED Indicators: 4 - HDD Link LED Indicators: 4 - HDD Activity LED Indicators: 1 - Power LED Indicators: 1 - Enclosure Ready LED Indicators: 1 - Error LED Indicators: 1 - eSATA Link LED Indicators: 1 - eSATA Activity Number of Drives: 4 Compatible Drives: 3.5" SATA Chipset ID: JMicron - JMB393 (Enclosure) Silicon Image: SIL3531 (Controller) Supported RAID Modes: BIG (Spanning or Concatenation) Supported RAID Modes: JBOD - (Just a Bunch of Disks) Supported RAID Modes: RAID 0 (Striped Disks) Supported RAID Modes: RAID 1 (Mirrored Disks) Supported RAID Modes: RAID 10 (1+0; Striped set of Mirrored Subset) Supported RAID Modes: RAID 5 (Striped Disks with Parity) Supported RAID Modes: CLONE (RAID 1 + Spare) Fans: 1 - 80 mm Fan Bearing Type: Ball Bearing Host Connectors: 1 - 7 pin eSATA DATA Male Drive Connectors: 4 - 22 pin SATA DATA and Power Combo Female Type and Rate: SATA 3 Gbit/s (SATA II) Power Adapter Included: Yes Input Voltage: 110 ~ 240 AC Output Voltage: 12 DC Output Current: 8330mA Center Tip Polarity: Positive Plug Type: M |
|---|
| Features | • Supports up to four 3.5" SATA I/II 2 Terabyte hard drives • Support for RAID 0, 1, 5, 10 (RAID 1+0), JBOD, Spanning, and Clone (Raid 1 + Spare). • Each hard drive bay is hot swappable featuring removable hard drive trays • A single rear eSATA connection that fully supports Port Multiplier functionality and is capable of managing/accessing each individual hard drive • Solid Aluminum Chassis and 80mm Fan increased Heat dissipation • Supports data transfer rates up to 3 Gbps • LEDs for Drive Activity, Raid Build Status, Error indicator, eSATA link, and eSATA Activity. • Includes a universal power adapter with power cables for the United Kingdoms, Europe, and North America |
|---|
| First Listed on Newegg | July 08, 2010 |
|---|
