What does the package include when purchasing the StarTech.com HDMI Over CAT6 Extender?

The package includes 1 x HDMI over CAT6 transmitter, 1 x HDMI over CAT6 receiver, 1 x universal power adapter, 1 x IR blaster, 1 x IR receiver, 2 x mounting brackets, 8 x rubber feet, and 1 x quick-start guide.

What is the maximum distance this HDMI over CAT6 extender can support for 4K resolution?

The maximum distance for 4K resolution is 70m (230 ft.) with support for 3840x2160 (4K) @ 60 Hz.

$467^.99

$496.99

This product is available for $467.54 from a Top Rated seller.

Limit 5 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

NothingButSavings

Top Rated

4.5 (8,976 total ratings)

$467^.54

Hot Deals 4 Less

Hot Seller

4 (3,701 total ratings)

$497^.48

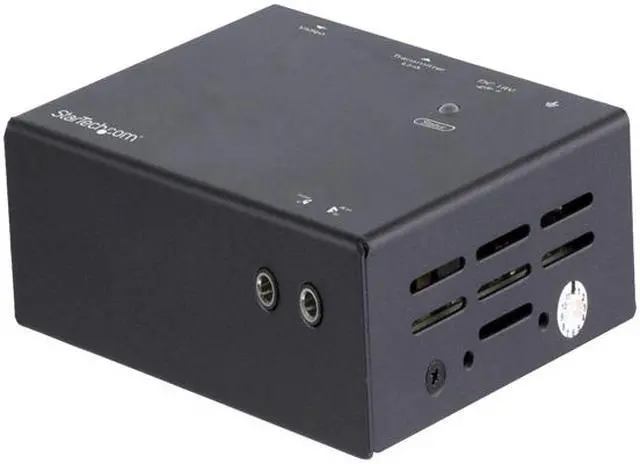

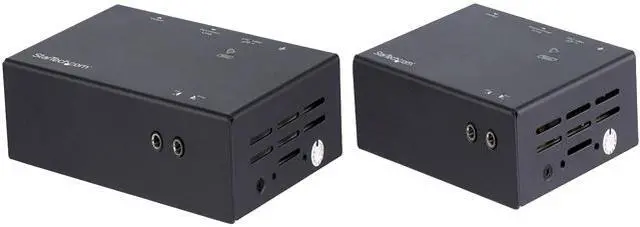

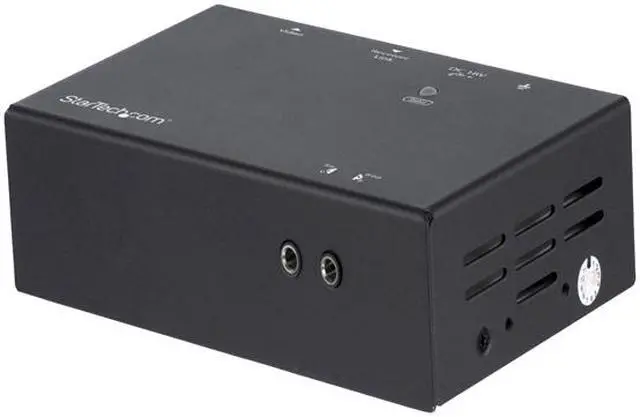

Main image of StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100m (330 ft.) ST121HDBT20L

Alt view image 2 of 5 - StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100m (330 ft.) ST121HDBT20L

Alt view image 3 of 5 - StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100m (330 ft.) ST121HDBT20L

Alt view image 4 of 5 - StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100m (330 ft.) ST121HDBT20L

Alt view image 5 of 5 - StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100m (330 ft.) ST121HDBT20L

Shop All STARTECH Products

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100m (330 ft.) ST121HDBT20L

Be the first to review this product...

Extend HDMI over CAT5/CAT6 cabling to a remote location with support for 4K 60Hz at 70m / 230 ft. and 1080p 60 Hz at 100m / 330 ft.
Hassle-free setup with video and power over a single CAT5e or CAT6 cable
Sleek professional installation with optional mounting hardware included with the 4K HDMI extender over CAT6
HDMI extender over CAT6 / 4K HDMI over CAT6 / HDMI extender over CAT5 / 4K HDMI over CAT5 / 4K HDMI over Ethernet / HDMI signal booster / HDMI repeater / Video extender

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Extend HDMI over CAT6 cabling to a remote location with support for 4K60Hz at 23

Model
Brand	StarTech.com
Model	ST121HDBT20L

Details
Housing	Aluminum

Performance
Resolution Support	3840x2160 (4K) @ 60 Hz 2560x1600 1920x1200 @ 60 Hz 1920x1080 (1080p) 1280x720 (720p)
Audio	7.1 Surround Sound

Connection
HDMI	Local Unit: 1 x HDMI (19-pin) Female Input Remote Unit: 1 x HDMI (19-pin) Female Output
Network Interface	Local Unit: 1 x RJ-45 Female Output Remote Unit: 1 x RJ-45 Female Input

Indicater
LED Indicator	1 x status LED (local) 1 x status LED (remote)

Power
Power Consumption	18W
Power Supply	Center Tip Polarity: Positive Input Current: 0.6A Input Voltage: 100 ~ 240V AC Output Current: 1A Output Voltage: 18V DC Plug Type: M Power Source: AC Adapter Included

Specification
Specification	Hardware: Audio: Yes Cabling: Cat 5e UTP or better Ports: 1 Performance: Max Distance: 330 ft. Maximum Cable Length: 328.4 ft. Maximum Digital Resolutions: Up to 70m: 4096 x 2160 (4K) @ 60 Hz Up to 100m: 1080p @ 60 Hz Wide Screen Supported: Yes Environmental Humidity: 0% - 80% RH (non-condensing) Operating Temperature: 0 to 40 celsius degree Storage Temperature: -10 to 60 celsius degree Physical Characteristics: Color: Black

Feature
Feature	Get astonishing video quality at impressive distances with UHD 4K 60 Hz resolution at up to 70m (230 ft.) and 1080p 60 Hz resolutions at up to 100m (330 ft.) Hassle-free setup with video and power over a single CAT5e or CAT6 cable Sleek professional installation with optional mounting hardware included Remotely control your video source from the location of your remote display, with support for IR extension

Dimensions & Weight
Dimensions	1.00" x 3.00" x 4.00"
Weight	0.24 lb.

Package Contents
Package Content	1 x HDMI over CAT6 transmitter 1 x HDMI over CAT6 receiver 1 x universal power adapter (NA/JP, EU, UK, ANZ) 1 x IR blaster 1 x IR receiver 2 x mounting brackets 8 x rubber feet 1 x quick-start guide

Additional Information
First Listed on Newegg	September 11, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
