What is the purpose of one HDMI input and 2 RJ45 outputs? Kinda like an HDMI splitter? also how do you turn it back into HDMI on the other end?

It uses two RJ-45 because in order to run HDMI signal over ethernet, you need 2 cables because it needs more than the 4 pairs that CAT5e/CAT6 have. All it does is extend HDMI using CAT5 cables, no where in the description does it mention anything about over network. We use this in an waiting room where the HDMI output device (in our case a bluray player) is in a closet, and we connected it to two RJ45 drops which run from the closet to the waiting area. James C gave this a bad review because he failed to read the description before buying.

Could I connect the two RJ-45 cables to a router?

No, is just from computer hdmi out to hdtv hdmi in , either. still have to load in my case ati video card drivers with hdmi audio to get both audio and video as well. 2 orange non shielded cat5-6 cables worked fine for resolution computer set to like 1280x720 max however. wont take 1600x1200 or larger but looks fine widescreen 16x9 on hdmi tv. perfectly.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

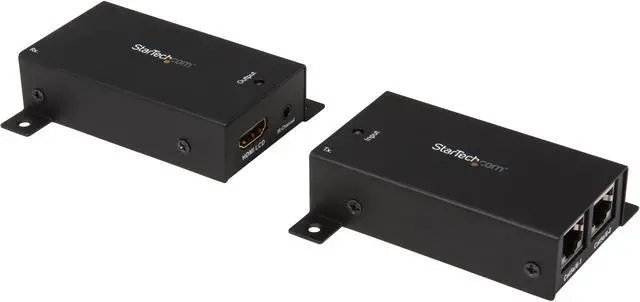

Main image of StarTech.com ST121SHD30 HDMI Over Dual CAT5 / CAT6 Extender with Infrared IR 100ft /30m HDMI Over Ethernet Cable Extender Power Free 1080p

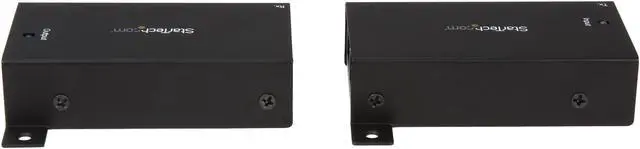

Alt view image 2 of 4 - StarTech.com ST121SHD30 HDMI Over Dual CAT5 / CAT6 Extender with Infrared IR 100ft /30m HDMI Over Ethernet Cable Extender Power Free 1080p

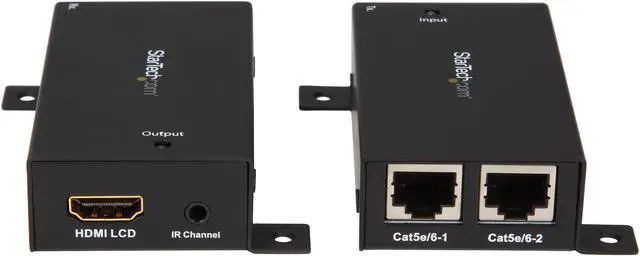

Alt view image 3 of 4 - StarTech.com ST121SHD30 HDMI Over Dual CAT5 / CAT6 Extender with Infrared IR 100ft /30m HDMI Over Ethernet Cable Extender Power Free 1080p

Alt view image 4 of 4 - StarTech.com ST121SHD30 HDMI Over Dual CAT5 / CAT6 Extender with Infrared IR 100ft /30m HDMI Over Ethernet Cable Extender Power Free 1080p

Shop All STARTECH Products

StarTech.com ST121SHD30 HDMI Over Dual CAT5 / CAT6 Extender with Infrared IR 100ft /30m HDMI Over Ethernet Cable Extender Power Free 1080p

(5) Write a Review

HDMI over dual CAT5 extender ensures hassle-free installation with bus-powered transmitter and receiver
Supports infrared extension for easy remote control of your video source using the HDMI over CAT5 with IR extender
Get crystal-clear picture quality with a 1080p HDMI extender
HDMI over dual CAT6/CAT5 extender installs easily and discreetly
HDMI transmitter and receiver kit supports 7.1 surround sound to create an immersive A/V experience

Overview

Specs

Reviews (5)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Extend HDMI up to 100ft (30m) over Cat5e6 Cabling with Power over Cable to Receiver.

Model
Brand	StarTech.com
Model	ST121SHD30

Performance
Distance	Maximum: 50 m/165 ft
Resolution Support	Maximum: 1080p/1920x1080

Indicater
LED Indicator	1 x Input 1 x Output

Specification
Specification	Cabling: Cat 5 UTP or better Ports: 1 Daisy-Chain: No Local Unit Connectors 1 x HDMI (19 pin) Female 2 x RJ-45 Female Remote Unit Connectors 2 x HDMI (19 pin) Female 2 x RJ-45 Female Wide Screen Supported: Yes Color: Black Enclosure Type: Aluminum Humidity: 0% - 80 % Operating Temperature: 0 C to 40 C (32 F to 104 F) Storage Temperature: -10 C to 60 C (14 F to 115 F)

Feature
Feature	Supports Cat5e and Cat6 Ethernet cabling Power over HDMI No software/drivers required Supports HD resolutions up to 1080p (1920x1080) Includes transmitter (local) and receiver (remote) units

Dimensions & Weight
Dimensions	3.2"(L) x 1.8"(W) x 0.9"(H)
Weight	0.5 lbs.

Package Contents

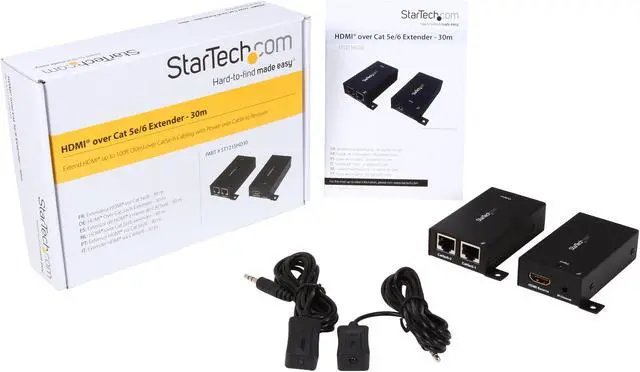

Package Content	HDMI over CAT5e/6 UTP Transmitter HDMI over CAT5e/6 UTP Receiver Foot Pad Set User Manual IR Extender Kit

Additional Information
First Listed on Newegg	November 06, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
