Extend dual source HDMI video over CAT6 to distances up to 295 ft. (90m) over a single CAT6 cable
1080p HDMI extender transmits two separate HDMI sources to two remote displays over one CAT6 cable
HDMI extender kit works as an HDMI signal booster to extend dual HDMI over ethernet up to 295 ft. (90m)
1080p over CAT5 / 1080p over CAT6 / HDMI over CAT5 extender / HDMI booster / HDMI over CAT6 / HDMI over single CAT6 / HDMI to CAT6 converter / HDMI to ethernet converter
Overview
Specs
Reviews
Extend dual source HDMI video over CAT6 to distances up to 295 ft. (90m) over a
Learn more about the STARTECH ST222HDBT
Model
Brand
StarTech.com
Model
ST222HDBT
Performance
Distance
295 ft. Maximum Cable Length: 295.2 ft.
Resolution Support
1920x1080 (1080p) 1280x720 (720p)
Audio
7.1 Surround Sound
Indicater

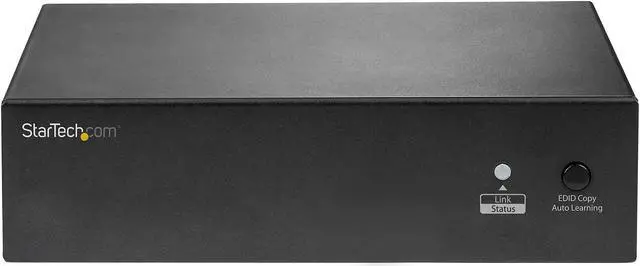

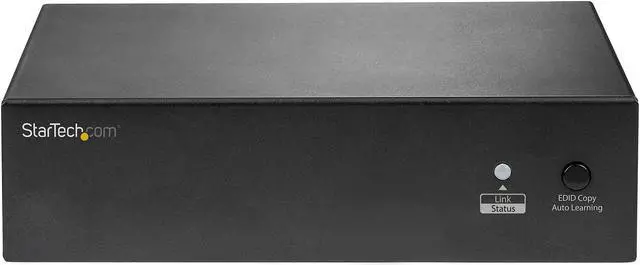

LED Indicator
1 x Link / Status
Power
Power Supply
Input Voltage: 100 ~ 240 AC Output Current: 1.5A Output Voltage: 12 DC Plug Type: M
Specification
Specification
Cabling: Cat 5e UTP or better
Chipset ID: VS2310TX VS2310RX
Maximum Digital Resolutions: 1920x1080 (1080p) @ 60 Hz
Wide Screen Supported: Yes

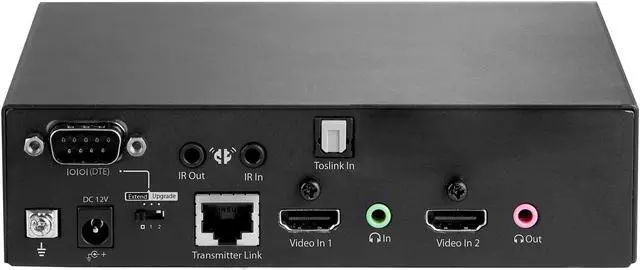

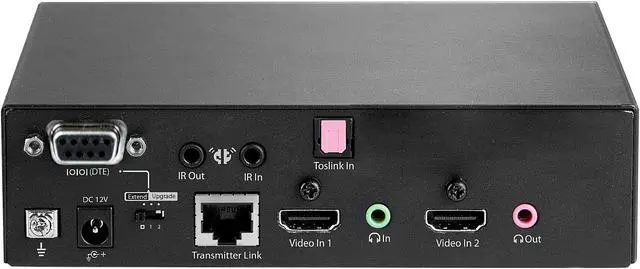

Connector A: 2 x HDMI (19-pin) Female Input 1 x Toslink (SPDIF, Optical) Female Input 1 x 3.5mm Audio Female Output 1 x 3.5mm Audio Female Input 1 x DB 9-pin Serial Male 1 x Infrared Female Input 1 x Infrared Female Output 1 x RJ-45 Female Output
Connector B: 2 x HDMI (19-pin) Female Output 1 x Toslink (SPDIF, Optical) Female Output 1 x 3.5mm Audio Female Output 1 x 3.5mm Audio Female Input 1 x DB 9-pin Serial Male 1 x Infrared Female Output 1 x Infrared Female Input 1 x RJ-45 Female Input
Humidity: 0% to 80% RH (nonxcondensing) Operating Temperature: 0 to 40 celsius degree Storage Temperature: -10 to 60 celsius degree
Feature
Feature
Extend two separate HDMI sources to their own HDMI 1080p displays with one CAT6 cable
Support for bi-directional IR signals, for remote control from either end of your extension
Extend two 1080p source signals up to 90m (295 ft.)
Includes mounting brackets
Dimensions & Weight
Dimensions
1.70" x 5.10" x 6.20"
Weight
0.44 lb.
Package Contents
Package Content

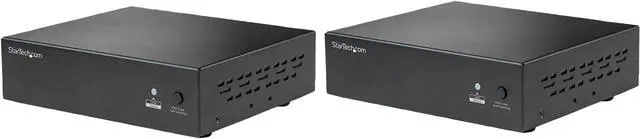

1 x HDMI transmitter 1 x HDMI receiver 2 x universal power adapters (NA/JP, EU, UK, ANZ) 2 x sets of mounting brackets 1 x IR blaster 1 x IR receiver 1 x CAT5 cable 8 x rubber feet 1 x user manual
