Question 1

Does this support recording AUDIO as well as the video?  I am not seeing a audio connector in any of the product photos or descriptions.

Accepted Answer

Yes, definitely.
The yellow RCA jack is the composite video. The red and white jacks are the right and left audio channels.
If you use the S-video connector for video, you still need to use the audio jacks to record/capture audio.

Question 2

Will this unit work with a Windows 10 operating system?

Accepted Answer

dependentcompatibilityHello. The answer is yes it will with qualifications. I installed it on two Win 10 units
and one a HP laptop had no issues. The other was a custom desktop (main machine)
with MSI motherboard. All video installed manually well but USB sound was showing
but not playing. All drivers working and checked. Went to program location for TotalMedia 3.5 and moved compatibility to Win 7. Program has worked fine since then. Seems to be more machine dependent than OS dependent as to issues.

Question 3

Will this work with a chromebook/Android based laptop?

Accepted Answer

It has a standard USB connection.  If you have one on your Android laptop it will work to connect things like a VCR, which is how I put it to use.

Question 4

Unit captures a/v great, but cannot record, what am I missing?

Accepted Answer

I made sure to use the editing software that came with the device.

Question 5

Would this device be recognized by Corel Video studio pro8 or any Corel Video editing software?

Accepted Answer

I don't believe that this device would be recognized by any other editing software other than the Movavi software that it comes with.  It probably is proprietary software for the Star Tech.  I have two other editing software and neither would recognize it.  It does work well.

Question 6

A/V capture works great but does not record on mac.  What am I missing to record??

Accepted Answer

I believe it is dependent on the program as my unit is recognized by CyberLink Total Media 3.5 and Pinnacle software.

Brand	StarTech.com
Model	SVID2USB23

Type	S-Video / Composite to USB
Color	Black
Cable Length	No
Specifications	Audio: Yes Chipset ID: eMPIA - EM2861 Converter Type: Format Converter Industry Standards: NTSC, PAL, SECAM; Video Encoding: MPEG 1, MPEG 2, and MPEG 4. Maximum Analog Resolutions: 720x480(NTSC) / 720x576(PAL) Maximum Data Transfer Rate : 480Mbps OS Compatibility: Windows 2000, XP, Vista, 7, 8, 8.1, 10; Apple OSX 10.6 - 10.13 Note: The MPEG 4 video file format is supported on the included SVID2USB23 Capture software for Mac and other third party DirectShow capture software such as OBS movavi video software does not support the MPEG4 video file format

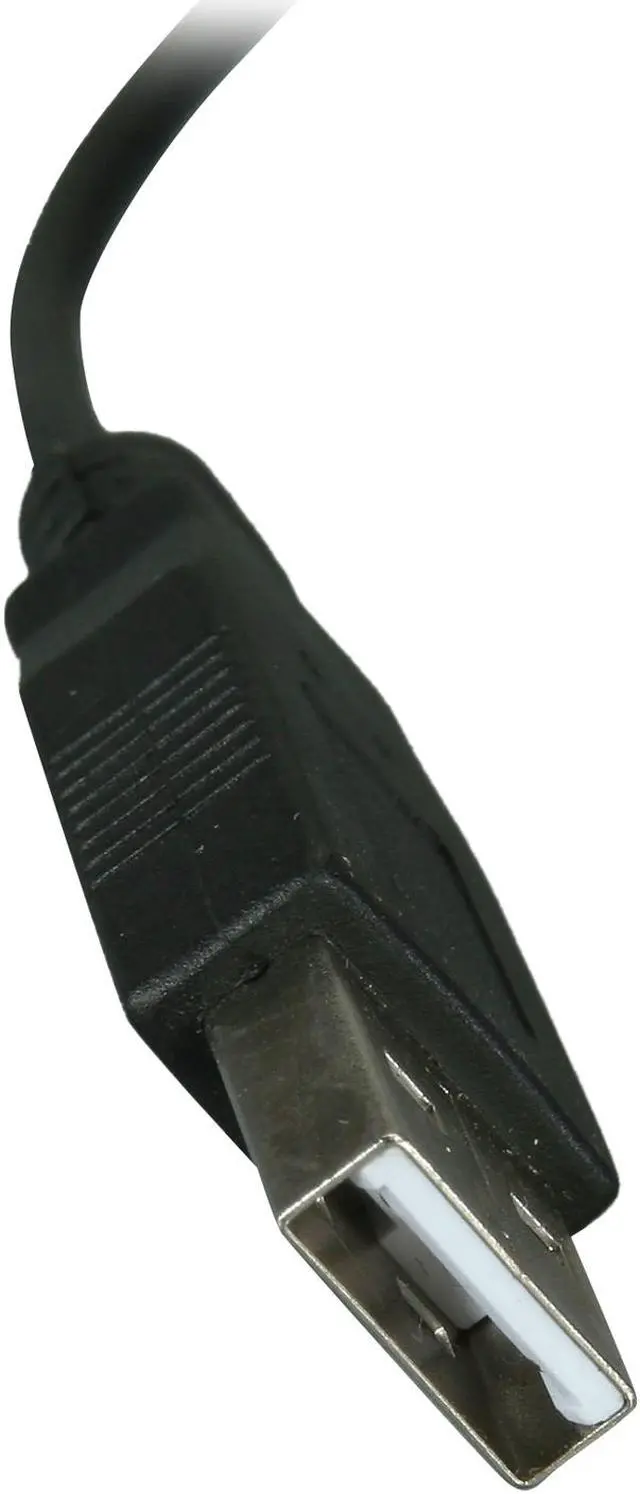

Connector A	1 x USB Type-A (4 pin) USB 2.0 Male Output

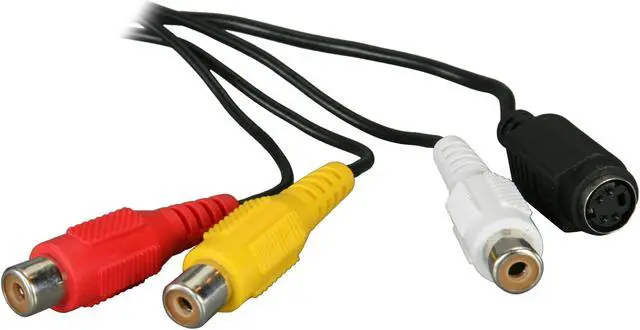

Connector B	1 x Composite Video (1 x RCA) Female Input 1 x Stereo Audio (2 x RCA) Female Input 1 x S-Video (4 pin, Mini-DIN) Female Input
Audio	Yes

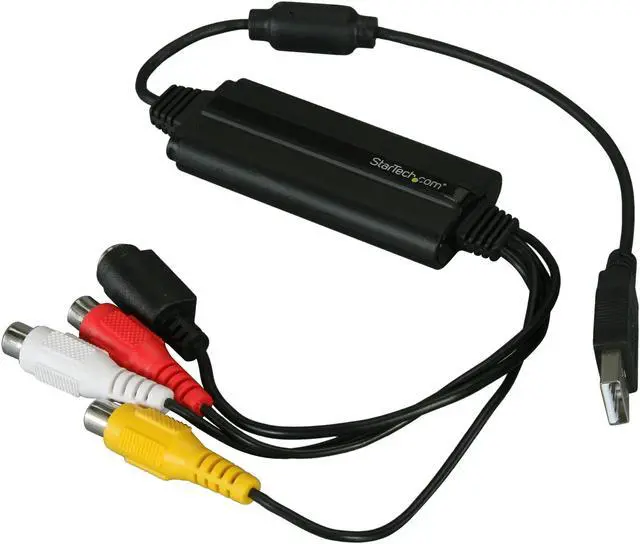

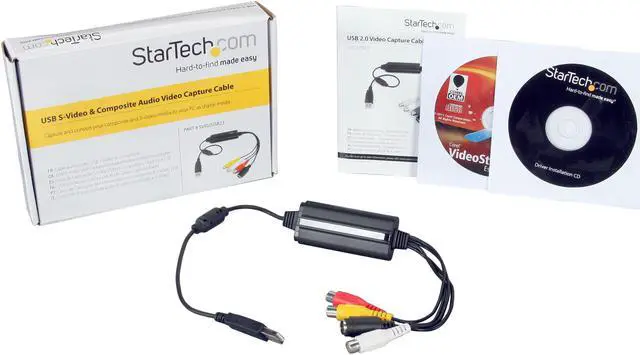

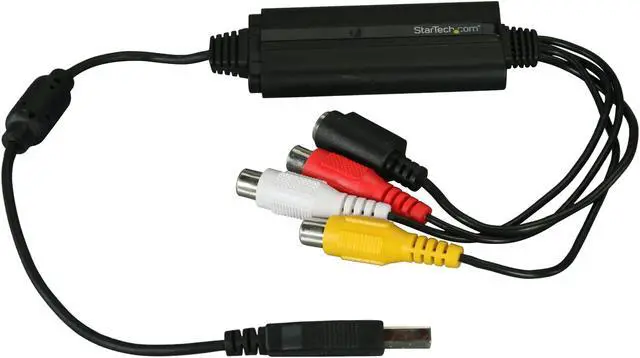

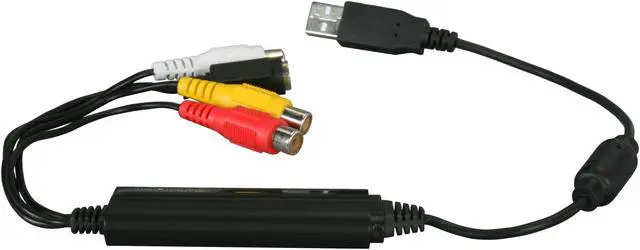

StarTech.com SVID2USB23 S-Video / Composite to USB Video Capture Cable Adapter w/ TWAIN and Mac Support - VHS to USB Composite Svideo
