This 10100Base to 100BaseFX Multimode (SC) Ethernet Media converter supports a maximum fiber cable distance of 2km ensuring a highly reliable signal for ideal network connectivity and performance.
Learn more about the STARTECH MCM110SC2P
Model
Brand
StarTech.com
Model
MCM110SC2P
Details
Device Type
Other
Standards
IEEE802.3, IEEE 802.3u
Wavelength
1310nm
Protocols
TCP/IP
Ports
1 - Fiber Optic SC Female 1 - RJ45 Female
Max Distance
1.24 Miles (2 km)
Features
Feature

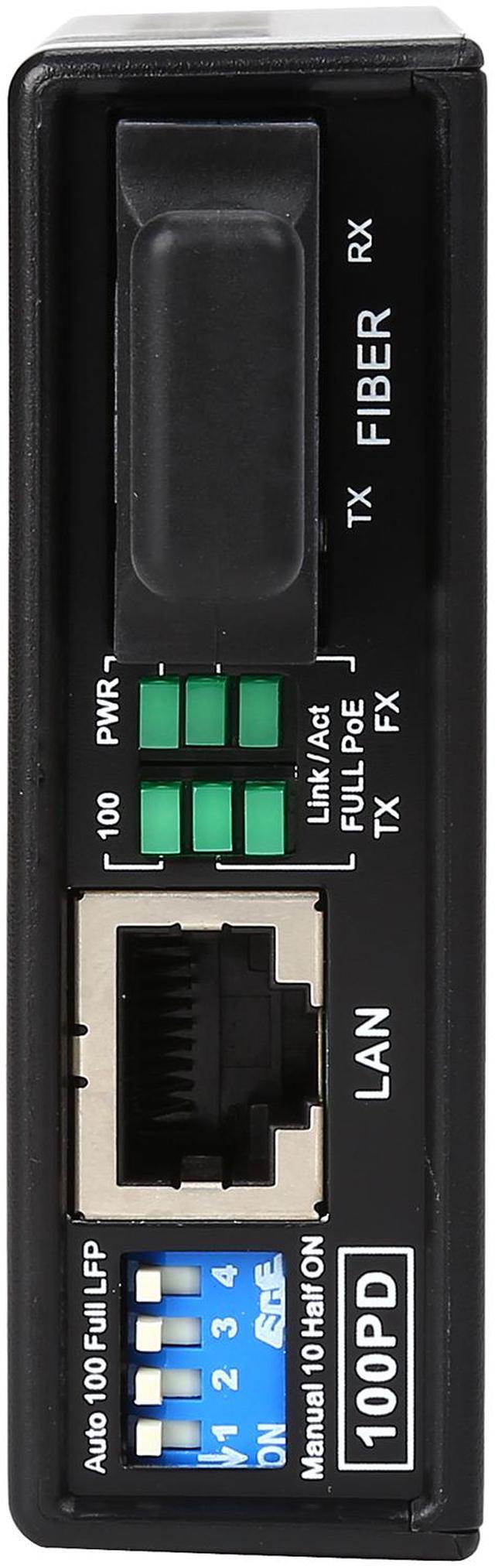

Auto – negotiation of 10/100 Mbps and Auto – Crossover for TX port. Auto detects half/full duplex transfer mode from the TX port. Can be powered over RJ45 ethernet with a PoE enabled network Fiber Support: Cable Type- 62.2/125µm, 50/125µm - 2km Range Forward 1600 bytes (Max.) packets It’s compact design and weight makes it portable and unobtrusive to carry Led Indicators Provides switch configuration of half/full duplex transfer mode for FX port. Support flow control (Pause) and Link Fault Pass through (LFP) Supports 802.3af Power over Ethernet (only FMC-10/100P) Supports a maximum multimode fiber optic cable distance of 2km Supports IEEE 802.1q Tag VLAN pass thru Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards Supports Q in Q double tagged frame transparent
