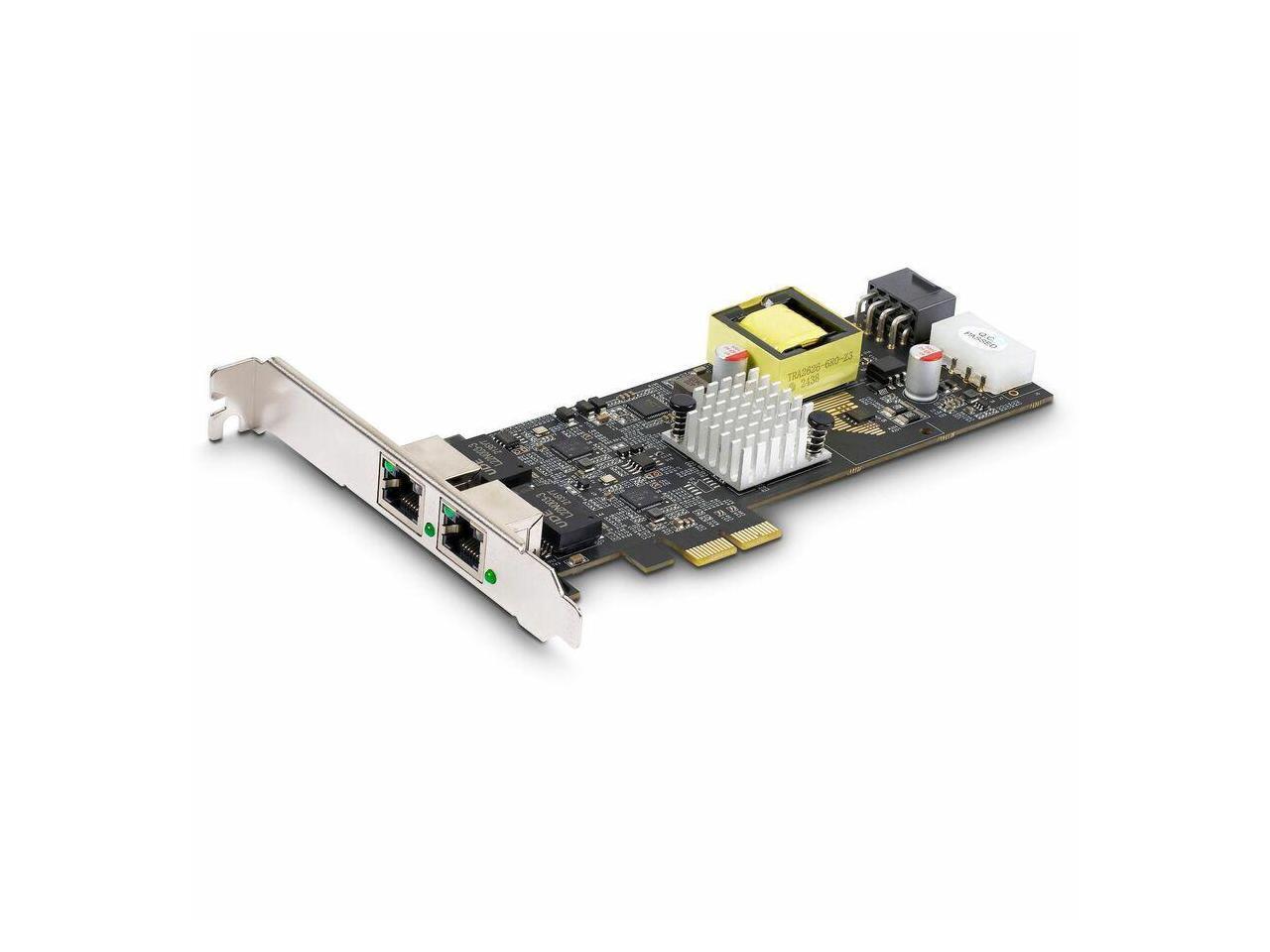

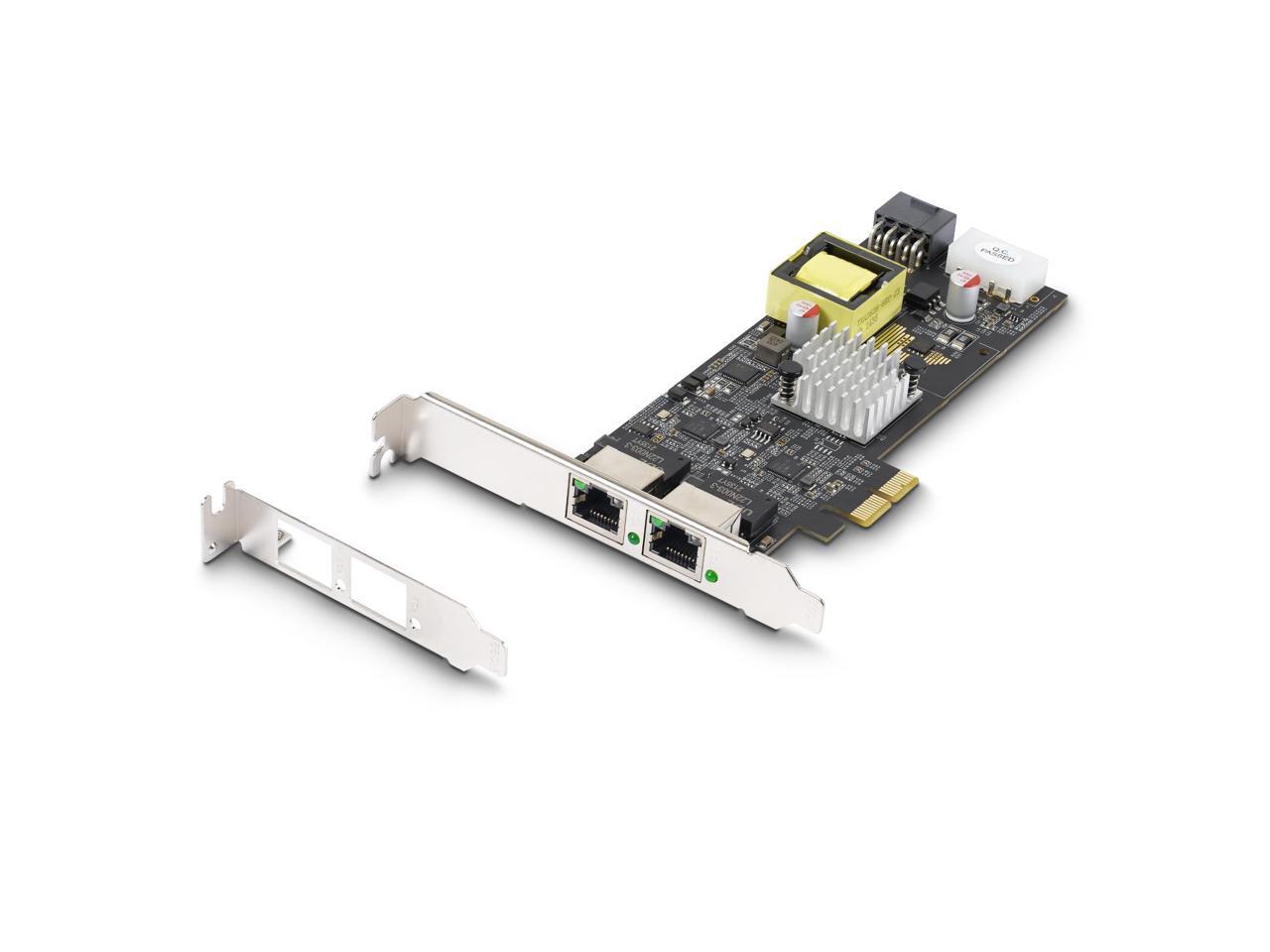

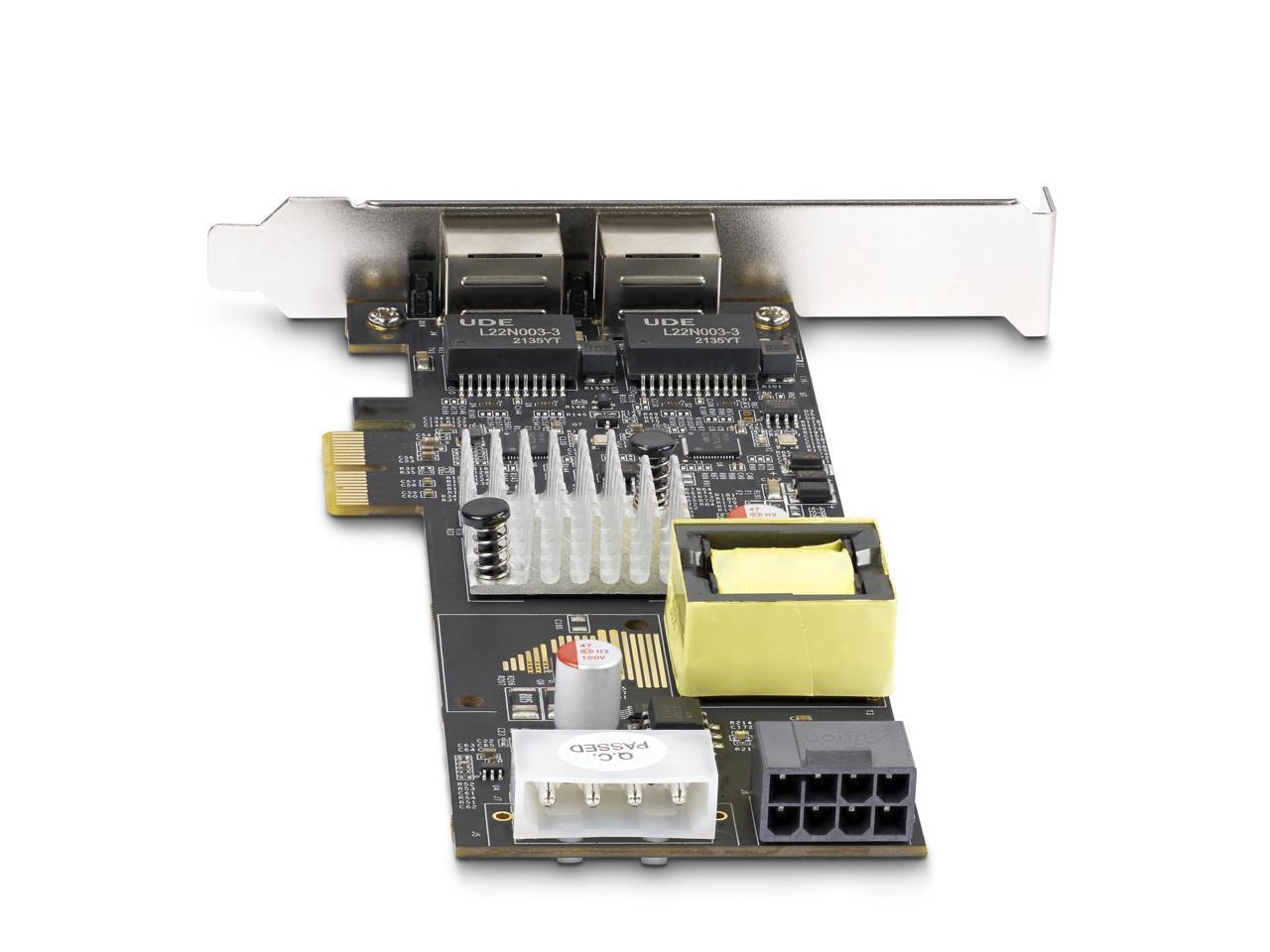

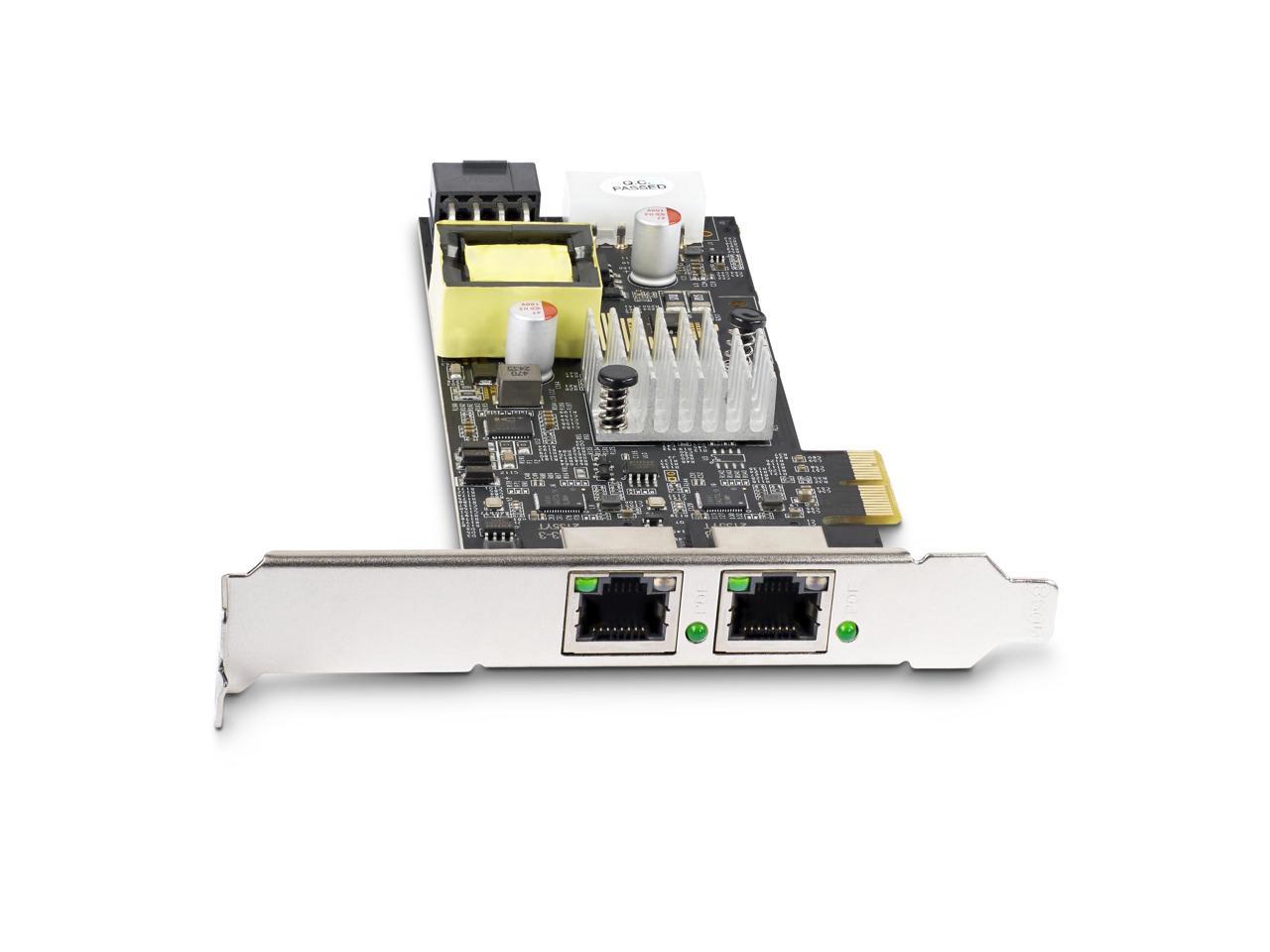

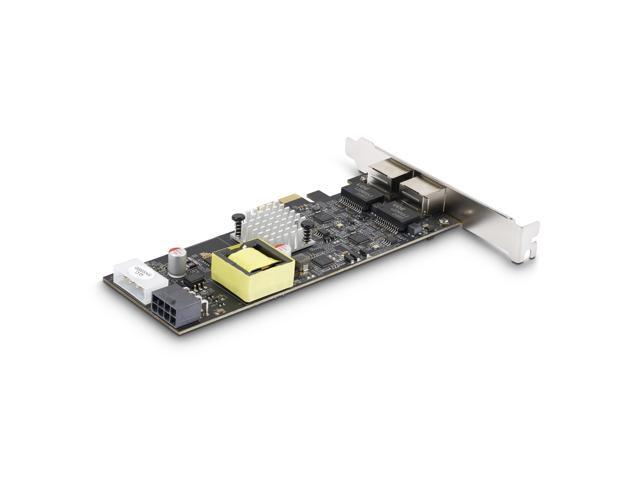

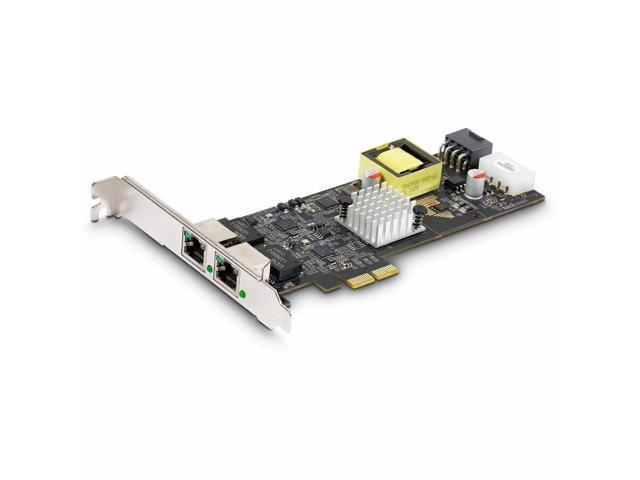

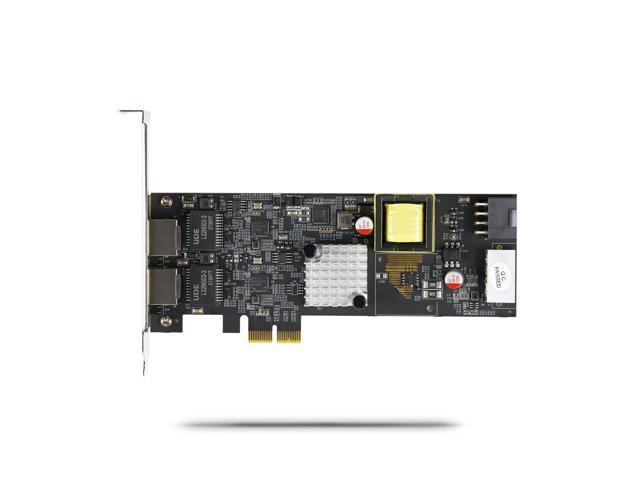

StarTech 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered Model PR22GIP-NETWORK-CARD
- Warranty
- 2 Years
- Connector(s)
- Connector Type(s)
- 1 - PCI Express x2
- Internal Ports
- 1 - 4 pin Power (LP4) Female
- 1 - 8 pin (6+2) PCIe Power Female
- External Ports
- 2 - RJ-45 (PoE+)
- Environmental
- Operating Temperature
- 0°C to 55°C (32°F to 131°F)
- Storage Temperature
- 10°C - 70°C (14°F - 158°F)
- Humidity
- 5% - 90% RH
- Hardware
- Ports
- 2
- Interface
- RJ45 (2.5G Ethernet)
- Bus Type
- PCI Express
- Card Type
- Standard Profile (LP bracket incl.)
- Industry Standards
- IEEE 802.3at Power over Ethernet
- IEEE 802.3af Power over Ethernet
- IEEE 802.3bz (2.5GBASE-T)
- IEEE 802.3ab (1000BASE-T )
- IEEE 802.3u (100BASE-TX )
- IEEE 802.3i (10BASE-TX)
- IEEE 802.1Q (VLAN)
- IEEE 802.1p (QoS)
- IEEE 802.1AS (AVB)
- IEEE 802.1X (WoL)
- IEEE P802.3az (EEE)
- IEEE 1588 (PTP)
- PCI Express Version 2.0
- Chipset ID
- Intel - I225-V
- Indicators
- LED Indicators
- 2 - Left LED Indicator is Link Status
- Solid Green: Active Link
- Flashing Green: Activity
- 2 - Right LED Indicator is Link Speed
- Solid Green: 2.5 Gbps
- Solid Amber: 1.0 Gbps
- Off: 100 or 10 Mbps
- Packaging Information
- Package Height
- 1,5 in [3,8 cm]
- Package Length
- 5,7 in [14,4 cm]
- Shipping (Package) Weight
- 3,7 oz [106,0 g]
- Package Width
- 8,1 in [20,7 cm]
- Performance
- Wake On Lan
- Yes
- Maximum Data Transfer Rate
- 2.5Gbps
- Compatible Networks
- 2.5G/1G/100Mbps/10Mbps
- Auto MDIX
- Yes
- PXE
- Yes
- Full Duplex Support
- Yes
- Jumbo Frame Support
- 9K max.
- Promiscuous Mode
- Yes
- Physical Characteristics
- Color
- Black
- Product Height
- 0,8 in [2,2 cm]
- Product Length
- 7,1 in [18,0 cm]
- Weight of Product
- 3,9 oz [111 g]
- Product Width
- 4,8
- $209.99 –
