What are the external dimensions of the StarTech RK12WALHM Wall Mount Server Rack Cabinet?

The external dimensions are 25.1 in height, 23.6 in width, and 21.7 in depth.

What is the weight capacity of the StarTech RK12WALHM Wall Mount Server Rack Cabinet?

The weight capacity is 198.90 lbs.

$500^.99

This item is not returnable

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

Hot Deals 4 Less

Hot Seller

4 (3,718 total ratings)

$989^.55

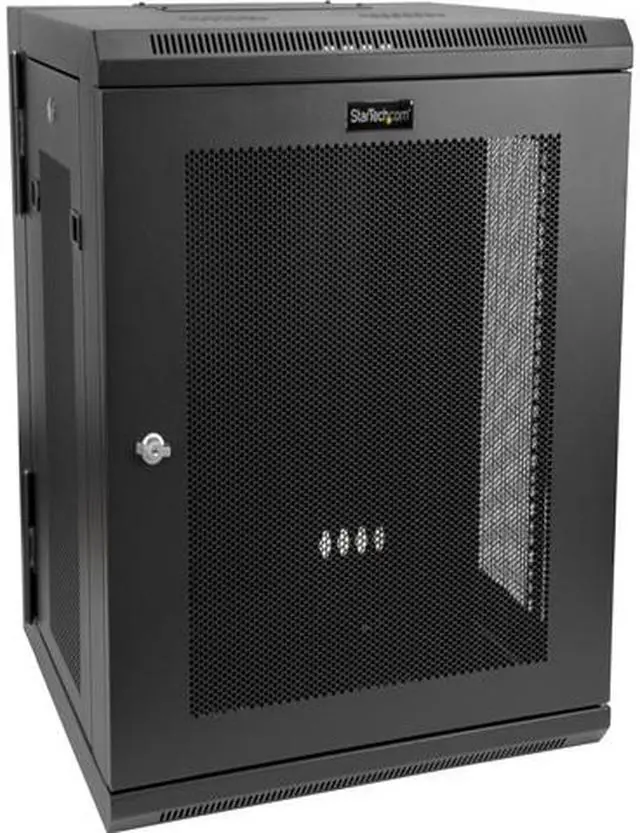

Main image of StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 2 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 3 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 4 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 5 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 6 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 7 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 8 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Alt view image 9 of 9 - StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

Shop All STARTECH Products

StarTech RK12WALHM Wall Mount Server Rack Cabinet - 12U Rack - 17" Deep - Hinged Enclosure - Network Rack - Server Cabinet

(4) Write a Review

Style: 12U - 17" Deep

12U - 17" Deep
12U - 24" Deep
12U - 32" Deep
15U - 20" Deep
18U - 20" Deep
26U - 20" Deep
6U - 11" Deep
6U - 14.8" Deep
9U - 14.6" Deep
9U - 18.9" Deep

Use this wall-mount network cabinet to mount your server or networking equipment to the wall
1U shelf included

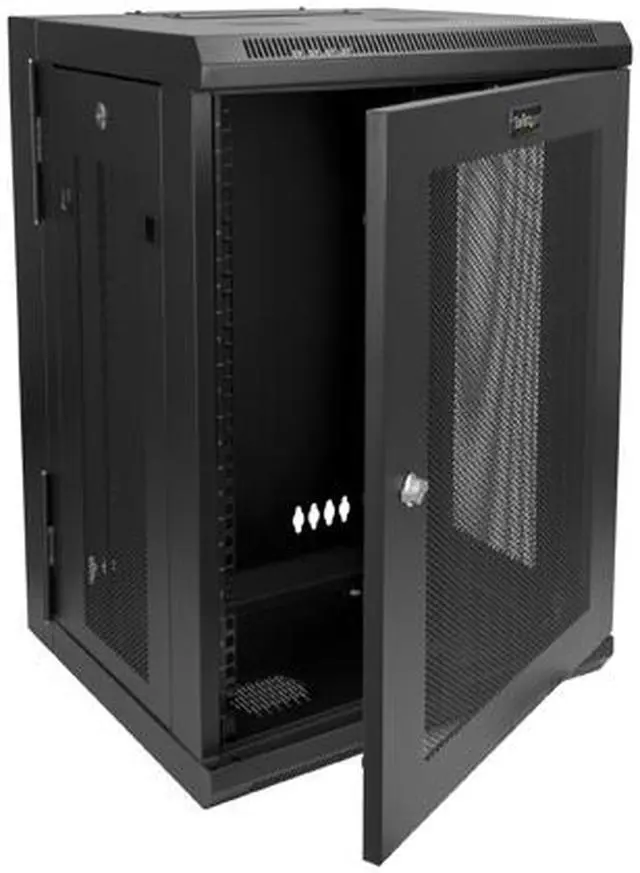

Hinged enclosure for easy access
Save space with a wall mount network rack cabinet
Secure your equipment with a locked wall mount server rack cabinet
Network enclosure / Server cabinet / Wall mount rack / Wall mount data rack

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (4)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Use this wall mount network cabinet to mount your server or networking equipment

Model
Brand	StarTech.com
Model	RK12WALHM

Details
Type	Wall Mount Cabinet
Rack Units	12U
Color	Black
Weight Capacity	198.90 lbs.
Specification	Back Door Construction: Solid Steel Frame Type: Enclosed Cabinet Front Door Construction: Steel Mesh Front Door Key Lock: Yes Front Door Reversible and / or Removable: Removable, Reversible Rack Type: 4-Post Side Panel Construction: Steel Mesh Style: Wall-Mount Wall mountable: Yes Enclosure Type: Steel External Depth: 21.7 in [55 cm] External Height: 25.1 in [63.7 cm] External Width: 23.6 in [60 cm] Internal Depth: 20.9 in [53 cm] Internal Height: 21 in [53.4 cm] Internal Width: 17.7 in [45 cm] Maximum Mounting Depth: 16.1 in [41 cm] Minimum Mounting Depth: 2.4 in [6 cm]

Features
Features	Save space by wall-mounting your servers or networking equipment Hassle-free access with a hinged cabinet Easily install your equipment with adjustable mounting rails Secure your mission-critical equipment with a locked enclosure Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes 1U shelf and hook-and-loop cable tie included
Included Accessory	1 x wall-mount enclosure 1 x 1U shelf 1 x roll of hook-and-loop fastener 48 x 12-24 cage nuts 48 x 12-24 screws 2 x door keys 2 x side panel keys 1 x instruction manual

Dimension & Weight
Unit Dimension	25.10" x 23.60" x 21.70"
Shipping Weight	68.50 lbs.

Additional Information
First Listed on Newegg	December 06, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
