What are the dimensions of the StarTech RK15WALLO Wall Mount Server Rack?

The external dimensions are 30.5 in height, 19.9 in width, and 12.2 in depth.

What is the weight capacity of the StarTech RK15WALLO Wall Mount Server Rack?

The weight capacity of the StarTech RK15WALLO Wall Mount Server Rack is 198.90 lbs.

$144^.99

This item is not returnable

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to wish list

Best Sellers

Hot Deals 4 Less

Top Rated

4 (3,717 total ratings)

$194^.62

NothingButSavings

Top Rated

4.5 (9,002 total ratings)

$154^.10

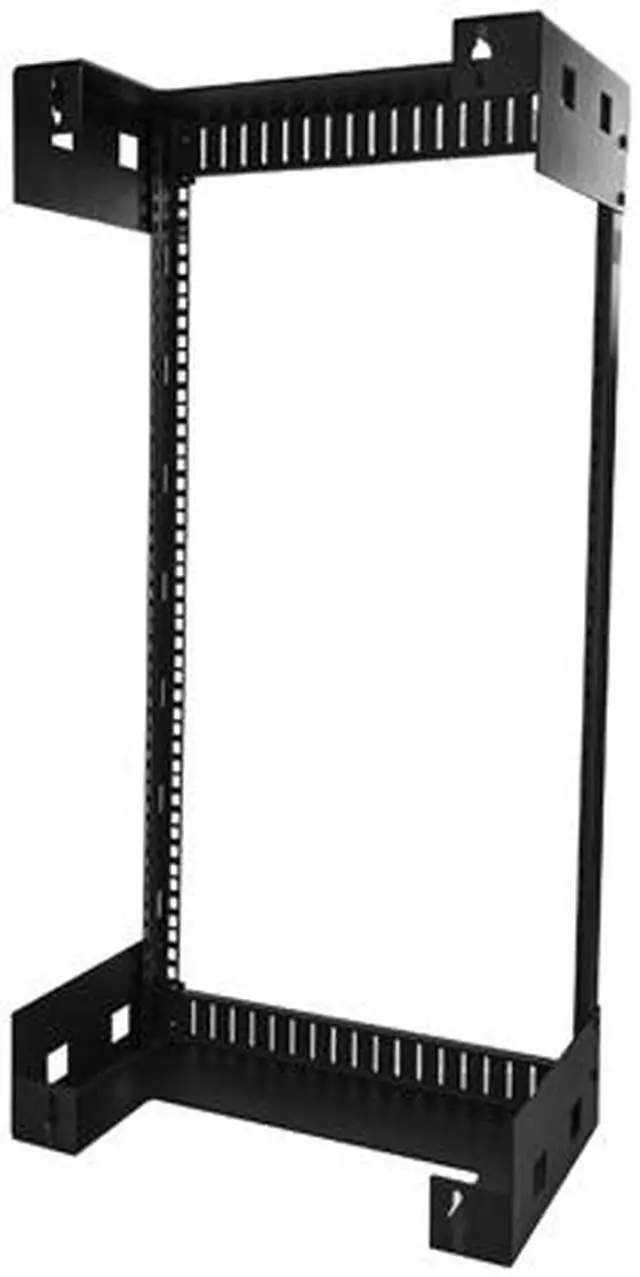

Main image of StarTech RK15WALLO Wall Mount Server Rack - 15U Rack - 12 in Deep - Open Frame - Network Rack - Wall Mount Rack - Equipment Rack - 2 Post Rack

Alt view image 2 of 4 - StarTech RK15WALLO Wall Mount Server Rack - 15U Rack - 12 in Deep - Open Frame - Network Rack - Wall Mount Rack - Equipment Rack - 2 Post Rack

Alt view image 3 of 4 - StarTech RK15WALLO Wall Mount Server Rack - 15U Rack - 12 in Deep - Open Frame - Network Rack - Wall Mount Rack - Equipment Rack - 2 Post Rack

Alt view image 4 of 4 - StarTech RK15WALLO Wall Mount Server Rack - 15U Rack - 12 in Deep - Open Frame - Network Rack - Wall Mount Rack - Equipment Rack - 2 Post Rack

Customer images

Shop All STARTECH Products

StarTech RK15WALLO Wall Mount Server Rack - 15U Rack - 12 in Deep - Open Frame - Network Rack - Wall Mount Rack - Equipment Rack - 2 Post Rack

(13)(1) Write a Review

Style: 15U - Standard Mount

12U - Adjustable Rails
12U - Hinged
12U - Standard Mount
15U - Adjustable Rails
15U - Standard Mount
6U - Hinged
8U - Adjustable Rails
8U - Hinged
8U - Standard Mount

Save space by mounting your equipment on the wall
Easy installation with mounting holes spaced 16 in. apart to match standard wall studs
Comes in a flat-pack making it easy to transport
Network rack / Wall mount rack / Computer rack / Wall mount network rack / 15U server rack / 2 post rack / 15U wall-mount rack / Open frame rack / Open frame server rack / 15U network rack / 15U Rack / 15u open frame rack

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (13)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Mount your server or networking equipment using this 15U wall mount rack - 15U w

Model
Brand	StarTech.com
Model	RK15WALLO

Details
Type	2 Post Open Frame Rack
Rack Units	15U
Color	Black
Weight Capacity	198.90 lbs.
Specification	Industry Standards: EIA-310-D Ladder Offset: 0.4 in [10 mm] Ladder Type: G-Shape Mounting Holes: Square Number and Type of Included Cage Nuts: 60 - M6 Style: Wall-Mount U Markings: Yes Wallmountable: Yes External Depth 12.2 in [310 mm] External Height 30.5 in [77.5 cm] External Width 19.9 in [50.5 cm] Internal Depth 11.5 in [29.2 cm] Internal Height 26.3 in [66.8 cm] Internal Width 18.3 in [46.5 cm]

Features
Features	Save space by mounting your equipment on the wall Easy installation with mounting holes spaced 16 in. apart to match standard wall studs Comes in a flat-pack making it easy to transport Open frame provides passive cooling for equipment
Included Accessory	60 x M6 screws 60 x M6 cage nuts 60 x washers 16 x assembly screws 2 x vertical rails 2 x horizontal brackets 1 x instruction manual

Dimension & Weight
Unit Dimension	30.50" x 19.80" x 12.00"
Unit Weight	21.40 lbs.
Shipping Weight	25.70 lbs.

Additional Information
First Listed on Newegg	March 27, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Contact Manufacturer for Assistance
This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.
