What's the maximum height drive that will fit in this enclosure?

I couldn't tell you for sure, but my Samsung 840 Evo fit just fine. I imagine most SSD's should fit, but I don't know about 2.5" HDD's. Sorry I can't be of more help.

I bought the StarTech item S2510U33RUSM so I'd have the USM receiver for a 5.25" bay, evan though it works fine in USM receiver of my Seagate NAS?

Please read and restate your question.

here!

I’m your shopping assistant for PC builds, upgrades, and everything tech.

Got questions? Ask away!

Start a conversation

Help

Hey!

How can we help you today?

Track a package

Start a return

Cancel an order

Resolve a payment issueBilling, declined cards, and payment method update

My Account & SecurityUpdate passwords and security settings

Need more help?

Visit Help Center

Guest account

Build Tools & Resources

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

More Resources

Manufacturer Brochure

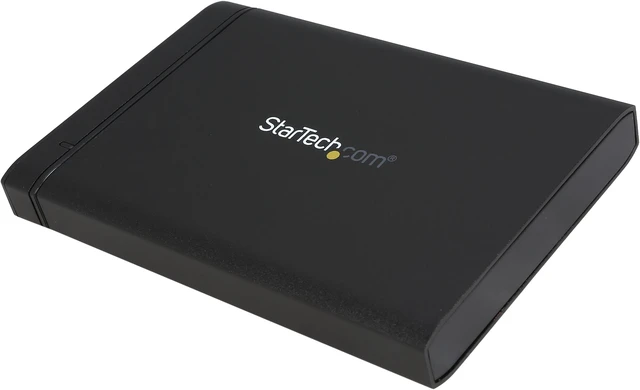

Main image of StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

100%

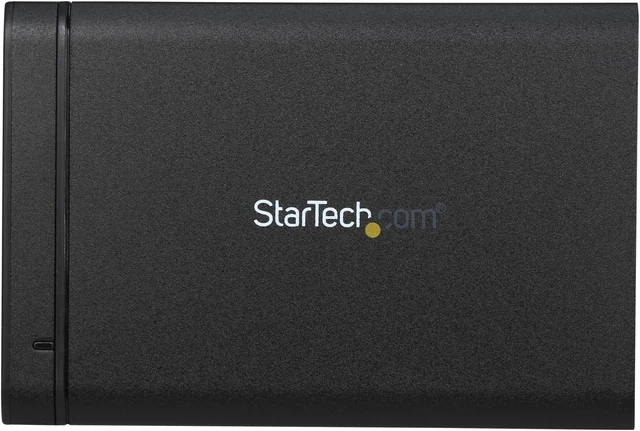

Alt view image 2 of 8 - StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

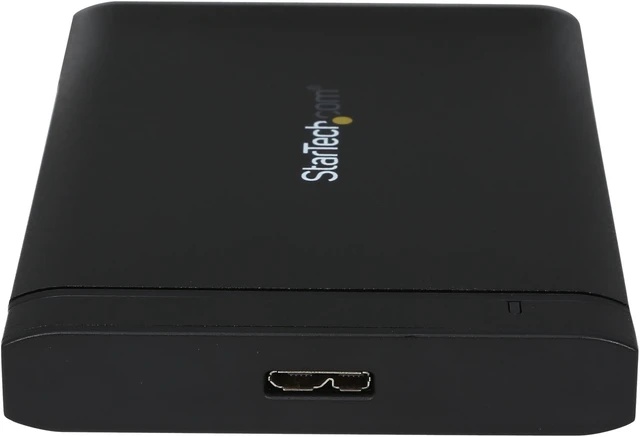

Alt view image 3 of 8 - StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

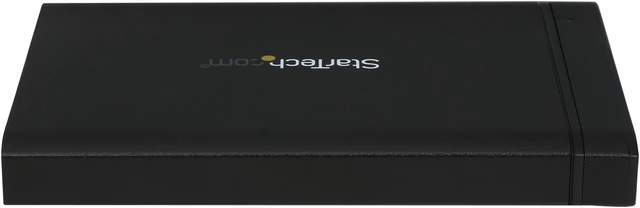

Alt view image 4 of 8 - StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

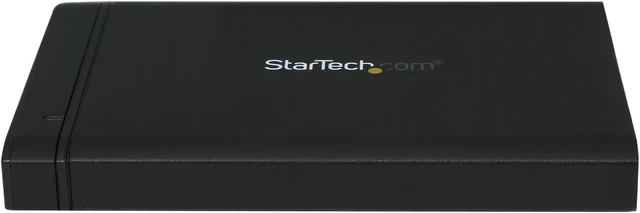

Alt view image 5 of 8 - StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

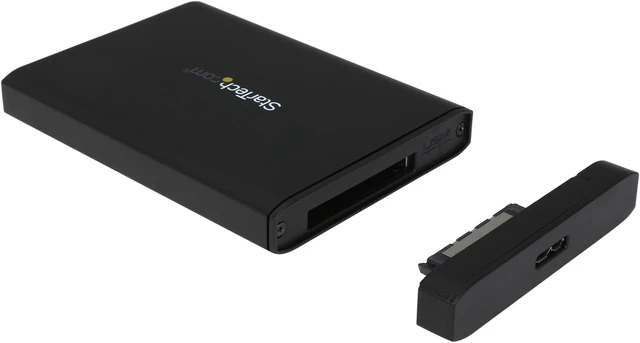

Alt view image 6 of 8 - StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

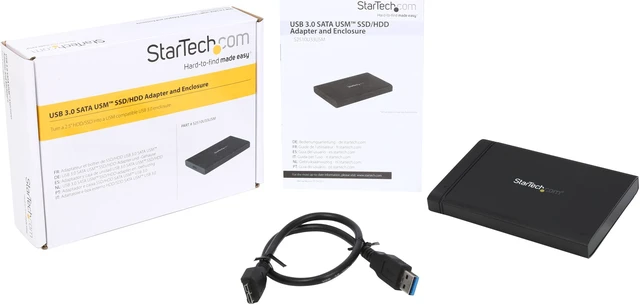

Alt view image 7 of 8 - StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

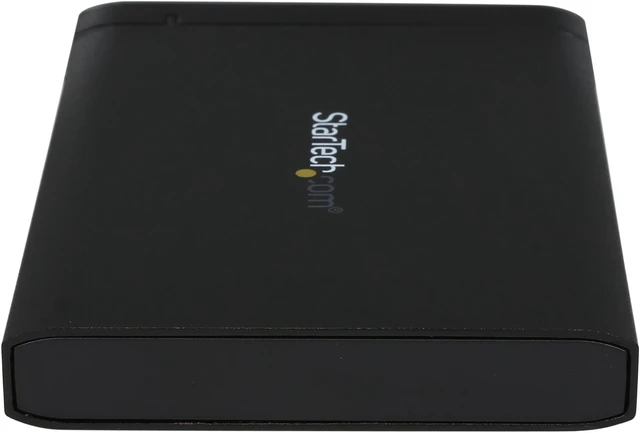

Alt view image 8 of 8 - StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

360^°

Shop All STARTECH Products

StarTech.com 2.5" SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM)

(4) Write a Review

2.5"
USB 3.0
Aluminum / Plastic

Overview

Specs

Reviews (4)

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Model
Brand	StarTech.com
Model	S2510U33USM

Details
Color	Black
Size	2.5"
Type	others
Material	Aluminum / Plastic
Internal Interface	SATA III
External Interface	USB 3.0
Fan	No
Specifications	Chipset ID: ASM1053-6G/ Asmedia Drive Installation: Fixed Drive Size: 2.5in Drive Type: SATA Interface: SATA Interface: USB 3.0 Number of Drives: 1 Drive Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle Host Connectors: 1 - USB 3.0 Micro-B (10 pin; SuperSpeed) Host Connectors: 1 - USM (22 pin SATA Data & Power) Female Host Connectors: USB 3.0 B (9 pin; SuperSpeed) Female Type and Rate: SATA III (6 Gbps) Type and Rate: USB 3.0 - 5 Gbit/s UASP Support: Yes

Compatibility
Operating Systems Supported	Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit) Mac OS X (tested up to 10.8) Linux

Features
Features	Designed for Front-Mount Installation with S2510U33RUSM 5.25" USM Bay Fully compatible with Seagate GoFlex, and other USM devices USB 3.0 to USM Enclosure Adapter Included UASP Compliant SuperSpeed USB 3.0 compliant host interface supporting data transfer rates up to 5Gbps Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD) Plug-and-Play and Hot-Swap compatible UL94 V0 Flammability rating

Dimensions & Weight
Dimensions	0.4" x 4.7" x 3.2" (H x L x W)
Weight	0.21 lbs.

Package Contents
Package Contents	1 - 2.5" USM HDD Enclosure 1 - USM to USB 3.0 interface adapter 1 - Micro USB 3.0 Cable 1 - Instruction Manual
