Is Windows UASP driver required? Will it work on Win-7 w/o UASP? (as ordinary USB 3.0 device?)

Yes it will. The UASP will add the functionality of being able to remove and add drives without dismounting what's already there.

Will this work with win xp3 with usb 2.0 and can it be set up in a raid array ?

I honestly can't say anything about the RAID issue except that over a 3.0 line it would be tons slower that on the mobo. My application is data storage and I think it does a great job working with all 4 HDD grinding out the bits. Transfer between the drives in the dock seems really fast and I've had no problems with errors. Heck I've got no issues with this Dock at all. The fans do wonders at keeping things cool. I even have the Startech IDE adapter that I use with old drives just for backups of backups. Remember redundancy is an imperative in the data game....

$208^.99

Limit 99999 per customer.

Make an offer

Price alert

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

More Resources

Manufacturer Brochure

User Manual

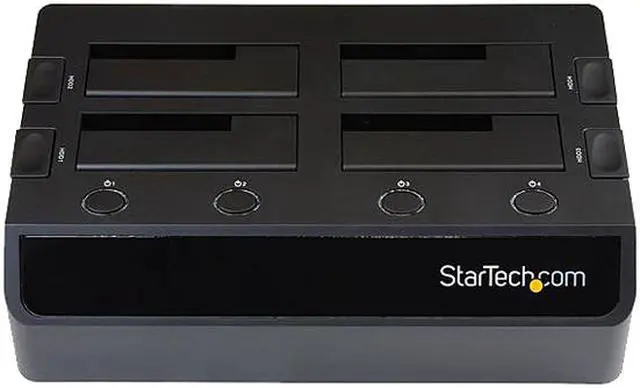

Main image of StarTech.com USB 3.0 to 4-Bay SATA 6Gbps Hard Drive Docking Station w/ UASP & Dual Fans - 2.5/3.5in SSD / HDD Dock

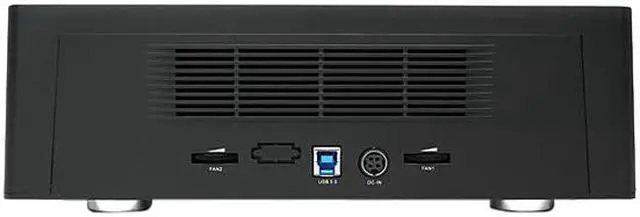

Alt view image 2 of 3 - StarTech.com USB 3.0 to 4-Bay SATA 6Gbps Hard Drive Docking Station w/ UASP & Dual Fans - 2.5/3.5in SSD / HDD Dock

Alt view image 3 of 3 - StarTech.com USB 3.0 to 4-Bay SATA 6Gbps Hard Drive Docking Station w/ UASP & Dual Fans - 2.5/3.5in SSD / HDD Dock

Shop All STARTECH Products

StarTech.com USB 3.0 to 4-Bay SATA 6Gbps Hard Drive Docking Station w/ UASP & Dual Fans - 2.5/3.5in SSD / HDD Dock

(40) Write a Review

Number of Bay: 4 Bay

2 Bay
4 Bay

Size: USB 3.0

USB 3.0
USB 3.0 / eSATA
USB 3.0 (SATA / IDE)
USB 3.1 (10Gbps)

Connect and swap four 2.5/3.5” SATA drives or SSD through USB 3.0
Support SATA III (6 Gbps) and UASP for optimal performance-- Compatible with USB enabled computer systems such as Dell Optiplex & Apple Mac & MacBook and SATA 2.5in/3.5in hard drives
Hard Drive Dock / Four Bay Dock / Hard Drive Docking Station / SATA Dock / Hard Drive Docking Station with UASP / SATA HDD Docking Station / Hot Swap Hard Drive Dock
Replacement for SATDOCK4U3

Overview

Specs

Reviews (40)

Any questions? Our AI beta will help you find out quickly.

Try me now

Connect and swap four 2.5/3.5in SATA III (6 Gbps) drives through USB 3.0 with UA

Model
Brand	StarTech.com
Model	SDOCK4U33

Details
Color	Black
Type	others
Material	Plastic
Internal Interface	SATA I/II/III
External Interface	USB 3.0 w/UASP & SATA III
HDD Count Supported	Dual HDD
Number of Bay	4 Bay
Specifications	Chipset ID: VL812+ASM1053E Color: Black Compatible Drive Types (Type and Rate): SATA Drive Connectors: SATA Data & Power Combo (7+15 pin) Receptacle Drive Installation: Removable Drive Size: 2.5in & 3.5in Enclosure Type: Plastic Fan(s): Yes Fans: 40 mm Host Connectors: USB 3.0 B (9 pin ; SuperSpeed) Female Humidity: 20%RH ~ 80%RH Included in Package: Instruction manual Universal power adapter (NA/EU/UK/AUS) USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock USB 3.0 Cable Input Current: 2.5A Input Voltage: 100 ~ 240 AC Insertion Rating: 15,000 Cycles Interface: USB 3.0 LED Indicators: Drive power/activity LED Max Drive Capacity: Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total) Number of Drives: 4 OS Compatibility: Windows® 8/8.1 (32/64bit), 7 (32/64bit), Server 2008 (32/64), Vista(32/64), Server 2003 (32/64) XP(32/64), 2000 Apple® Mavericks (10.9) OSX Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6) Linux Google Chrome™ OS Output Current: 6.5 A Output Voltage: 12 DC Product Height: 85 mm [3.3 in] Product Length: 285 mm [11.2 in] Product Weight: 1035 g [36.5 oz] Product Width: 171.2 mm [6.7 in] Shipping (Package) Weight: 2179 g [76.9 oz] Type and Rate: USB 3.0 - 5 Gbit/s UASP Support: Yes

Features
Features	Connect and swap four 2.5/3.5” SATA drives or SSD through USB 3.0 Support SATA III (6 Gbps) and UASP for optimal performance Compatible with USB enabled computer systems such as Dell Optiplex & Apple Mac & MacBook and SATA 2.5in/3.5in hard drives - Hard Drive Dock / Four Bay Dock / Hard Drive Docking Station / SATA Dock / Hard Drive Docking Station with UASP / SATA HDD Docking Station / Hot Swap Hard Drive Dock - Dock and Swap Hard Drives directly to your computer system without mounting

Dimensions & Weight
Dimensions	Height:3.4" x Width:6.7" x Depth:11.4"
Weight	2.27 lb

Package Contents
Package Contents	USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock 1 x USB 3.0 Cable 1 x Universal Power Adapter 1 x Instruction Manual

Additional Information
Date First Available	September 04, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
