Use this HDBaseT extender to extend your HDMI video and audio over standard CAT5 cabling
Compatible with HDMI video sources and HDMI monitors, televisions and projectors
Support for RS232 Serial and Infrared control
HDBaseT Extender / HDMI Cat5 Extender / HDMI to Cat5
HDMI over Cat5 / HDMI Extender / HDMI over Ethernet
With HDBaseT extend HDMI, IR, and RS-232 through one CAT5e or CAT6 cable
Ideal for digital signage applications in financial educational medical and business sectors
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Extend an HDMI video and audio over standard CAT5 cabling, with support for RS23
Learn more about the STARTECH ST121UTPHD2
Model
Brand
StarTech.com
Model
ST121UTPHD2
Details
Extender & Repeater Type
Non Wall Plate Extender
Performance
Distance
100 m / 330 ft.
Resolution Support
1080p @ 60Hz, 48-bit
Audio
Supports Dolby TrueHD, DTS-HD MA
Indicater
LED Indicator

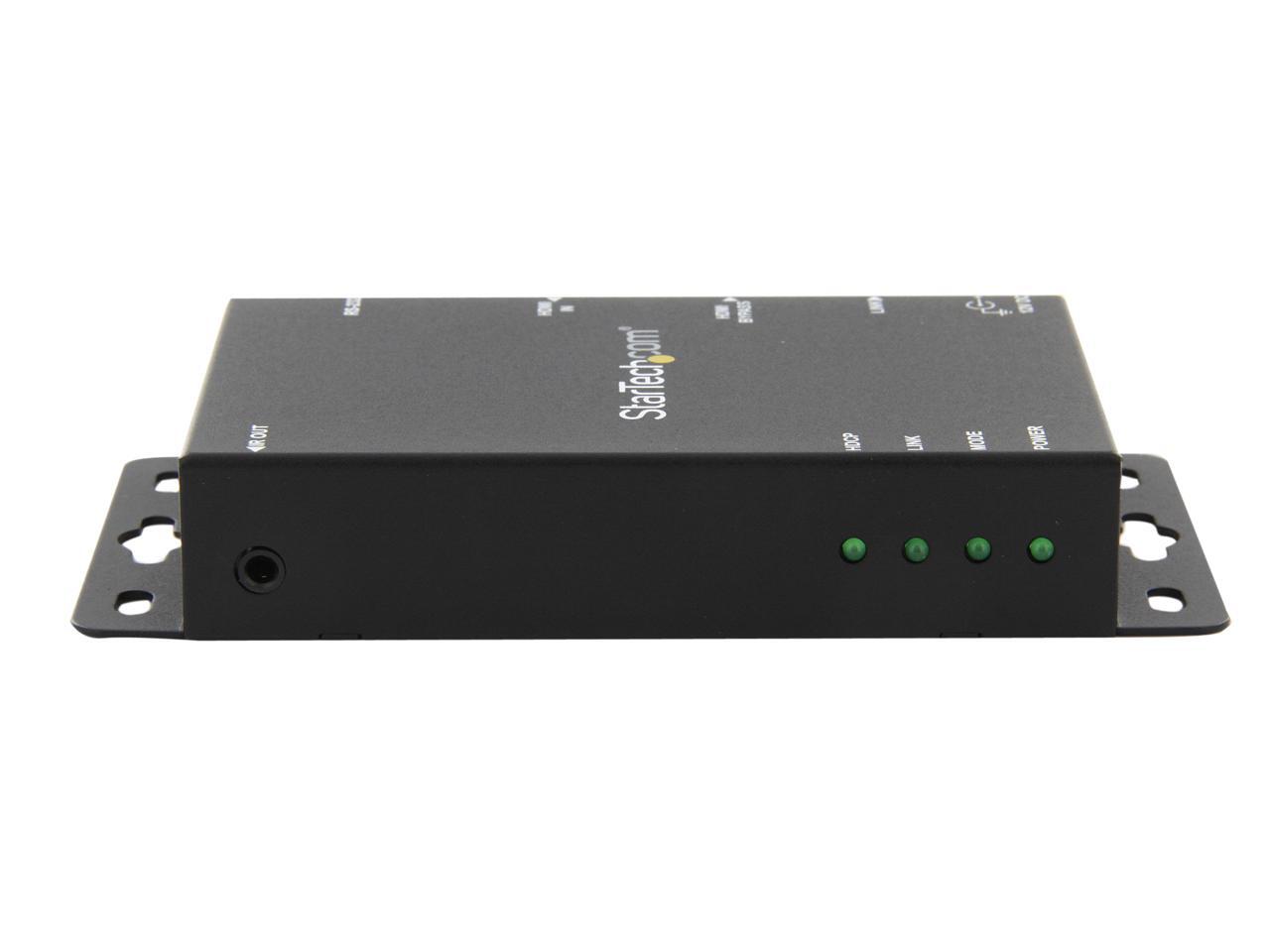

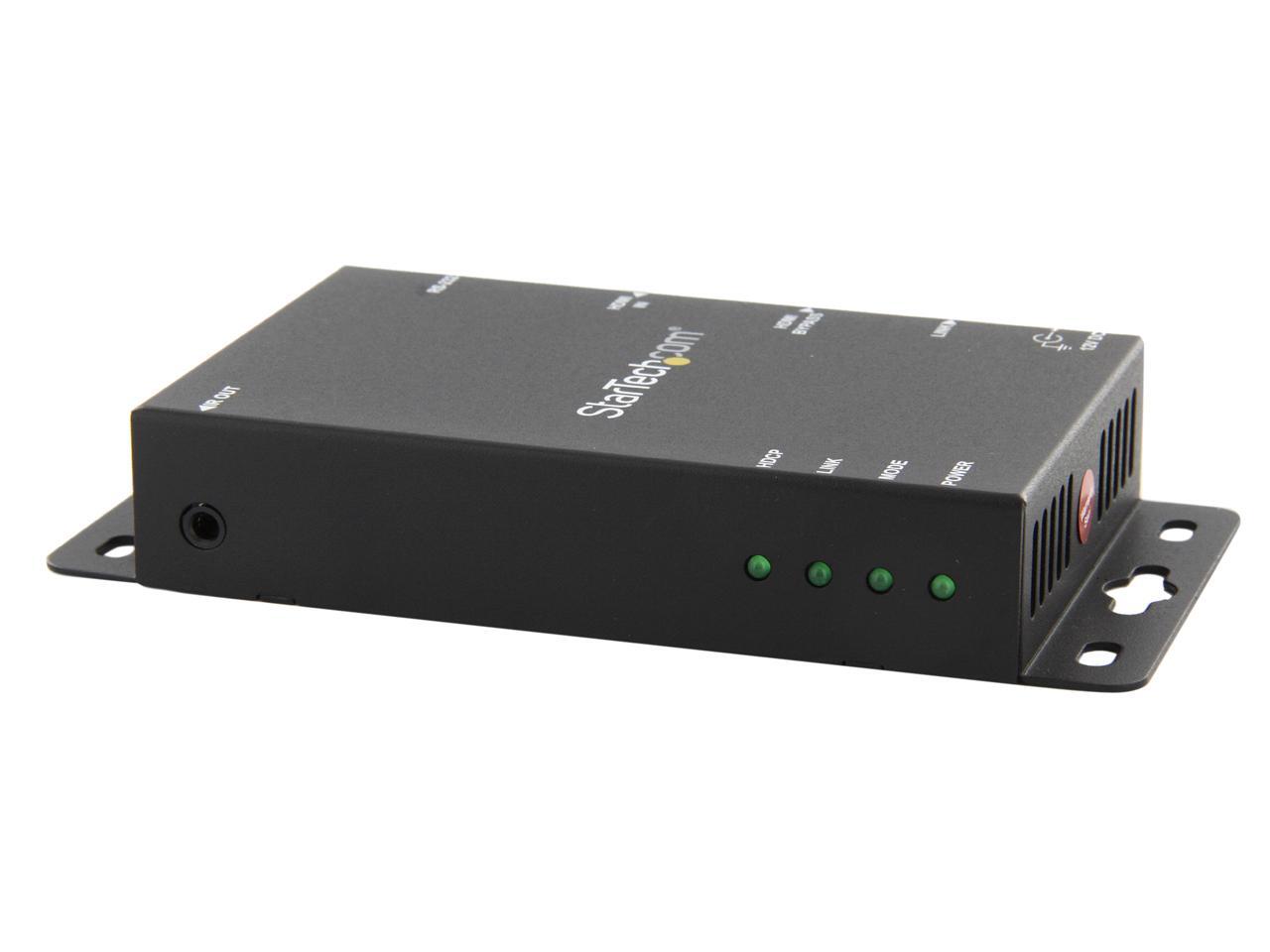

1 - HDCP (Green) 1 - Mode (Green) 1 - Power (Green) 1 - RJ45 Link (Green)
Compatibility
System Requirements
1X Standard CAT5 cable 1X HDMI Cable for Remote Unit (Local Cable Included)
Power
Power Supply
Center Tip Polarity: Positive Input Current: 0.6 Input Voltage: 110 ~ 240 AC Plug Type: M Power Adapter Included: Two Output Voltage: 12 DC Output Current; 1.24A
Specification
Specification
Cabling: Cat 5 UTP or better Audio: Yes Industry Standards: High Speed HDMI and HDCP compliant Daisy-Chain: No

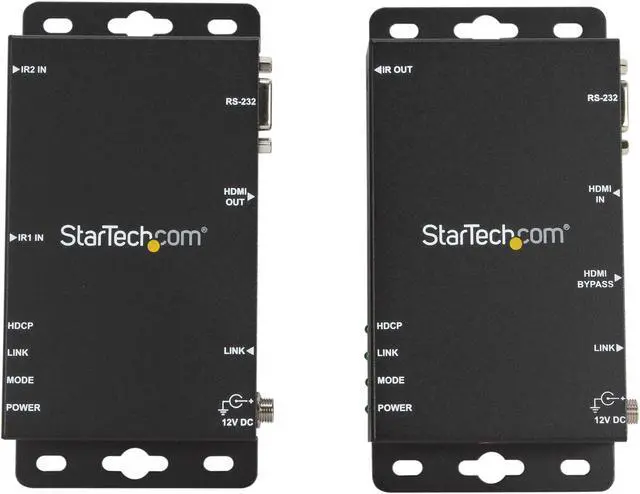

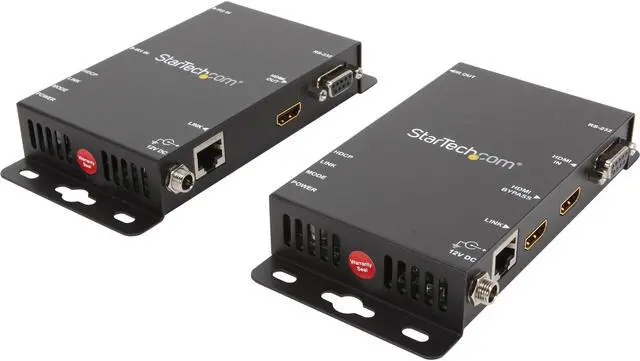

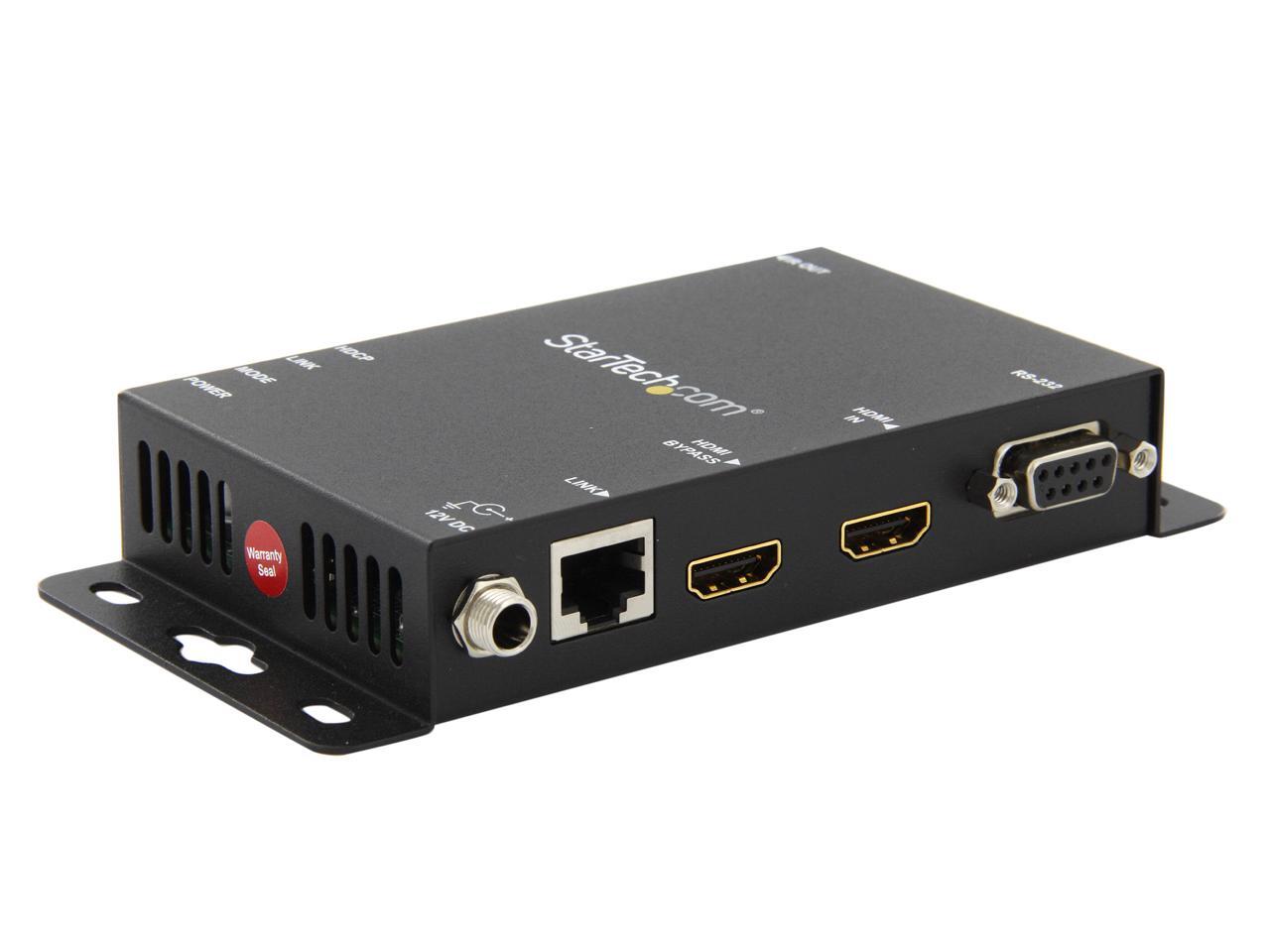

Local Unit Connectors: 1 - IrDA (Infrared; SIR/FIR) Remote Unit Connectors: 2 - IrDA (Infrared; SIR/FIR) Local Unit Connectors 1 - DB-9 (9 pin; D-Sub) Female 1 - RJ-45 Female 2 - HDMI (19 pin) Female Remote Unit Connectors 1 - DB-9 (9 pin; D-Sub) Male 1 - HDMI (19 pin) Female 1 - RJ-45 Female
Maximum Data Transfer Rate: HDMI - 3.4Gbps RS232 - 115200bps baud
IR Interface Bi-directional 38Khz / +/-10 degree / 5M
Color: Black Enclosure Type: Steel
Feature
Feature
Use this HDBaseT extender to extend your HDMI video and audio over standard CAT5 cabling
Compatible with HDMI video sources and HDMI monitors, televisions and projectors
Support for RS232 Serial and Infrared control
HDBaseT Extender / HDMI Cat5 Extender / HDMI to Cat5
HDMI over Cat5 / HDMI Extender / HDMI over Ethernet
With HDBaseT extend HDMI, IR, and RS-232 through one CAT5e or CAT6 cable
Ideal for digital signage applications in financial educational medical and business sectors
Dimensions & Weight
Dimensions
1.00" x 3.10" x 5.90"
Weight
0.67 lb.
Package Contents
Package Content

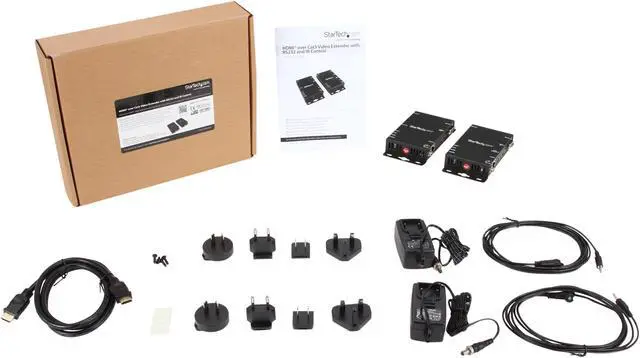

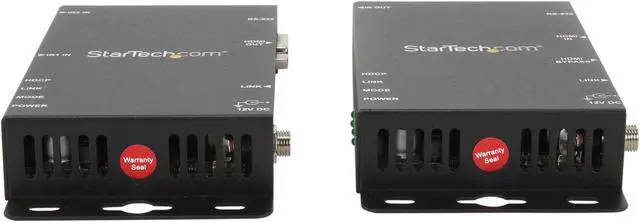

1 - Local HDMI Extender Unit 1 - Remote HDMI Receiver Unit 1 - IR Receiver Cable 1 - IR Transmitter Cable 1 - HDMI Cable - 4 ft. (1.2m) 2 - Universal Power Adapter NA / UK / EU 1 - User Manual
