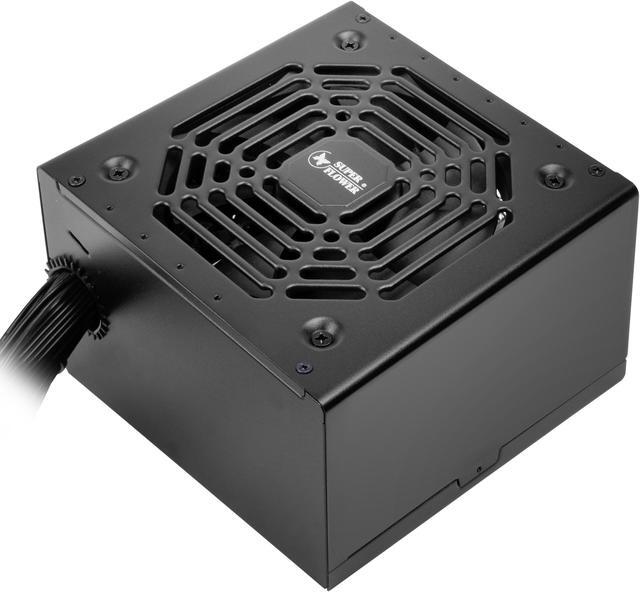

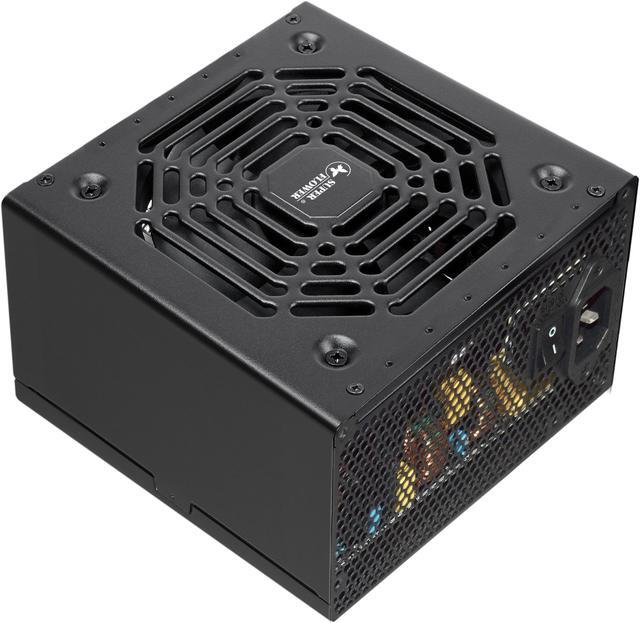

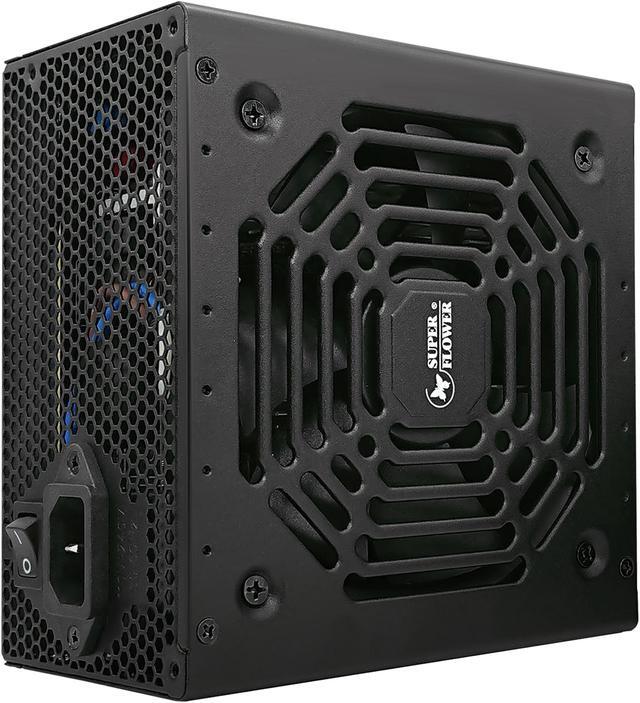

Super Flower Legion Gold HX 750W 80+ Gold, Ultra Flexible Flat Ribbon Cables, LLC & DC-DC Design, Semi-passive Fan Operation, Non-Modular Power Supply, HLB Fan, 5 Year Warranty, SF-750P14XE(HX)(750W)

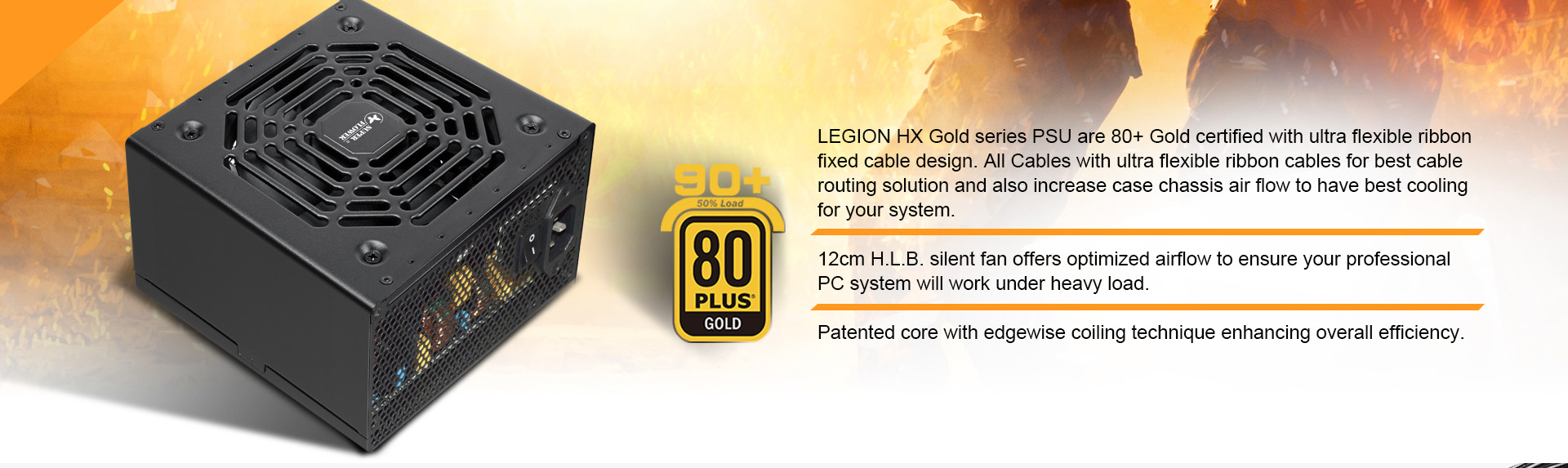

LEGION HX series are 80+ Gold certified with ultra-flexible ribbon fixed cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have the best cooling for your system.

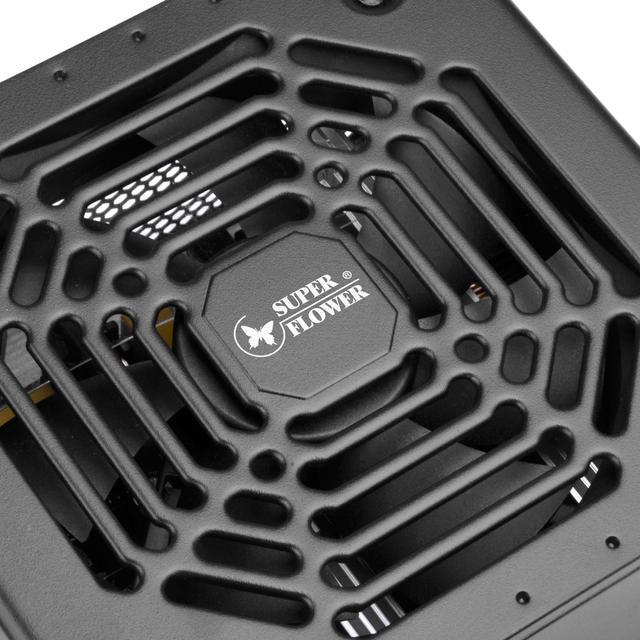

It provides high efficiency & stable power output and comes with a 12cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI or ATI CrossFireX setup.

Features

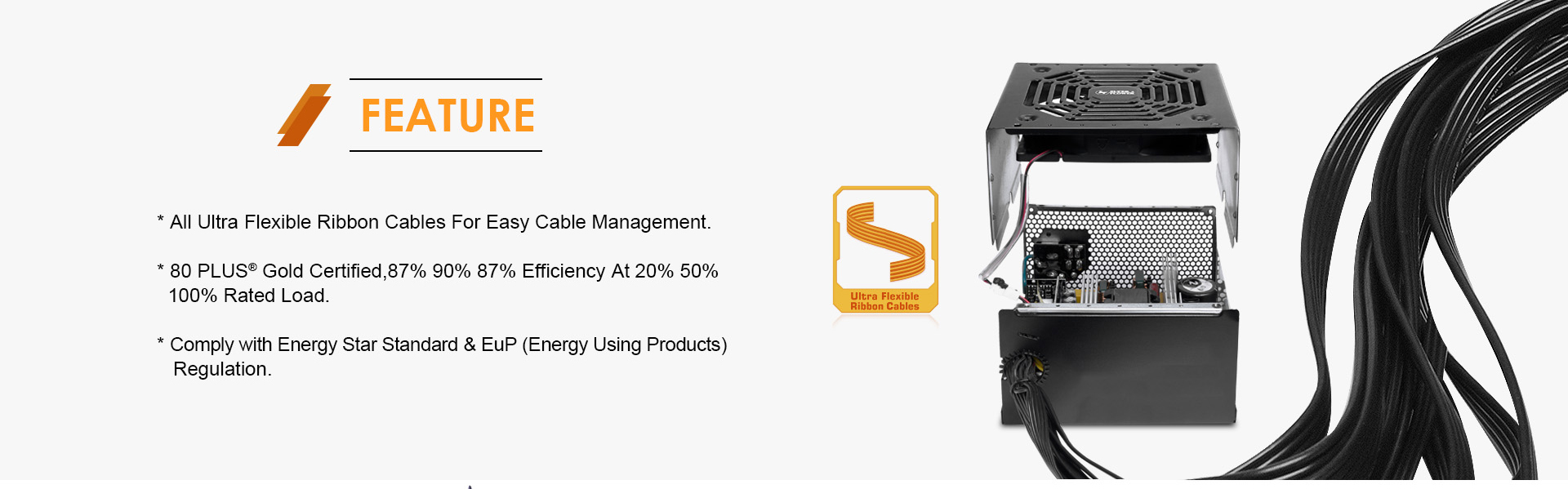

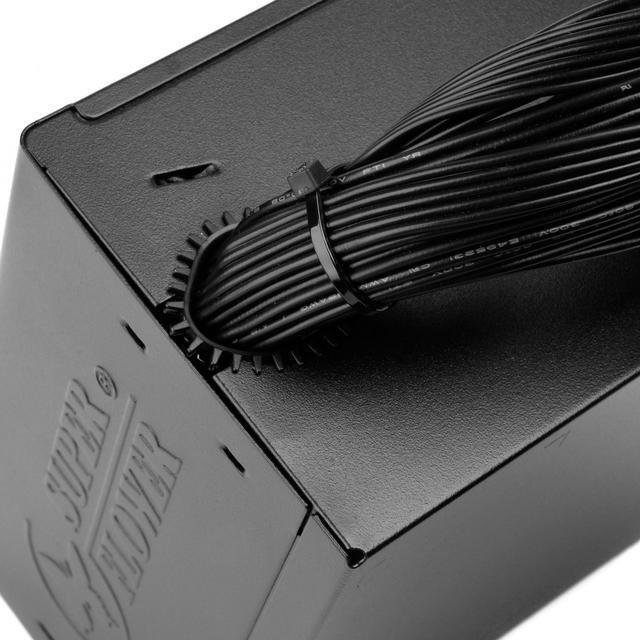

- All Ultra-Flexible Ribbon Cables For Easy Cable Management.

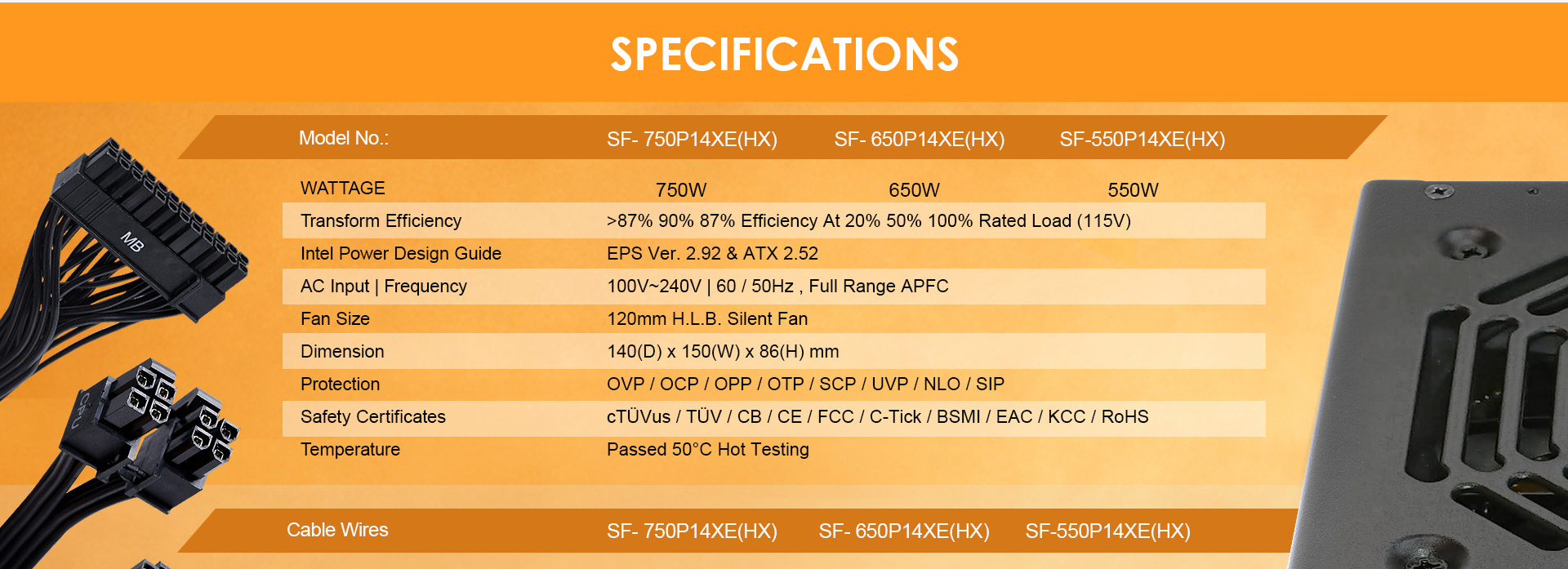

- 80 PLUS® Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
- Comply With ATX 12V v 2.52, EPS 12V v 2.92 Specification.
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
- Fourth-Generation Intel® Haswell CPU Compatible.
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
- Support NVIDIA® SLI & ATI CrossFireX High-Performance Graphic Card.
- More than 2, 000 times On / Off test.
- Lead-Free Green Materials with RoHS / WEEE Compliance.
- Full Range Auto Voltage Detection Design from 100V ~ 240V (Active PFC).

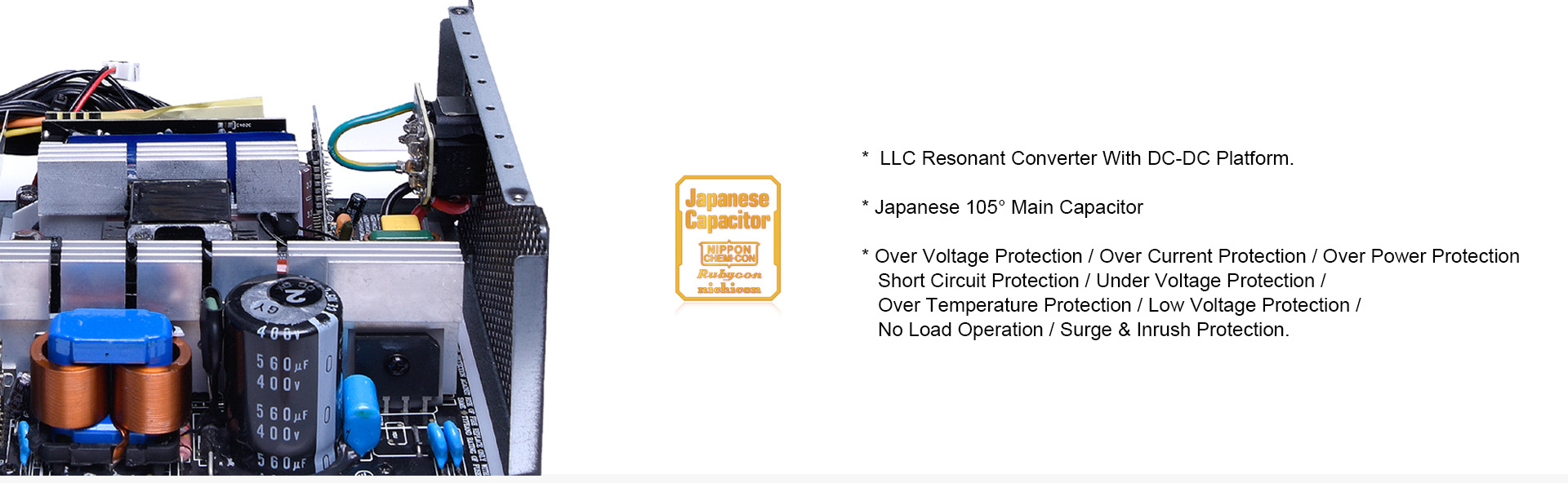

- Japanese 105°C Main Capacitor.
- LLC Resonant Converter With DC-DC Platform.
- German well-known Brand Infineon Low Rds (on) Cool Mos.
- Patent Core Enhancing Overall Efficiency.

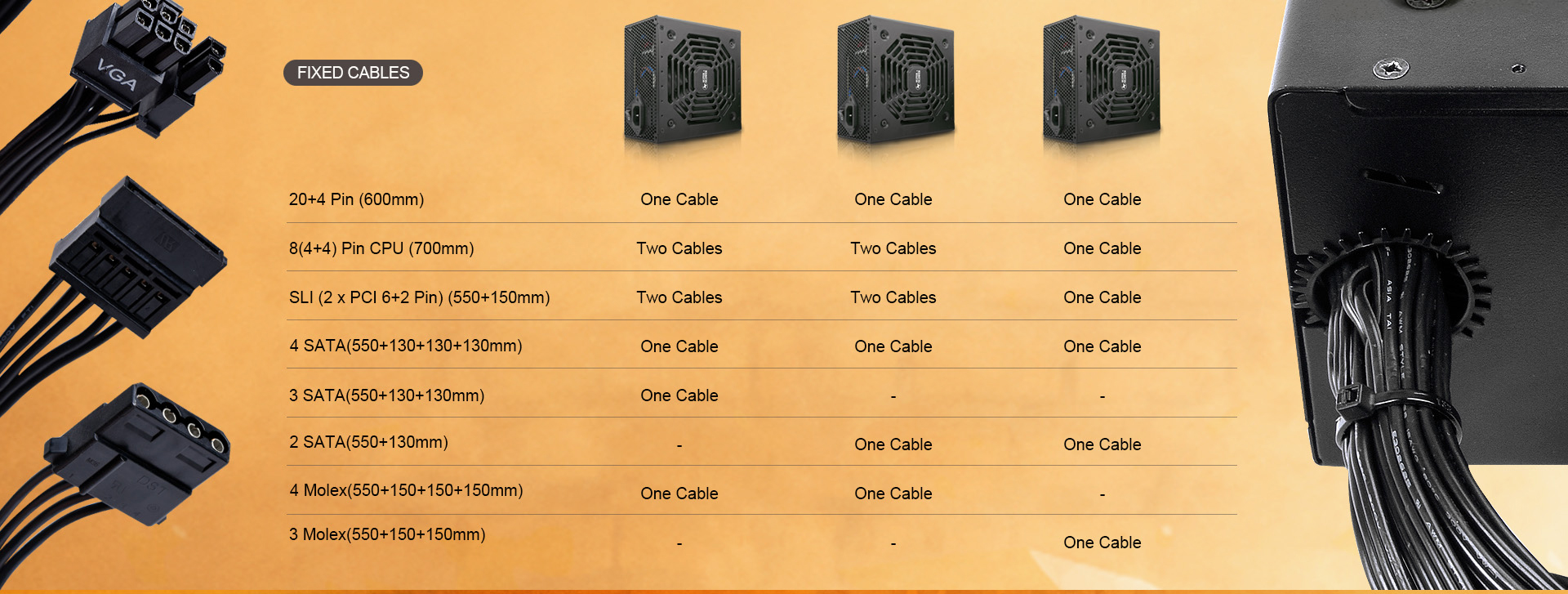

- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.

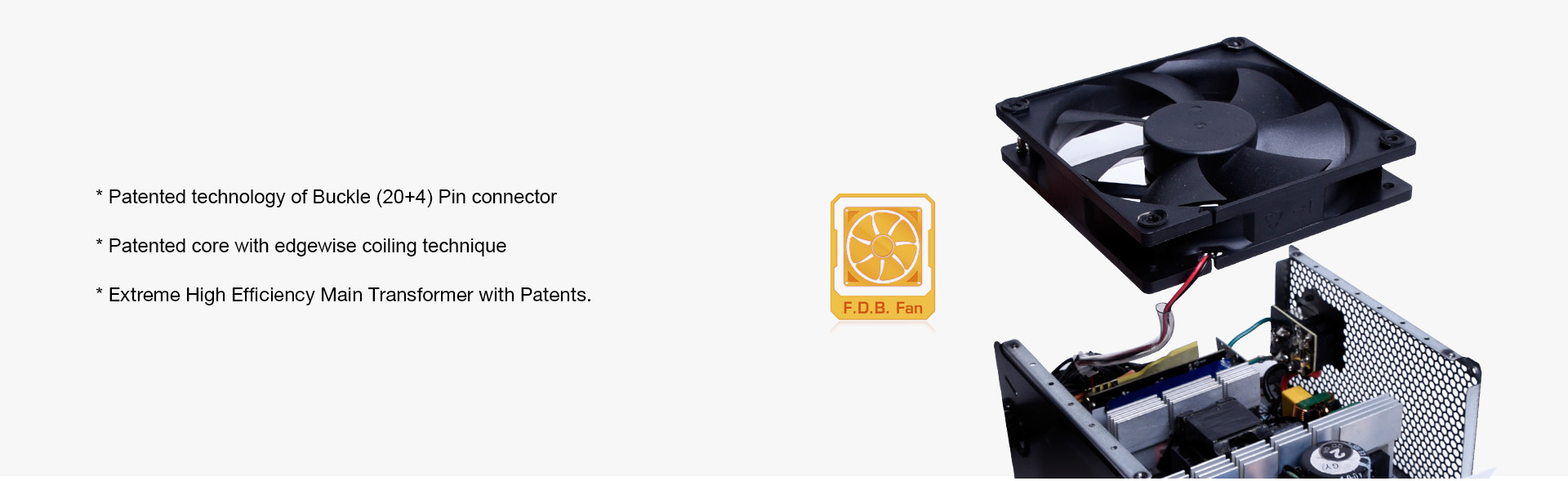

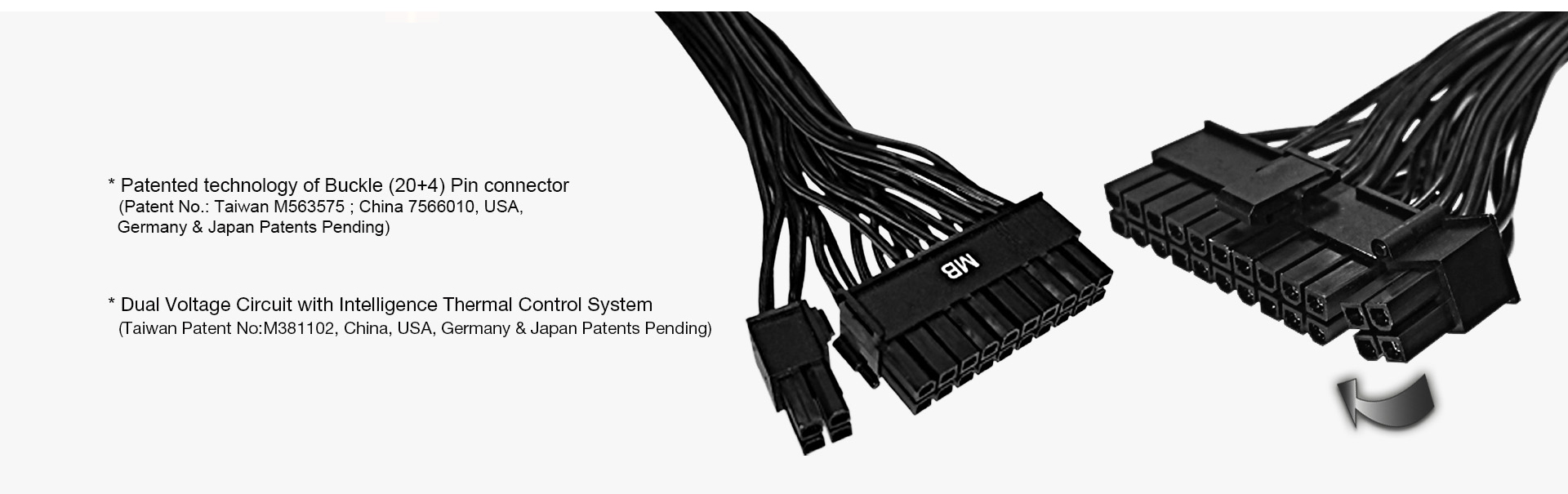

- New Patented Technology Of (20+4) Pin Connector.
- Perfect For Professional & High-Performance Gaming System
- Exclusive Patent

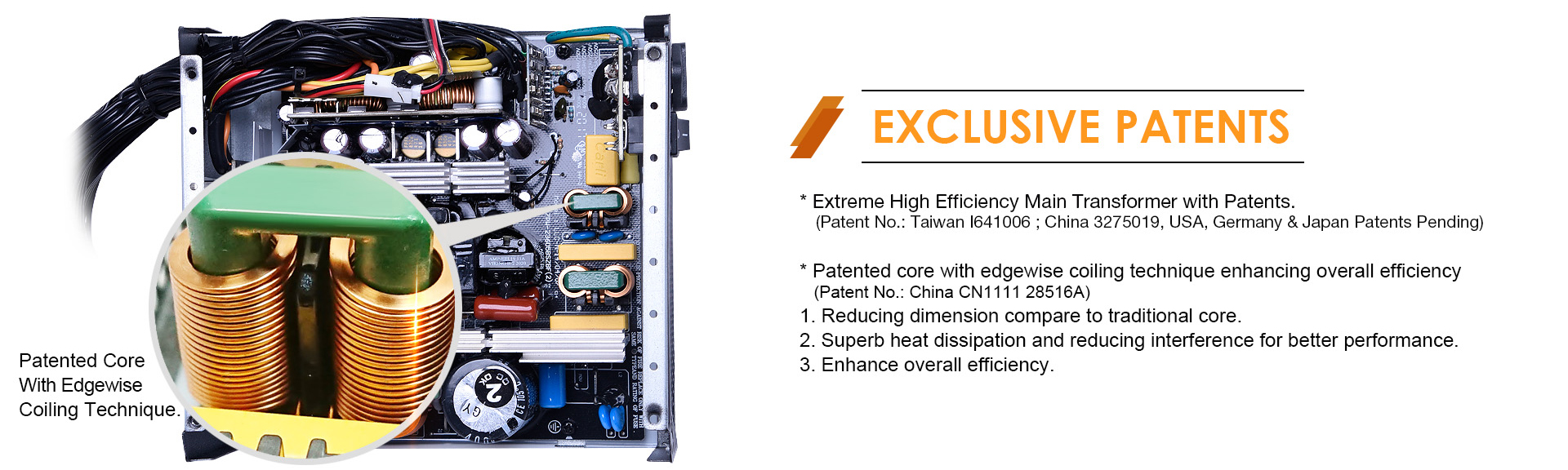

1. Multi Patent Pending Extreme High-Efficiency Main Transformer
(Taiwan Invention Patent no: 103127942;
Taiwan Utility Model Patent no: 103214502;
China Invention Patent no: 201410414373.3; China Utility Model Patent no: 201420474128.7
(Patent Pending); Germany, United Kingdom, USA, Korea, Japan Patent Applied)
2. Dual Voltage Circuit with Intelligence Thermal Control System
(Taiwan Patent No: M381102)
