A perfect low cost server solution, the Supermicro 6015V-TB 1U Rackmount Barebone Server has everything you need for a small to medium size business. The barebones setup includes an Intel motherboard supporting up to 2 Intel Xeon CPU's. In addition the memory is expandable up to 16GB's of DDR2 in either 533MHz or 667MHz.
One onboard 64-bit PCI-X slot allows for future expansion. For managing high transfer speeds, the 6015V-TB includes an onboard dual port gigabit ethernet LAN controller. The 6015V-TB adds 2 hot-swappable SATA hard drive trays, so, if say a hard drive needs to be replaced you can do so without turning off the power. Speaking of power, last but not least a 520w power supply is included insuring maximum power output.
Serve your business, your budget and your data with this value-driven server platform!
Dual Intel 64-bit Xeon SupportDual onboard 771-pin LGA Sockets support two Intel 64-bit Xeon Processors including the Quad-Core Intel Xeon Processor 5300 sequence up to 2.66 GHz and Dual-Core Intel Xeon Processor 5100/5000 sequence up to 3.73GHz.
FB-DIMM DDR2 Memory SupportSix DIMM sockets support FB-DIMM DDR2 667 and 533 SDRAM with capacities of up to 16GB.
PCI-X Expansion SlotsThe 64-bit 133/100MHz PCI-X slot provides extra expandability.
Hot-swappable Drive TraysThe chassis features two 1" hot-swappable drive trays that support up to 2 SATA hard drives for easy installation and replacement.
Integrated ATI ES1000 Graphics CoreThe integrated ATI ES1000 graphics core supports flexible memory options and DVO ports for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
520W Highly-Efficient Power SupplyThe 520W highly-efficient power supply provides power for all components installed and ensures system reliability.
Learn more about the Supermicro 6015V-TB
Model
Brand
SUPERMICRO
Model
6015V-TB
CPU Supported
CPU Type
Dual Intel Xeon
CPU Socket
Dual LGA 771
FSB
1333/1066 MHz
Chipset
North Bridge
Intel 5000V
South Bridge
Intel ESB2
Memory Supported
Memory Slots
6 x 240Pin
Max Memory Supported
16GB
Memory Type Supported
DDRII 667/533
ECC Supported
Yes
Registered
FB-DIMM
Storage Supported
ATA
1x ATA 33/66/100
Serial ATA
6 x SATA 300
SATA RAID
RAID 0, 1, 5, 10 support (Windows Only)
Graphics
GPU/VPU
ATI ES1000
Video Memory
16MB
Expansion Slots
PCI-X
1x 133 MHz
Communications
First LAN
Intel 82563EB
Second LAN
Intel 82563EB
Max. LAN Speed
10/100/1000Mbps
Expansion Bays
Slim Bays
Slim 8x DVD, 24x CD, DVD-ROM drive
Hot-Swap Bays
2
Panel Ports
COM
1
PS/2
2
VGA
1
Rear USB
2
RJ45
2
Power Supply
Max. Power
520W AC power supply w/ PFC
Details
Form Factor
1U Rackmount
Dimensions & Weight
Dimensions
22.6" x 16.8" x 1.7"
Weight
30 lbs. (Gross Weight)
Packaging
Package Contents

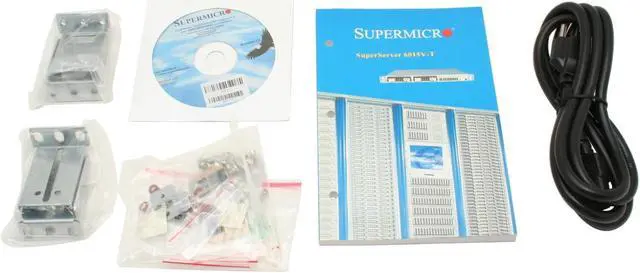

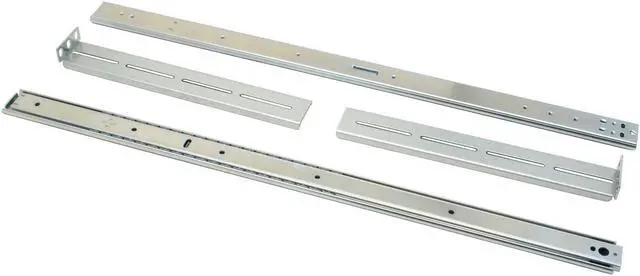

6015V-TB Rails User Manual Software Disk Power Cord Screws Other Accessories

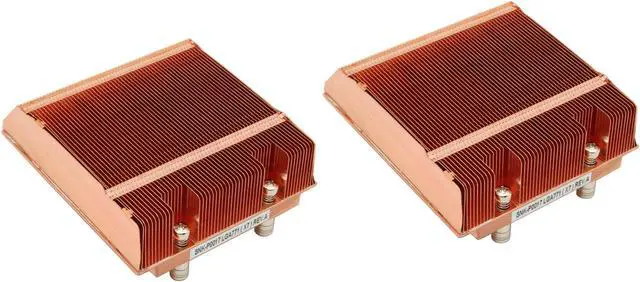

Pros: This is my 5th SuperMicro barebones server, and they are always very reliable and sturdily built. Some of the SuperMicro barebones servers do not come with heatsinks, however this one does - big fat heavy chunks of copper.
Pros: Let me first start off with with what else I purchased for the entire system.
2 x Intel Xeon E5310 Clovertown 1.6GHz Socket 771 Active or 1U Processor
2 x Kingston 2GB 240-Pin DDR2 FB-DIMM DDR2 667 (PC2 5300) ECC Fully Buffered Server Memory Model KVR667D2D4F5/2G - OEM
2 x Western Digital Caviar SE16 WD5000AAKS 500GB 7200 RPM SATA 3.0Gb/s Hard Drive - OEM
Now once we received everything I actually had a new technician, who had no experience with servers and less than 6 months experience, build the system. He was able to assemble everything in less than 30 minutes. The system was very easy to use and get put together. The system works great and as far as OSes, I would probably recommend a 64bit OS to be able to fully enjoy the maximum amount of ram that this system will handle. If this is your first server or you have built several in the past I would recommend this kit as an easy to build system. No complicated bells and whistles.
Cons: Something to note, this is a 1 U and as such the fans do have to be powerful. Now this isn't really a con but you need to be aware that the system will be noisy.
Overall Review: If you are getting this system as an in house server you have made an excellent decision.
Pros: Fast, inexpensive, rock solid, reliable. Easy to put together, seriously it takes about 10 minutes to plop the hd, memory, and processors in there and about 15 minutes to install and configure everything you need. Love it Worth every penny. Go Supermicro!
Cons: Somewhat noisy, hey at least its cool. FB-Dimms.. ehh...
Overall Review: Installed 2 Xeon 3065's 1 GB Manufacture Recommended Adata FB-DIMM RAM (2X512), 2 WD 160 Caviar drives, used Raid 0, installed CentOS x_64 bit, runs like a champ very pleased. I saved my company some extra money for more toys too so they were happy. Perfect for web hosting.
Pros: This is my 5th SuperMicro barebones server, and they are always very reliable and sturdily built. Some of the SuperMicro barebones servers do not come with heatsinks, however this one does - big fat heavy chunks of copper.
Cons: None
