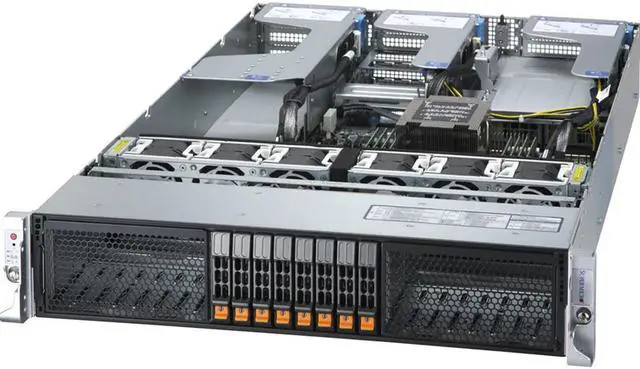

Supermicro A+ Workstation AS -2115HV-TNRT, 2U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0, Complete System Only
- 2600W Redundant Power Supplies Titanium Level Certified
- Optional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load)
- AMD Ryzen™ Threadripper™ PRO 7000WX series LGA-4844 up to 350W TDP Processors, CPU and Memory Overclocking supported
- 8x DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz Up to total 2TB
- 1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)
- Up to 4x PCIe 5.0 x16 (FHFL) slots or 8x PCIe 5.0 x8 (FHFL) slots
- 8 Hot-swap 2.5" NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro AS -2115HV-TNRT
| Brand | SUPERMICRO |
|---|---|
| Model | AS -2115HV-TNRT |
| Form Factor | 2U Rackmount |
| CPU Type | AMD Ryzen Threadripper PRO 7000 WX-Series |
|---|---|
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) |
| Support GPUs | Up to 4 double-width GPUs NVIDIA PCIe: RTX A6000, RTX 6000 Ada Generation, L40S |
|---|
| PCI Express | Default 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A 8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
|---|
| Max. LAN Speed | 1 Gigabit |
|---|
| 2.5" Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
|---|---|
| Hot-Swap Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| Buttons | Power On/Off UID button |
|---|---|
| LEDs | HDD activity LAN1 activity Power status System information |
| VGA | 1 |
| Rear USB | 2 x USB 3.0 (rear) |
| RJ45 | 1 x RJ45 1 GbE Dedicated BMC LAN port |
| BIOS Features | SMBIOS 3.5 or later UEFI 2.9 ACPI 6.5 SMBIOS 3.6 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support |
|---|
| Fans | 6x 6cm heavy duty fans with optimal fan speed control |
|---|
| Hardware Monitor | FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Voltage System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
|---|---|
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 3.5" x 17.2" x 31.74" |
|---|---|
| Weight | 45 lbs. |
| First Listed on Newegg | October 18, 2024 |
|---|
