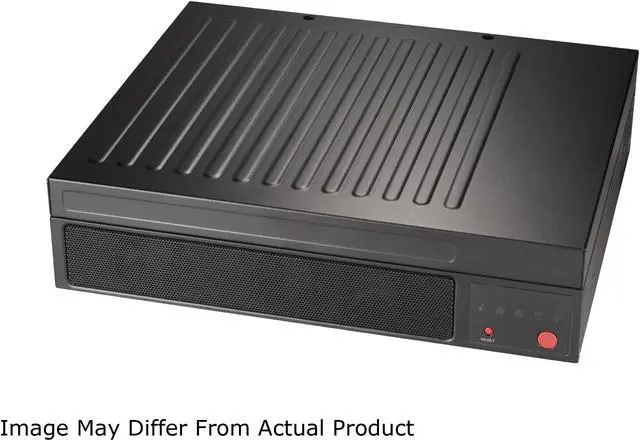

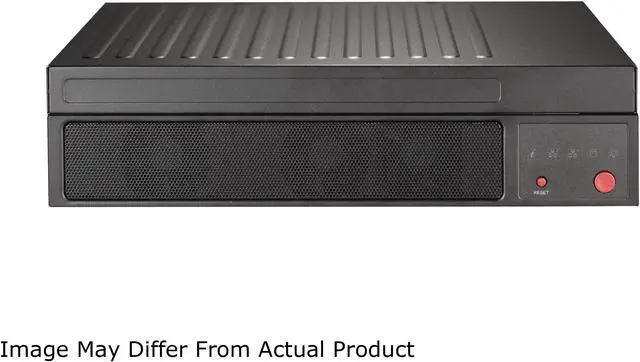

Supermicro AS-E301-9D-8CN4 AMD EPYC 3251 8C SoC 512GB 4GbE IPMI Embedded IoT Gateway SD-WAN vCPE/uCPE Network Appliance Home Lab Virtualization Server

OUT OF STOCK.
  • Single AMD EPYC 3251 SoC Processor
  • Lockable 12V DC 150W power adapter
Specs
Reviews

Learn more about the Supermicro AS-E301-9D-8CN4

Best Seller Ranking #9 in Server Barebones
Model
Brand SUPERMICRO
Model AS-E301-9D-8CN4
CPU Supported
CPU Type Single AMD EPYC 3251 SoC Processor
Memory Supported
Max Memory Supported Supports up to 512GB Registered RCC DDR4 2666 MHz SDRAM in 4 x DIMMs
Memory Type Supported DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
Storage Supported
Serial ATA 4 x SATA 600
Graphics
GPU/VPU Aspeed AST2500 BMC
Expansion Slots
PCI Express 1 x PCI-E 3.0 x16 AOC slot (LP)
1 x M.2 PCI-E 3.0 x4, 2280, M Key
Communications
Number of LAN Quad 1 GbE with Intel I350-AM4
Max. LAN Speed Quad 10/100/1000Mbps

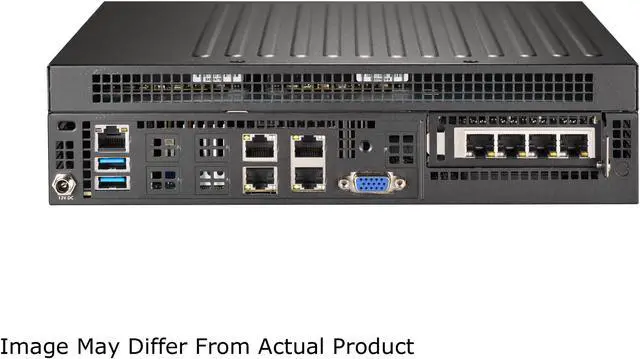

Panel Ports
Rear USB 2 x USB 3.0 ports
RJ45 4 x 1 GbE LAN ports
1 x Dedicated IPMI LAN port
Power Supply
Max. Power Lockable 12V DC 150W power adapter
Features
Features AMD EPYC 3251 SoC Processor, 8 Core/16 Thread, 2.5 GHz / 50W

System on Chip

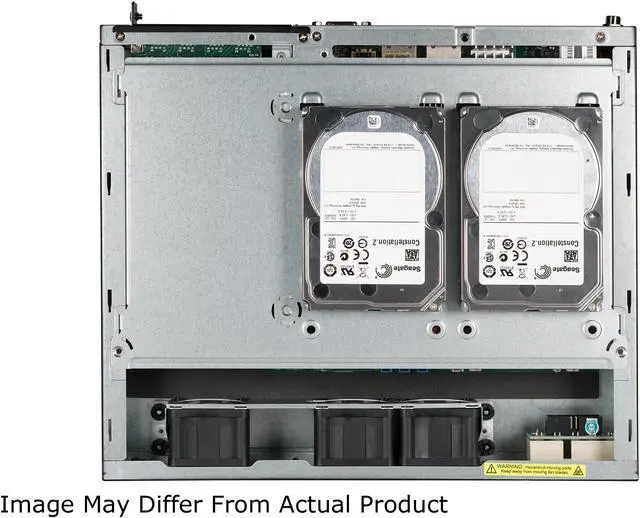

2 x Fixed 2.5" drive bay bracket

1 x PCI-E 3.0 x16 AOC slot (LP), 1 x M.2 PCI-E 3.0 x4, 2280, M Key

Up to 512GB ECC Registered DDR4-2666 MHz SDRAM in 4 x DIMMs

4 x Gigabit Ethernet ports, 1 x dedicated IPMI LAN

1 xVGA, 2 x USB 3.0

2 x 40 x 28mm 4-PIN PWM Fans

Lockable 12V DC 150W power adapter
Details
Form Factor 1.5U Compact Box
Additional Information
Date First Available May 17, 2019
