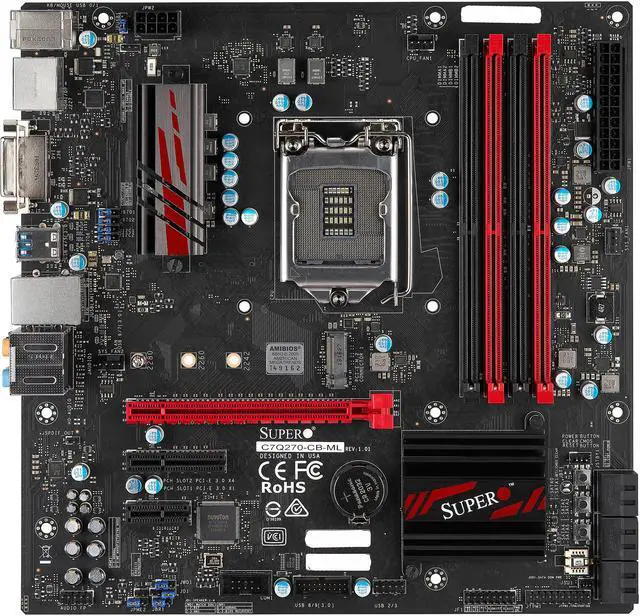

SUPERMICRO C7Q270-CB-ML LGA 1151 Intel Q270 HDMI USB 3.0 Micro ATX Motherboards - Intel
- Intel Q270
- Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP
- DDR4 up to 2400
Specs
Reviews (1)
Learn more about the Supermicro C7Q270-CB-ML
| Brand | SUPERMICRO |
|---|---|
| Model | C7Q270-CB-ML |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP |
| Chipset | Intel Q270 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 up to 2400 |
| Maximum Memory Supported | 64GB |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 slot 1 x PCIe 3.0 x4 M.2 (supports 2280) |
| PCI Express x1 | 1 x PCI-E 3.0 x1 slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-LM |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| COM | 1 |
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI 1.4b |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 3.0 + 2 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Features | Single socket H4 (LGA 1151) supports Intel 7th/6th Gen. Core i7/i5/i3 series Intel Q270 Express Chipset Up to 64GB Non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots 1 GbE LAN port via Intel i219LM 6 x SATA3 (6Gbps); RAID 0, 1, 5, 10 1 x PCI-E 3.0 x16, 1 x PCI-E 3.0 x4, 1 x PCI-E 3.0 x1 1 x PCIe 3.0 x4 M.2 (2280 form factor) 6 x USB 3.0 (4 rear, 2 via header) 4 x USB 2.0 (2 rear, 2 via headers) 1 x DP (Display Port), 1 x HDMI, 1 x DVI-D HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out |
|---|
| First Listed on Newegg | January 05, 2017 |
|---|
