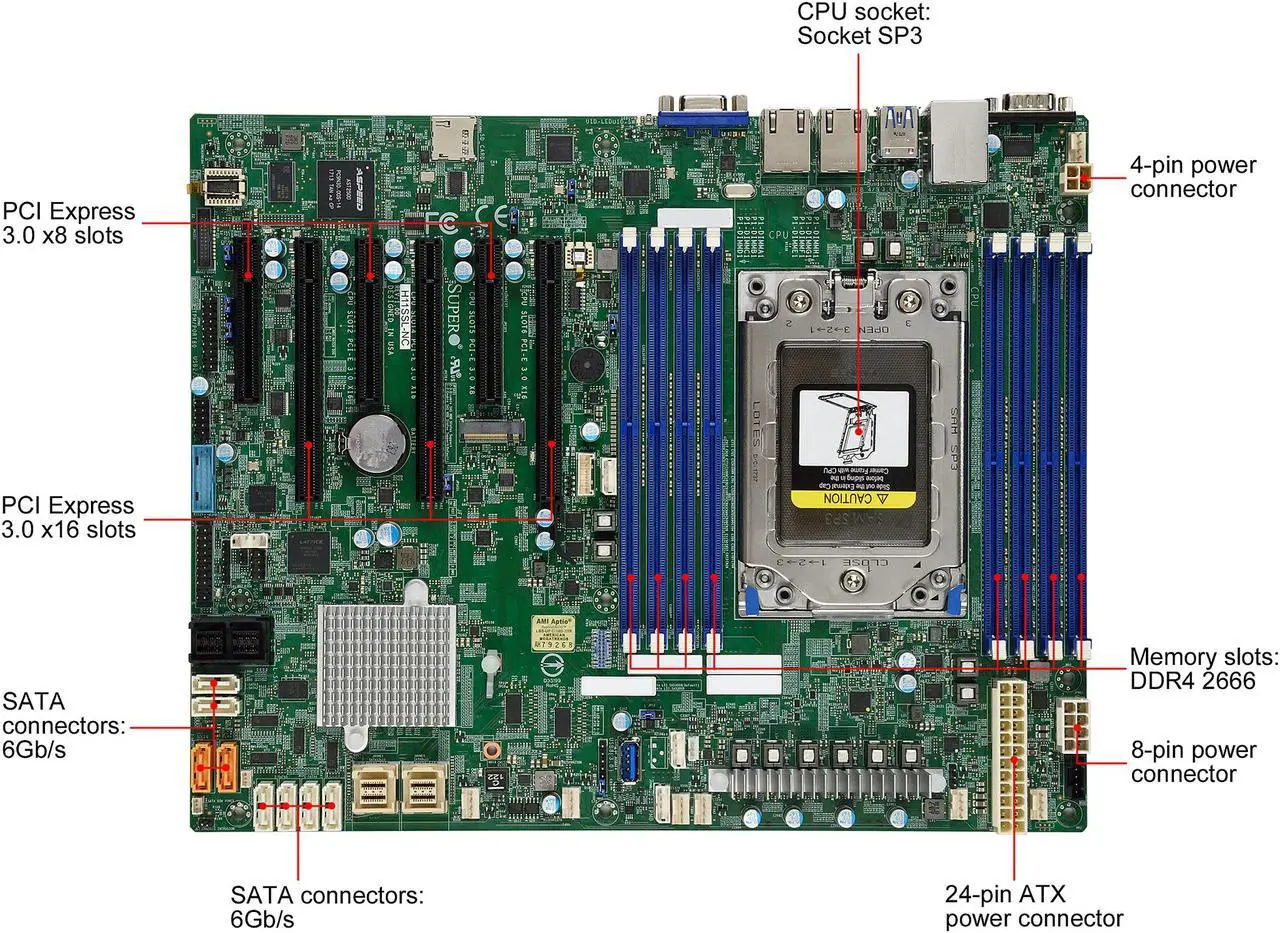

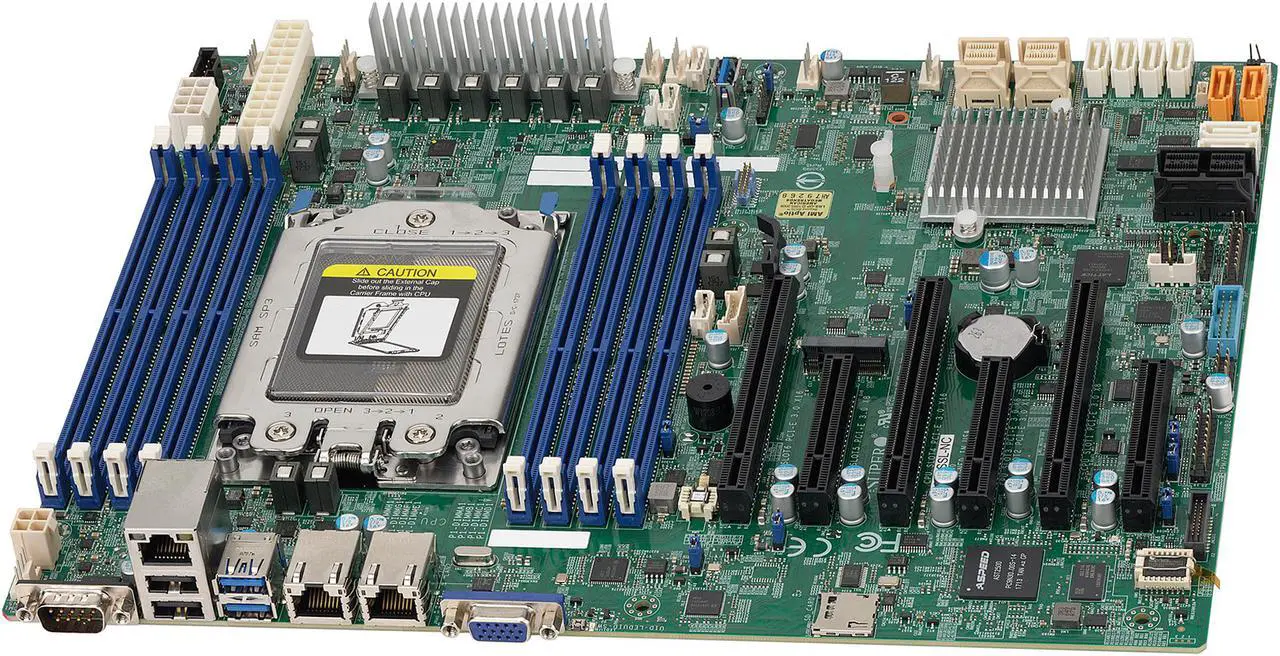

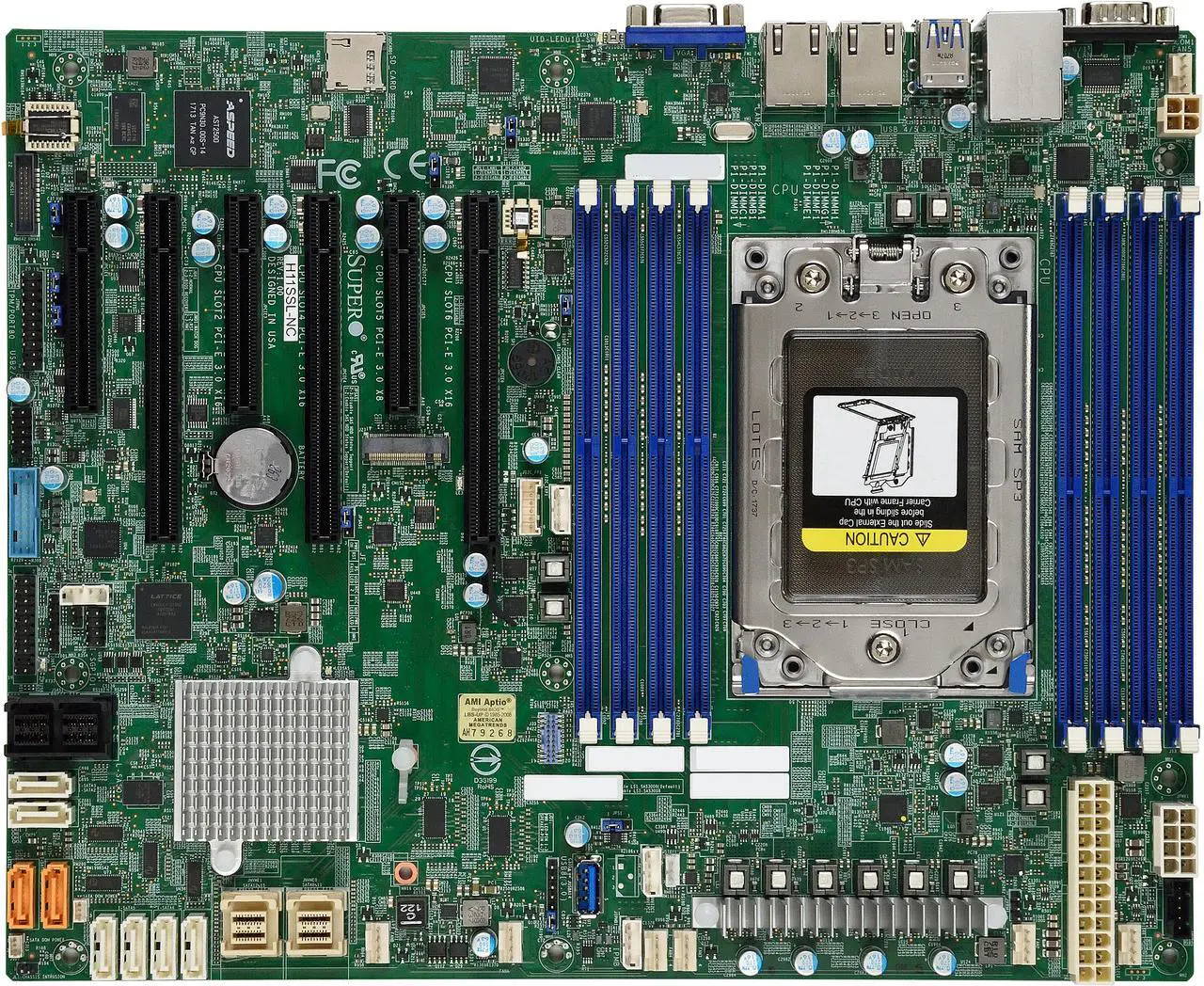

SuperMicro H11SSL-NC ATX Server Motherboard EPYC 7000-series

(1) Write a Review
  • Single AMD EPYC 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
  • 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs, 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
  • Expansion slots:
  • 3 PCI-E 3.0 x16
  • 3 PCI-E 3.0 x8
  • M.2 Interface: 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-key
  • 8 SATA 3.0 + Broadcom 3008 for 8 SAS3 ports + 2 NVMe, 1 M.2
  • Dual Gigabit Ethernet LAN Ports
  • ASPEED AST2500 BMC graphics
  • Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
  • Up to 4 USB 2.0 ports (2 rear + 2 via header)
  • 7 PWM 4-pin Fans with tachometer status monitoring
Overview
Specs
Reviews (1)
Key Features 1. Single AMD EPYC™ 7000-Series Processor 2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 3.
Expansion slots: 3 PCI-E 3.0 x16 3 PCI-E 3.0 x8 4. 8 SATA 3.0 + Broadcom 3008 for 8 SAS3 ports + 2 NVMe, 1 M. 2 5. Dual Gigabit Ethernet LAN Ports 6. ASPEED AST2500 BMC graphics 7. Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) Up to 4 USB 2.0 ports (2 rear + 2 via header) 8. 7 PWM 4-pin Fans with tachometer status monitoring
