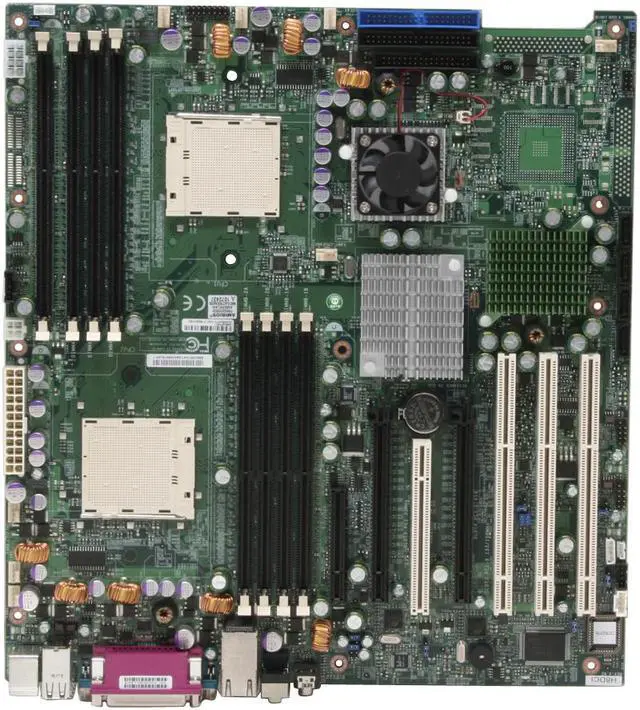

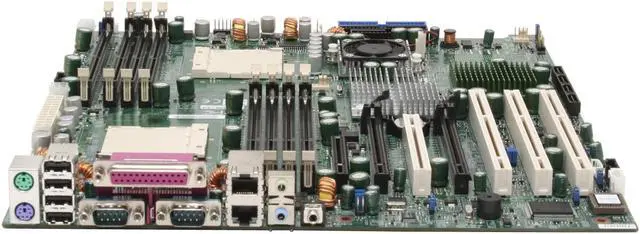

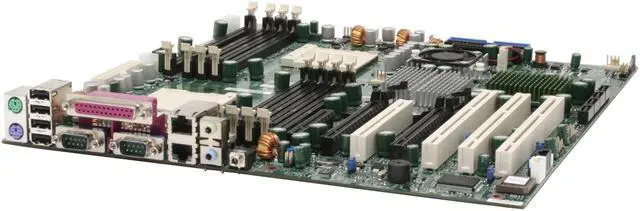

SUPERMICRO H8DCi-O Extended ATX Server Motherboard Dual 940 NVIDIA nForce Professional 2200

OPEN BOX Product Type
  • Dual 940
  • NVIDIA nForce Professional 2200 AMD 8132 PCI-X Tunnel
  • 8 x 184Pin
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Supermicro H8DCi-O

Model
Brand SUPERMICRO
Model H8DCi-O
Supported CPU
CPU Socket Type Dual 940
CPU Type Dual AMD Opteron
System Bus 1000 MHz
Chipsets
North Bridge NVIDIA nForce Professional 2200
South Bridge NVIDIA nForce Professional 2050
Other Chipset AMD 8132 PCI-X Tunnel
Memory
Number of DDR Slots 8 x 184Pin
DDR Standard DDR 400/333/266MHz
Maximum Memory Supported Up to 16GB DDR400 SDRAM (or)
Up to 32GB DDR333 SDRAM (or)
Up to 32GB DDR266 SDRAM
Channel Supported Dual Channel
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express x16 2 x PCI-e x16 slots
PCI Express x4 1 x PCI-e x4 (using x8) slot
PCI-X Slots (64-bit 133MHz) 2
PCI-X Slots (64-bit 100MHz) 1
PCI Slots 1 x PCI Slot
Storage Devices
PATA 2 x ATA 133 4 Dev. Max
SATA 4 x SATA 3.0Gb/s
SATA RAID 0/1/0+1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset AC97 Codec
Onboard LAN
LAN Speed 10/100/1000Mbps
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 2
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Onboard Ports
Onboard USB 4 x USB 2.0
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 12" x 13.05"
Additional Information
First Listed on Newegg June 05, 2007
