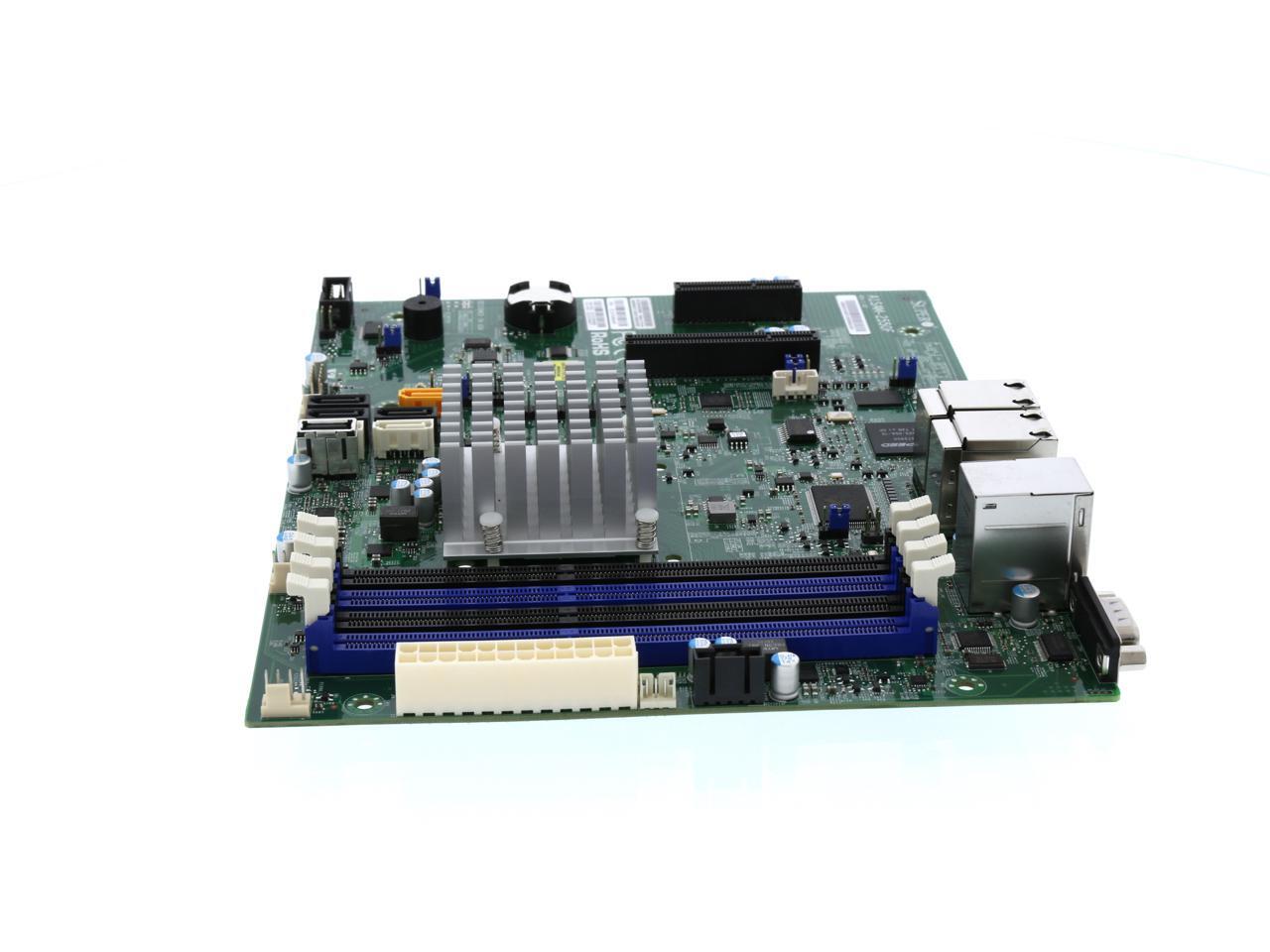

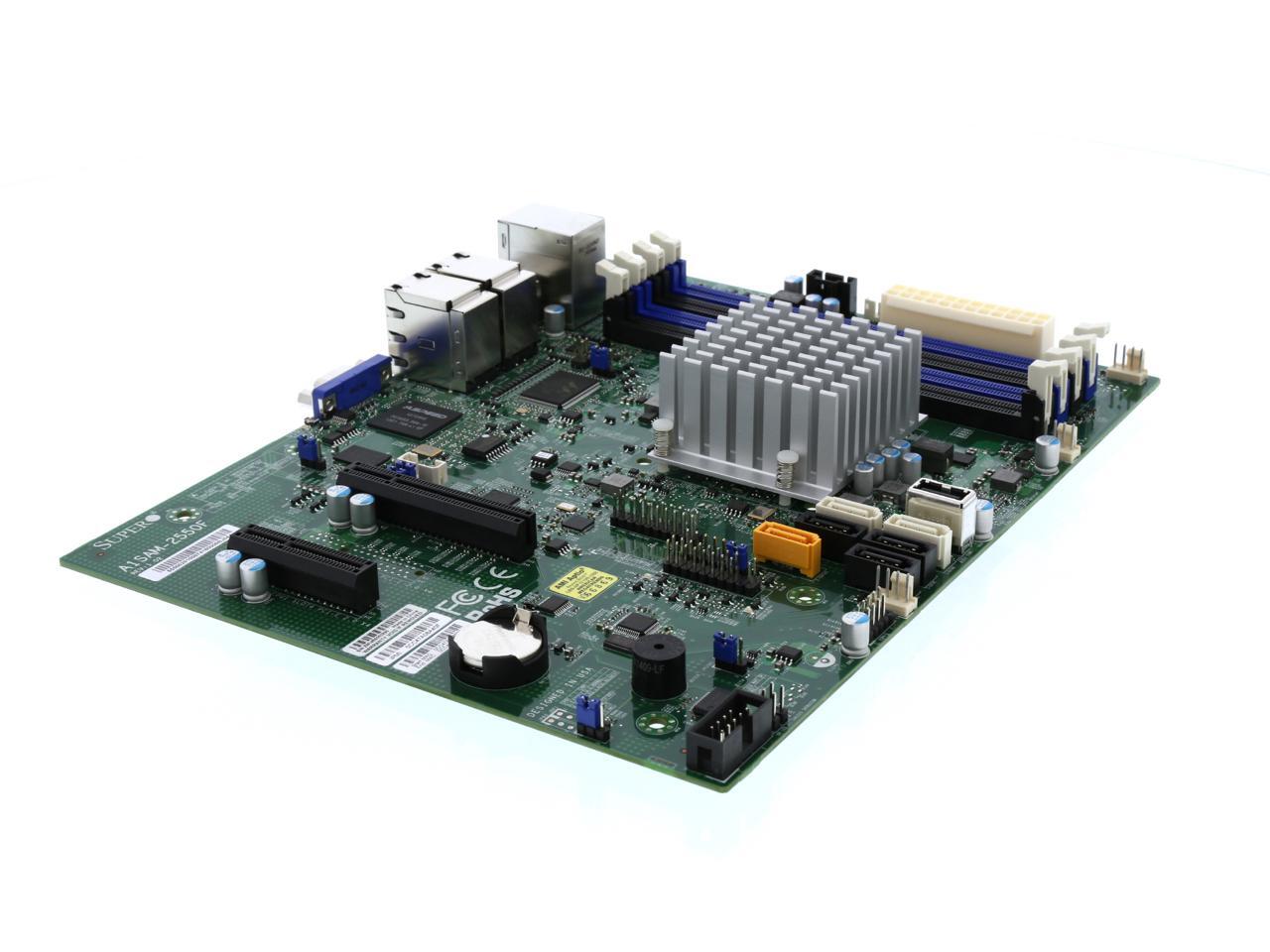

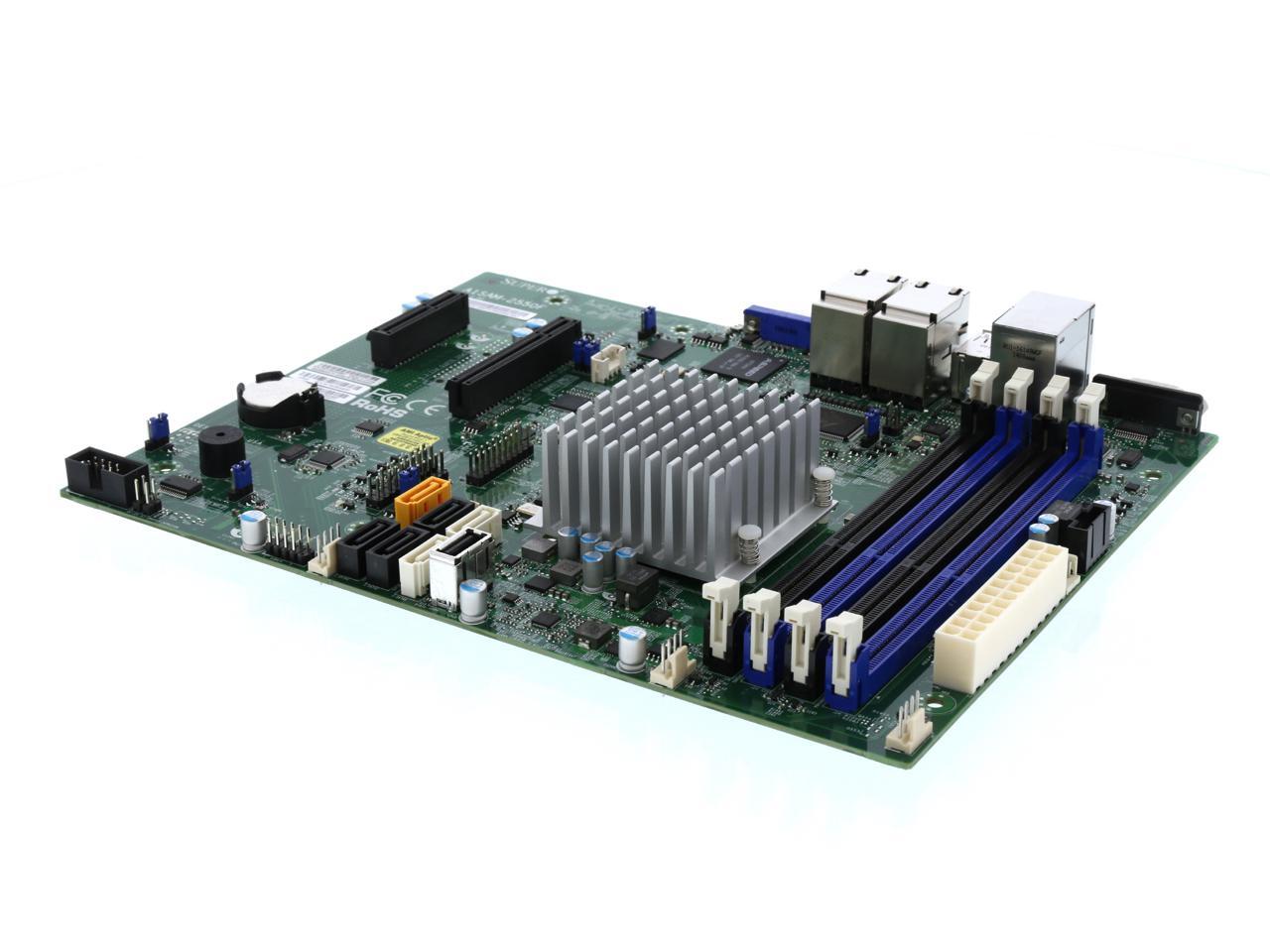

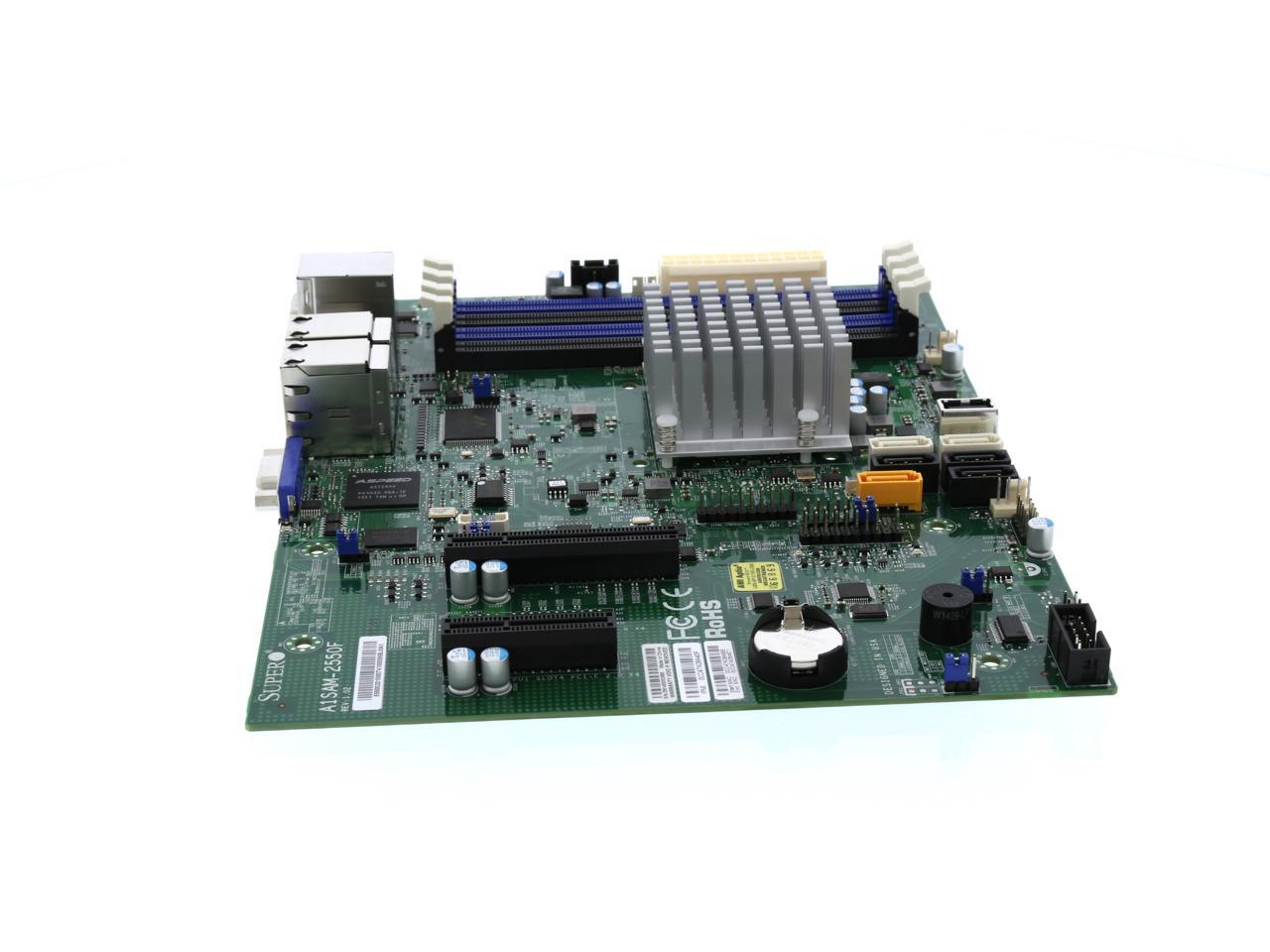

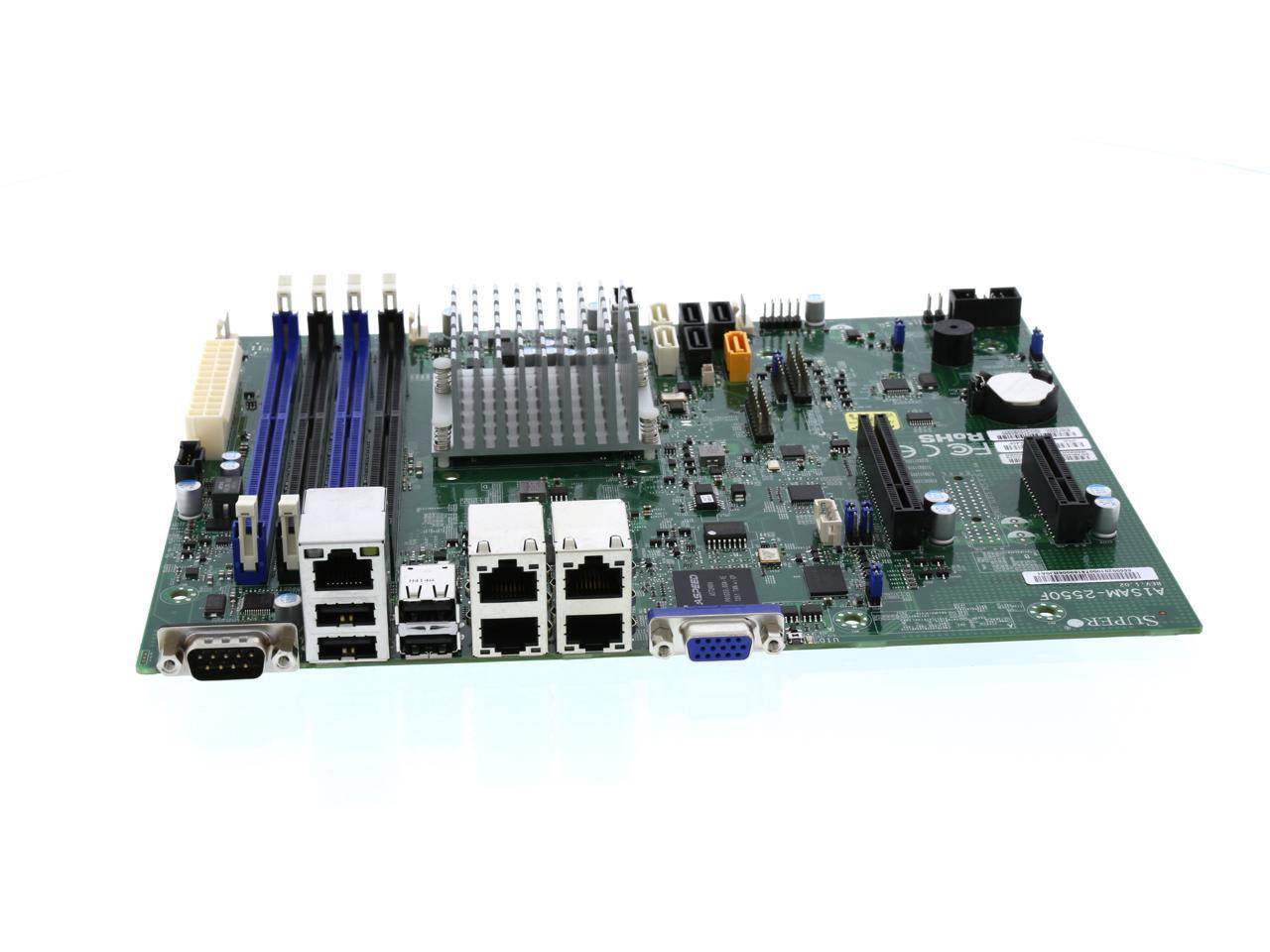

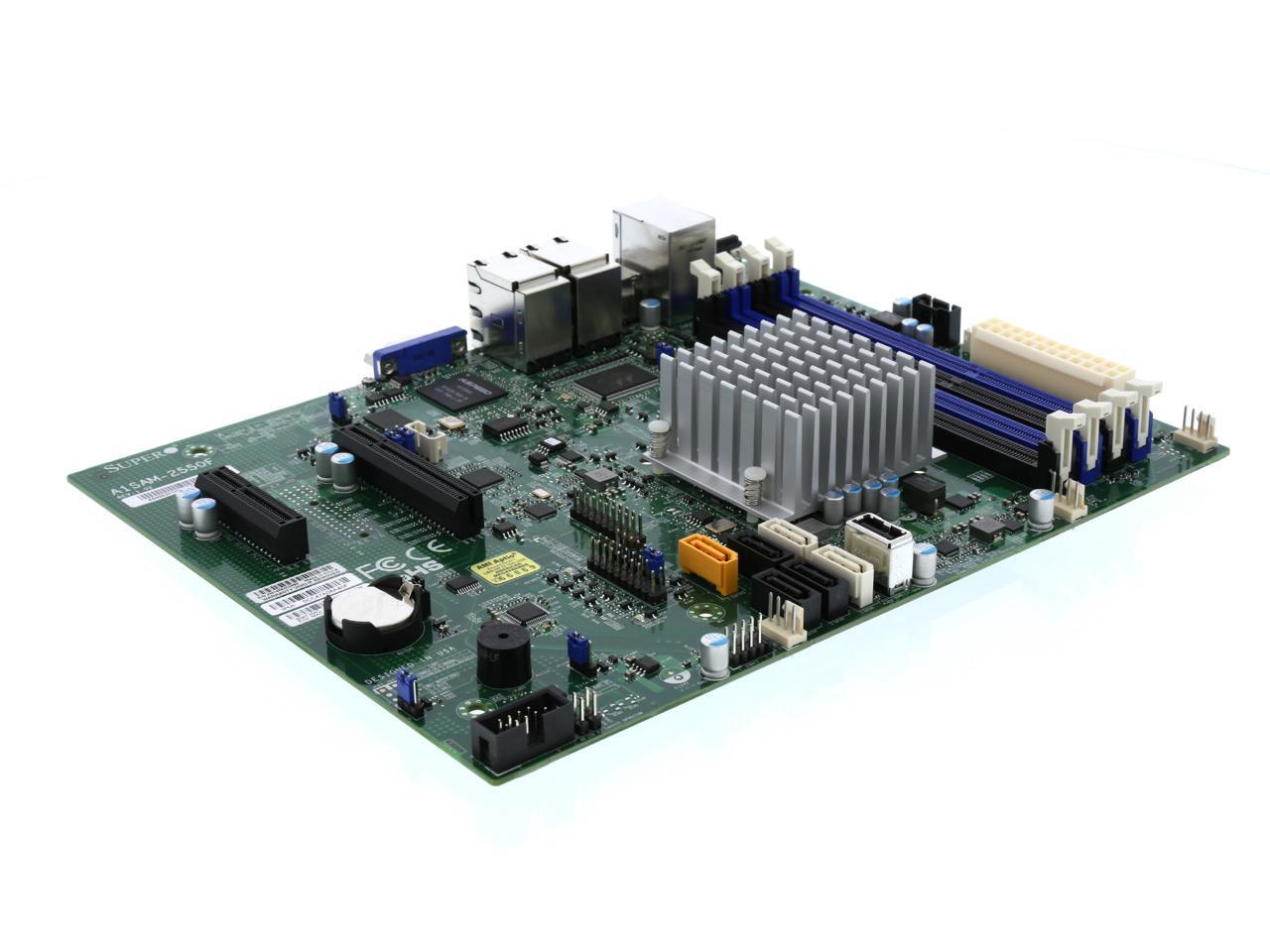

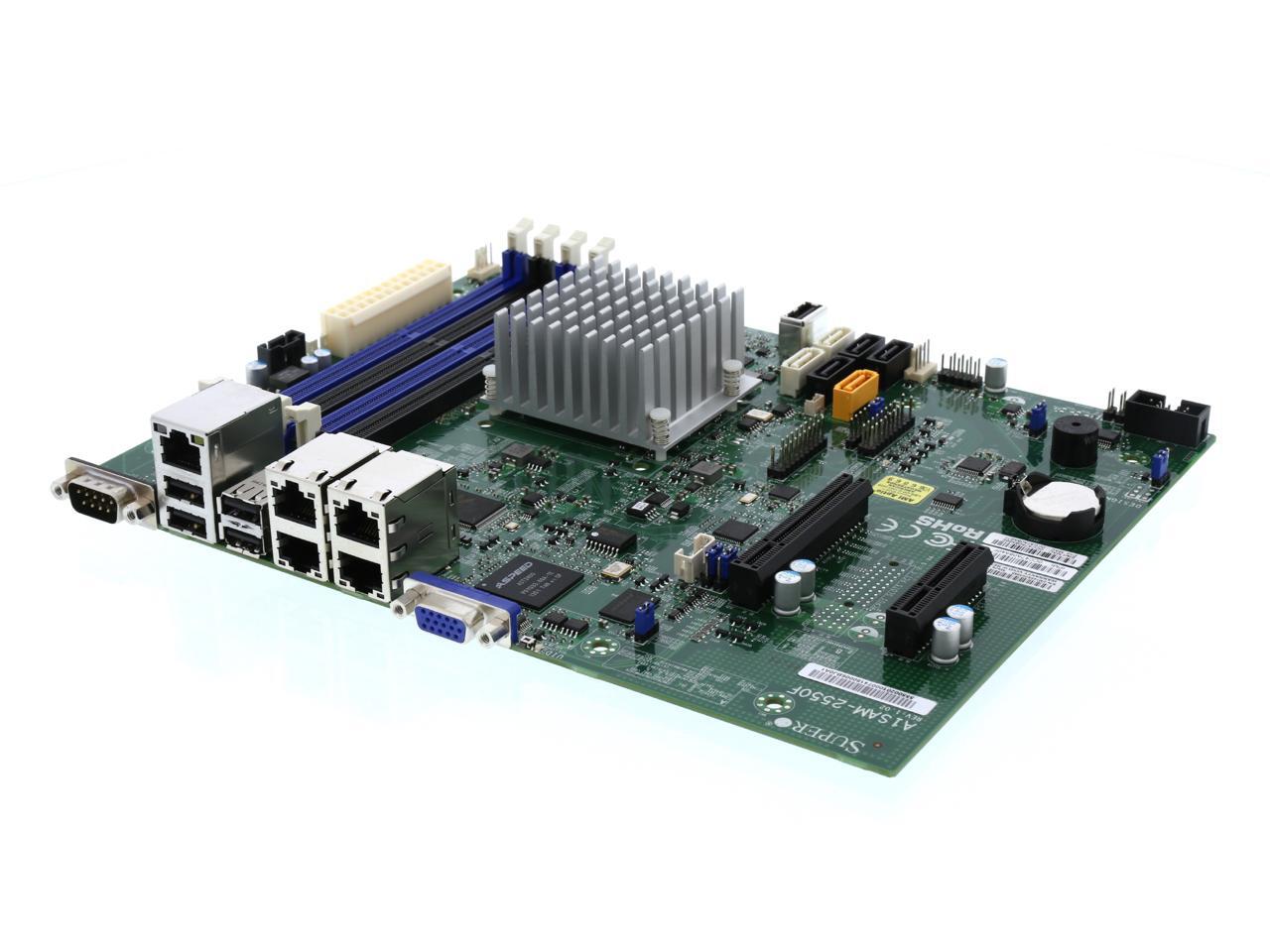

SUPERMICRO MBD-A1SAM-2550F-O uATX Server Motherboard FCBGA 1283 DDR3 1600/1333

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • FCBGA 1283
  • 4 x 240pin

Please note that this product is non-returnable and non-refundable.

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

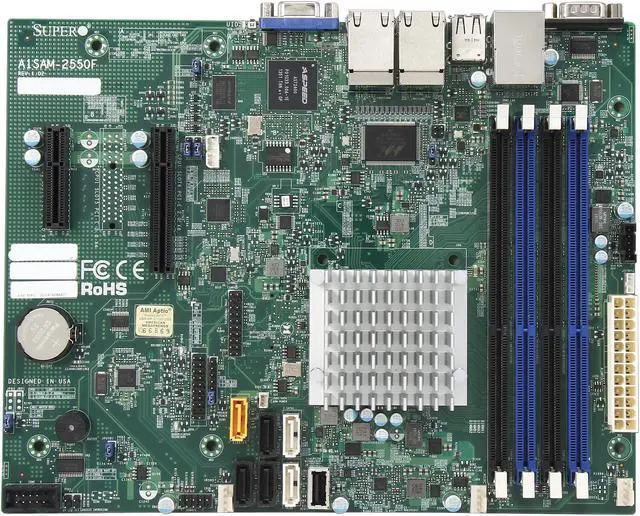

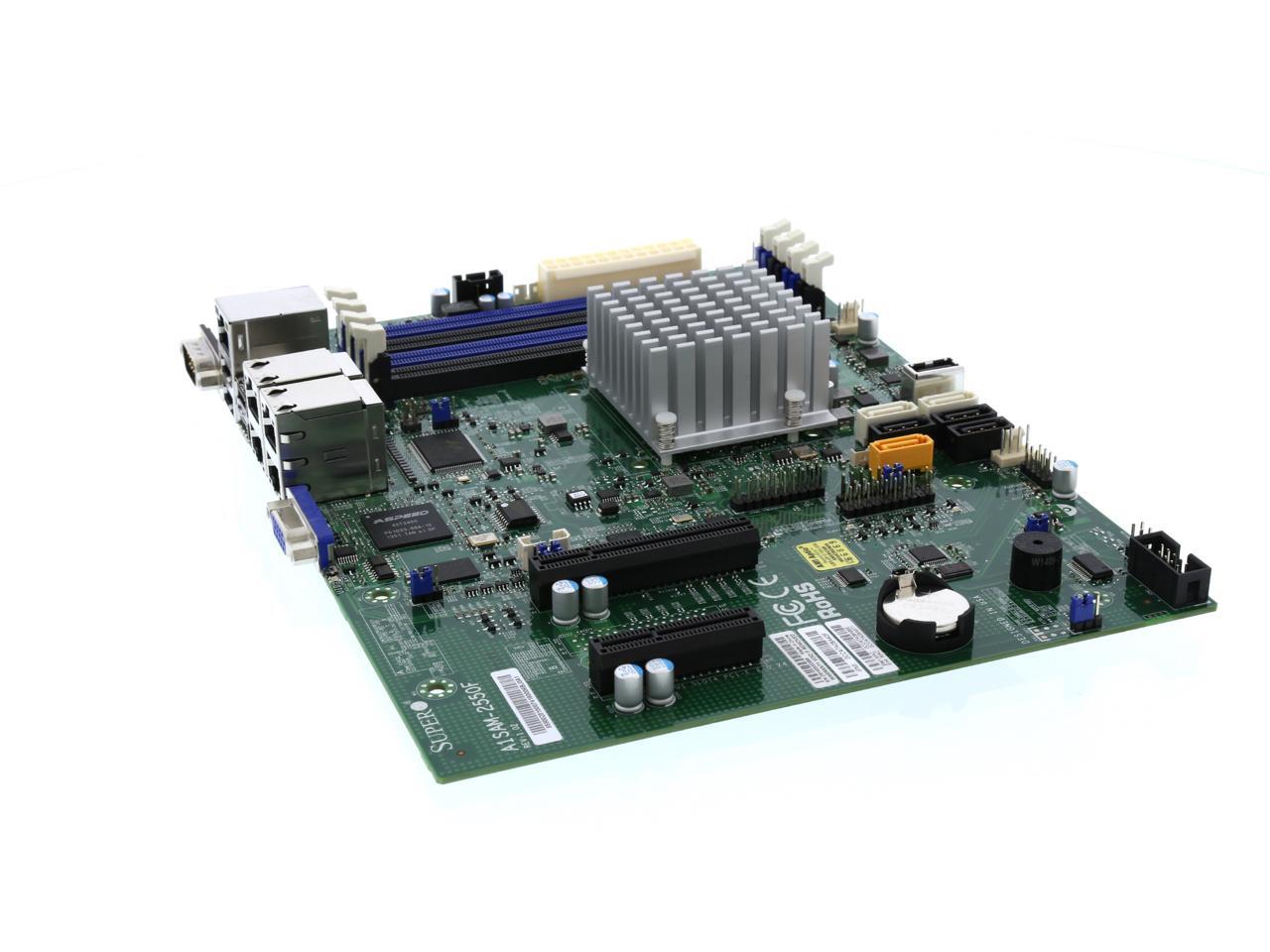

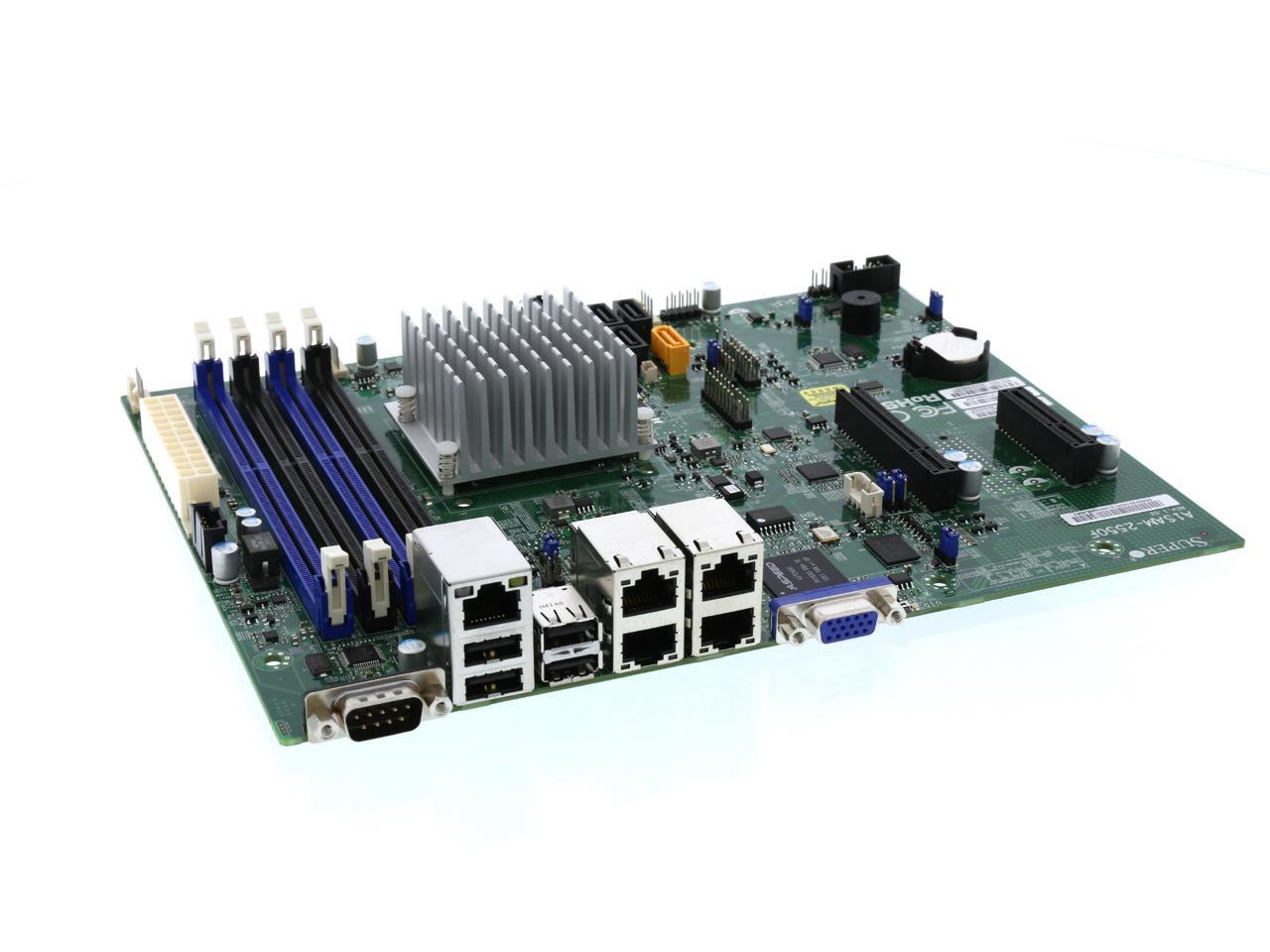

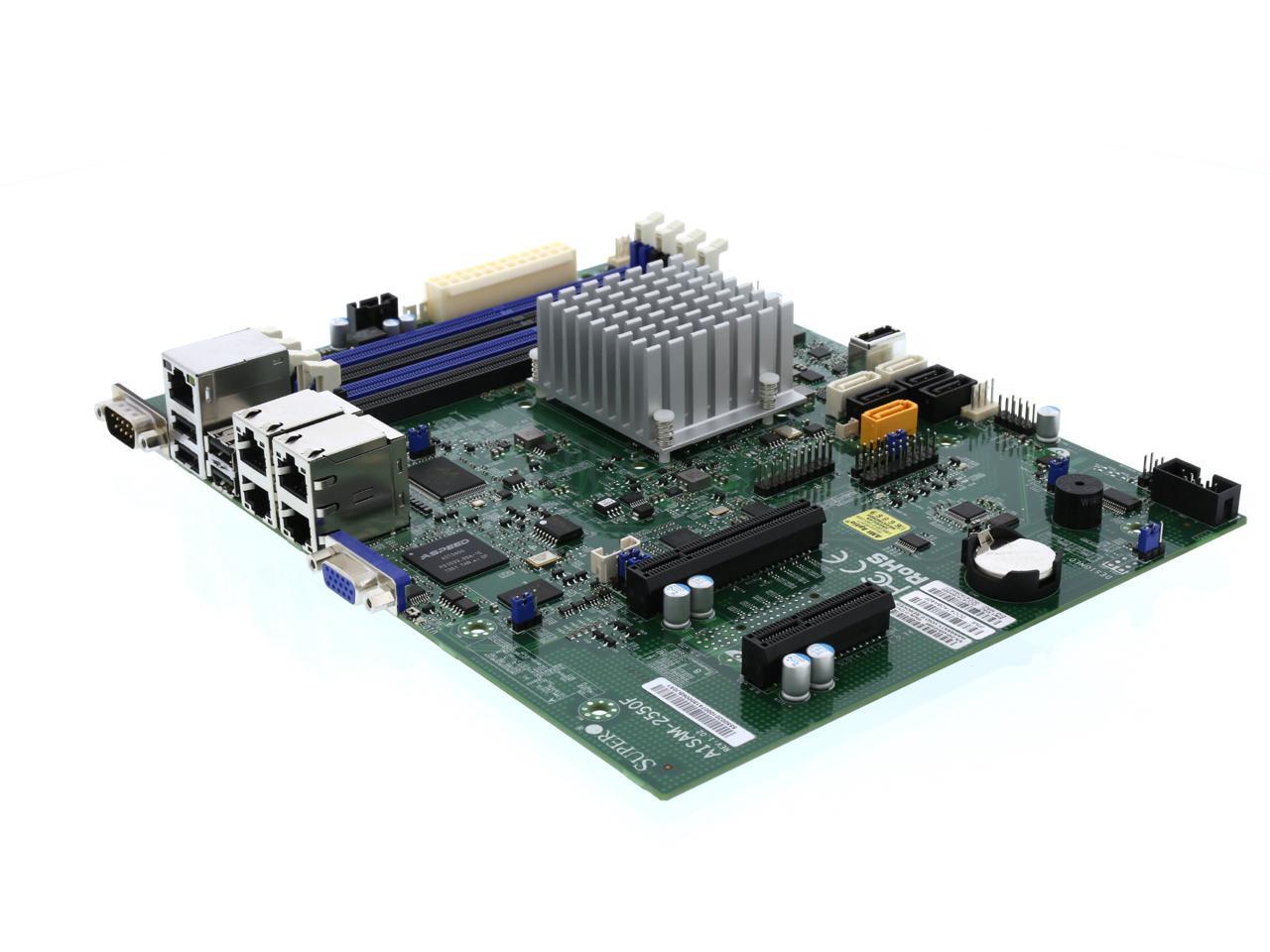

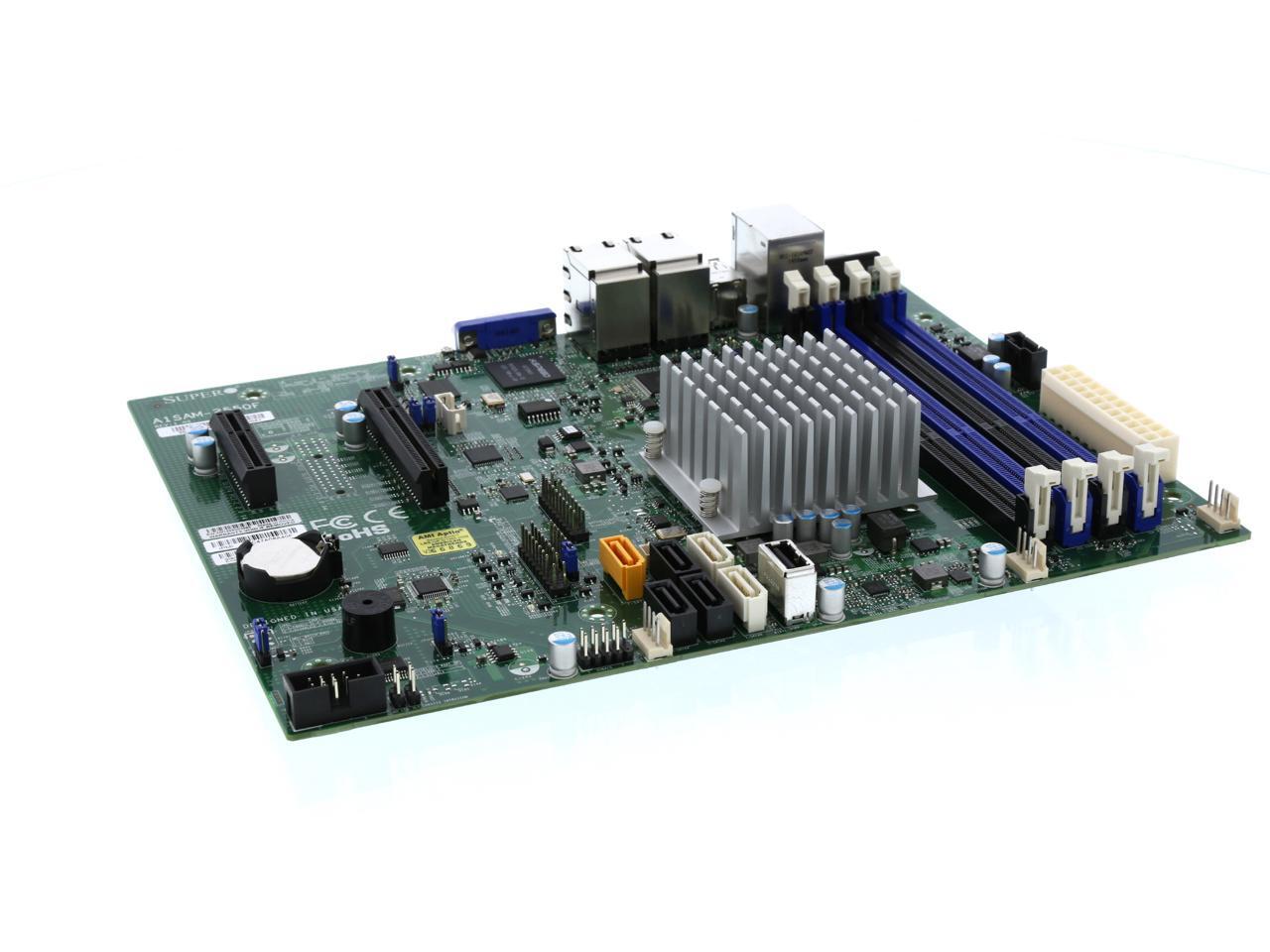

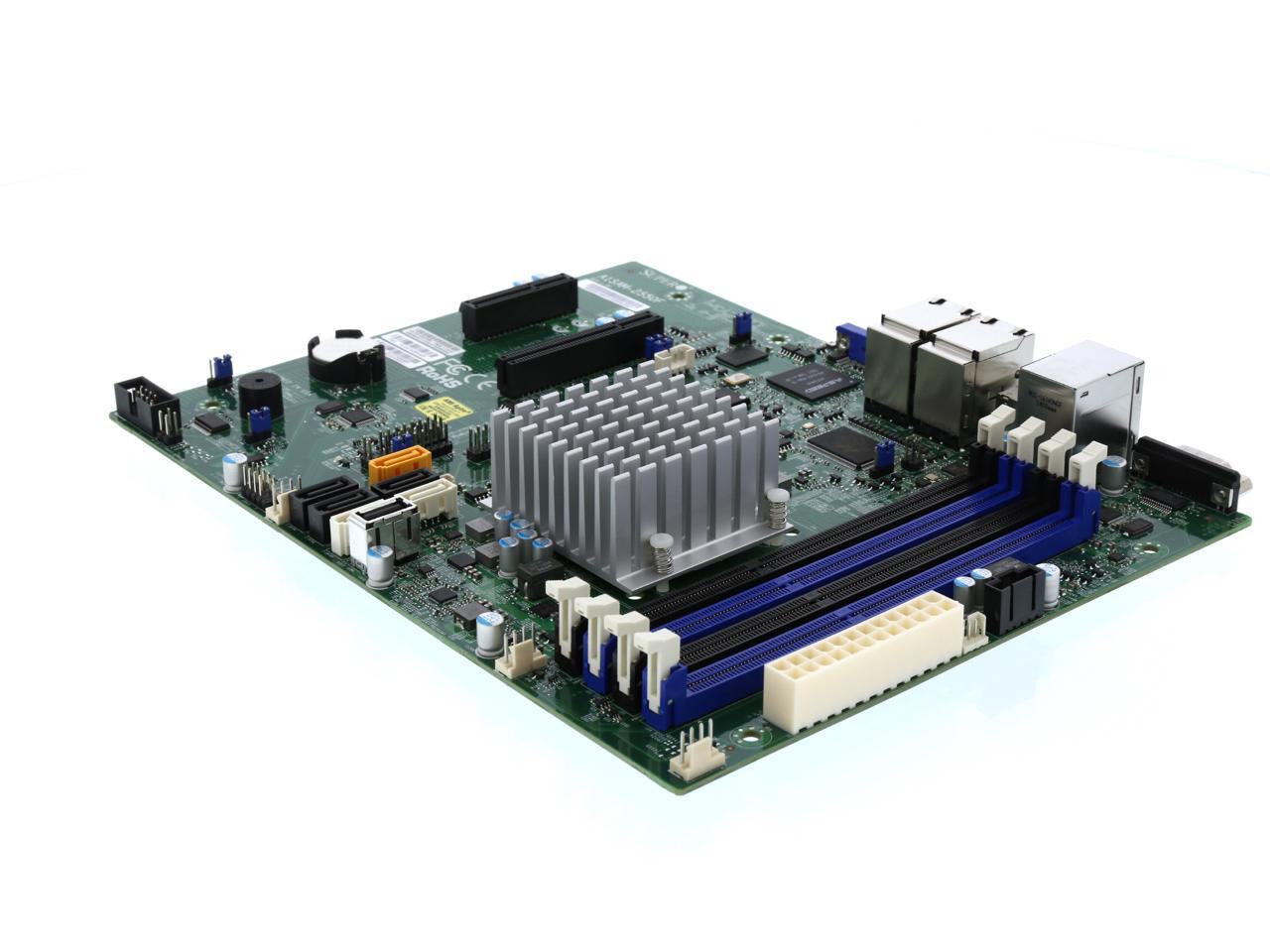

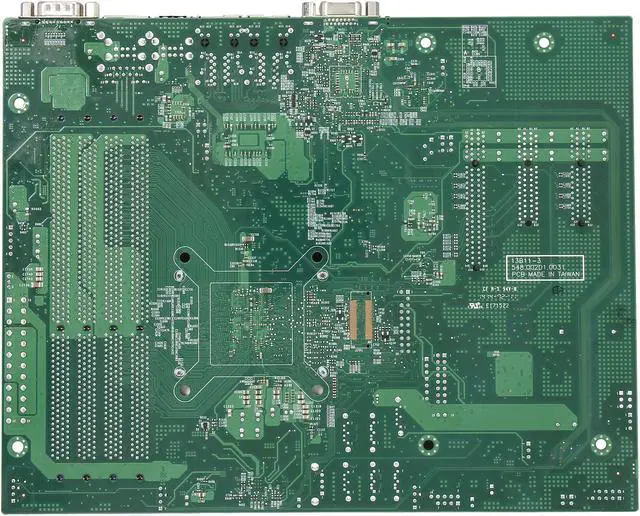

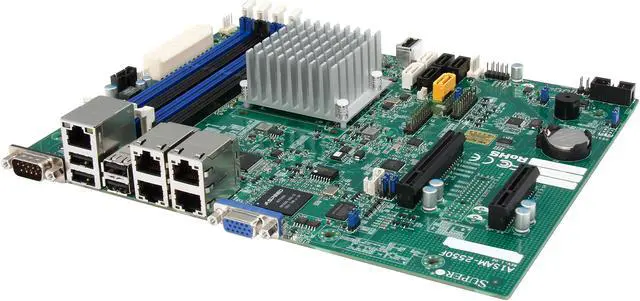

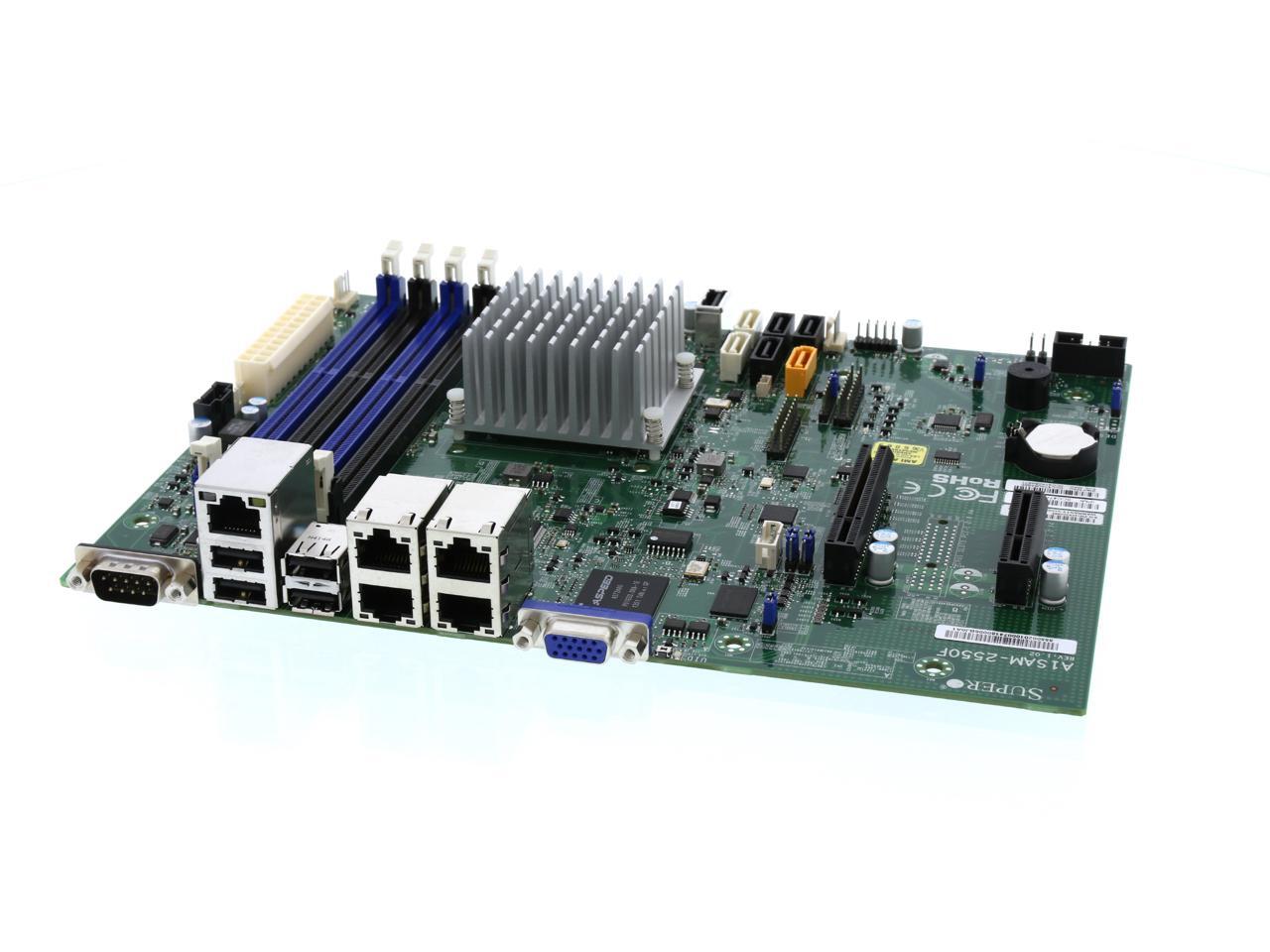

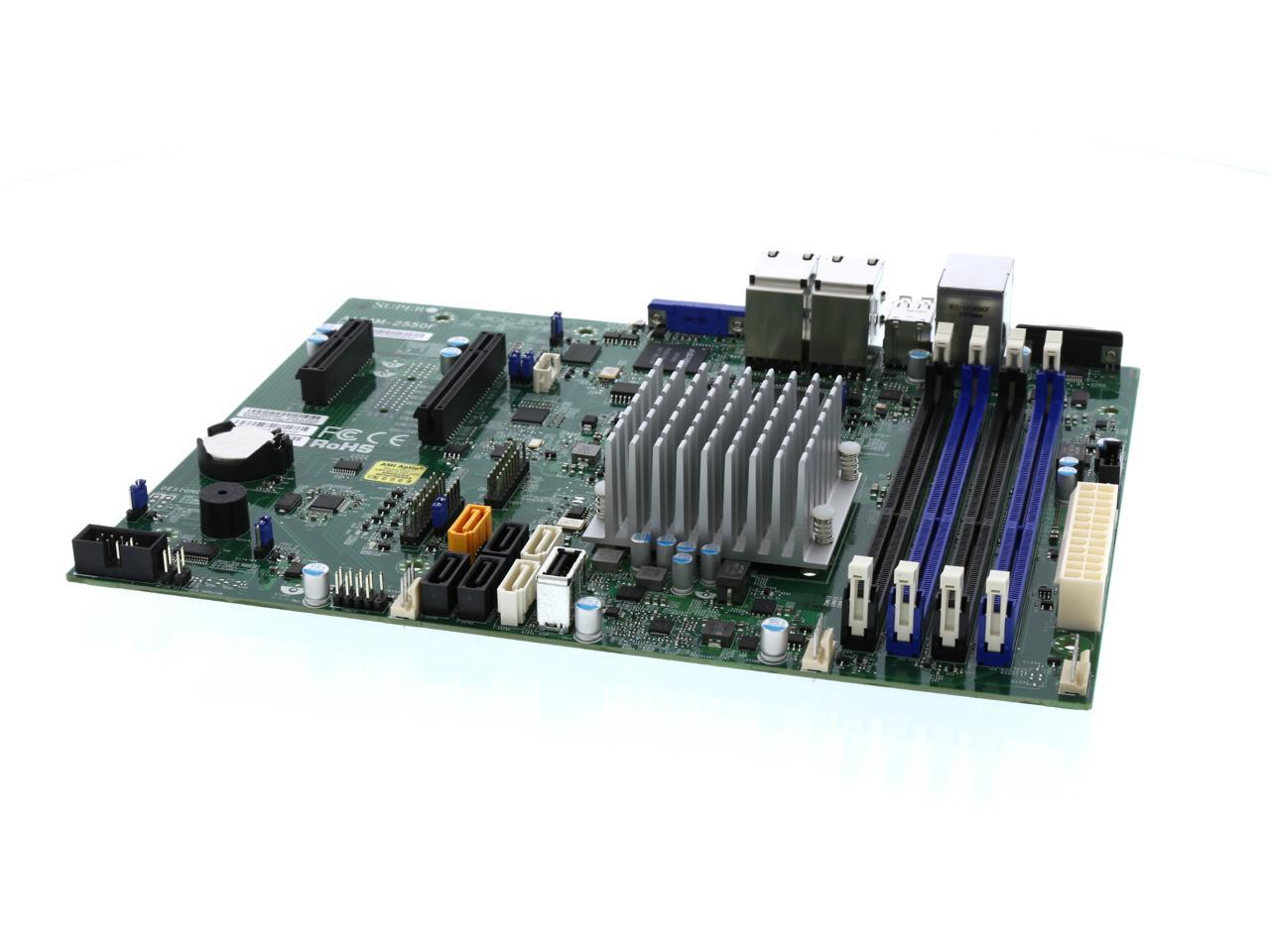

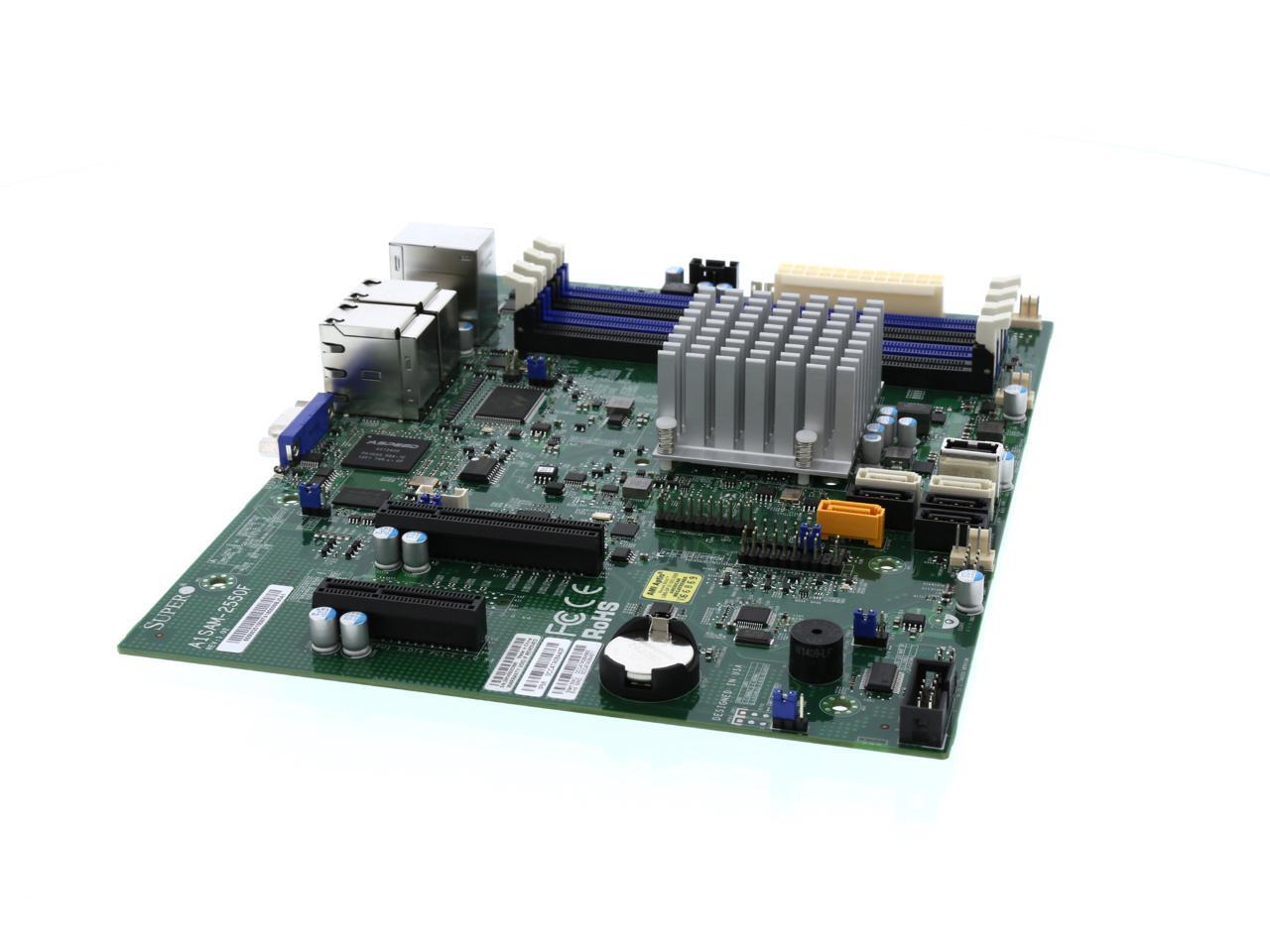

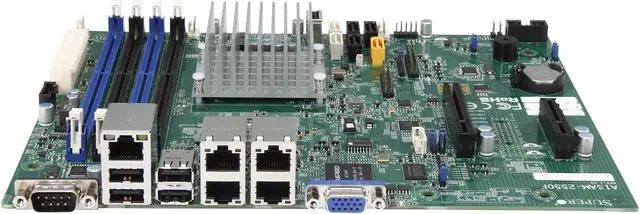

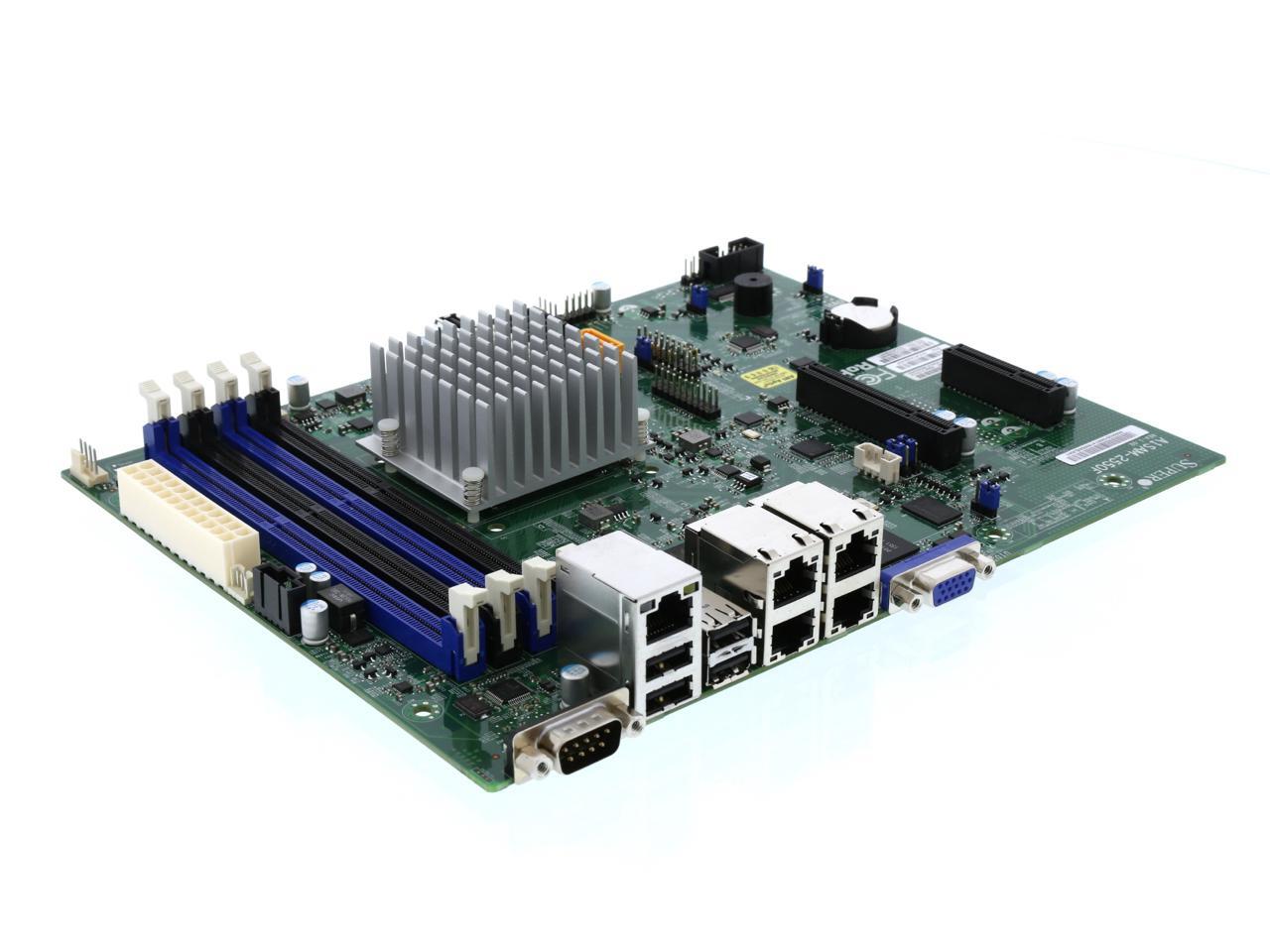

SUPERMICRO MBD-A1SAM-2550F-O uATX Server Motherboard

Key Features


PHILIPS
  1. 1. Intel® Atom processor C2550, SoC, FCBGA 1283, 14W 4-Core
  2. 2. Up to 64GB DDR3 1600MHz ECC or non ECC UDIMM in 4 DIMM sockets
  3. 3. Quad GbE LAN ports
  4. 4. IPMI with dedicated LAN
  5. 5. 2x SATA3 and 4x SATA2 ports
  6. 6. 1x PCI-E 2.0 x8, 1x PCI-E 2.0 x4
  7. 7. 7x USB 2.0 ports
  8. 8. Operating Temperature: 0°C - 60°C

Specifications

Product SKUs
MBD-A1SAM-2550F -O
  • A1SAM-2550F (Retail Pack)
MBD-A1SAM-2550F -B
  • A1SAM-2550F (Bulk Pack)
Physical Stats
Form Factor
  • uATX
Dimensions
  • 9.6" x 7.5" (24.4cm x 19.05cm)
Processor/Cache
CPU
  • Intel® Atom™ Processor C2550
  • CPU TDP 14W (4-Core)
  • FCBGA 1283
  • System-on-Chip
System Memory
Memory Capacity
  • 4x 240-pin DDR3 UDIMM socket
  • Supports up to 64GB DDR3 ECC memory
Memory Type
  • 1600/1333MHz ECC or non-ECC UDIMM SDRAM, 240-pin gold-plated DIMMs, x8 width only
DIMM Sizes
  • 16GB, 8GB, 4GB, 2GB
Memory Voltage
  • 1.5 V, 1.35 V
On-Board Devices
SATA
  • C2000 SoC SATA3 (6Gbps), SATA2 (3Gbps)
Network Controllers
  • C2000 SoC I354 Quad GbE controllers (MACs)
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
USB 2.0
  • C2000 SoC
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • BMC integrated Aspeed AST2400
Video
  • BMC integrated Aspeed AST2400
Input / Output
Serial ATA
  • 2x SATA3 (6Gbps) ports
  • 4x SATA2 (3Gbps) ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)
Serial Port
  • 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
DOM
  • 1x SATA DOM (Disk on Module) power connector
VGA
  • 1x VGA Port
Others
  • TPM 1.2 header

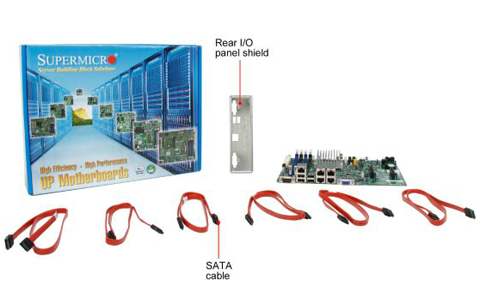

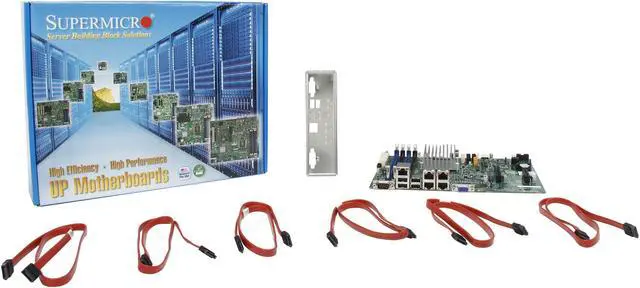

What's in the Box

PHILIPS

Learn more about the Supermicro MBD-A1SAM-2550F-O

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: non-refundable
    • Return for replacement within: non-replaceable
  • This item is covered by Newegg.com's Manufacturer Only Return Policy.
Ownership: more than 1 year
Verified Owner
5/ 5
Great Board!

Pros: Low power
64GB Max Memory
4 GbE LAN ports
Dedicated IPMI
SATA3

Cons: Only 2 SATA3 ports, other 4 are SATA2
No USB 3
4 LAN NICs are too close to use snagless boots

Overall Review: Running Microsoft Hyper-V Server from a Samsung USB drive without issue using two Crucial 8GB (CT102472BD160B).

IPMI OOB license is available (non refundable) though unfortunately not from Newegg. Requires BMC MAC address of the board and may take 2-3 business days to fulfill.

Did you find this review helpful?
Ownership: more than 1 year
Verified Owner
5/ 5
Great low-power motherboard

Pros: This is a server motherboard, not a desktop PC board, which is why is has no sound card, only mediocre video, and no USB3. On the other hand, for use as a server it is superbly equipped with 64GB DDR3 memory capacity, 4 Gibabit NICs, and a NIC dedicated to IPMI, which allows remote reboot, system monitoring etc. It uses amazingly little power (14 watt max for CPU), and runs cool with NO CPU fan. This should greatly improve the motherboard life, since clogged heat sinks are one of the major reasons for CPU overheating and failure.

Cons: This board is perfect for a low power server or NAS. No cons.

Overall Review: I run this board as a Internet-facing server hosting websites and business email. On the LAN side it is also a NAS and media server loaded with 3 separate 2TB RAID storage arrays. It has PLENTY of speed and power for everything I have used it for. Furthermore, Supermicro support was exceptional when I had a question about remote wakeup.

I would unhesitatingly recommend this board for low power server and/or NAS use. By the way, it has a PCI-E 2.0 x8 slot, which would allow installation of a graphics card for light gaming or HD media, if one wanted to do that.

Did you find this review helpful?
5/ 5
Powerful Atom Server

Pros: Small, Low power, 4x LAN, Regular DIMM, Expandable RAM, SATA III

Cons: NONE SO FAR
SuperMicro is Super Reliable!

Overall Review: I had another atom server X7SPA-H in a CSE-512 Chassis running Windows Server 2K8. Exchange was eating up resources and I needed to upgrade RAM, but couldn't with that board. I had bought a 5018A-MLTN4 for a client and liked the power. I was able to use this board to replace my old board and keep my same CSE-512 Chassis. Migrated to Windows Server 2K12 and its running like a champ! Installed 32GB of ECC RAM and never looked back.
Used 4x Crucial 8GB 1600MHz DDR3 ECC CT102472BD160B-18FED

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
1/ 5

Pros: It did boot. Had all the peripheral choices I was hoping for.

Cons: Began acting erroneously after about a week (just after I disposed of the box, of course). At first, appeared as faulty memory and/or faulty PSU, but both checked out on other hardware. My best guess was faulty cpu, as it was reporting different amounts of cache depending on bootup. Have RMA'd.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Awesome VyOS Router

Pros: - low power
- 64bit
- 4 gig ports built in (Intel NICs)
- server grade
- lots of expandability
- full size DIMM slots

Cons: - pricey

Overall Review: I've had this in service since May. Running VyOS this has been an incredibly stable platform. I've pumped 54 terabytes of data through this no problem. My internet connection is via Fiber To The Node, and I can easily sustain over 5MiB/s with 6iMB/s peaks.

I had some spare Buffered ECC DIMMs lying around from previous server upgrades, Booting from a budget SSD this thing is incredibly reliable. I would consider using this to build a low power ZFS server too as it has plenty of SATA and it would be trivial to add a PCIe SAS controller.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Feature rich and low power.

Pros: Allows for decent amount of RAM. Network ports to spare, cool, low power requirements. PCIE expandability. Works with Freenas. Doesn't necessarily require ECC ram. great for a pure storage server. Feature rich bios. IPMI. Internal USB A for flash drive boot. LED headers for everything one could imagine. In my case allowed for a build where drive access is the only noticeable sound.

Cons: no support for reg ecc. pricy relative to CPU power. onboard sata is pretty basic. fan control didn't appear as functional as other super micro boards. Slow boot of bios prior to legacy OS load. IPMI is nice to have but the client super micro is rather finicky.

1 out of 2 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Great for a Small Server

Pros: The board offers a decent amount of speed for a SOHO server, and supports more than enough memory for a FreeNAS box running ZFS (though I'm still running CentOS on mine for now).

I've been spoiled by DRAC and iLO remote console features at work for years, and it's nice to finally have them on a low-power box at home too.

The Intel network interfaces are a nice bonus as well, and they work in conjunction with the CPU cores to easily allow for wire speed transfers using SCP (which the many years old IBM Xeon box with its Broadcom interfaces could not).

Cons: The Java-based remote console works fine on Linux and Windows systems, but it just hangs and pegs the CPU on my MacBook (with Yosemite and Java 8u25), which is unfortunate.

Some of the headers/front panel connectors on the motherboard are in less than ideal locations (the 3rd and 4th NIC indicator headers are far away from the first two).

Overall Review: If you're trying to install Red Hat or CentOS on the board, you'll want to make sure to adjust the BIOS so that it's in UEFI mode rather than legacy mode. I do believe legacy is the default, which I did not notice. This is under PCIe/PCI/PnP Configuration, specifically the "Storage" item. With it set to Legacy, CentOS 7 wanted to do the bootbios partition, which it did, but it failed to install the boot loader on numerous installs.

Switching it to UEFI allowed CentOS 7 to install without incident, and should probably be the default (IMHO).

1 out of 1 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Pretty good little mobo!

Pros: Running the latest RC of pfSense and works great! (Read the tweaks about network cards to optimize). Note: I only have a few users, and not running a lot of packages, so I'm not sure how well it will run CPU wise for more of a business application.

Runs very cool as well.

Cons: n/a

2 out of 2 people found this review helpful. Did you?
