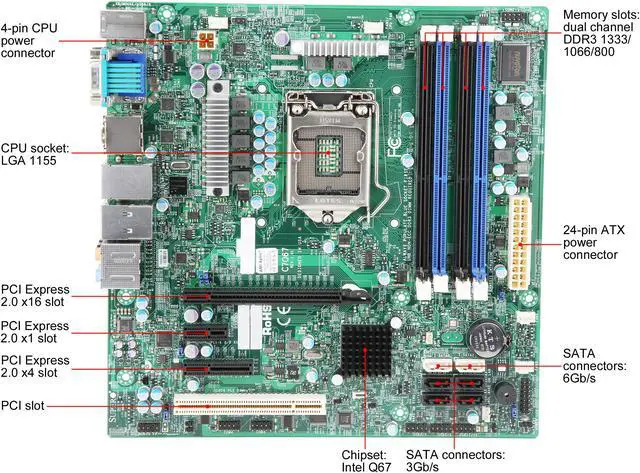

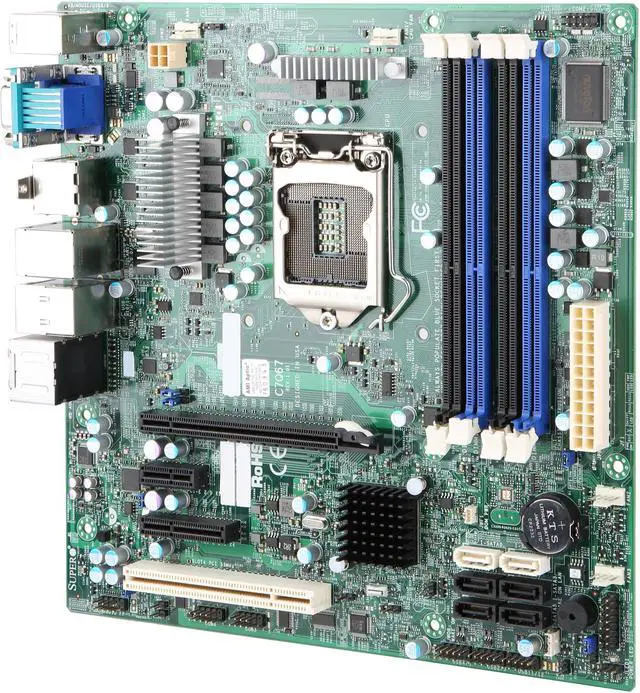

SUPERMICRO MBD-C7Q67-O LGA 1155 Intel Q67 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
- Intel Q67
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
- DDR3 1333/1066/800
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-C7Q67-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-C7Q67-O |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) |
| Chipset | Intel Q67 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066/800 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 2 x SATA 3.0 ports, RAID 0, 1 4 x SATA 2.0 ports, RAID 0, 1, 5, 10 |
| Audio Chipset | Realtek ALC889 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel 82579LM |
|---|---|
| Second LAN Chipset | Intel 82574L |
| Max LAN Speed | 2 x 1Gbps |

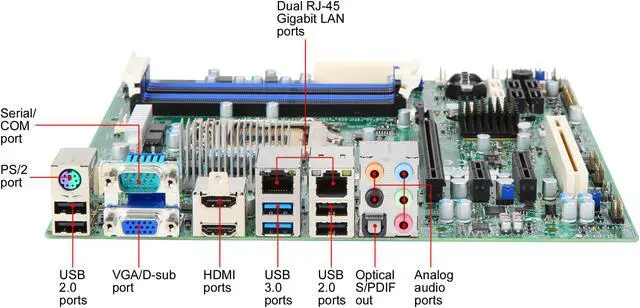

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x HDMI / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| COM | 1 |
| Video Ports | D-Sub |
| HDMI | 2 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| First Listed on Newegg | April 03, 2025 |
|---|
