I purchased a Core i7-4970 CPU and it appears from the reviews that it would work with BIOS v2.0 or higher. I flashed my BIOS to v2.2, but the board isn't POST'ing. Any suggestions? Thanks! Jim

I purchase for engineers at my company so I don't have any info about this item. My suggestion is to join some online forums, possibly related to Intel Z87 DDR3 1600, then see if you can get an answer that way. Our company has a lot of corporate restrictions on what we can write via email and on website postings.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

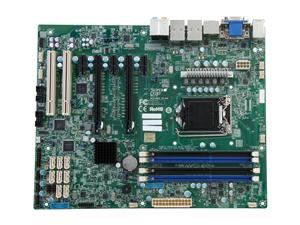

Main image of SUPERMICRO MBD-C7Z87-O ATX Motherboard LGA 1150 Intel Z87 DDR3 1600

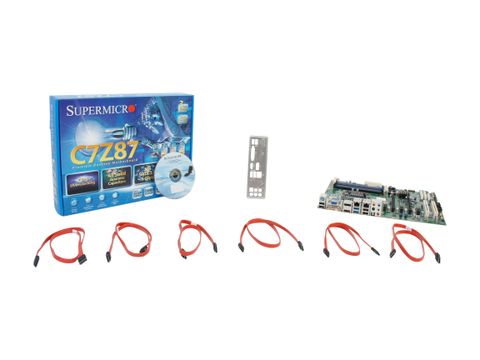

Alt view image 2 of 5 - SUPERMICRO MBD-C7Z87-O ATX Motherboard LGA 1150 Intel Z87 DDR3 1600

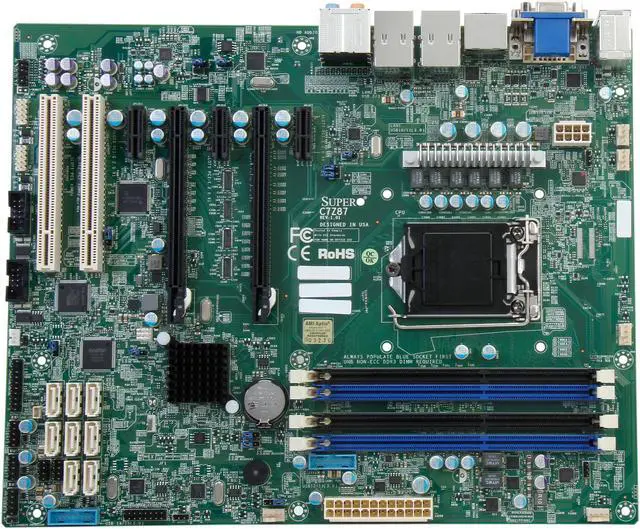

Alt view image 3 of 5 - SUPERMICRO MBD-C7Z87-O ATX Motherboard LGA 1150 Intel Z87 DDR3 1600

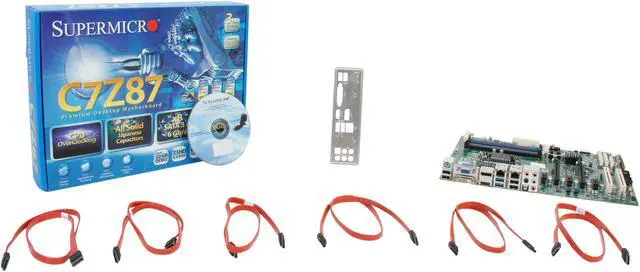

Alt view image 4 of 5 - SUPERMICRO MBD-C7Z87-O ATX Motherboard LGA 1150 Intel Z87 DDR3 1600

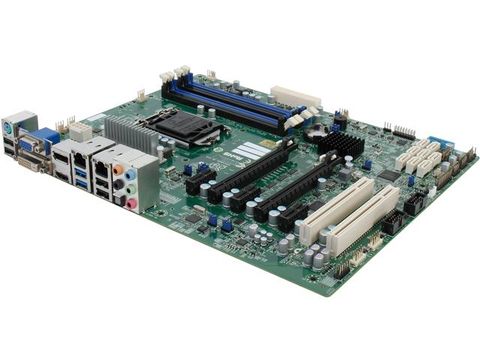

Alt view image 5 of 5 - SUPERMICRO MBD-C7Z87-O ATX Motherboard LGA 1150 Intel Z87 DDR3 1600

Shop All Supermicro Products

SUPERMICRO MBD-C7Z87-O ATX Motherboard LGA 1150 Intel Z87 DDR3 1600

(8) Write a Review

LGA 1150
Intel Z87
4 x 240pin

Overview

Specs

Reviews (8)

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO MBD-C7Z87-O ATX Motherboard

Features

Single socket H3 (LGA 1150) supports Intel® 4th gen. Core i7/i5/i3 processors
Intel® Z87 Chipset
Up to 32GB DDR3 non-ECC 1600MHz UDIMM in 4 sockets; Overclocking* support up to 3000MHz
Dual Gigabit Ethernet LAN ports (1x Intel® i217V & 1x Intel® i210AT)
8x SATA3 (6Gbps)
2 (x16) PCI-E 3.0, 3 (x1) PCI-E 2.0, and 2 5V PCI 32-bit slots
6x USB 3.0 (2 rear + 4 via headers) 10x USB 2.0 (4 rear + 6 via headers)
HD Audio 7.1 channel connector by Realtek ALC1150
1x DOM power connector and 1x SPDIF Out Header
UEFI BIOS support

Specifications

Product SKUs
MBD-C7Z87 -O	C7Z87
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6", (30.48cm x 24.4 cm)
Processor/Cache
CPU	Intel® 4th Gen Core i7/i5/i3 processors Single Socket H3 (LGA 1150)
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32GB DDR3 Non-ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs Support overclocking up to 2133MHz* / 2200MHz* / 2400MHz* / 2600MHz* / 2800MHz* / 3000MHz* * Please check the operation manual for supported components
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5V, 1.35V
On-Board Devices
Chipset	Intel® Z87 Chipset
SATA	SATA3 via PCH w/ RAID 0, 1, 5, 10 SATA3 via ASM1061®
Network Controllers	Intel® i217V + Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC1150 High Definition Audio
Input / Output
Serial ATA	6x SATA3 (6Gbps) ports via PCH 2x SATA3 (6Gbps) ports via ASM1061® Total of 8x SATA3 ports (6Gbps)
LAN	2x RJ45 Gigabit Ethernet LAN ports
USB	6x USB 3.0 ports (2 rear, 4 via headers) 10x USB 2.0 ports (4 rear, 6 via headers)
Audio	7.1 HD Jacks
Display	1x VGA, 1x HDMI, 1x DVI, 1x Display port
Serial Port / Header	2x COM ports (headers)
DOM	SATA DOM (Disk on Module) power connector support
Others	TPM header, 2x Type B 1394a headers, PS/2 connector for mouse and keyboard
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support

Whats in the Box

Model
Brand	SUPERMICRO
Model	MBD-C7Z87-O

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Intel 4th Gen Core i3 / i5 / i7

Chipsets
North Bridge	Intel Z87

Memory
Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	32GB

Expansion Slots
PCI Express 3.0 x16	2 (x16) PCI-E 3.0 slots - Function as: 16/NA or 8/8
PCI Express x1	3 (x1) PCI-E 2.0 slots
PCI Slots	2 PCI 5V 32-bit slots

Storage Devices
SATA	6x SATA3 (6Gbps) ports via PCH 2x SATA3 (6Gbps) ports via ASM1061
SATA RAID	SATA3 via PCH w/ RAID 0, 1, 5, 10 SATA3 via ASM1061 w/ RAID 0, 1

Onboard Audio
Audio Chipset	RealTek ALC1150 High Definition Audio
Audio Channels	7.1 HD Jacks

Onboard LAN
LAN Chipset	Intel I217-V
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I210-AT
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
Video Ports	1x VGA, 1x HDMI, 1x DVI, 1x Display port
USB 1.1/2.0	4 x USB 2.0
USB 3.0	2 x USB 3.0

Features
Features	UEFI BIOS support Input / Output: 2x RJ45 Gigabit Ethernet LAN ports 6x USB 3.0 ports (2 rear, 4 via headers) 10x USB 2.0 ports (4 rear, 6 via headers) 2x COM ports (headers) SATA DOM (Disk on Module) power connector support TPM header, 2x Type B 1394a headers, PS/2 connector for mouse and keyboard

Dimensions
Form Factor	ATX
Dimensions (W x L)	12" x 9.6", (30.48cm x 24.4 cm)
