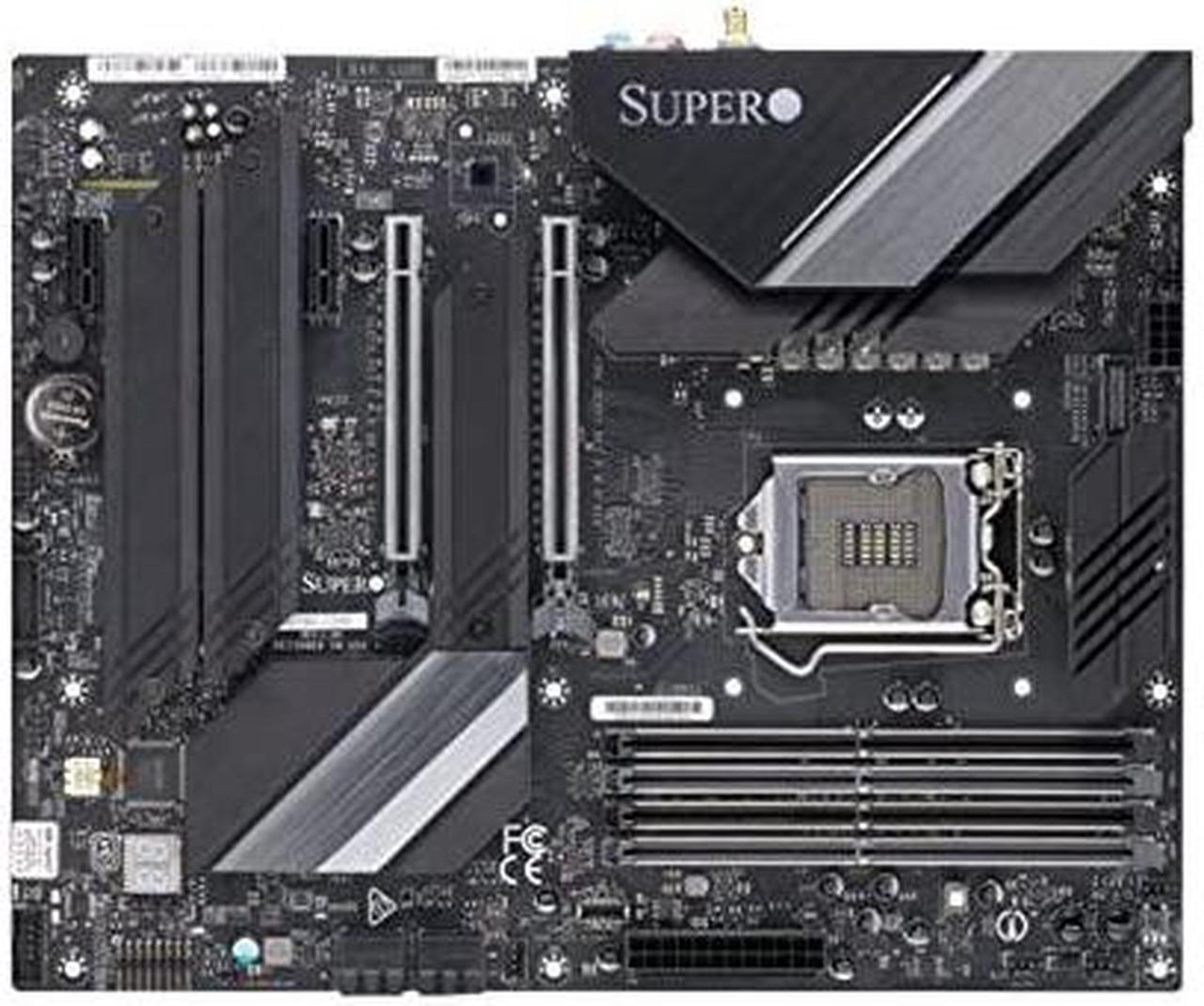

Main image of SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

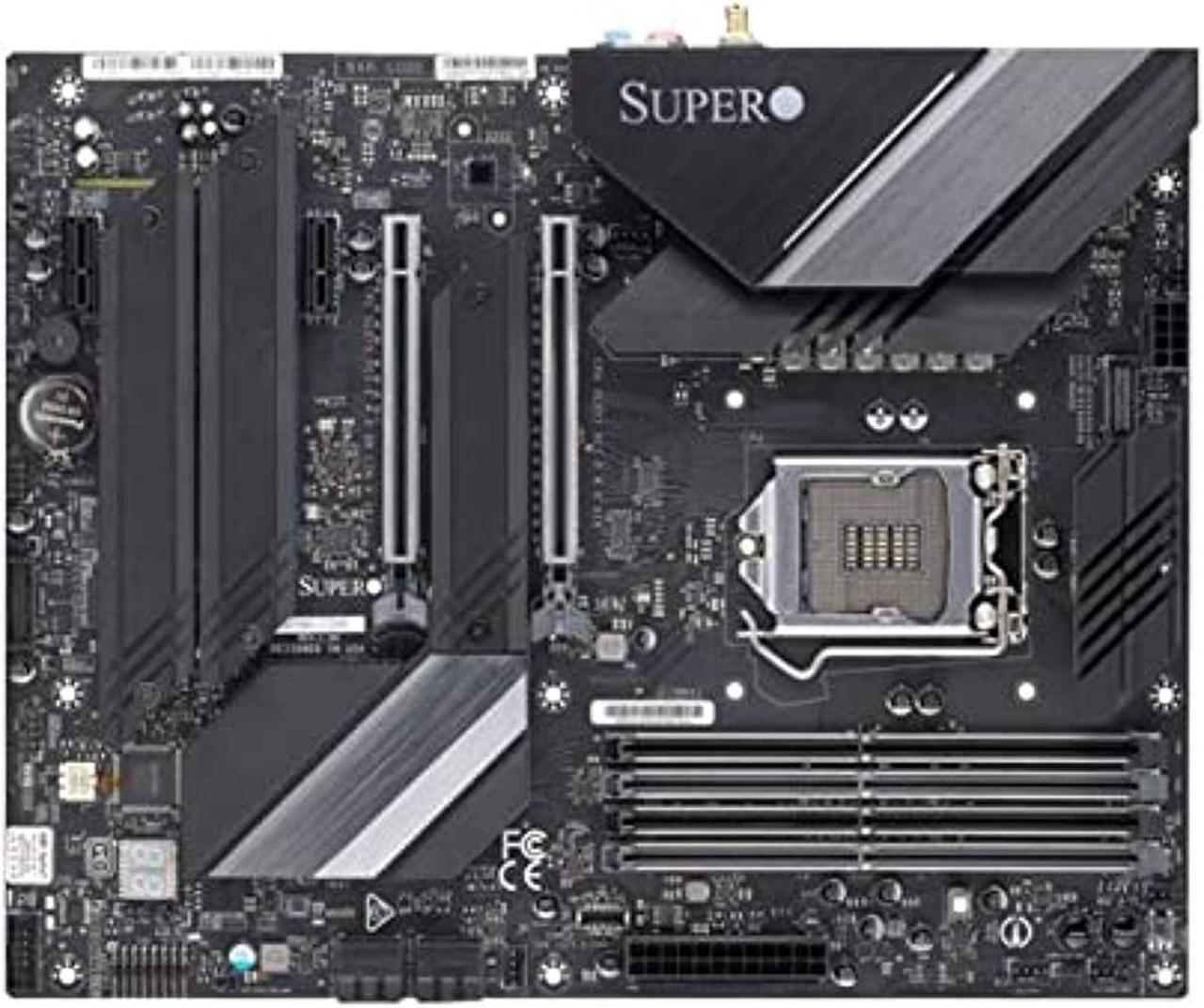

Alt view image 2 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 3 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 4 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 5 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 6 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 7 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 8 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 9 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 10 of 10 - SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Shop All Supermicro Products | Visit BTE Outlet Store

SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 ATX Intel Motherboard

Name: SUPERMICRO MBD-C9Z590-CG-O LGA 1200 ATX Intel Motherboard
Brand: Supermicro
SKU: N82E16813183798
Price: 2469.60 USD
Availability: InStock
Rating: 3 (2 reviews)

(2) Write a Review

Intel Z590
Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 11th Gen (LGA 1200) / Pentium Gold
DDR4 3200

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (2)

Learn more about the Supermicro MBD-C9Z590-CG-O

Model
Brand	SUPERMICRO
Model	MBD-C9Z590-CG-O

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 11th Gen (LGA 1200) / Pentium Gold

Chipsets
Chipset	Intel Z590

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	128GB

Expansion Slots
PCI Express 4.0 x16	2 x PCI Express 4.0 x16
PCI Express x1	2 x PCI Express 3.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	M.2 Interface: 2 PCI-E 3.0 x4; 1 PCI-E 4.0 x4
SATA RAID	0/1/5/10

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Second LAN Chipset	Marvell AQC113C
Max LAN Speed	10Gbps

Rear Panel Ports
Back I/O Ports	2 x LAN (RJ45) / 2 x USB 3.2 Gen 2 Type-A / 2 x USB 3.2 Gen 2x2 / 4 x USB 2.0/1.1 / 1 x DisplayPort / 1 x HDMI

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Features
Features	11th Generation Intel Core i5/i7/i9 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP Intel Z590 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1 (Slot#4 and Slot#6 can be configured as 16/NA, 8/8) M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key The CPU-attached M.2 slot is support with the Intel NVMe drives only (support RAID 0,1). _x005F_x000D_ PCH-attached M.2 slots can support either Intel optane memory with solid state or 3rd party NVMe SSD (support RAID 0,1) Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots Single LAN with Intel single Ethernet PHY i219V 1Gb Single LAN with Marvell AQC113C 10Gb 1 HDMI port, 1 DP (DisplayPort) port, DP version 1.4, HDMI version 2.0b

Additional Information
Date First Available	April 12, 2022
