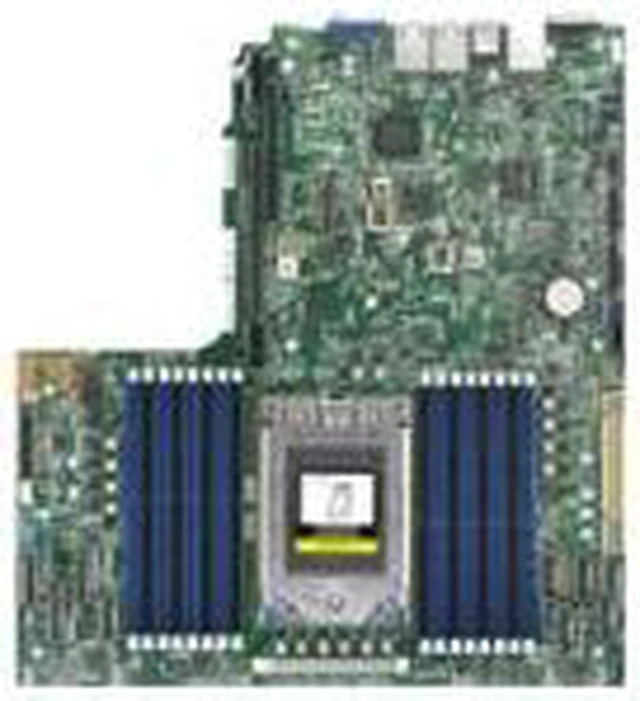

SUPERMICRO MBD-H12SSW-INR-B Proprietary Server Motherboard Socket SP3
- Socket SP3
+
+
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-H12SSW-INR-B
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-H12SSW-INR-B |
| CPU Socket Type | Socket SP3 |
|---|---|
| CPU Type | AMD EPYC 7002 Series Processor |
| Supported CPU Technologies | Up to 64 Cores |
| Number of DDR4 Slots | 16 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 4TB |
| Channel Supported | Eight Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 4.0 x16 | 1 x PCI-E 4.0 x32 Left Riser Slot 1 x PCI-E 4.0 x16 Right Riser Slot |
|---|
| SATA | 2 x SATA3 (6 Gbps) ports 16 x SATA3 or 4 x NVMe via SlimSAS (PCI-E Gen4) |
|---|---|
| M.2 | Interface: 2 x PCI-E 4.0 x2 Form Factor: 2280, 22110 Key: M-key |
| Onboard Video Chipset | ASPEED AST2500 BMC |
|---|
| Number of LAN | Dual GbE LAN Ports via Broadcom BCM5720 1 x Realtek RTL8211F PHY (dedicated IPMI) |
|---|
| COM | 1 |
|---|---|
| Video Ports | 1 x VGA |
| RJ45 | 2 x RJ45 GbE LAN ports 1 x RJ45 Dedicated IPMI LAN port |
| USB 3.0 | 7 x USB 3.0 ports (4 rear, 2 via header, 1 Type A) |
| Other Connectors | 2 x SuperDOM power connectors 1 x TPM 1.2/2.0 header |
|---|
| Features | Single AMD EPYC 7002 Series Processor 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs Expansion slots: - 1 PCI-E 4.0 x32 Left Riser Slot - 1 PCI-E 4.0 x16 Right Riser Slot - M.2 Interface: 2 PCI-E 4.0 x2 - M.2 Form Factor: 2280, 22110 - M.2 Key: M-key 2 native NVMe via SlimSAS, 4 NVMe or 16 SATA3 ports via SlimSAS, 2 M.2, 2 SATA3 Dual GbE LAN Ports via Broadcom BCM5720 ASPEED AST2500 BMC graphics Up to 7 USB 3.0 ports 6x 4-pin PWM Fans & Speed control |
|---|
| Form Factor | Proprietary |
|---|---|
| Dimensions (W x L) | 13.40" x 12.29" |
| First Listed on Newegg | September 08, 2026 |
|---|
