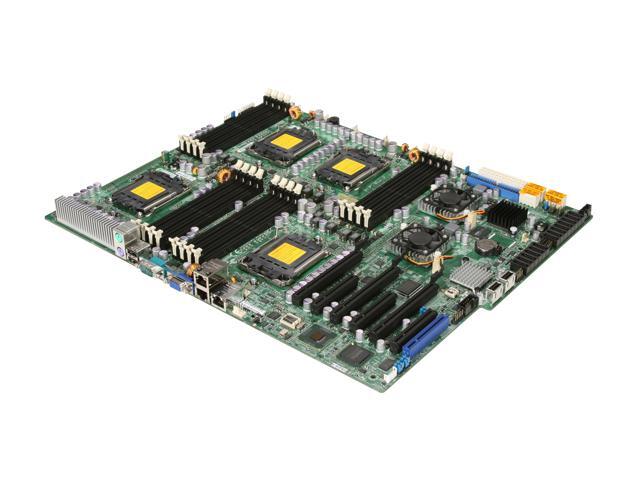

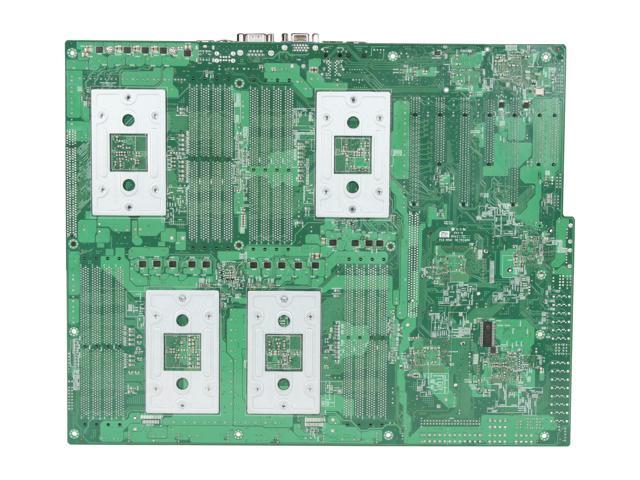

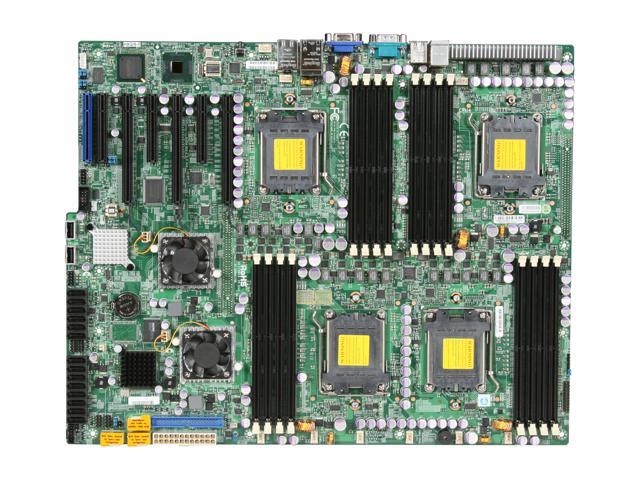

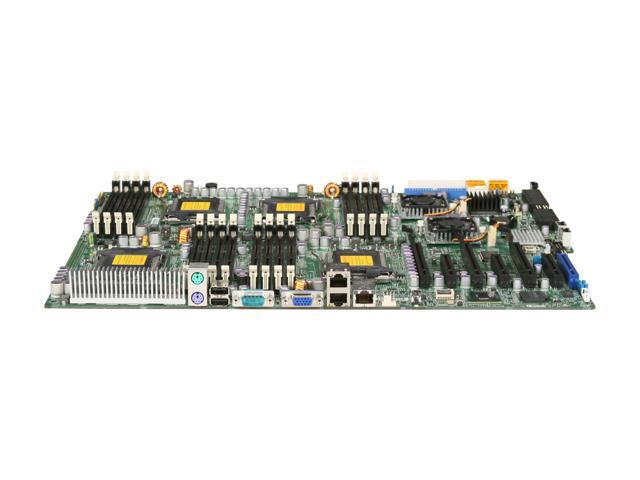

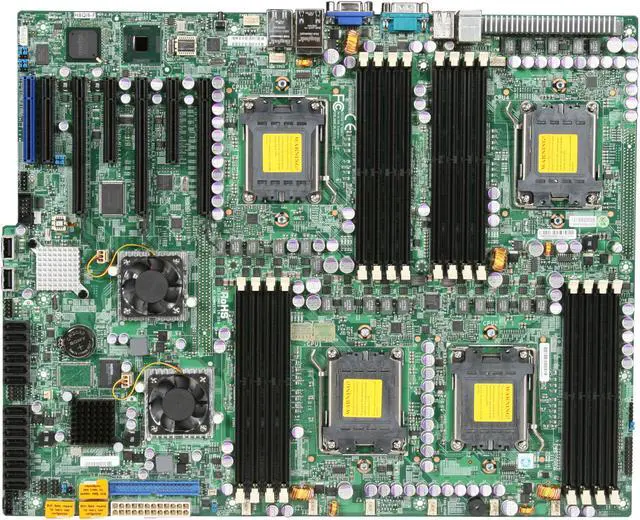

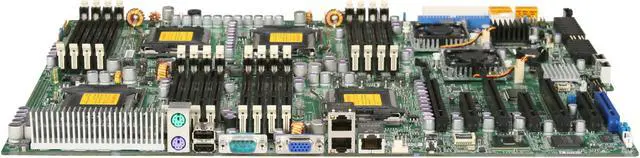

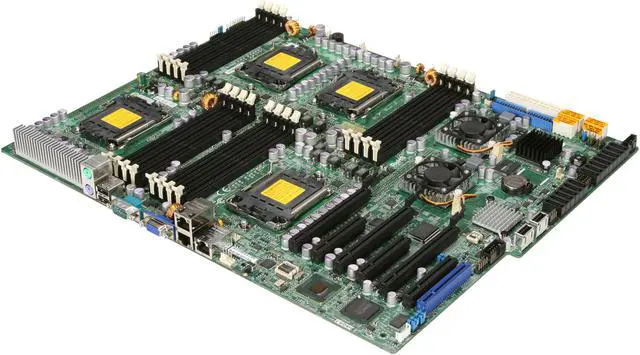

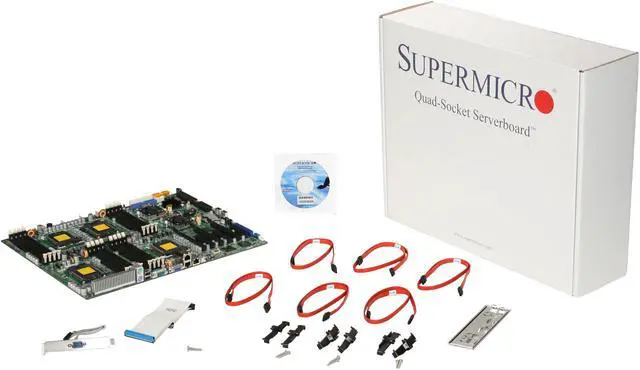

Brand | SUPERMICRO |
---|---|
Model | MBD-H8QI6-F-O |
CPU Socket Type | Quad 1207(F) |
---|---|
CPU Type | Quad 6-Core / Quad-Core AMD Opteron 8000 Series (Opteron 837x, 838x, 839x, and 84xx supported) |
North Bridge | Dual AMD SR5690 |
---|
Number of DDR2 Slots | 16 x 240Pin |
---|---|
DDR2 Standard | DDR2 800 |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
ECC Supported | Yes |
Registered | Yes |
PCI Express 2.0 x16 | 3 |
---|---|
PCI Express x8 | 1 x PCI-e 2.0 x8 |
PCI Express x4 | 2 x PCI-e 2.0 x4 (in x8 slot) |
Other Slots | 1 x UIO slot |
PATA | 1 x ATA 133 2 Dev. Max |
---|---|
SATA | 6 x SATA 3.0Gb/s |
SATA RAID | 0/1/10 |
Onboard Video Chipset | Matrox G200eW |
---|
LAN Chipset | Intel 82576 |
---|---|
LAN Speed | 10/100/1000Mbps |
Second LAN Chipset | Intel 82576 |
Second LAN Speed | 10/100/1000Mbps |
Max LAN Speed | Dual 10/100/1000Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
Video Ports | D-Sub |
USB 1.1/2.0 | 2 x USB 2.0 |
Features | LSI 2008 8 port SAS2 controller IPMI 2.0 with dedicated LAN support |
---|
Form Factor | Proprietary |
---|---|
Dimensions (W x L) | 16.4" x 13.0" |
Date First Available | April 19, 2010 |
---|
