Question 1

Has anybody used this board with an expansion card installed in the top PCIe x16 slot? Does your CPU cooler prevent you from installing a card in that slot? Which cooler did you install?

Accepted Answer

I have this board currently in use with all three PCIe slots filled, though I am not using the 16x for a graphics card which is likely why you are asking.  You will likely run into the cpu cooler with a large graphics card.

Question 2

I want to use the AMD - OPTERON TWELVE-CORE THIRD-GENERATION 6174 2.2GHZ 6MB L2 CACHE 12MB L3 CACHE 3.2GHZ HTS SOCKET G34(LGA-1944) 45NM 80W PROCESSOR with this board in my home network. Will 'Windows 7 Home Pro' work or will I need some version of Windows Server ( i.e. 2003, 2008 or 2012) for my OS ?

Accepted Answer

All 32 bit Windows 7 versions support up to 32 "cores" (though the number of physical chips varies by versions).. 64 bit is 256 cores..  since this is a single socket board.. you will be fine with any variant of Windows 7.  I'm not sure why you would consider running a "desktop class" OS on this board given it lacks certain desktop features (onboard sound,etc).  If you are setting up some sort of server, this is an excellent board and if you don't really need 12 cores, you can find older generation Opteron 6128 CPUs that work great in this board on e-B-a-y for cheap (less than $50)

Question 3

Does this work on Ubuntu Server 14?

Accepted Answer

I see no reason why it shouldn't.  I have run Debian 7 and 8 (which Ubuntu is based on) in both server and workstation roles on this board and it works perfectly.

Question 4

What heatsink are you using with this board?  I can't tell what type it will accept and the "recommendations" are all over the place

Accepted Answer

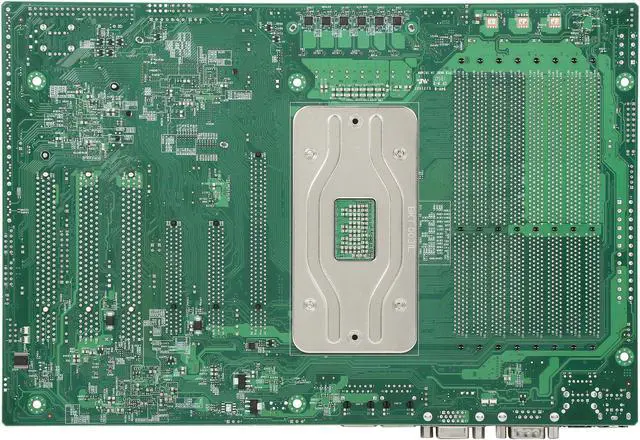

It comes with brackets installed so you can use the clip-on type coolers.  You can remove them if you need to use the low profile screw-down opteron heat-sinks.

Question 5

can i use the AMD Opteron 6380 Abu Dhabi 2.5GHz 16 MB L2 Cache 16MB L3 Cache Socket G34 115W Server Processor with this motherboard?

Accepted Answer

should be fine you can check supermicro website to be sure i built a 16 core 2.4 gig system and it screems the only drawback i found was finding video card to work with that board its older board and new stuf wont work in it  and and watch the pci slots the card slot is turned around not your normal pci slot (white slots)

Product SKUs
MBD-H8SGL	H8SGL (Standard Retail Pack)
Physical Stats
Form Factor	ATX Form
Dimensions	12" x 8" (30.5cm x 20.3cm)
Processor/Cache
CPU	Single 1944-pin Socket G34 Supports one 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors HT3.0 Link support
Chipset	AMD chipset SR5650/SP5100
System Memory
Memory Capacity	Eight DIMM sockets Supports up to 256GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 8 DIMMs Quad channel memory bus
Memory Type	DDR3 1600/1333/1066 MHz Registered ECC SDRAM or Unbuffered ECC/non-ECC 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage	1.35V or 1.5V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	AMD SP5100 (RAID 0, 1, 10)
Network Controllers	Two Intel® 82574L controller, Dual-Port Gigabit Ethernet 10/100/1000BASE-T support
VGA	Matrox G200 16MB DDR2
Super I/O	Winbond® W83527 chip
Input / Output
SATA	6x SATA2.0 (3Gb/s) Ports
USB	8x USB 2.0 ports 2x Rear, 2x header(4x ports), and 2x TypeA
VGA	1x VGA port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Ports	1x Fast UART 16550 serial port 1x serial port header
Others	1 SATA DOM power connector, TPM header
Expansion Slots
PCI-Express	1 PCI-E 2.0 x8 (in x16 slot) 1 PCI-E 2.0 x8 1 PCI-E 2.0 x4 (in x8 slot) 3 PCI
System BIOS
BIOS Type	16Mb SPI Flash ROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3
Management
Software	SuperDoctor® III
Power Configurations	ACPI Power Management Wake-On-LAN (WOL) header Keyboard Wakeup from Soft-Off Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, VBAT, HT, memory, chipset CPU switching voltage regulator
FAN	Up to 6-fan status tachometer monitoring Up to six 4-pin fan headers Status monitor for speed control 3-pin fan support (w/o speed control) Low noise fan speed control (4-pin fan only) Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I2C Temperature Sensing Logic
LED	CPU / System Overheat LED +5V Standby Alert LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header

Brand	SUPERMICRO
Model	MBD-H8SGL-O

CPU Socket Type	Socket G34
CPU Type	AMD Opteron Interlagos 6200 series AMD Opteron 6100 Series 8/12-Core
System Bus	HT3.0 Link support

North Bridge	AMD SR5650
South Bridge	AMD SP5100

Number of DDR3 Slots	8 x 240pin
DDR3 Standard	DDR3 1600/1333/1066
Maximum Memory Supported	128GB
ECC Supported	Yes
Registered	Yes

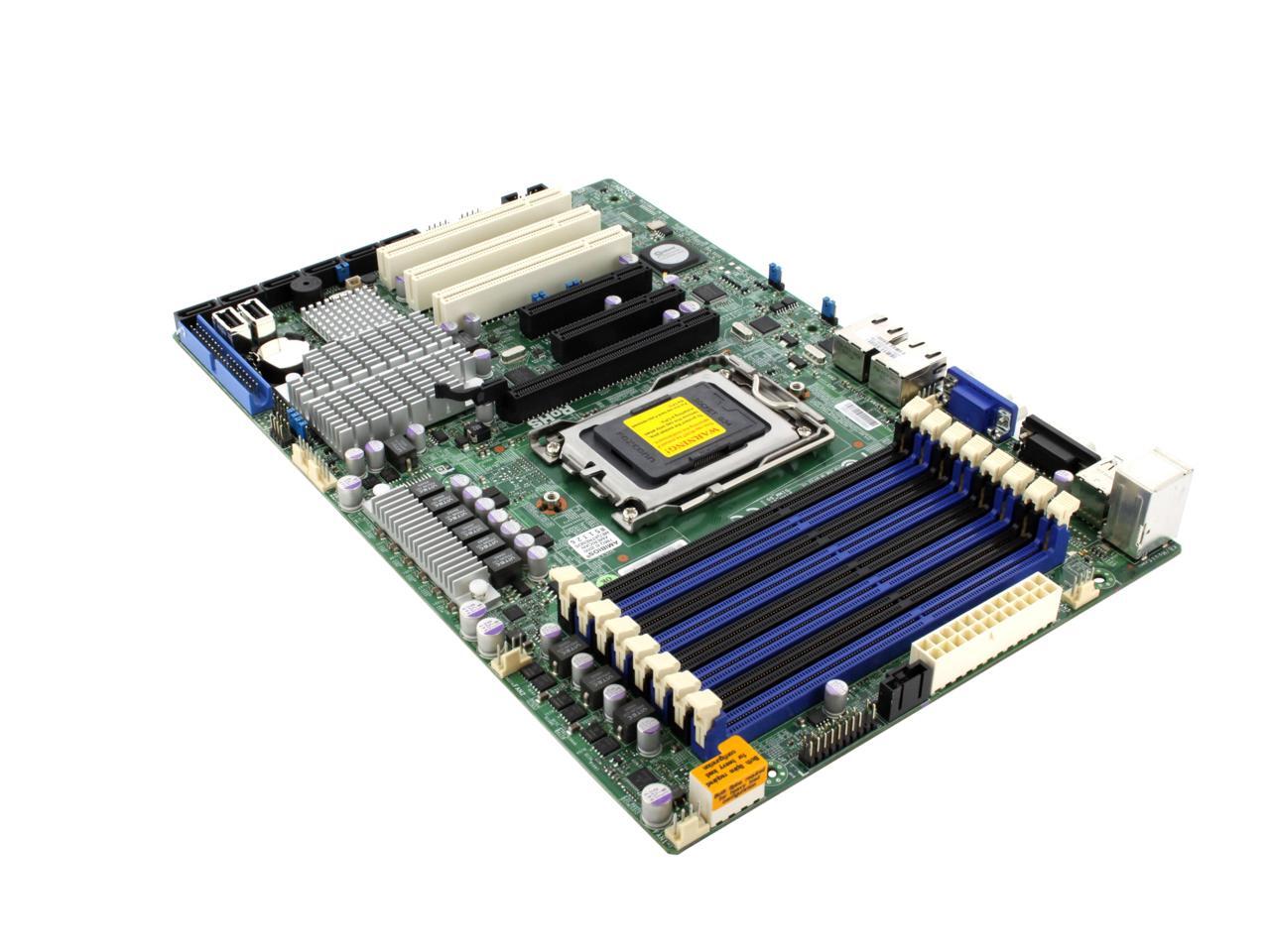

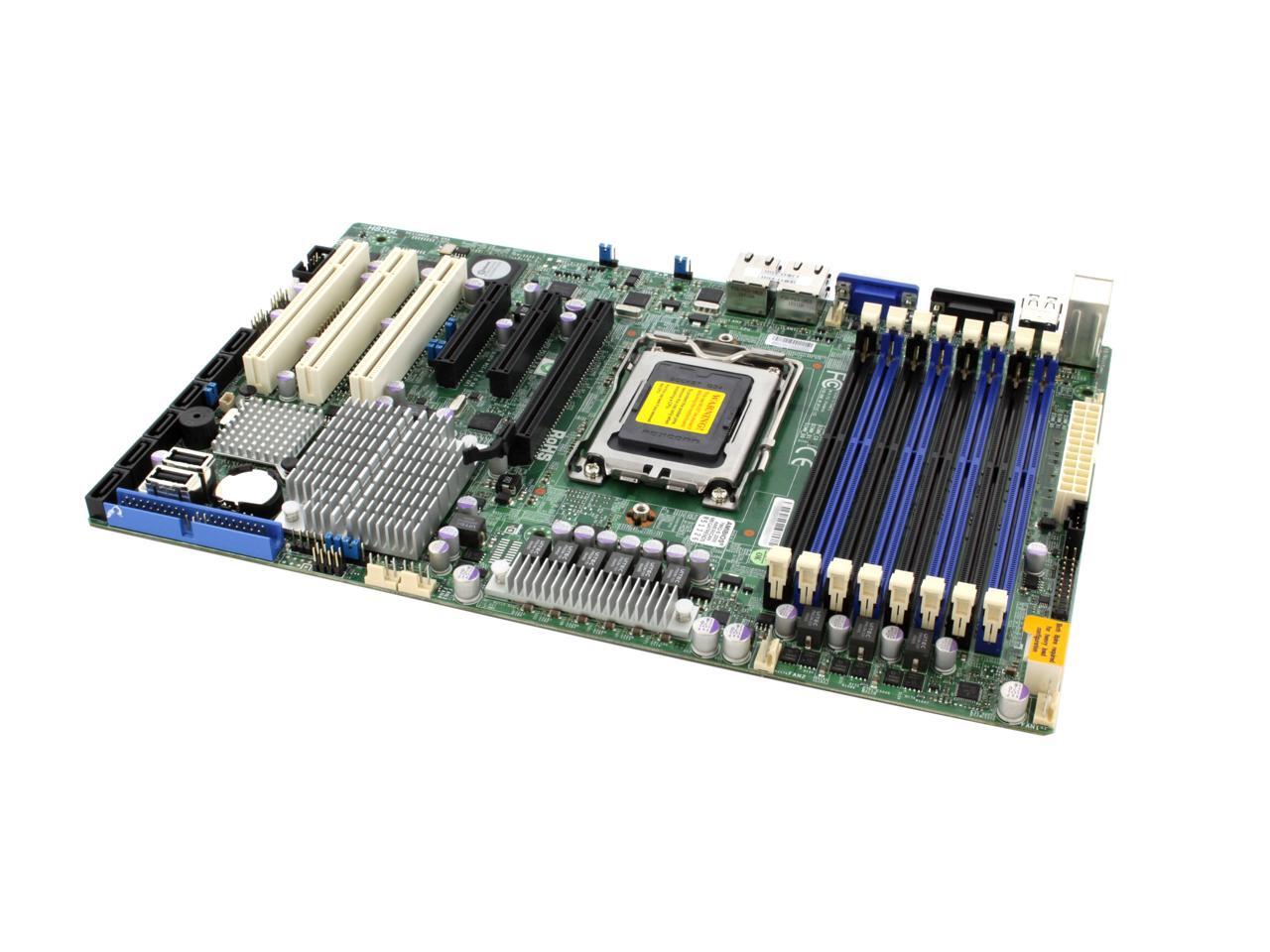

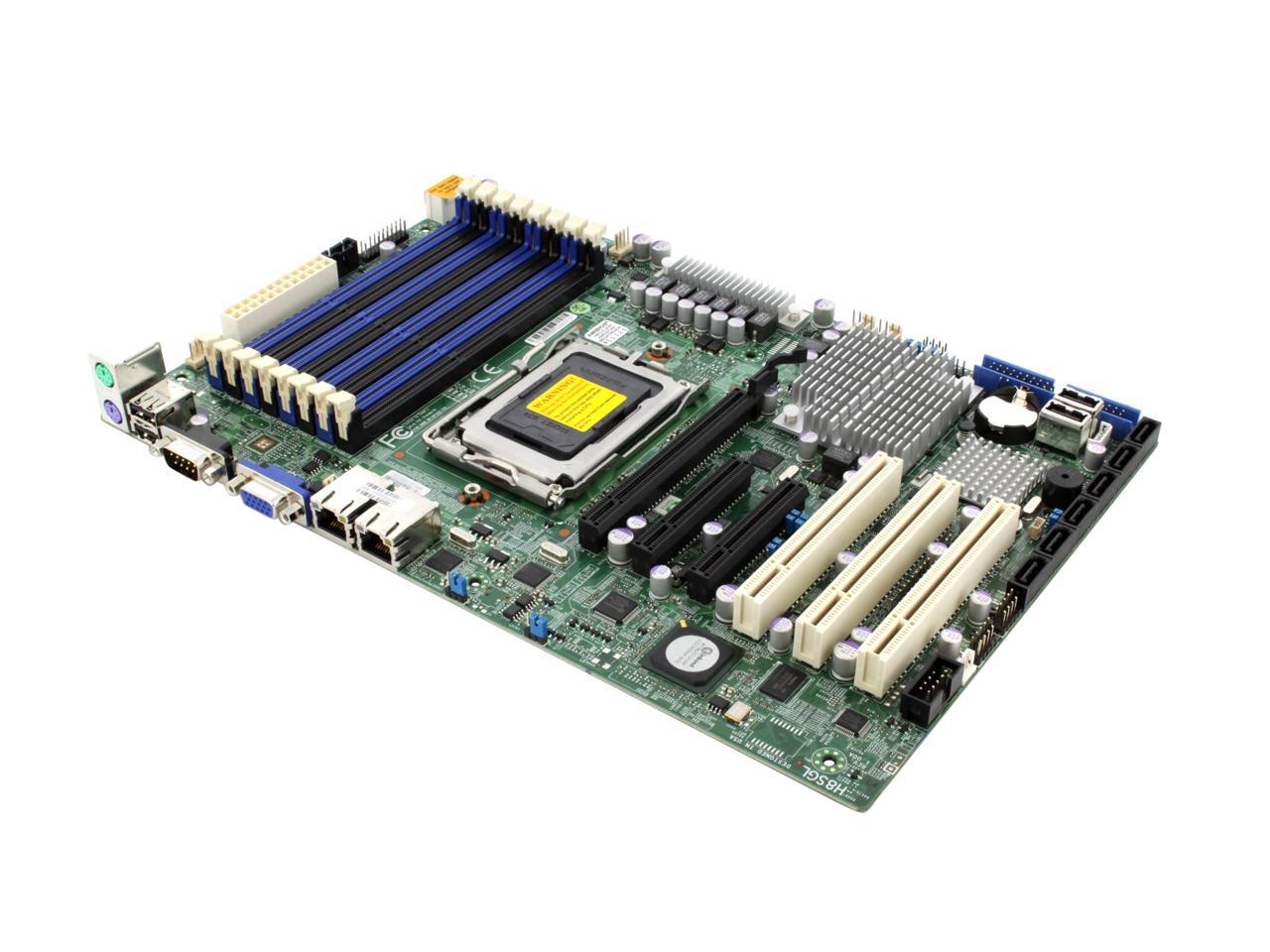

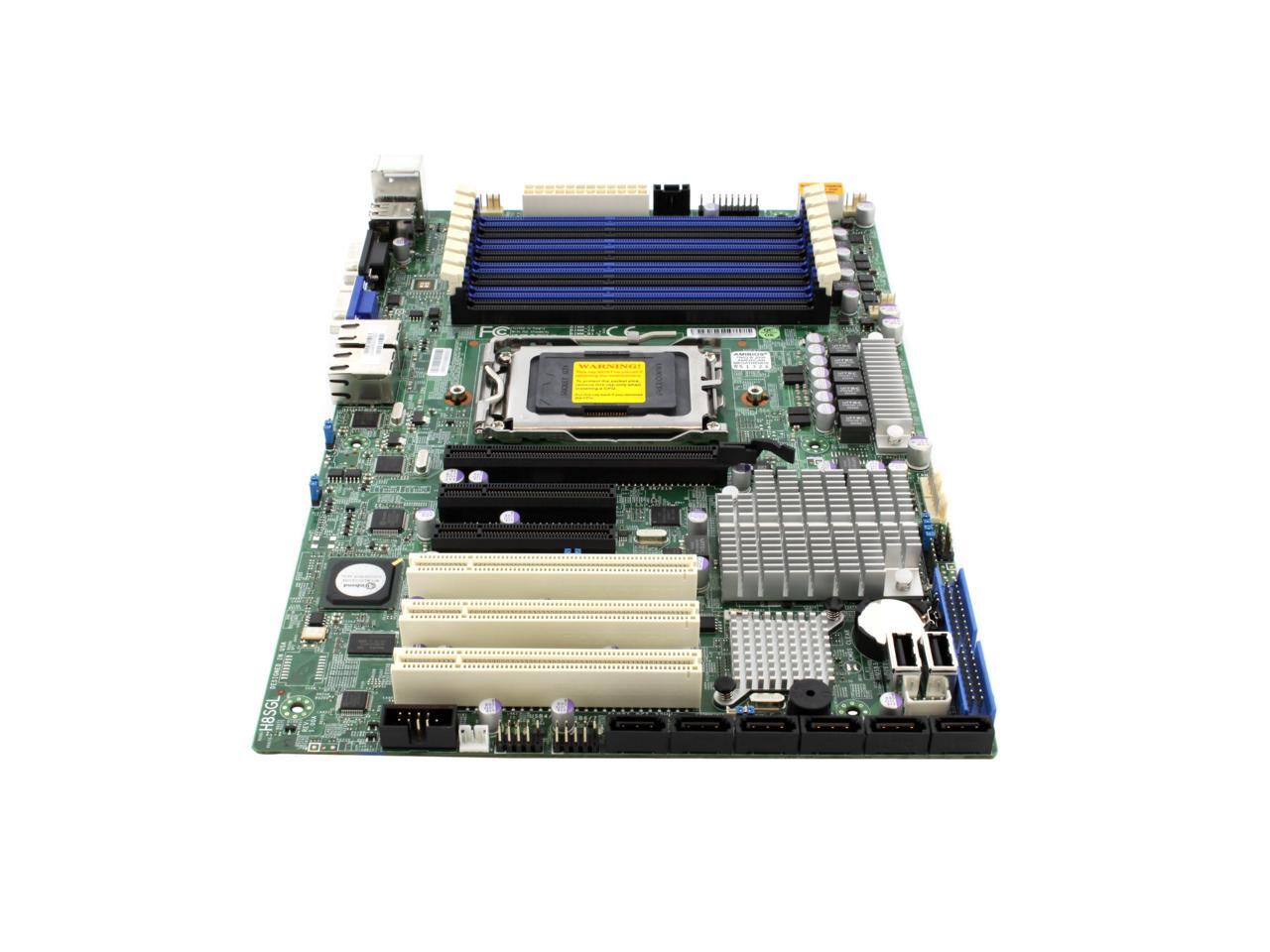

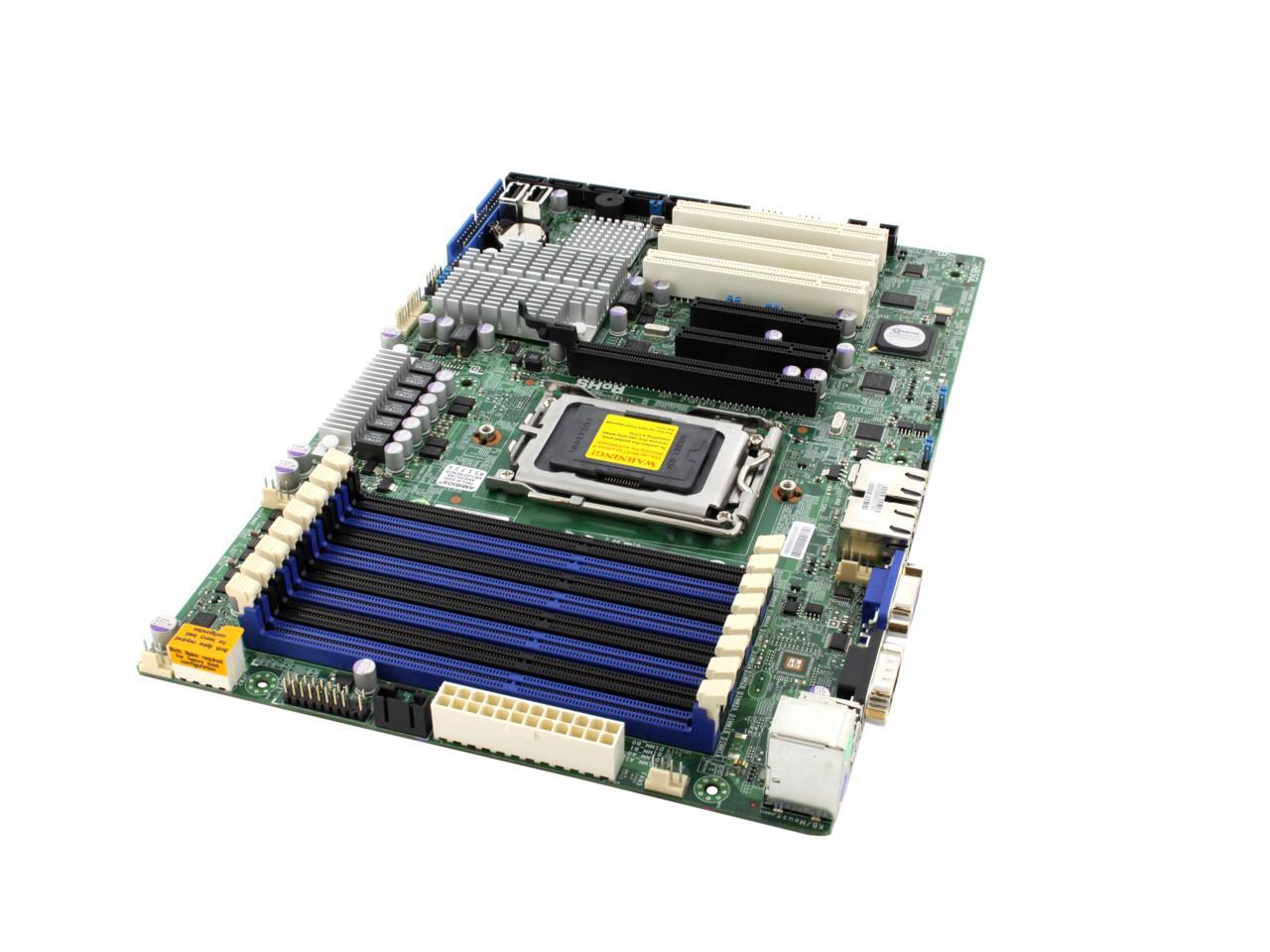

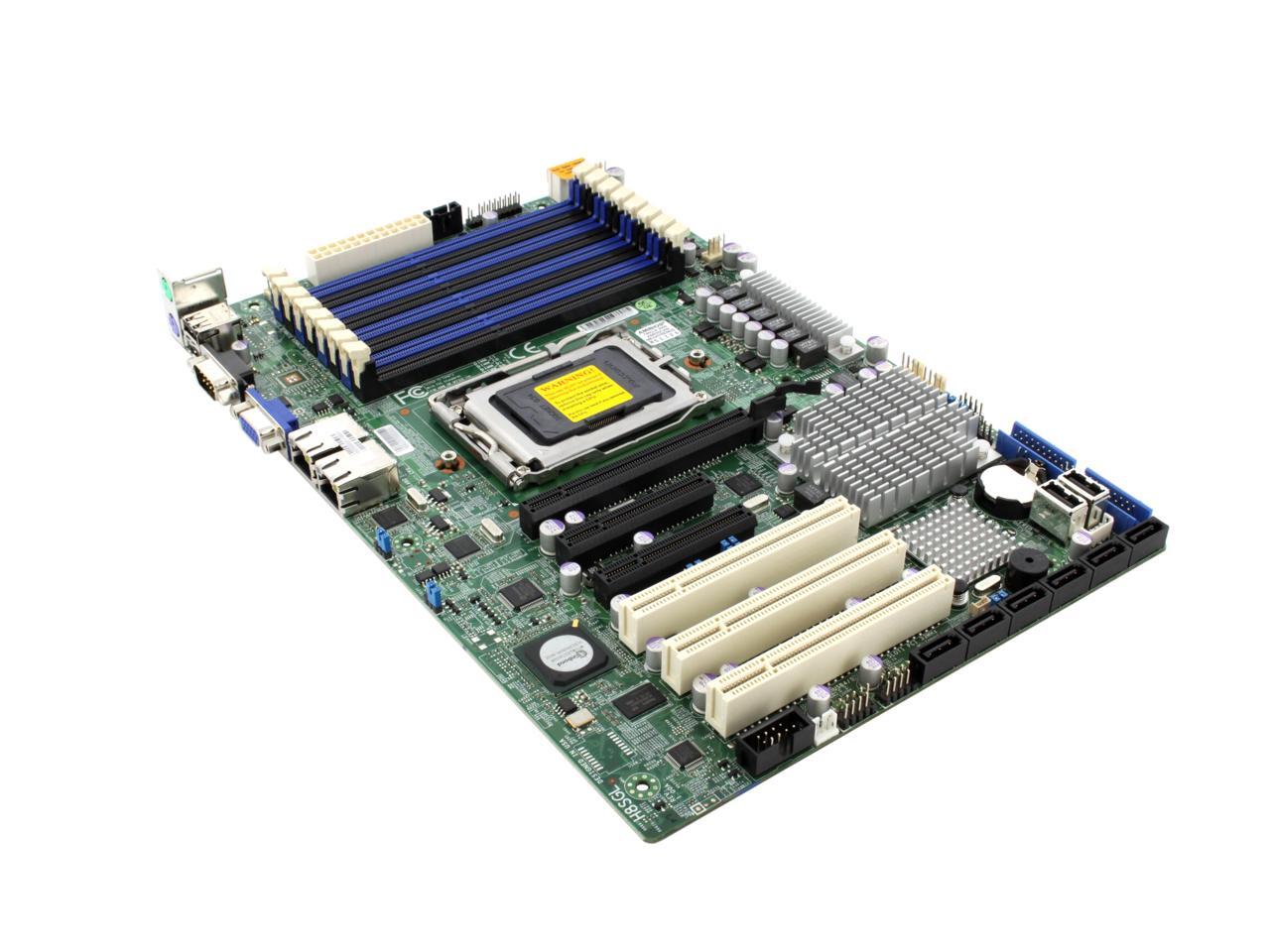

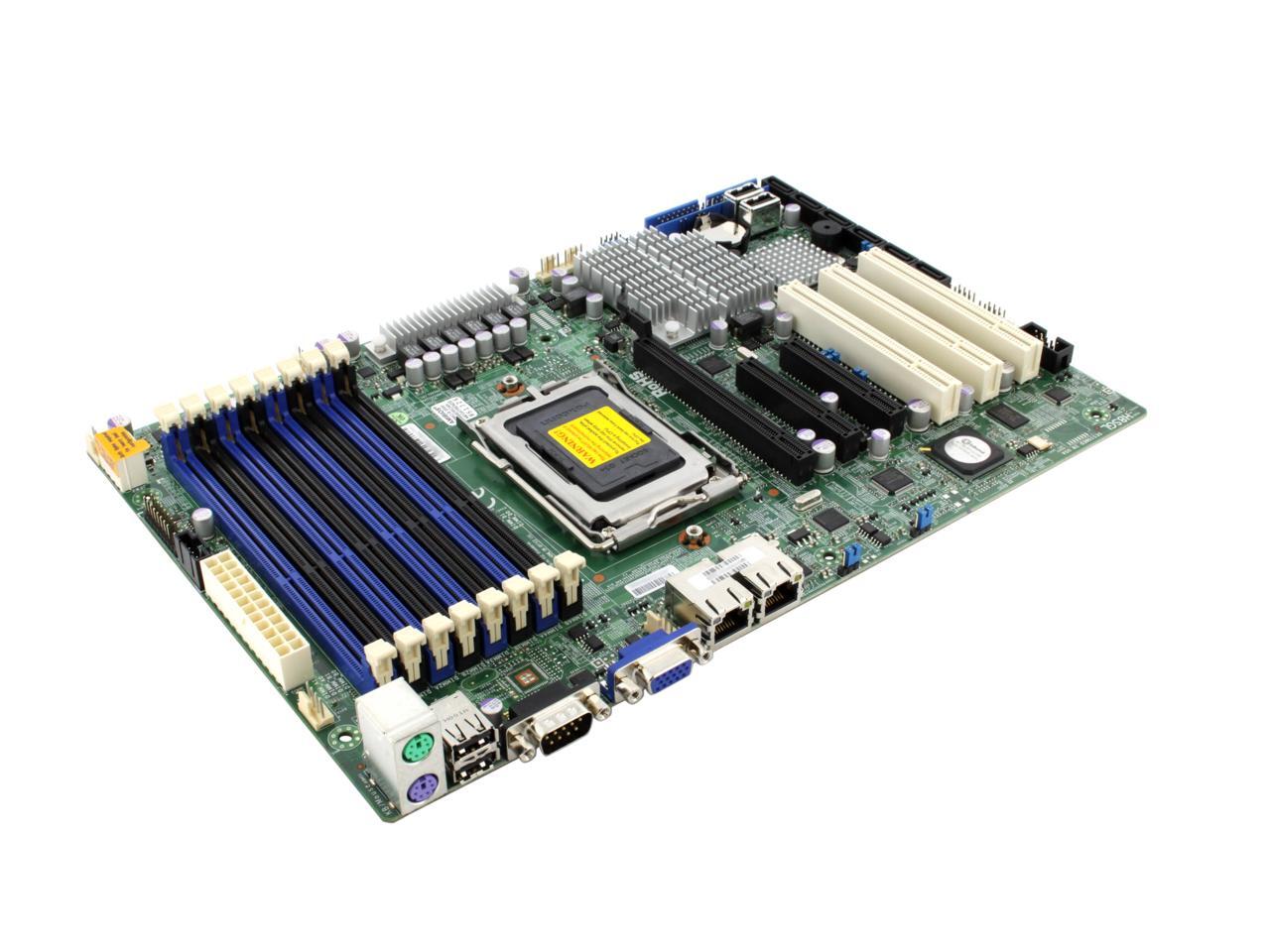

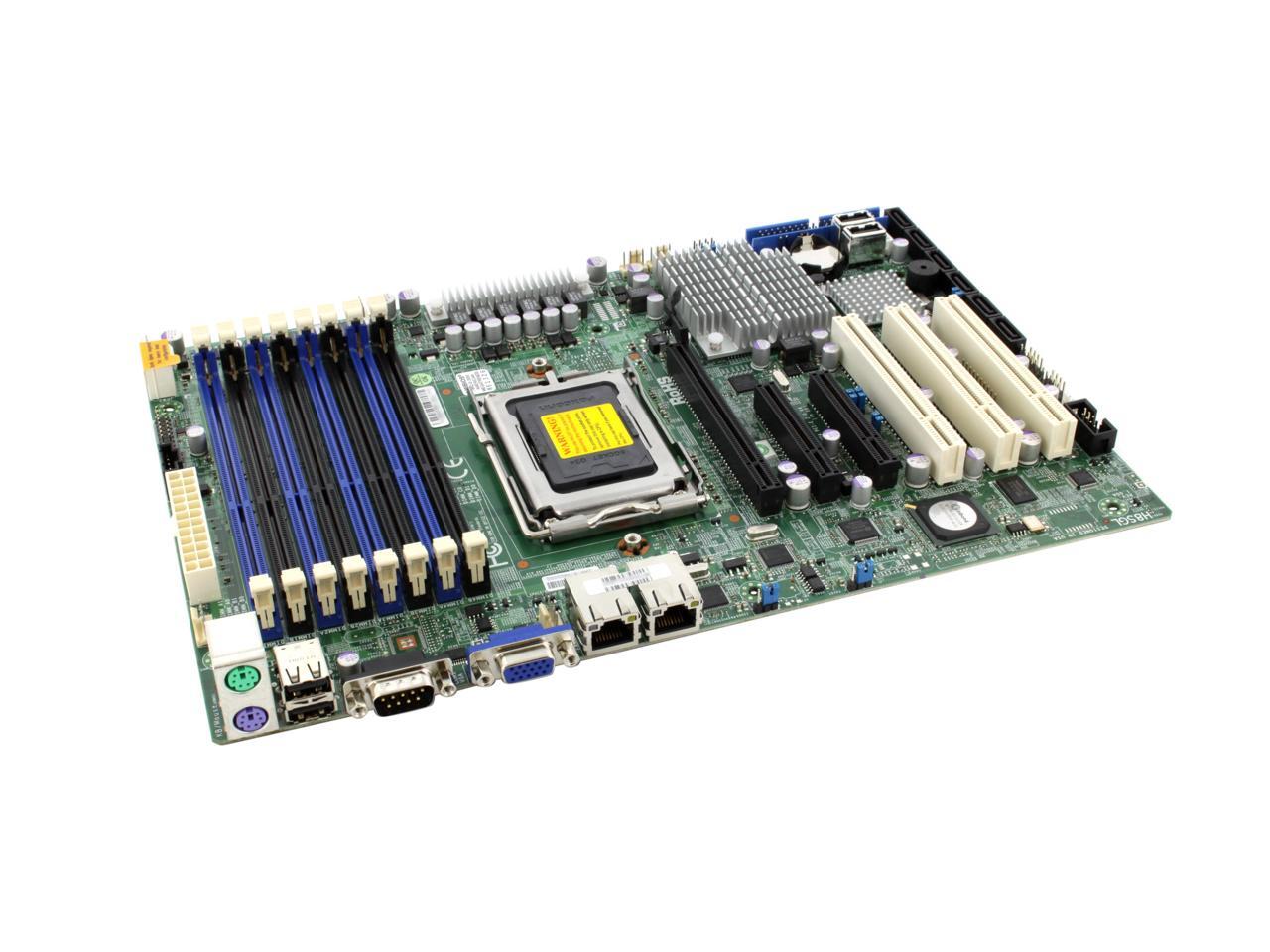

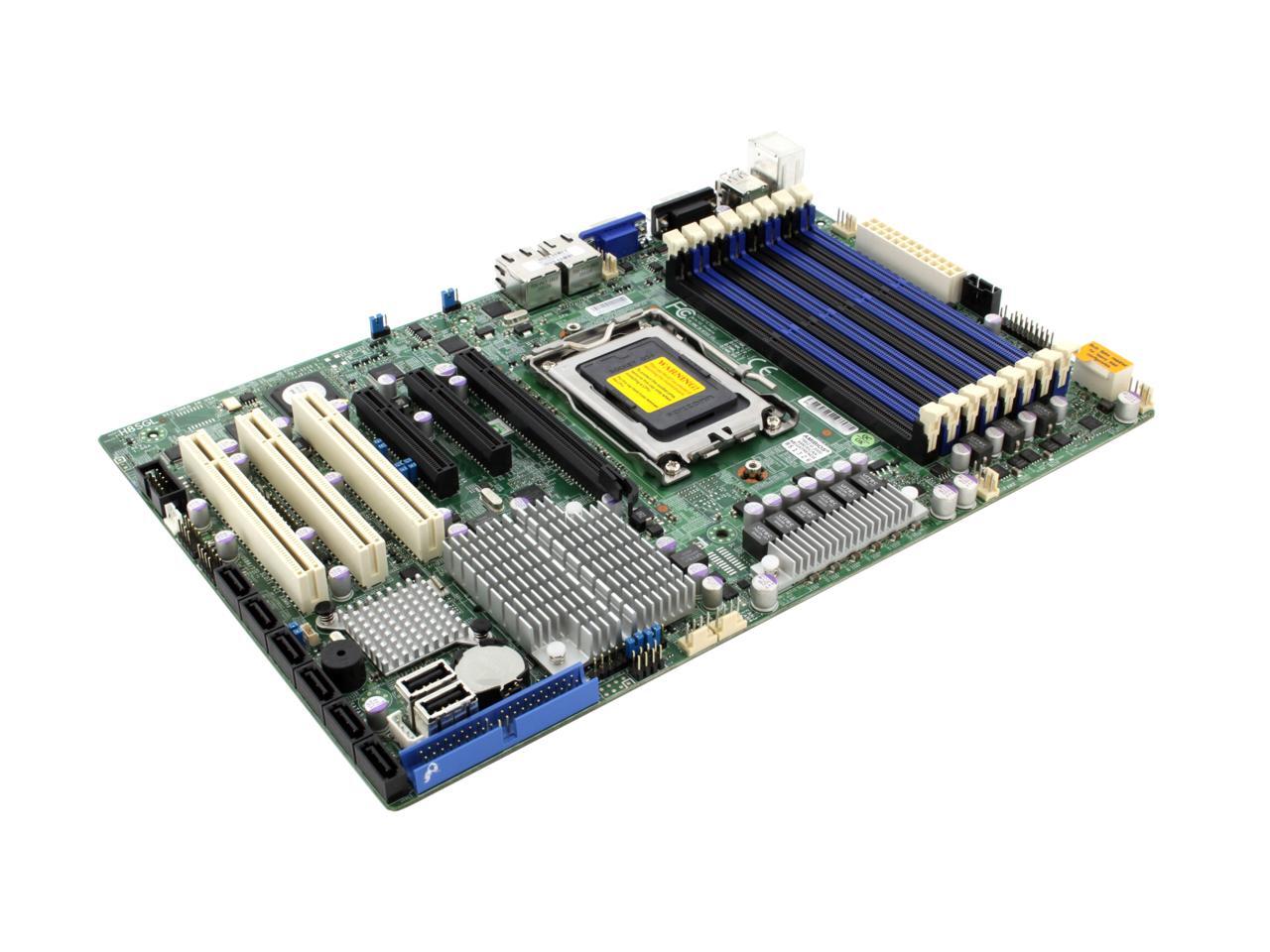

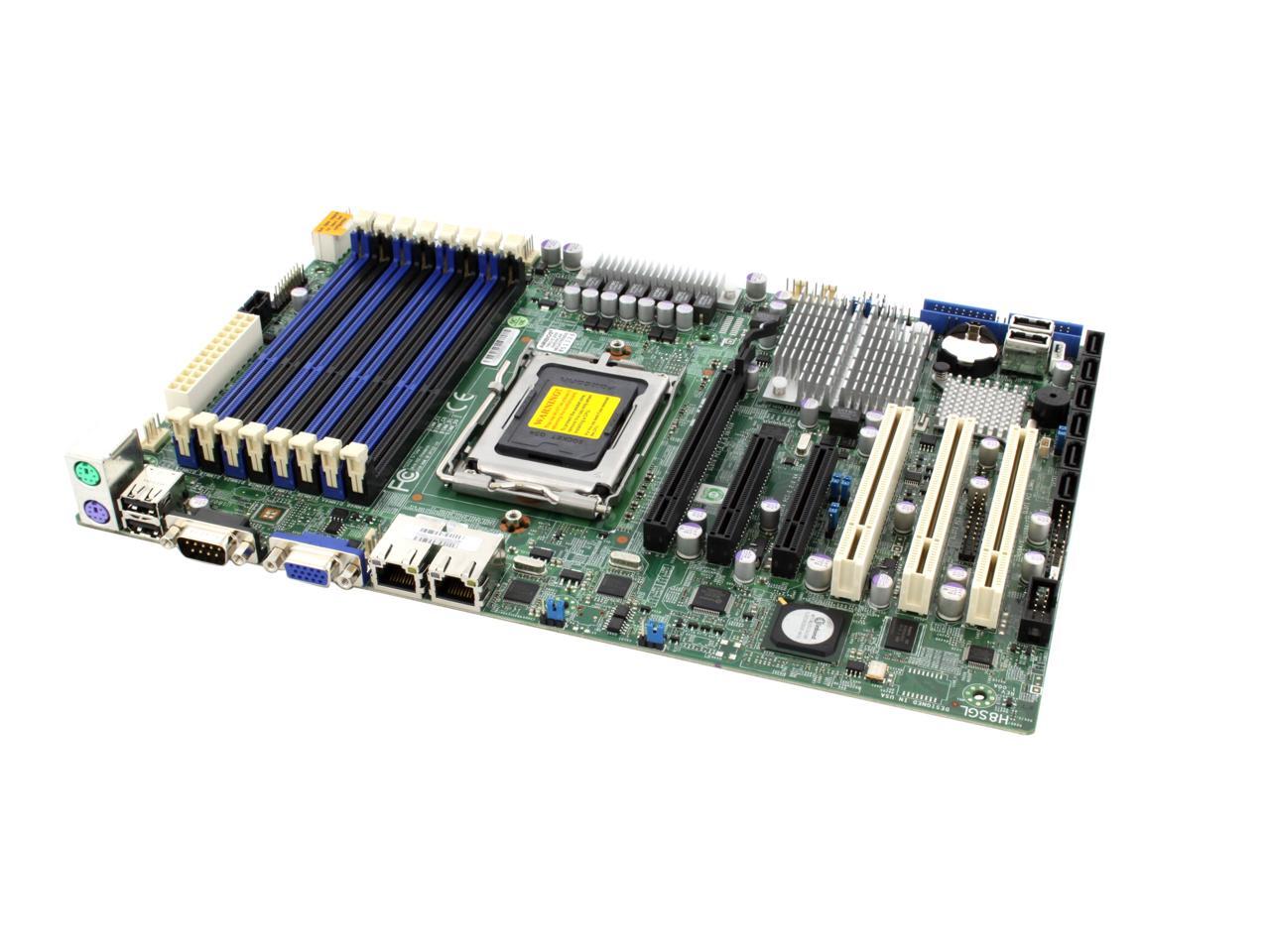

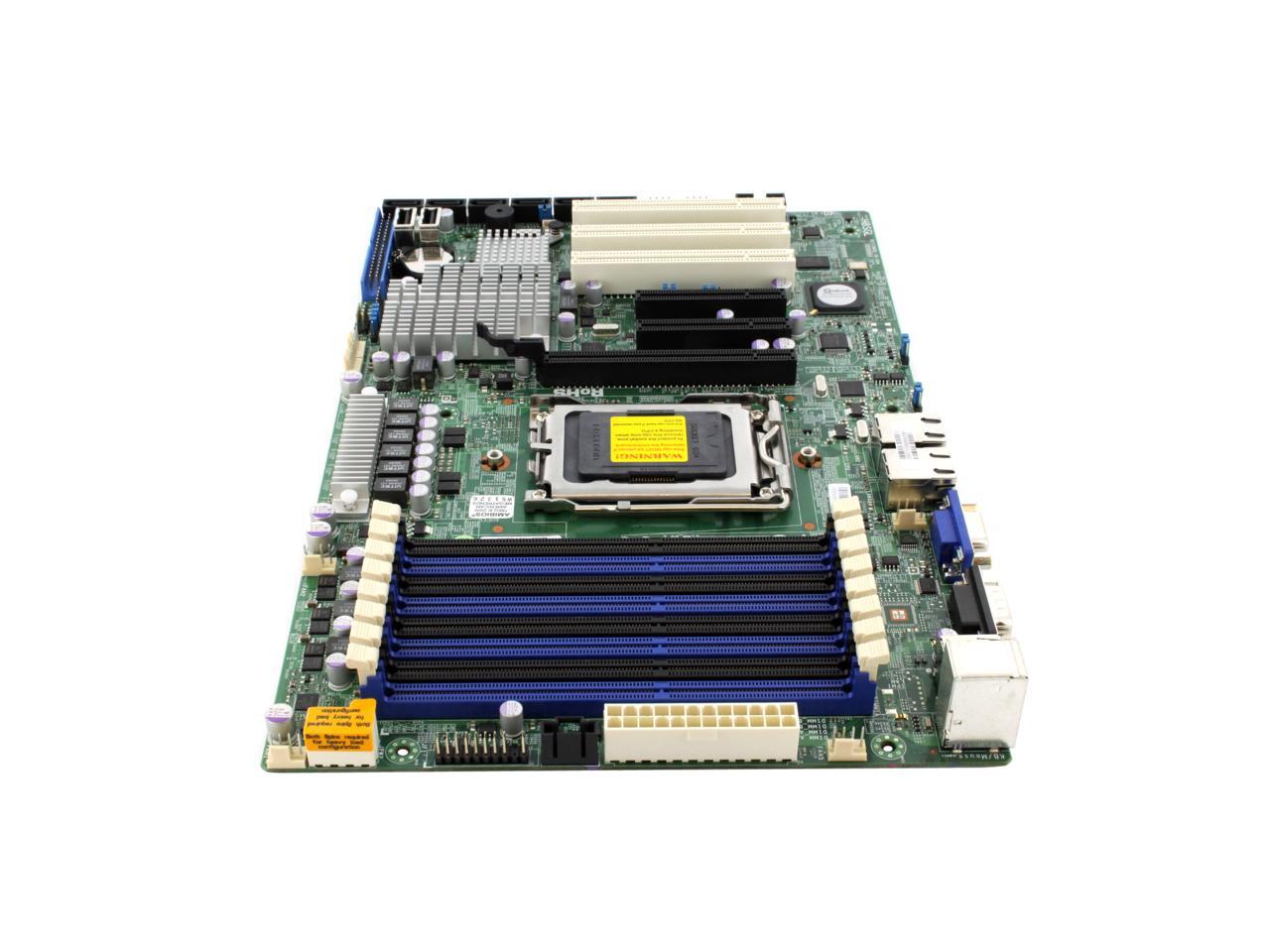

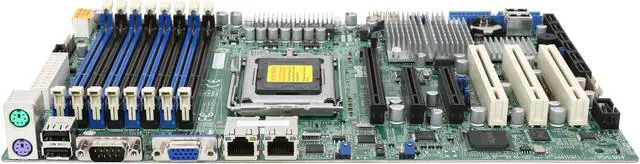

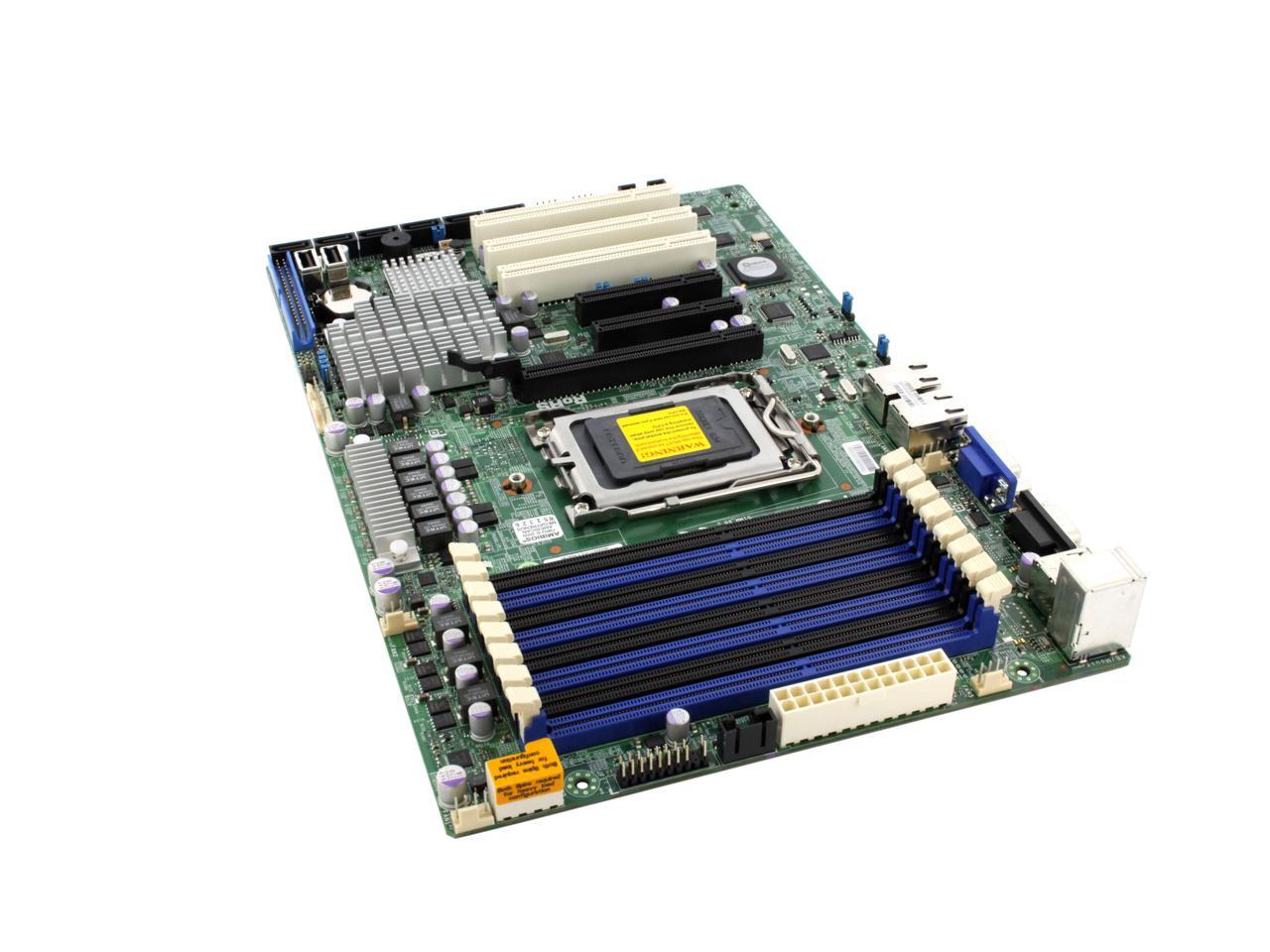

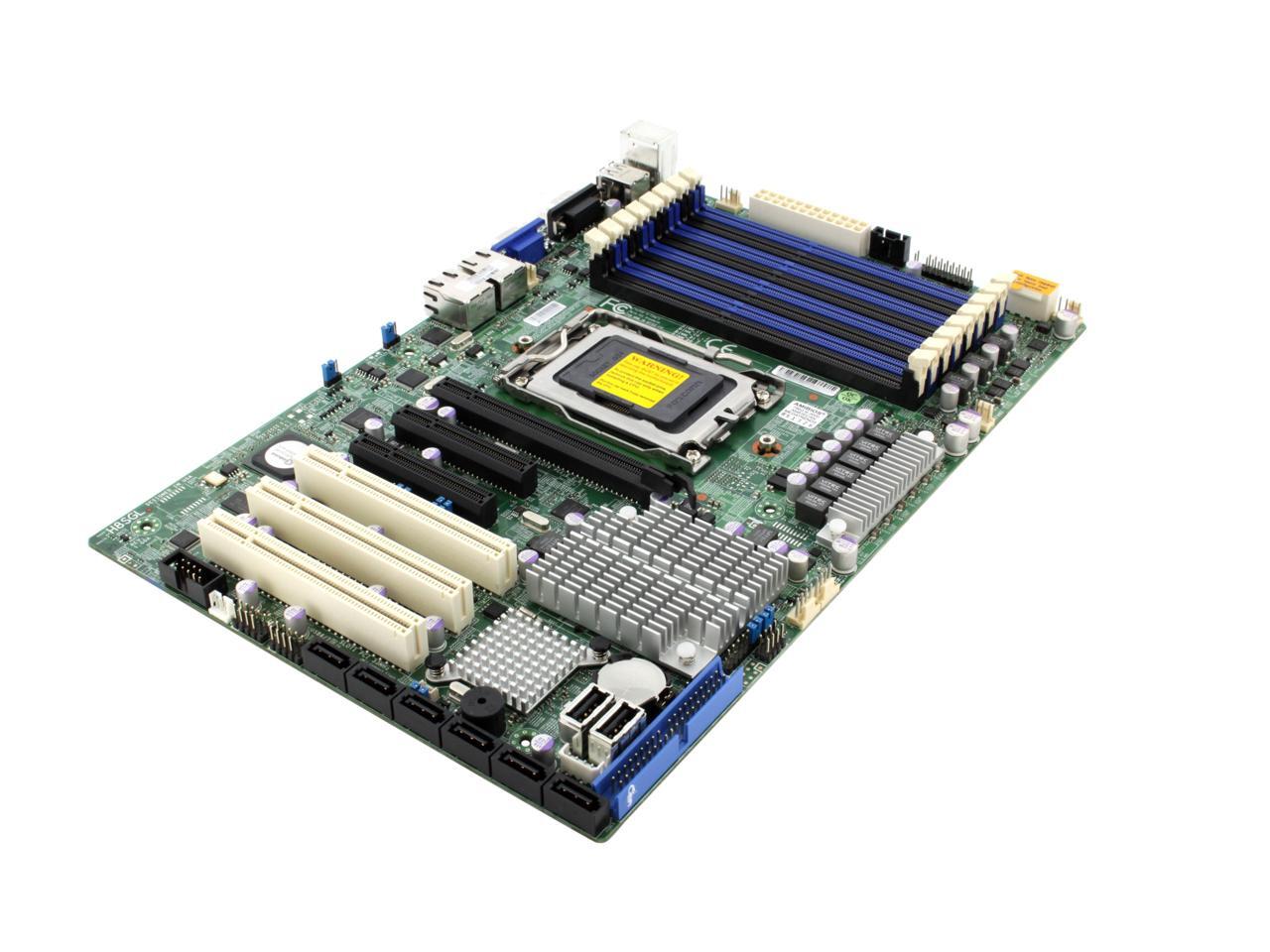

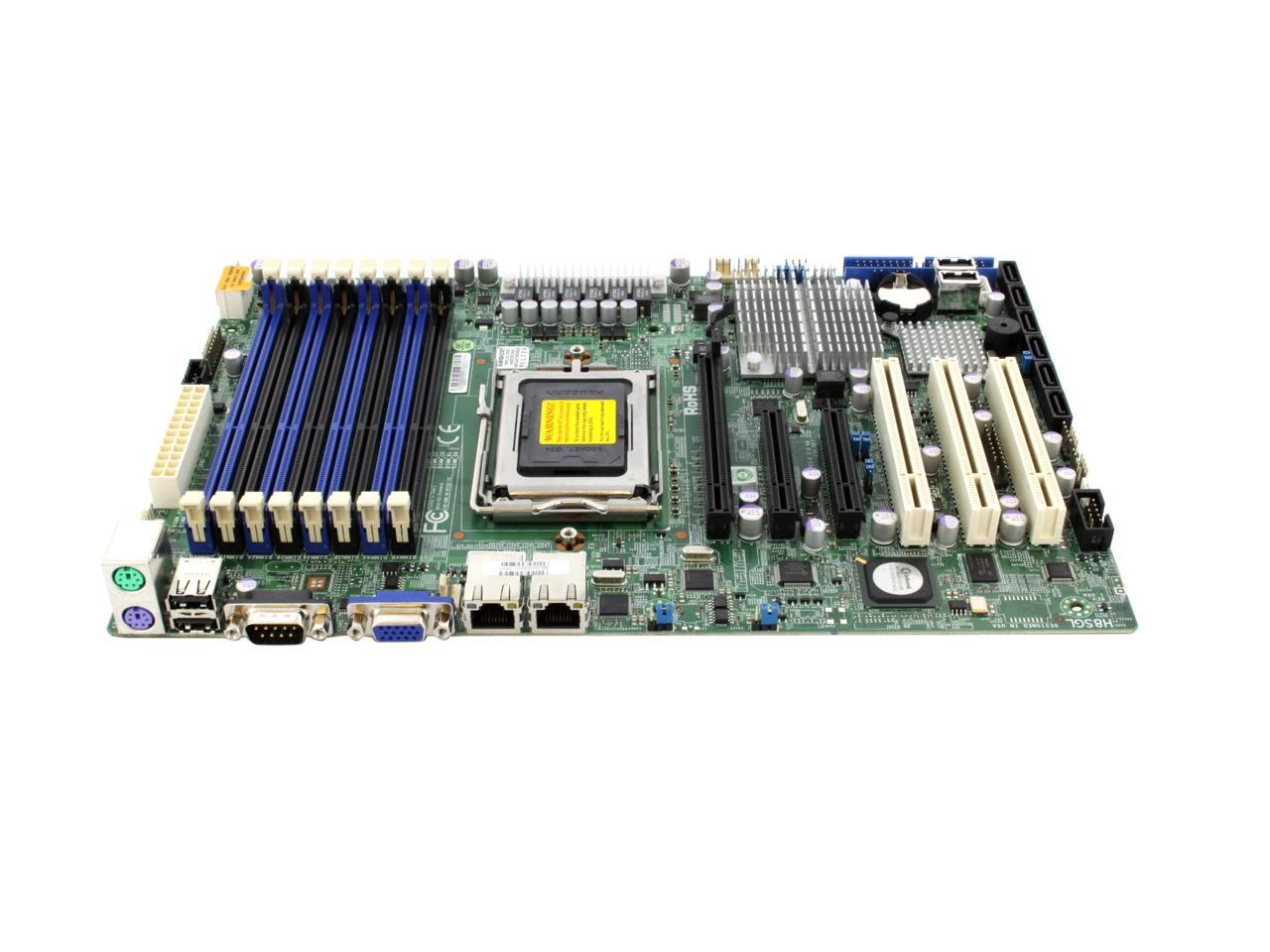

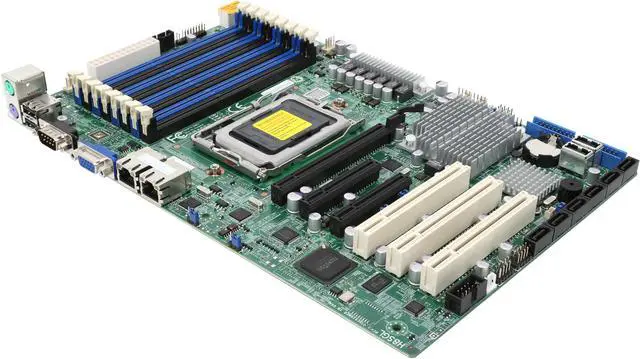

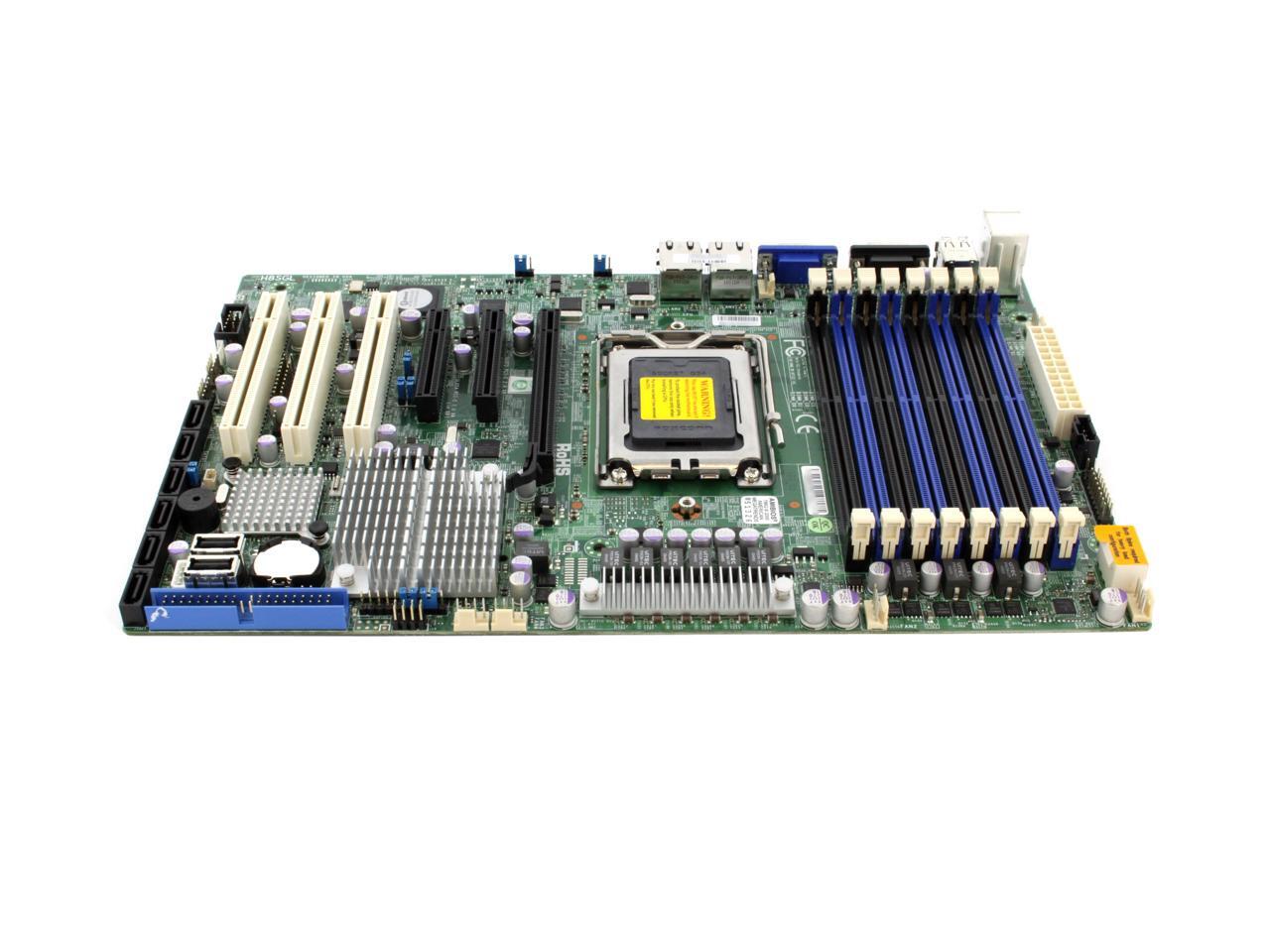

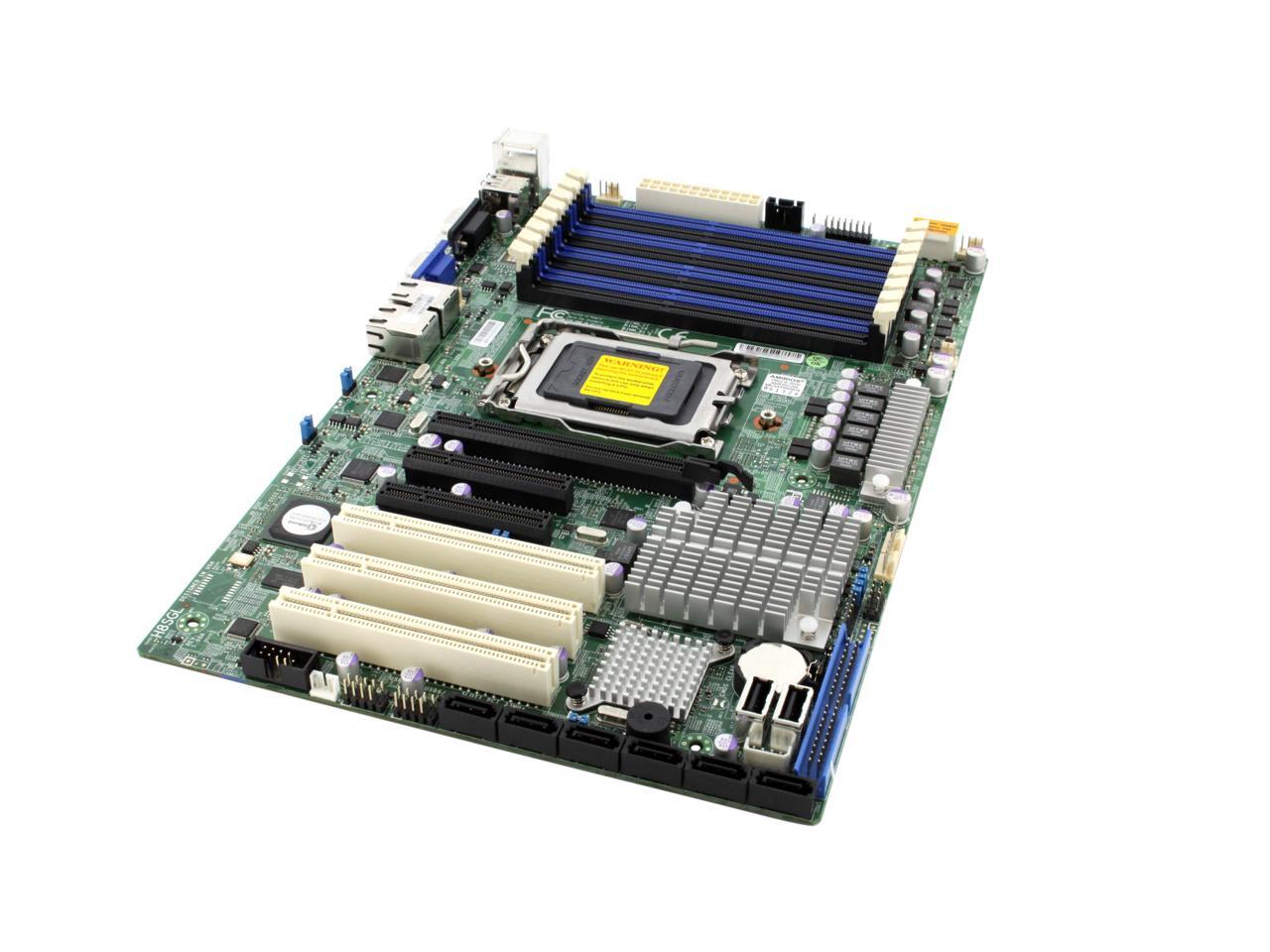

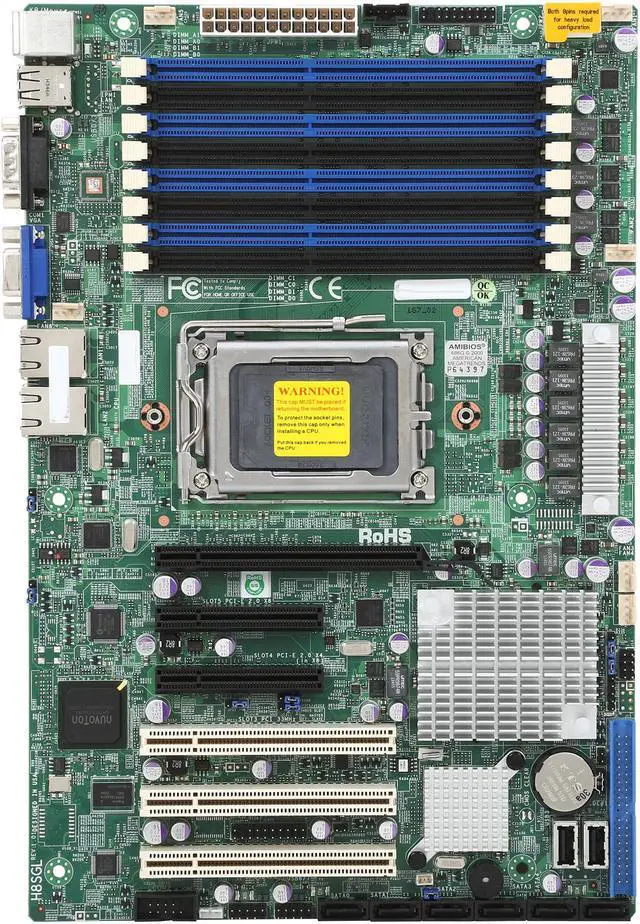

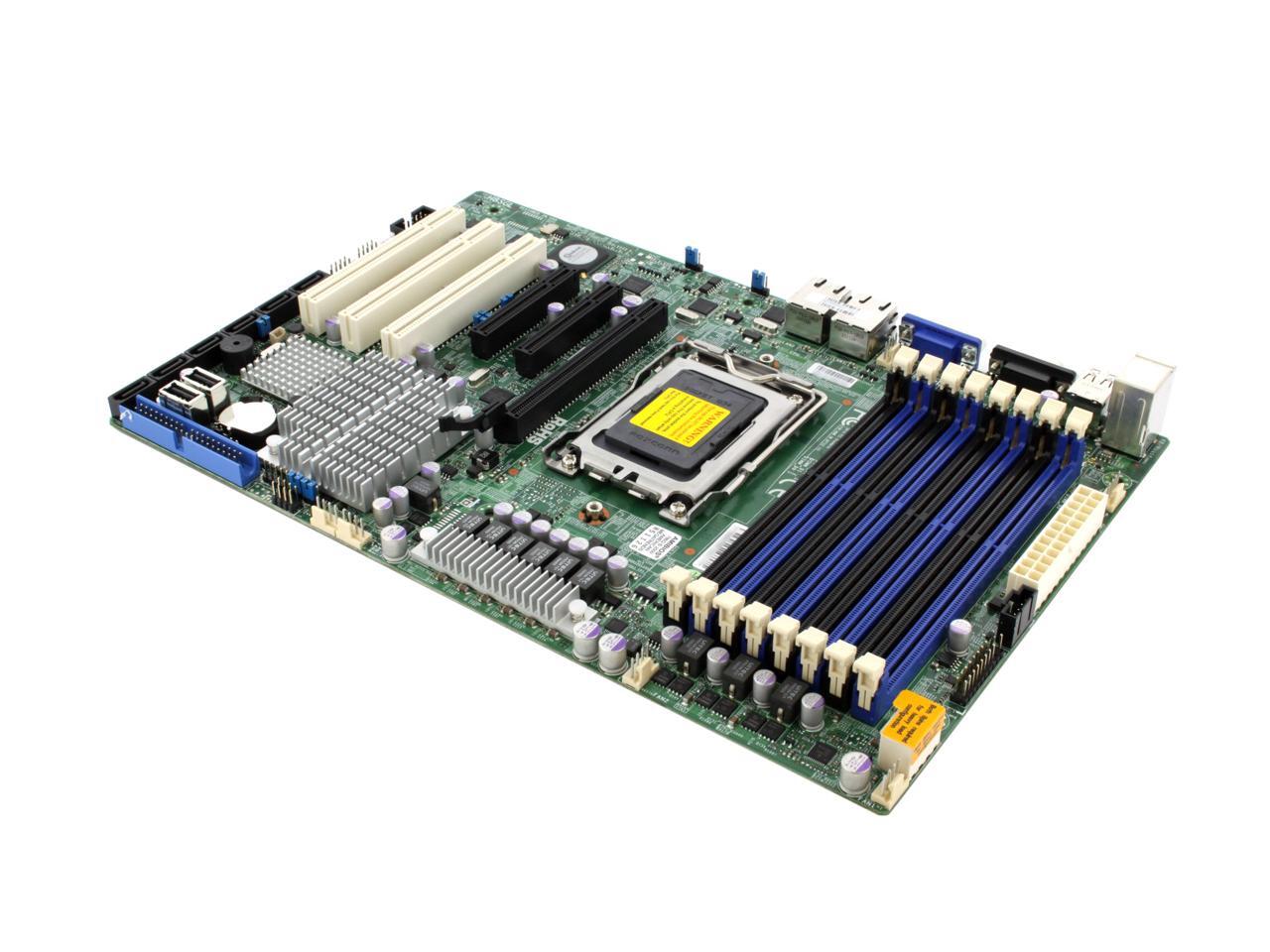

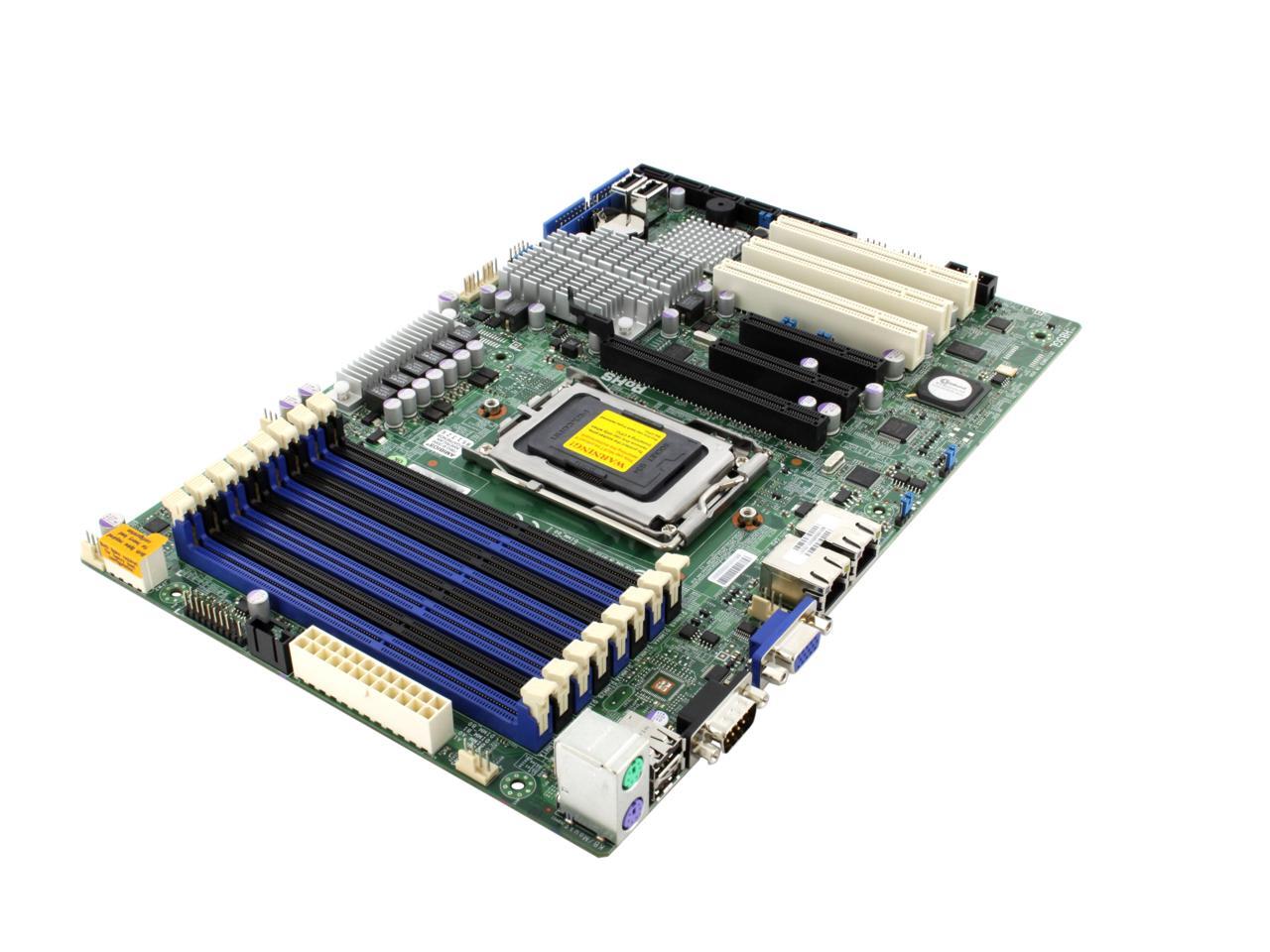

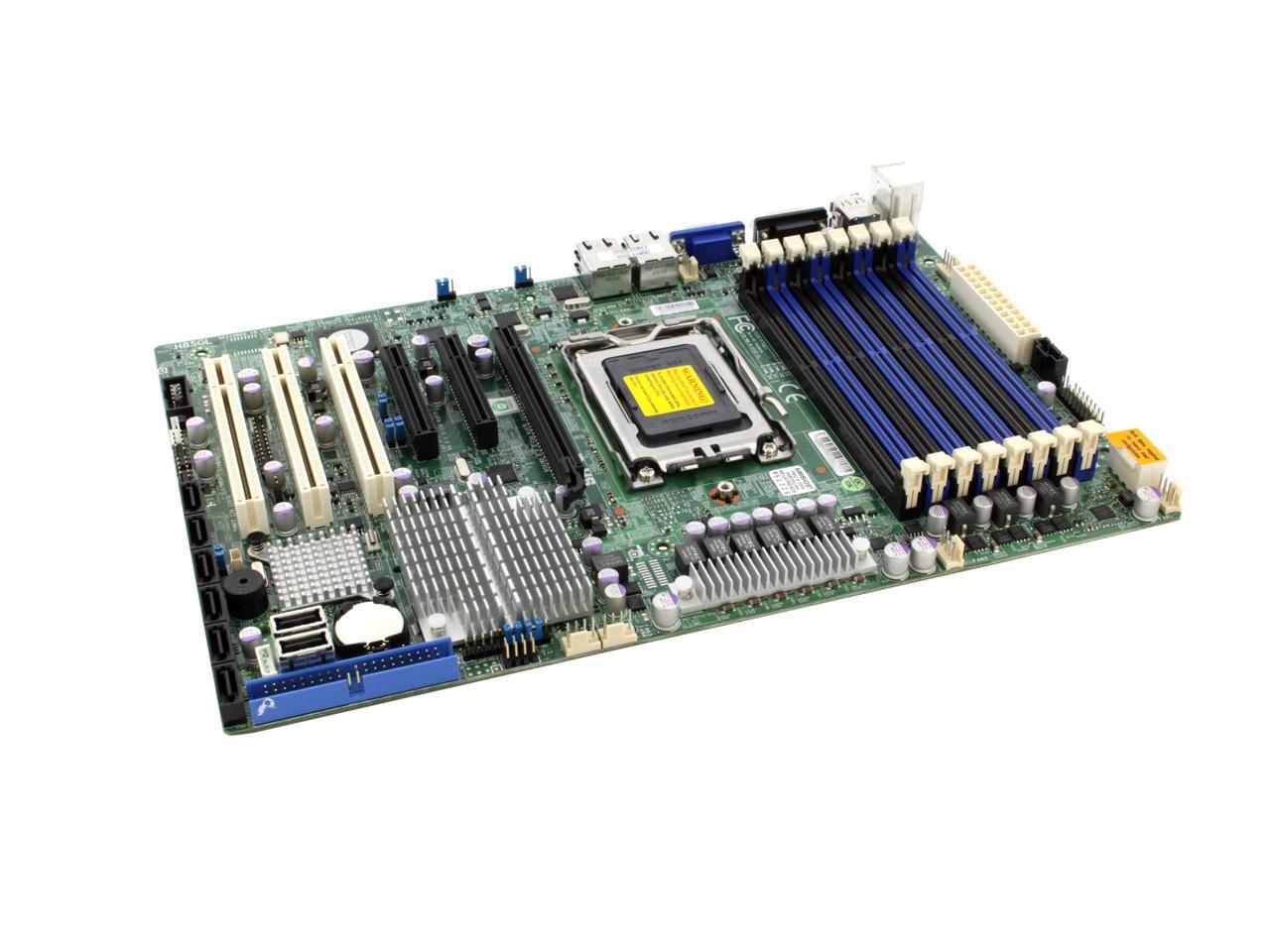

SUPERMICRO MBD-H8SGL-O ATX Server Motherboard Socket G34 AMD SR5650 DDR3 1600/1333/1066

SUPERMICRO MBD-H8SGL-O ATX Server Motherboard

Features

Specifications

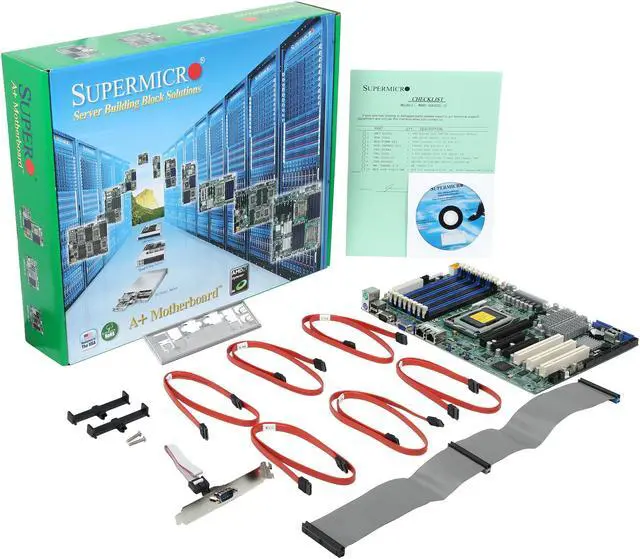

What's in the Box

Learn more about the Supermicro MBD-H8SGL-O

Customer Reviews of the Supermicro MBD-H8SGL-O

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

PCI Express x16	1 (@ x8 speed)
PCI Express x8	2 (@ x8/x4 speed)
PCI Slots	3 x PCI Slots

LAN Chipset	Intel 82574L
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82574L
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Storage Devices
SATA	6 x SATA 3.0Gb/s
SATA RAID	0/1/10

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 8.0"
