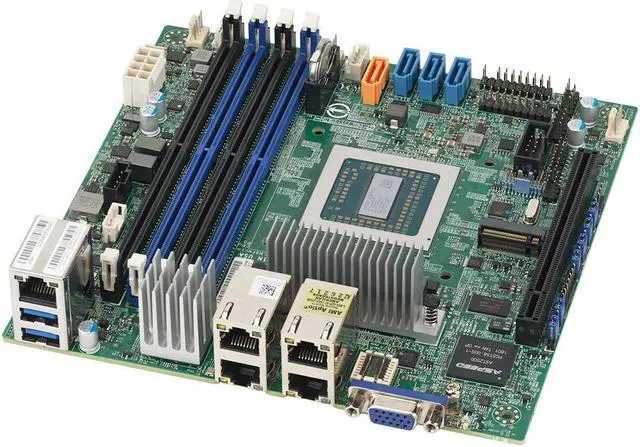

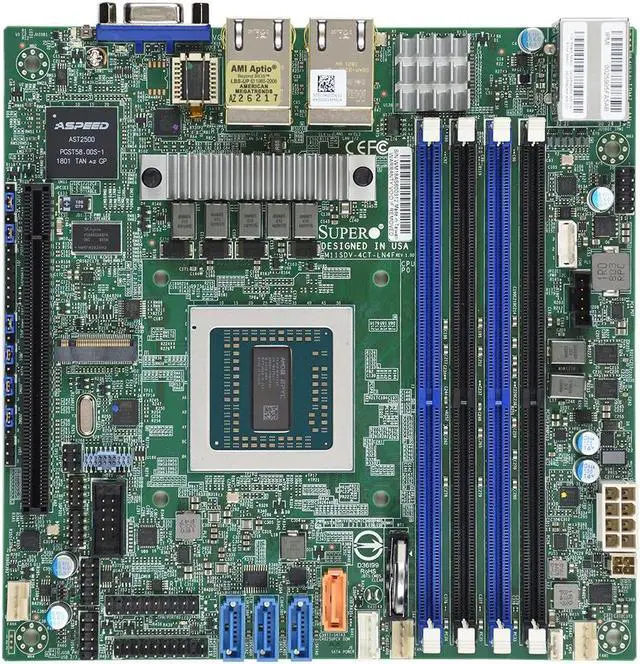

SUPERMICRO MBD-M11SDV-4CT-LN4F-B Mini ITX Server Motherboard

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-M11SDV-4CT-LN4F-B

Model
Brand SUPERMICRO
Model MBD-M11SDV-4CT-LN4F-B
Supported CPU
CPU Type Single AMD EPYC 3101 SoC Processor
Supported CPU Technologies 4 Core / 4 Thread
Memory
Number of DDR4 Slots 4 x 288-pin
DDR4 Standard DDR4 2666
Maximum Memory Supported 512GB
Channel Supported Dual Channel
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express 3.0 x16 1
Storage Devices
SATA 4 x SATA 6.0Gb/s
Onboard Video
Onboard Video Chipset Aspeed AST2500 BMC
Onboard LAN
Number of LAN 4 x 1 GbE with Intel I350-AM4
Max LAN Speed 4 x 1Gbps

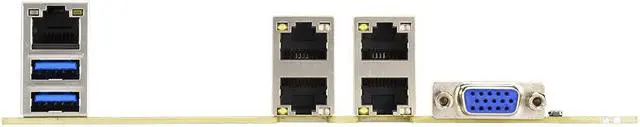

Rear Panel Ports
COM 1
RJ45 4 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
USB 1.1/2.0 6 x USB 2.0
USB 3.0 2 x USB 3.0
Onboard Ports
Other Connectors 1 x TPM 2.0 header
Features
Features AMD EPYC 3101 SoC Processor, 4 Core/4 Thread, 35W
Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs
1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key
SoC controller for 4 SATA 3.0
4 Gigabit Ethernet ports, 1 dedicated IPMI LAN
ASPEED AST2500 BMC graphics
Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports
1 COM port, TPM 2.0 header
3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring
Dimensions
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
