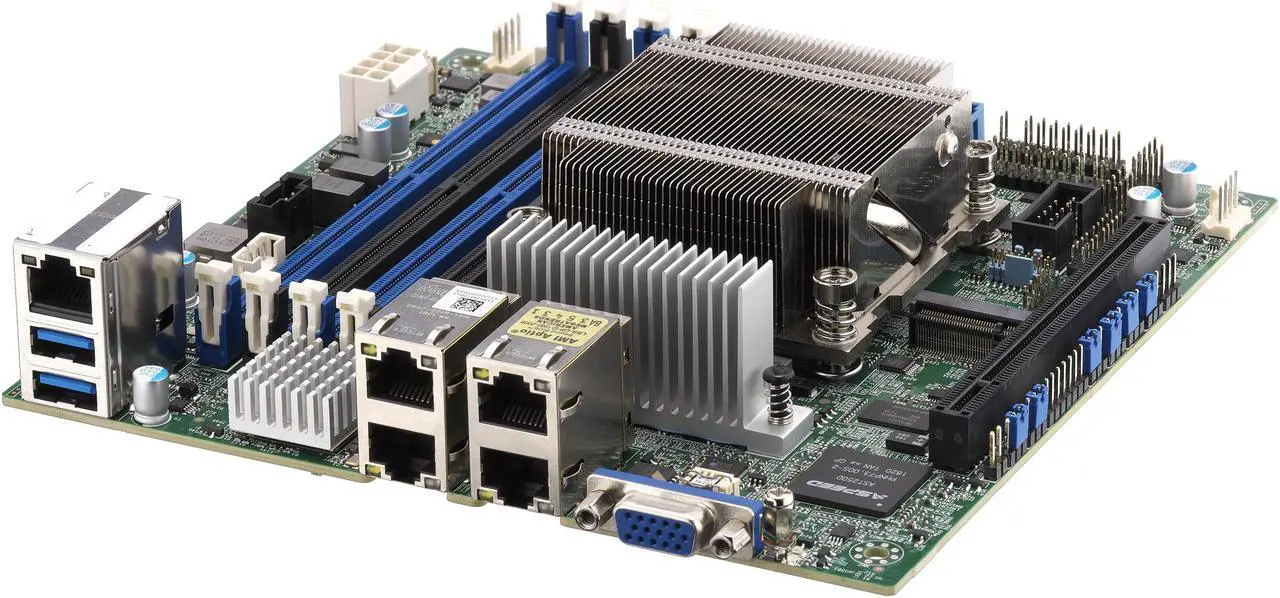

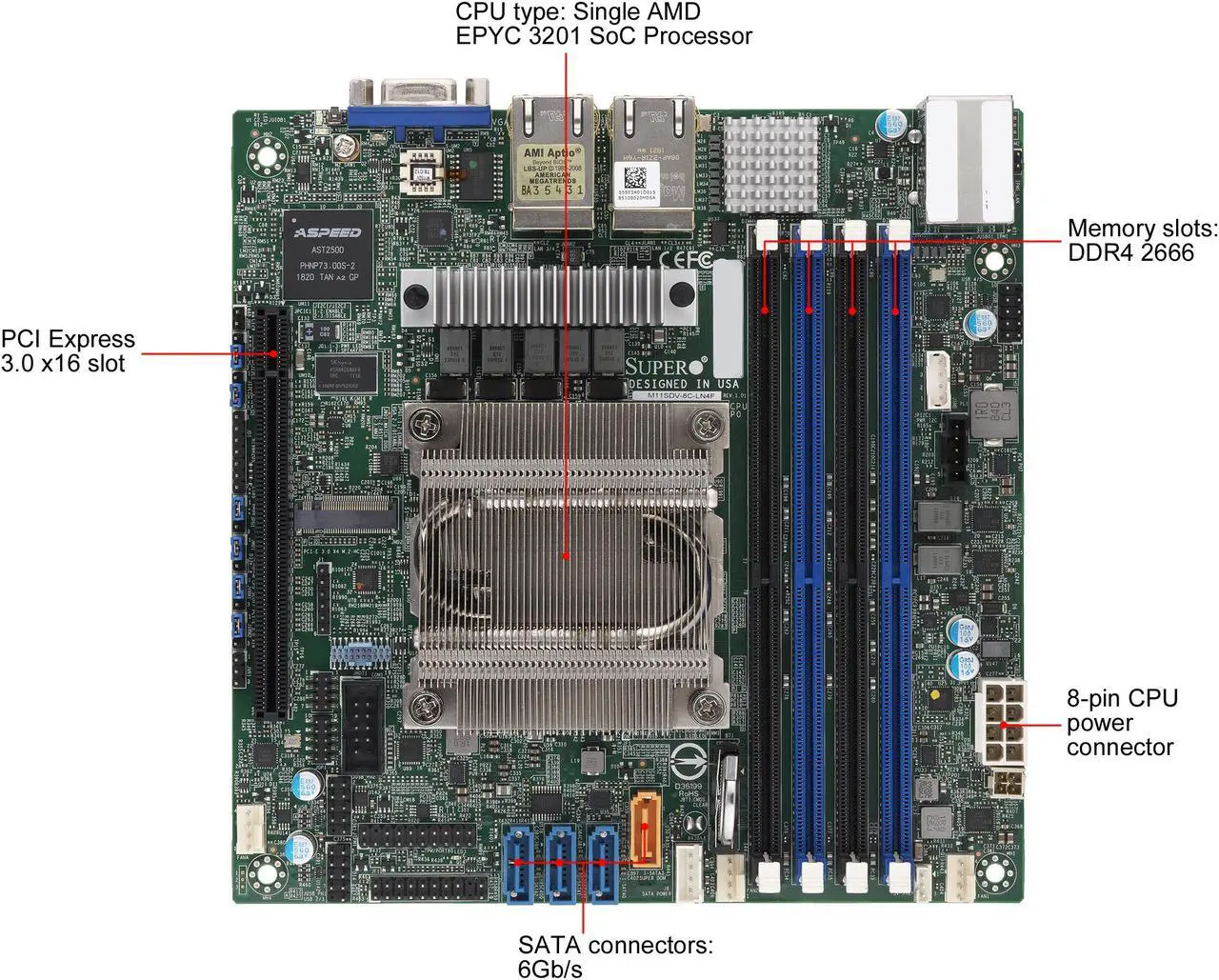

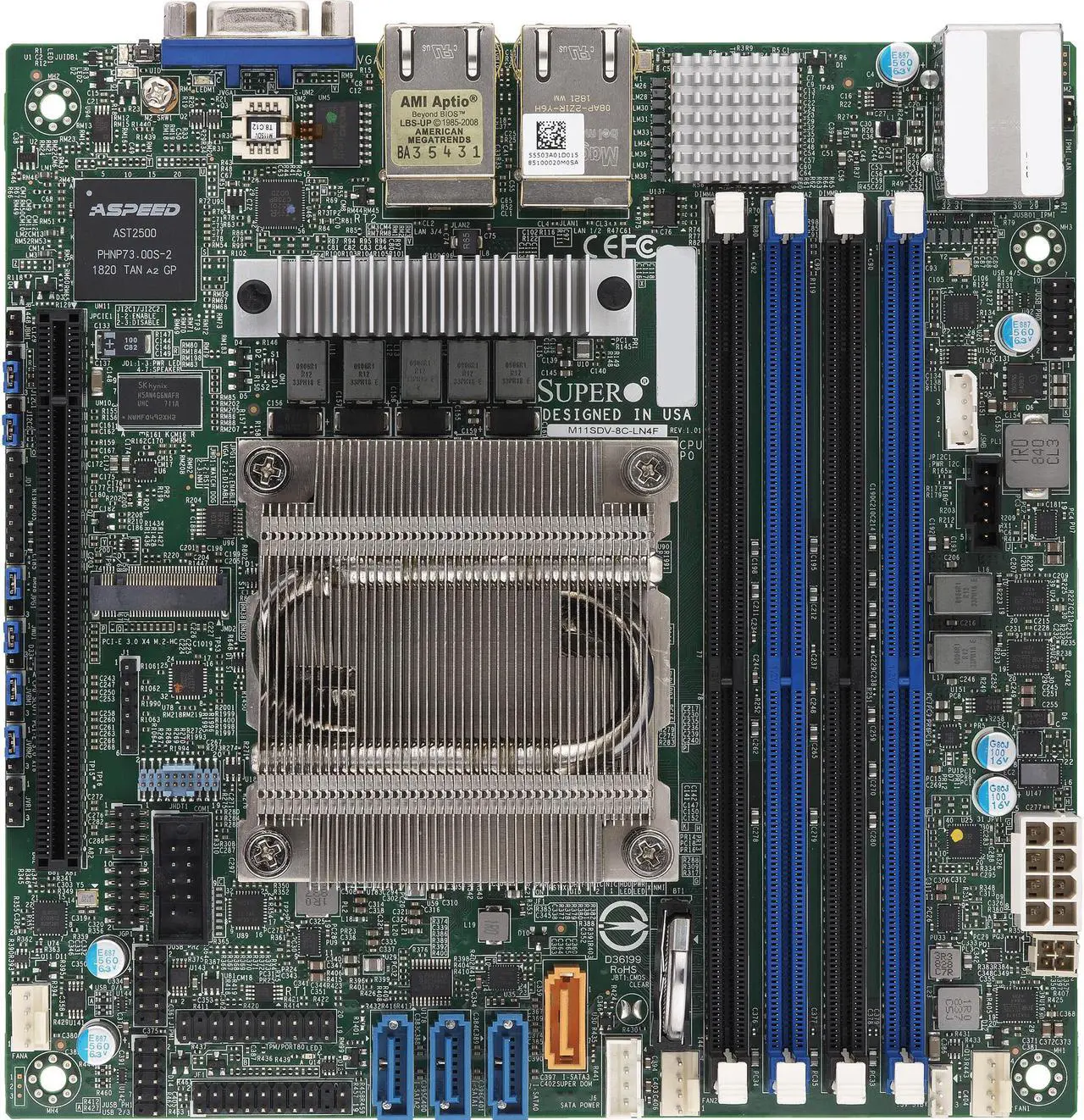

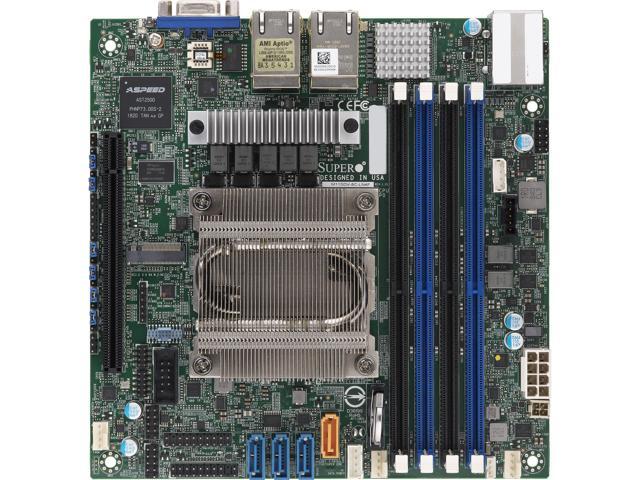

SUPERMICRO MBD-M11SDV-8CT-LN4F-O Mini ITX Server Motherboard
- AMD EPYC 3201 SoC Processor, 8 Core / 8 Thread, 30W
- Up to 512GB ECC Registered, DDR4-2666 MHz SDRAM in 4 x DIMMs
- 1 x PCI-E 3.0 x16 slot, 1 x M.2 PCI-E 3.0 x4, 2280, M Key
- SoC controller for 4 x SATA 3.0
- 4 x Gigabit Ethernet ports, 1 x dedicated IPMI LAN
- ASPEED AST2500 BMC graphics
- Up to 2 x USB 3.0 ports, Up to 6 x USB 2.0 ports
- 1 x COM port, TPM 2.0 header
- 3 x fan header, 4-pin type fan header, 3 x fans with tachometer monitoring
+
+
Specs
Reviews (8)
Learn more about the Supermicro MBD-M11SDV-8CT-LN4F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-M11SDV-8CT-LN4F-O |
| CPU Type | Supports AMD EPYC 3201 SoC Processor |
|---|---|
| Supported CPU Technologies | 8 Core / 8 Thread |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2133 |
| Maximum Memory Supported | 512GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 1 |
|---|
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| M.2 | Interface: 1 x PCI-E 3.0 x4 Form factor: 2280 Key: M-key |
| Onboard Video Chipset | Aspeed AST2500 BMC |
|---|
| Number of LAN | 4 x 1GbE with Intel I350-AM4 1 x Realtek RTL8211E PHY (dedicated IPMI) |
|---|---|
| Max LAN Speed | 4 x 1Gbps |
| COM | 1 |
|---|---|
| Video Ports | 1 x VGA |

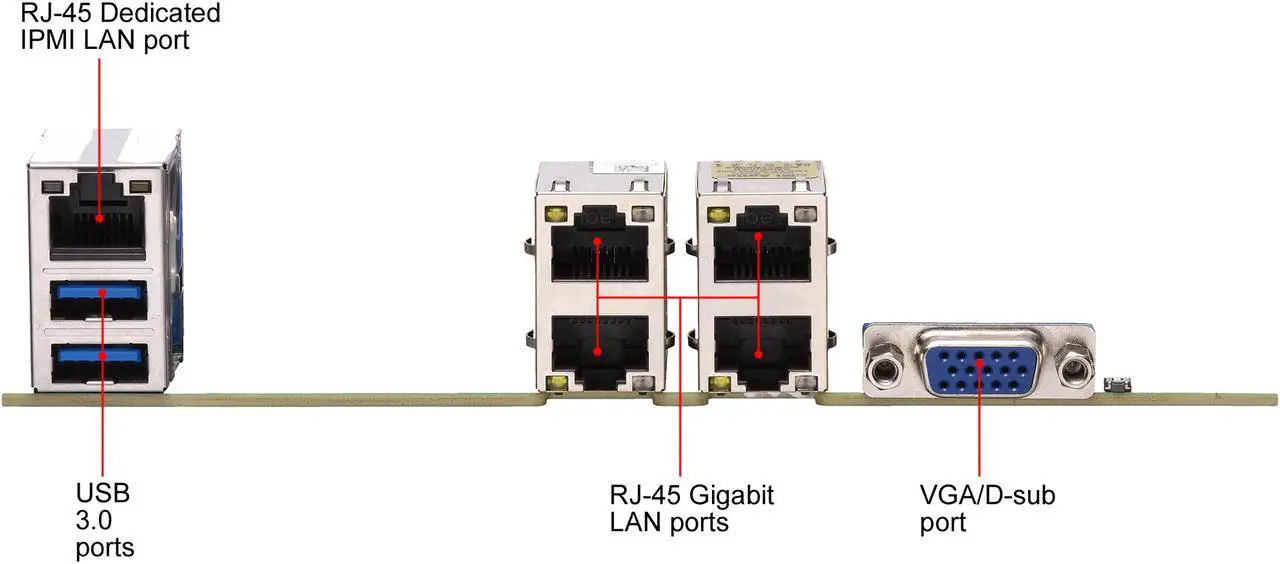

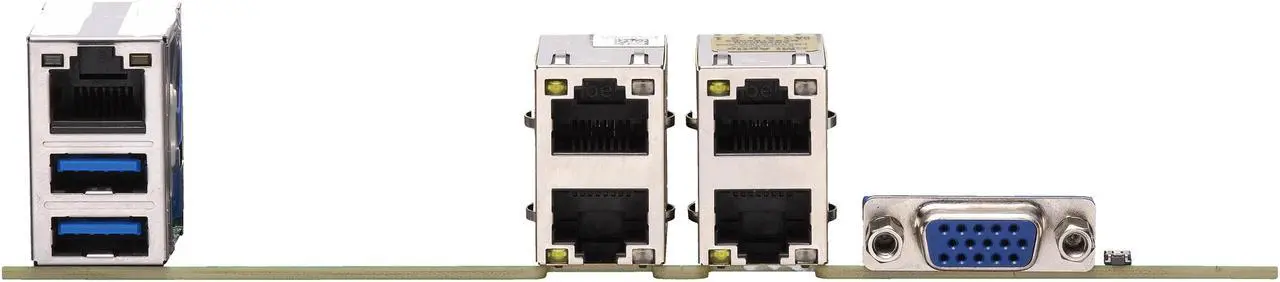

| RJ45 | 4 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port |
| USB 1.1/2.0 | 6 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Features | AMD EPYC 3201 SoC Processor, 8 Core/8 Thread, 30W Up to 512GB ECC Registered, DDR4-2133MHz SDRAM in 4 DIMMs 1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key SoC controller for 4 SATA 3.0 4 Gigabit Ethernet ports, 1 dedicated IPMI LAN ASPEED AST2500 BMC graphics Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports 1 COM port, TPM 2.0 header 3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Date First Available | April 16, 2019 |
|---|
