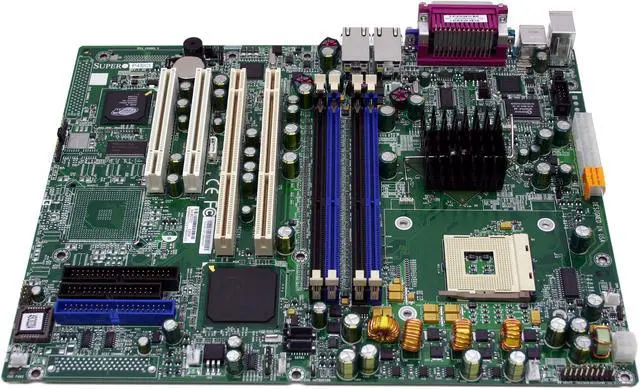

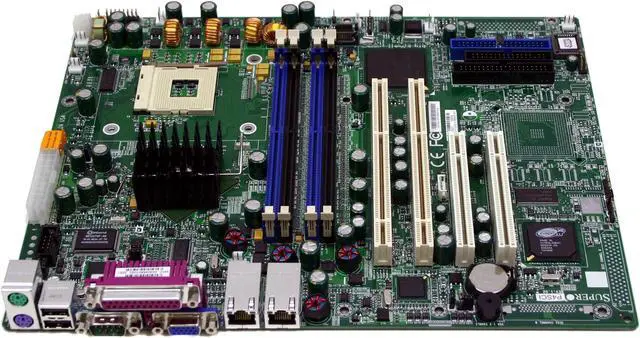

SUPERMICRO MBD-P4SCi-O ATX Server Motherboard 478 Intel E7210
- 478
- Intel E7210
- 4 x 184Pin
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-P4SCi-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-P4SCi-O |
| CPU Socket Type | 478 |
|---|---|
| CPU Type | Intel Pentium 4 / P4 EE (Prescott) |
| System Bus | 800/533 MHz |
| North Bridge | Intel E7210 |
|---|---|
| South Bridge | Intel 6300ESB |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI-X Slots (64-bit 66MHz) | 2 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|---|
| SATA | 2 x SATA 1.5Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Intel 82547EI |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82541GI |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Features | SuperO Doctor III Watch Dog ACPI/APM Power Management Main Switch Override Mechanism Suspend to RAM (STR) Power-on mode control for AC power loss recovery Internal/External modem remote ring-on PC Health Monitoring CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 0.85V-1.65V Adjustable CPU clock frequency ratio settings (via BIOS) CPU thermal trip support Chassis intrusion detection |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 9.5" |

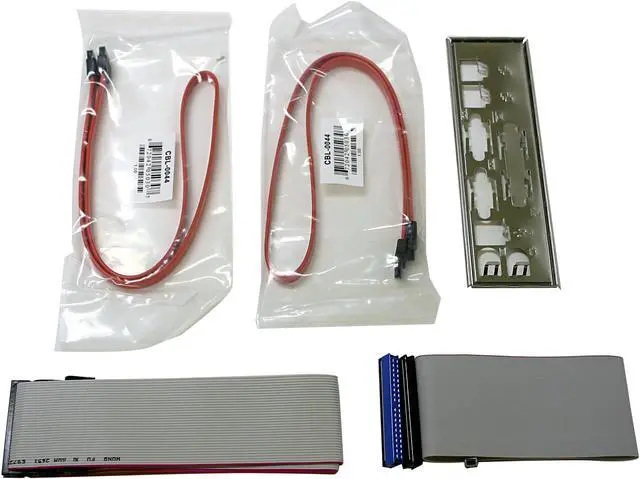

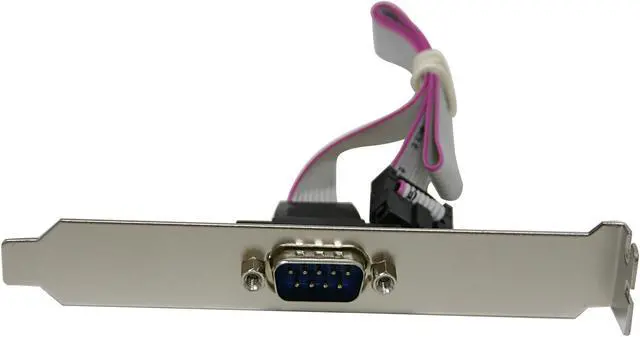

| Package Contents | MBD-P4SCi-O User Manual Software Disk Rear I/O Panel Shield IDE Cable FDD Cable 2 x SATA Cable COM Port Bracket CPU Clip |
|---|
| First Listed on Newegg | March 29, 2004 |
|---|
