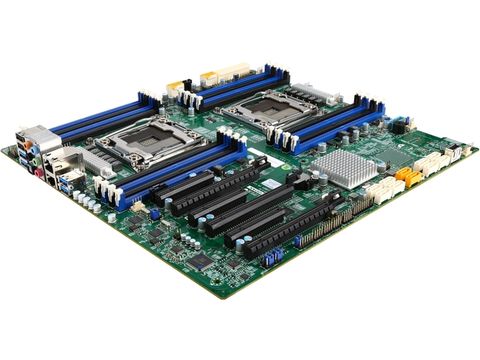

SUPERMICRO MBD-X10DAX-O Extended ATX Server Motherboard Dual LGA 2011-3 Intel C612

(6) Write a Review
See more "dual processor motherboard"
Check more best sellers of "Server Motherboards"
Check more lowest price of "Server Motherboards"
OUT OF STOCK.
  • Dual LGA 2011-3
  • Intel C612
Overview
Specs
Reviews
MBD-X10DAX-O

SUPERMICRO MBD-X10DAX-O Extended ATX Server Motherboard

Features

MBD-X10DAX-O
  • Supports Hyper-Speed
  • Supports 3-way Geforce SLI (4-way SLI support for dual GPU graphics cards)
  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
  • 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
  • Dual GbE LAN ports via Intel® i210
  • 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
  • 6x USB 3.0 (4 rear, 2 via header) 5x USB 2.0 (2 rear, 2 via header, 1 Type A)
  • 7.1 HD Audio with optical S/PDIF
  • Thunderbolt Add-on-Card support

Specifications

Product SKUs
MBD-X10DAX -B X10DAX (Bulk Pack)
Physical Stats
Form Factor E-ATX
Dimensions 12" x 13" (30.5cm x 33.0cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP **)
  • Dual Socket R3 (LGA 2011)
Cores / Cache Up to 22 Cores† / Up to 55MB† Cache
System Bus QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C612 chipset
AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual Gigabit Ethernet LAN ports via Intel® i210
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Input / Output
SATA 10x SATA3 (6Gbps) ports
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 6x USB 3.0 ports (4 rear + 2 via header)
  • 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio 7.1 HD Audio with optical S/PDIF
DOM DOM (Disk on Module) power connector
TPM 1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16
  • 2 PCI-E 3.0 x8
  • 1 PCI-E 2.0 x4 (in x8)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Management
Software
  • NMI
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 6 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • 8x fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • SDDC Support
  • RoHS
