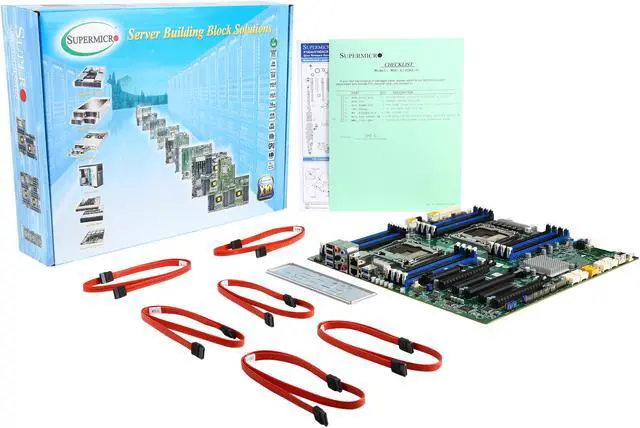

Images from RETAIL item, box contents may vary.

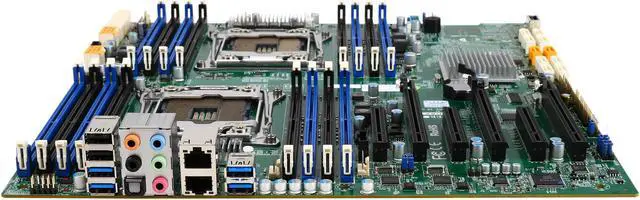

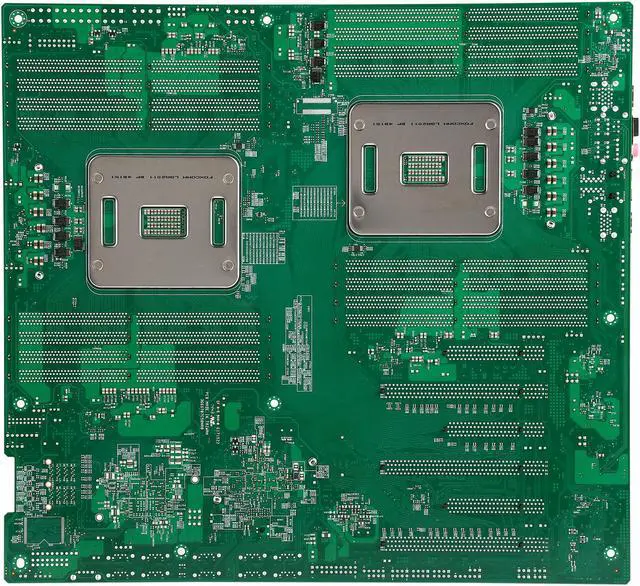

SUPERMICRO MBD-X10DAX-O Extended ATX Server Motherboard Dual LGA 2011-3 Intel C612

OPEN BOX

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-X10DAX-O

Model
Brand	SUPERMICRO
Model	MBD-X10DAX-O

Supported CPU
CPU Socket Type	Dual LGA 2011-3
CPU Type	Intel Xeon processor E5-2600 v3 family (up to 160W TDP )

Chipsets
North Bridge	Intel C612

Expansion Slots
PCI Express 3.0 x16	3
Other Slots	3 PCI-E 3.0 x16 2 PCI-E 3.0 x8 1 PCI-E 2.0 x4 (in x8)

Storage Devices
SATA	10 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC888

Onboard LAN
LAN Chipset	Intel I210

Rear Panel Ports
RJ45	2 x RJ45 Gigabit Ethernet LAN ports
USB 1.1/2.0	2 x USB 2.0
USB 3.0	4 x USB 3.0
Audio Ports	7.1 HD Audio with optical S / PDIF

Features
Features	Dual socket R3 (LGA 2011) support Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s Intel C612 chipset Up to 1TB ECC DDR4 2133 MHz; 16x DIMM slots 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot Intel i210 Dual port GbE LAN 10 x SATA3 (6 Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10 6 x USB 3.0 (4 rear, 2 via header), 5 x USB 2.0 (2 rear, 2 via header, 1 Type A) 7.1 HD Audio with optical S/PDIF

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 13.0"

Additional Information
First Listed on Newegg	September 30, 2015
