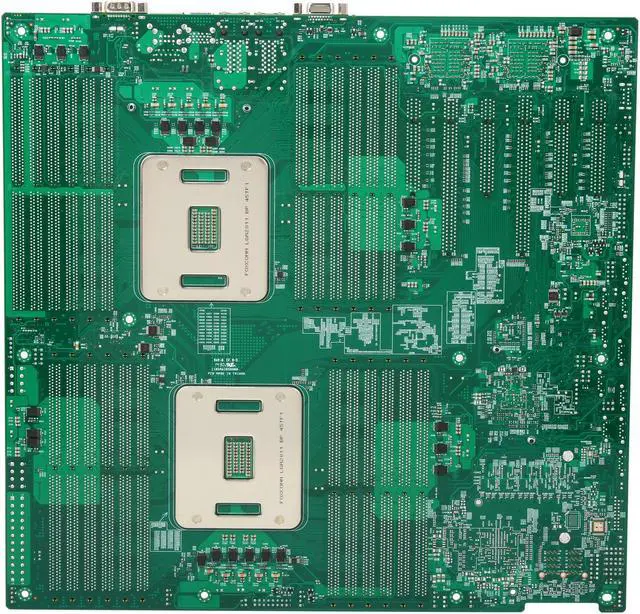

Main image of SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011-3 Intel C612

Alt view image 2 of 5 - SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011-3 Intel C612

Alt view image 3 of 5 - SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011-3 Intel C612

Alt view image 4 of 5 - SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011-3 Intel C612

Alt view image 5 of 5 - SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011-3 Intel C612

Shop All Supermicro Products

SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011-3 Intel C612

Be the first to review this product...

Dual LGA 2011-3
Intel C612

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard

Features

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
Intel® C612 chipset
Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
Quad LAN w/ Intel® i350 GbE
10x SATA3 (6Gbps); RAID 0, 1, 5, 10
Integrated IPMI 2.0 and KVM with Dedicated LAN
5x USB 3.0 (2 rear, 2 front panel, 1 Type A), 4x USB 2.0 ports (2 rear, 2 front panel)

Specifications

Product SKUs
MBD-X10DRi-LN4+ -B	X10DRi-LN4+ (Bulk Pack)
MBD-X10DRi-LN4+ -O	X10DRi-LN4+ (Retail Pack)
Physical Stats
Form Factor	Enhanced Extended ATX
Dimensions	13.68" x 13" (34.74cm x 33cm)
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP**) Dual Socket R3 (LGA 2011)
Core / Cache	Up to 22 Cores† / Up to 55MB† Cache
System Bus	QPI up to 9.6 GT/s
Note	† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity	24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type	2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i350 Quad Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	ASPEED AST2400 BMC
Expansion Slots
PCI-Express	2 PCI-E 3.0 x16 3 PCI-E 3.0 x8 1 PCI-E 2.0 x4 (in x8)
Input / Output
SATA	10x SATA3 (6Gbps) ports
LAN	4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	5x USB 3.0 (2 rear, 2 front panel, 1 Type A) 4x USB 2.0 ports (2 rear, 2 front panel)
Video	1x VGA port
Serial Port / Header	2x Fast UART 16550 serial 2x COM Ports (1 rear, 1 header)
SuperDOM	2x SuperDOM (Disk on Module) ports
TPM	1x TPM 1.2 20-pin Header
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1
Management
Software	Intel® Node Manager 3.0 NMI SPM SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS
Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)

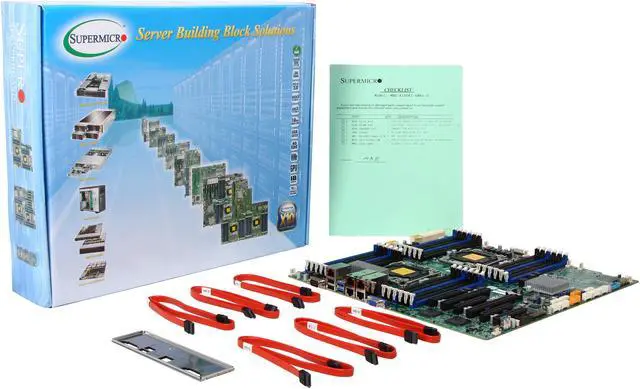

What's in the Box

Model
Brand	SUPERMICRO
Model	MBD-X10DRI-LN4+-O

Supported CPU
CPU Socket Type	Dual LGA 2011-3
CPU Type	Intel Xeon processor E5-2600 v3 family (up to 145W TDP ) Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Bus	QPI up to 9.6 GT/s

Chipsets
North Bridge	Intel C612

Memory
Number of DDR4 Slots	24 x 288-pin
DDR4 Standard	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
Maximum Memory Supported	Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express x16	3 x PCI Express x16
PCI Express x8	3 PCI-E 3.0 x8
PCI Express x4	1 PCI-E 2.0 x4 (in x8)

Storage Devices
SATA	10 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	ASPEED AST2400 BMC

Onboard LAN
LAN Chipset	Intel I350
LAN Speed	10/100/1000Mbps
Max LAN Speed	4 x 1Gbps

Rear Panel Ports
COM	2x COM Ports (1 rear, 1 header)
Video Ports	1x VGA port
USB 3.0	2 x USB 3.0

Onboard Ports
Onboard USB	1 x USB 3.0

Features
Features	1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Intel C612 chipset 3. Up to 1.5TB reg. ECC DDR4 2133MHz; 24x DIMM sockets 4. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot 5. Quad LAN w/ Intel i350 GbE 6. 10x SATA3 (6Gbps); RAID 0, 1, 5, 10 7. Integrated IPMI 2.0 and KVM with Dedicated LAN 8. 3x USB 3.0 (2 rear, 1 Type A)

Dimensions
Form Factor	Enhanced Extended ATX
Dimensions (W x L)	13.68" x 13" (34.74cm x 33cm)

Additional Information
First Listed on Newegg	September 16, 2014
