SUPERMICRO MBD-X10SAE-O ATX Server Motherboard LGA 1150 Intel C226 DDR3 1600

(28) Write a Review
  • LGA 1150
  • Intel C226
  • 4 x 240pin
Overview
Specs
Reviews (28)
MBD-X10SAE-O

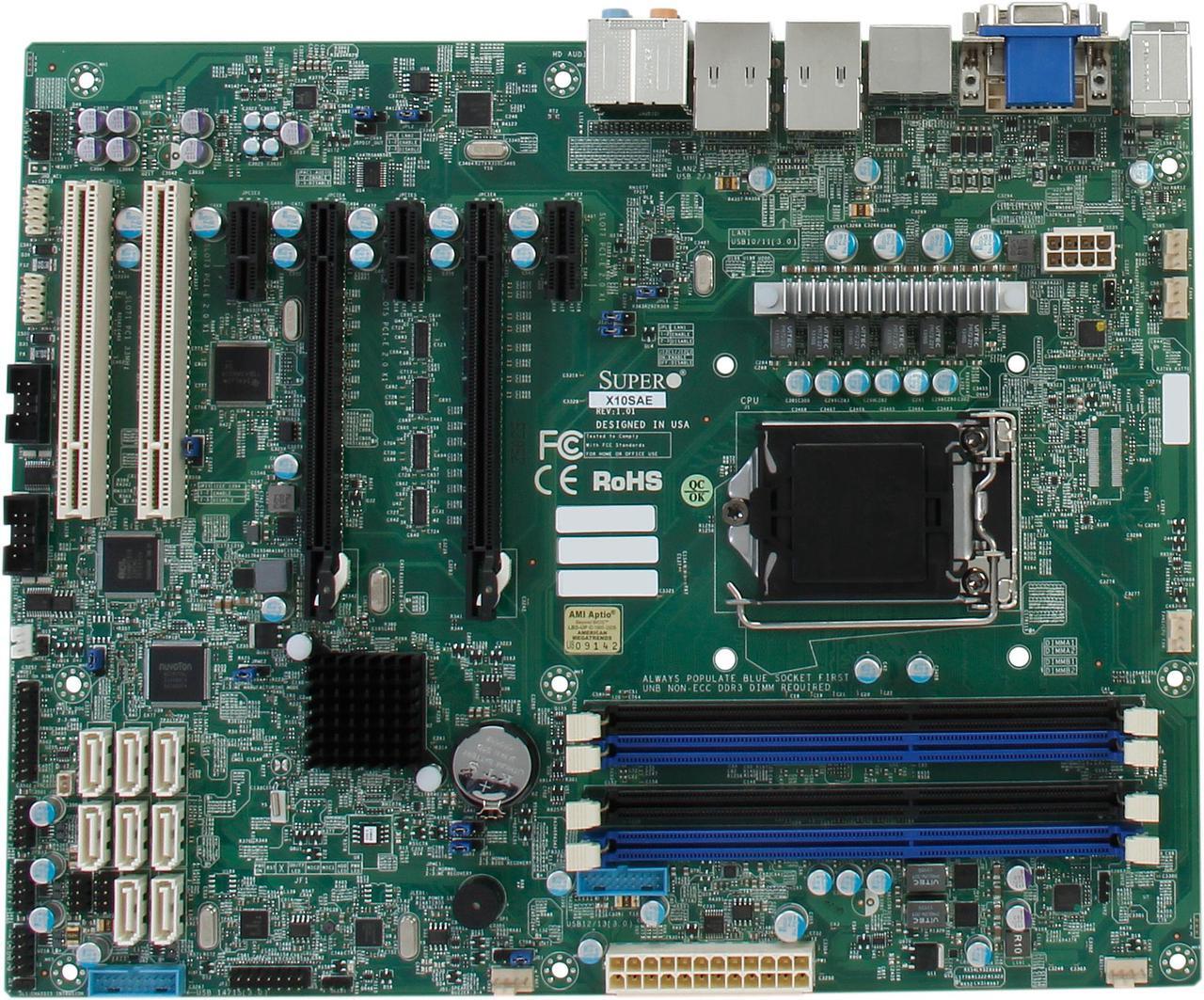

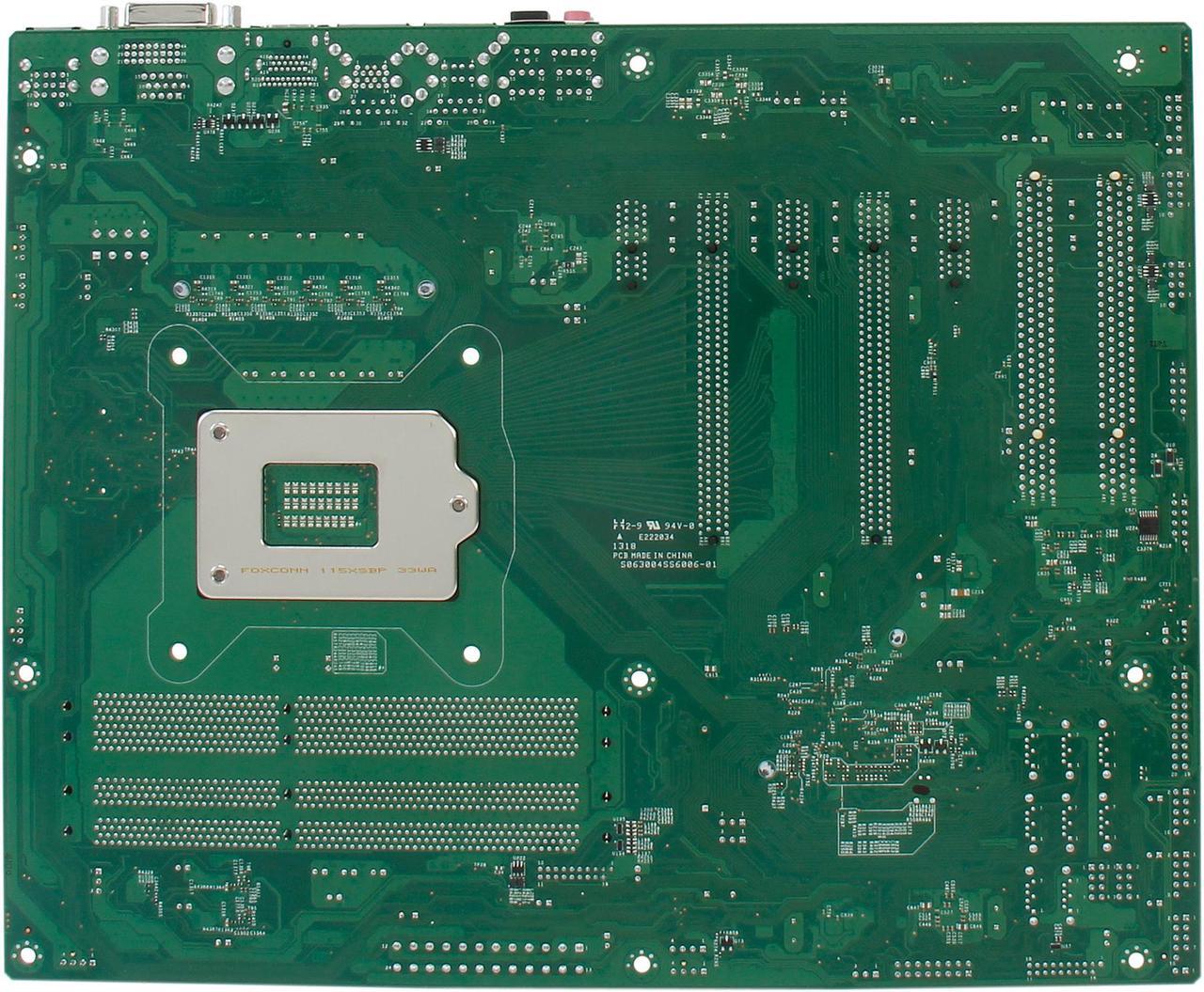

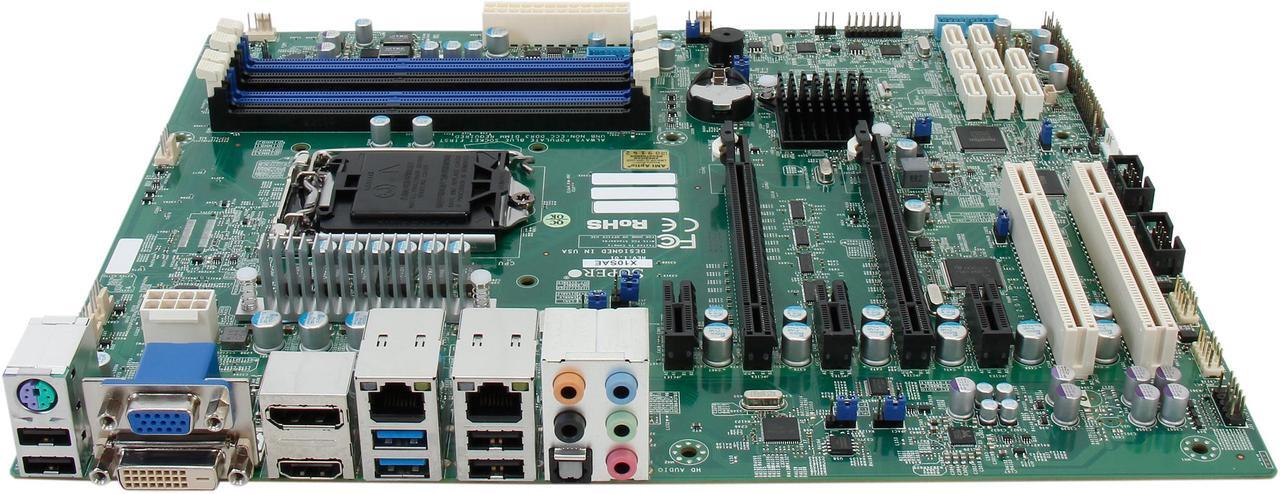

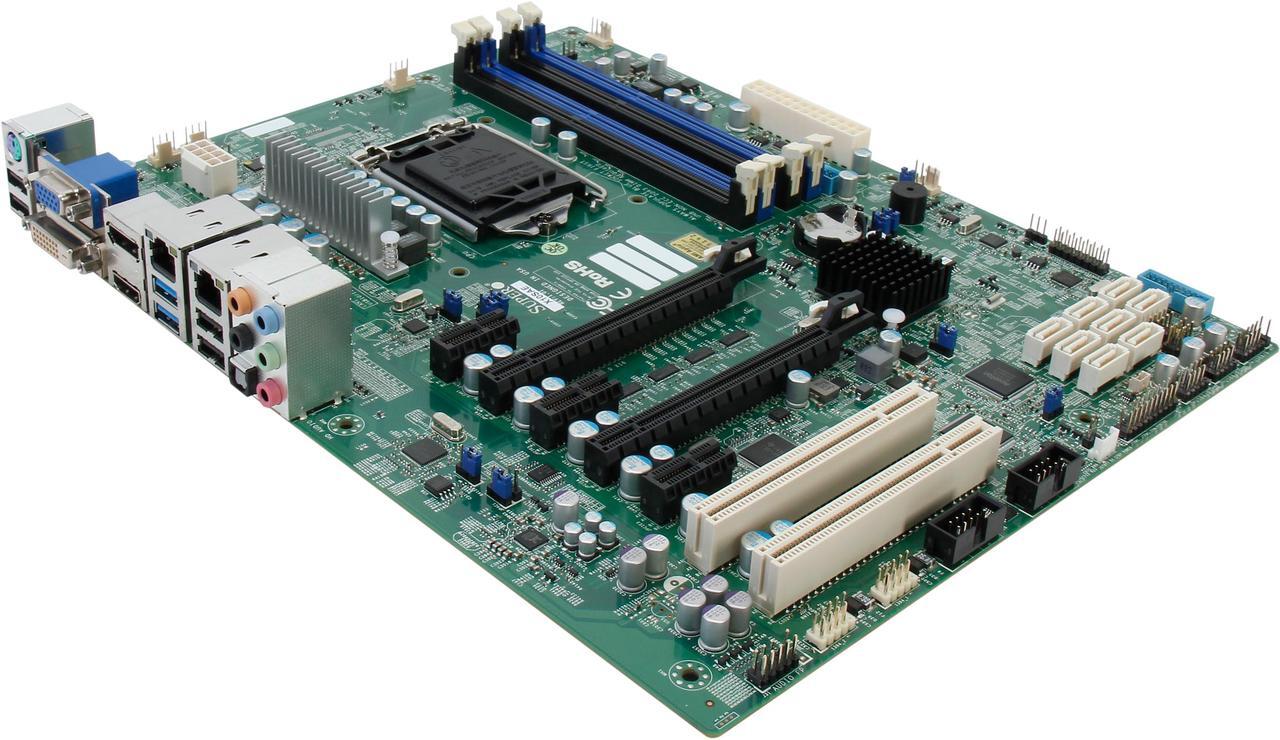

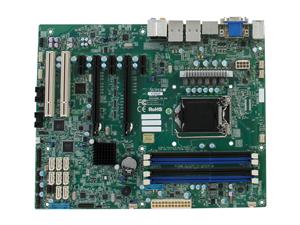

SUPERMICRO MBD-X10SAE-O ATX Server Motherboard

Features

MBD-X10SAE-O
  • Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th/5th gen. Core i7/i5/i3 processors
  • Intel® C226 Express PCH
  • Up to 32GB DDR3 ECC/non-ECC 1600MHz UDIMM in 4 sockets
  • Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT)
  • 8x SATA3 (6Gbps)
  • 2x PCI-E 3.0 x16 slots - function as 16/NA or 8/8, 3x PCI-E 2.0 x1, and 2x PCI 5V 32-bit slots
  • 6x USB 3.0 (2 rear + 4 via headers) 10x USB 2.0 (4 rear + 6 via headers)
  • HD Audio 7.1 channel connector by Realtek ALC1150
  • 1x DOM power connector and 1x SPDIF Out Header
  • UEFI BIOS support

Specifications

Product SKUs
MBD-X10SAE X10SAE (Bulk Pack)
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6", (30.48cm x 24.4 cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3/v4 and 4th/5th Gen Core i7/i5/i3, Pentium, Celeron processors
  • Single Socket H3 (LGA 1150)
  • A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3*
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32GB DDR3 ECC/Non-ECC Un-Buffered memory (UDIMM)
Memory Type 1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5V, 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C226 Express PCH
SATA
  • SATA3 via PCH w/ RAID 0, 1, 5, 10
  • SATA3 via ASM1061®
Network Controllers
  • Intel® i217LM + Intel® i210AT Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio RealTek ALC1150 High Definition Audio
Input / Output
Serial ATA
  • 6x SATA3 (6Gbps) ports via PCH
  • 2x SATA3 (6Gbps) ports via ASM1061®
  • Total of 8x SATA3 ports (6Gbps)
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 6x USB 3.0 ports (2 rear, 4 via headers)
  • 10x USB 2.0 ports (4 rear, 6 via headers)
Audio 7.1 HD Jacks
Display* 1x VGA, 1x HDMI, 1x DVI, 1x Display port
Serial Port / Header 2x COM ports (headers)
DOM SATA DOM (Disk on Module) power connector support
Others TPM header, 2x Type B 1394a headers, PS/2 connector for mouse and keyboard
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 slots - Function as: 16/NA or 8/8
  • 3x PCI-E 2.0 x1 slots
PCI 2x PCI 5V 32-bit slots
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI (SMBIOS) 2.7
  • ACPI 5.0
  • USB Keyboard support
Management
Software
  • SuperDoctor® III
  • Watch Dog
  • AMT
  • vPro
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of five 4-pin fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

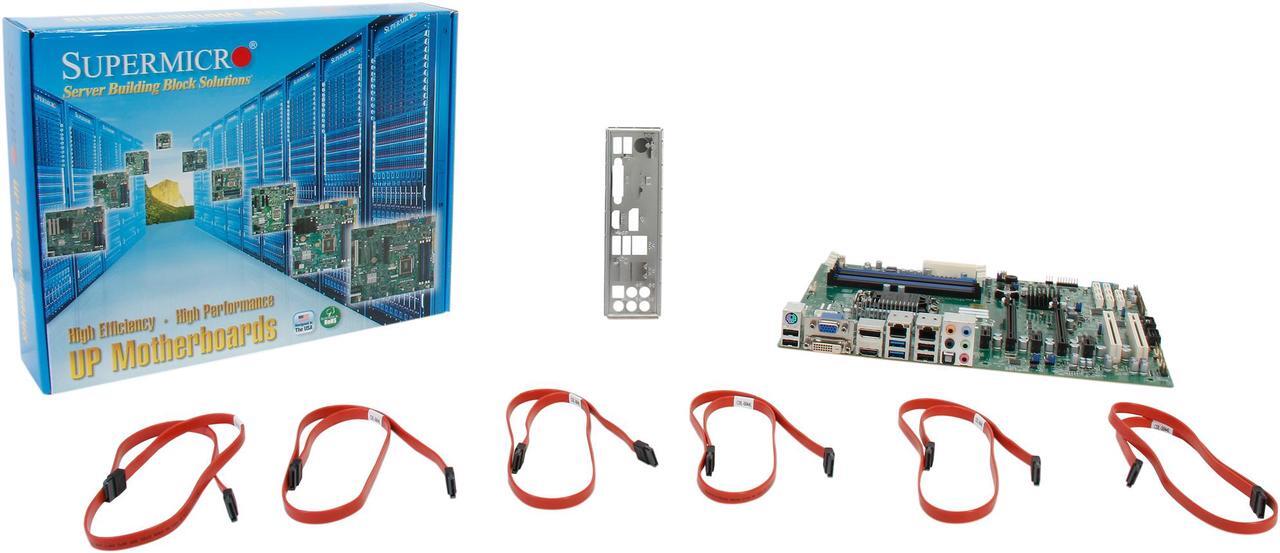

Whats in the Box

MBD-X10SAE-O
