Question 1

Hello,

Will the 5 4 pin fans be included with the purchase of this motherboard?

Thanks

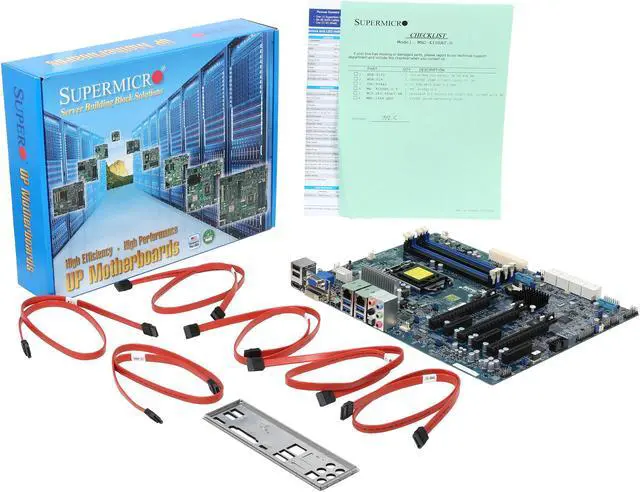

Accepted Answer

No.  It only comes with the back plate that fits the case and several SATA cables.   No printed manual is included either, but you can download the most current manual from Supermico's web site.   Same for chipset drivers.  At least you will be getting the most current stuff that way.

Question 2

What RAM are you using with this MOBO?

Accepted Answer

I'm use two 2x8GB G.SKILL Ares kits (non-ECC). No issues. http://www.newegg.com/Product/Product.aspx?Item=N82E16820231606

Question 3

Can this board be used with non-ECC memory?

Accepted Answer

The manual (v1.1a) states:

The X10SAT supports up to 32GB of Unbuffered (UDIMM) DDR3 Non-ECC 1600/1333/1066 MHz in 4 memory slots.

Question 4

The Specifications list SATA  8 x SATA 6.0Gb/s  AND Additional SATA 2 x SATA 6.0Gb/s - Assuming TOTAL of 10 SATA Ports.  I'm guessing this is where the board name comes from x10 SATA

However the picture only shows 8 TOTAL SATA Ports.  A web search is unclear.

How many SATA Ports are on this board?
If there are 10, where are they located?

Thanks

Accepted Answer

There are only 8x SATA3 (6Gbps); 6x SATA3 via C226 and 2x SATA3 via ASM1061. The technical specs on Newegg have been updated recently and are incorrect.

Question 5

Will ECC memory work only if you are using a CPU with on chip graphics? What CPU are people using who are using ECC memory? I purchased Crucial 16GB (2 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered DDR3 1600 (PC3 12800) Server Memory and Xeon 1231 V3 CPU and I cannot get the system to post. Done extensive troubleshooting, have a working video card installed in PCI express #6. Only get 4 beeps.

Accepted Answer

I believe I used this memory and it worked correctly. I think it was Crucial part number CT2KIT102472BD160B.  I also used 32gb of Kingston ECC non-buff RAM successfully.

One thing to realize about this motherboard is that the number of beeps relates to how many USB devices are plugged in at POST. This was not documented anywhere but confirmed both empirically and by SuperMicro support. This drove me crazy during my initial setup because I was convinced that the variable number beeps meant something was wrong with my system.

I don't see anything immediately wrong with your configuration: I have used an E3-1270 and an E3-1230 with this mobo.  From Intel ARK it looks like the 1231 supports ECC.

I would suggest contacting SuperMicro support but I would also suggest you confirm that your video card is working. Perhaps you can borrow another card for testing purposes?

Question 6

Will the X10SAT-O work out of the box with the newest Xeons (Haswell Refresh) CPUs, like the E3-1276 v3? Or will it require an older chip to update the BIOS?

Accepted Answer

I don't see why it wouldn't, so long as the pin-set didn't change. According to intel, it's listed in the same family as the chips from Q2'13. I highly doubt any major feature changes were made to the instructions, so the BIOS should be able to talk to the processor without an issue.

Question 7

Does this Board have IPMI support? It's listed in the description, referenced but not described in the manual, and not shown on the quick reference sheet.

Accepted Answer

No it has dual Intel NICs, no IPMI.  Rock solid ESXi board though.

Question 8

I'd like to know if anyone is using this board as a server with CentOS (6.5 or 7), and if so, are you using the onboard RAID controller or just Linux software RAID? The Supermicro compatibility list shows Intel RAID not working with CentOS, but I find that hard to believe if it works with RHEL (since Redhat EL and CentOS are 99% the same).

Accepted Answer

I don't use the built in RAID controller and I'm not running CentOS, but some answer might be better than no answer. I'm running Ubuntu and here is some output that might help your research.

$ lspci | grep SATA
00:1f.2 SATA controller: Intel Corporation 8 Series/C220 Series Chipset Family 6-port SATA Controller 1 [AHCI mode] (rev 05)
03:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 01)

If Supermicro claims it works with RHEL, I'd be very confident that this would work just fine in CentOS, since as you point out they're 99% the same with most of the differences being cosmetic.

Question 9

This motherboard has DVI and VGA port, Does it mean no need to buy and use video card, as it has video card built-in ?

Accepted Answer

I believe that if you have a CPU with embedded video, then you don't need to buy a graphics card.  If your CPU didn't have embedded video, you'd need to either redirect the serial console or buy a video card.

The board does *NOT* have discrete video.

Per SuperMicro's website:
"A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3"

Question 10

What size case are we putting this in? I'd rather not put in an ATX, but have no experience with server chassis.

Accepted Answer

I swapped the X10SAT board into an older ATX case and it fits fine. Hope that helps.

Product SKUs
MBD-X10SAT	X10SAT (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6", (30.48cm x 24.4 cm)
Processor/Cache
CPU	Intel® Xeon® processor E3-1200 v3/v4 and 4th/5th Gen Core i7/i5/i3, Pentium, Celeron processors Single Socket H3 (LGA 1150) A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3*
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5V, 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 via PCH w/ RAID 0, 1, 5, 10 SATA3 via ASM1061®
Network Controllers	Intel® i217LM + Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC1150 High Definition Audio>
Chipset	Intel® C226 Express PCH

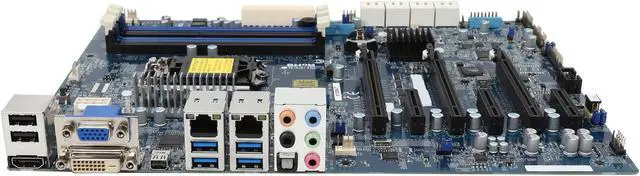

Input / Output
Serial ATA	6x SATA3 (6Gbps) ports via PCH 2x SATA3 (6Gbps) ports via ASM1061® Total of 8x SATA3 ports (6Gbps)
LAN	2x RJ45 Gigabit Ethernet LAN ports
Display*	1x VGA, 1x HDMI, 1x DVI, 1x Thunderbolt
Serial Port / Header	1x COM port (headers)
DOM	SATA DOM (Disk on Module) power connector support
USB	8x USB 3.0 ports (4 rear, 4 via headers) 6x USB 2.0 ports (2 rear, 4 via headers)
TPM	1x TPM 1.2 20-pin Header
Firewire	1x Type B 1394a header
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support

Brand	SUPERMICRO
Model	MBD-X10SAT-O

CPU Socket Type	LGA 1150
CPU Type	Intel Xeon E3-1200V3 series, Core i3 / i5 / i7

Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600/1333/1066
Maximum Memory Supported	32GB
ECC Supported	Yes

PCI Express 3.0 x16	3 PCI-E 3.0 x16 (16/NA/NA or 8/8/NA or 8/4/4)
PCI Express x1	3 PCI-E 2.0 x1 in x4 slots

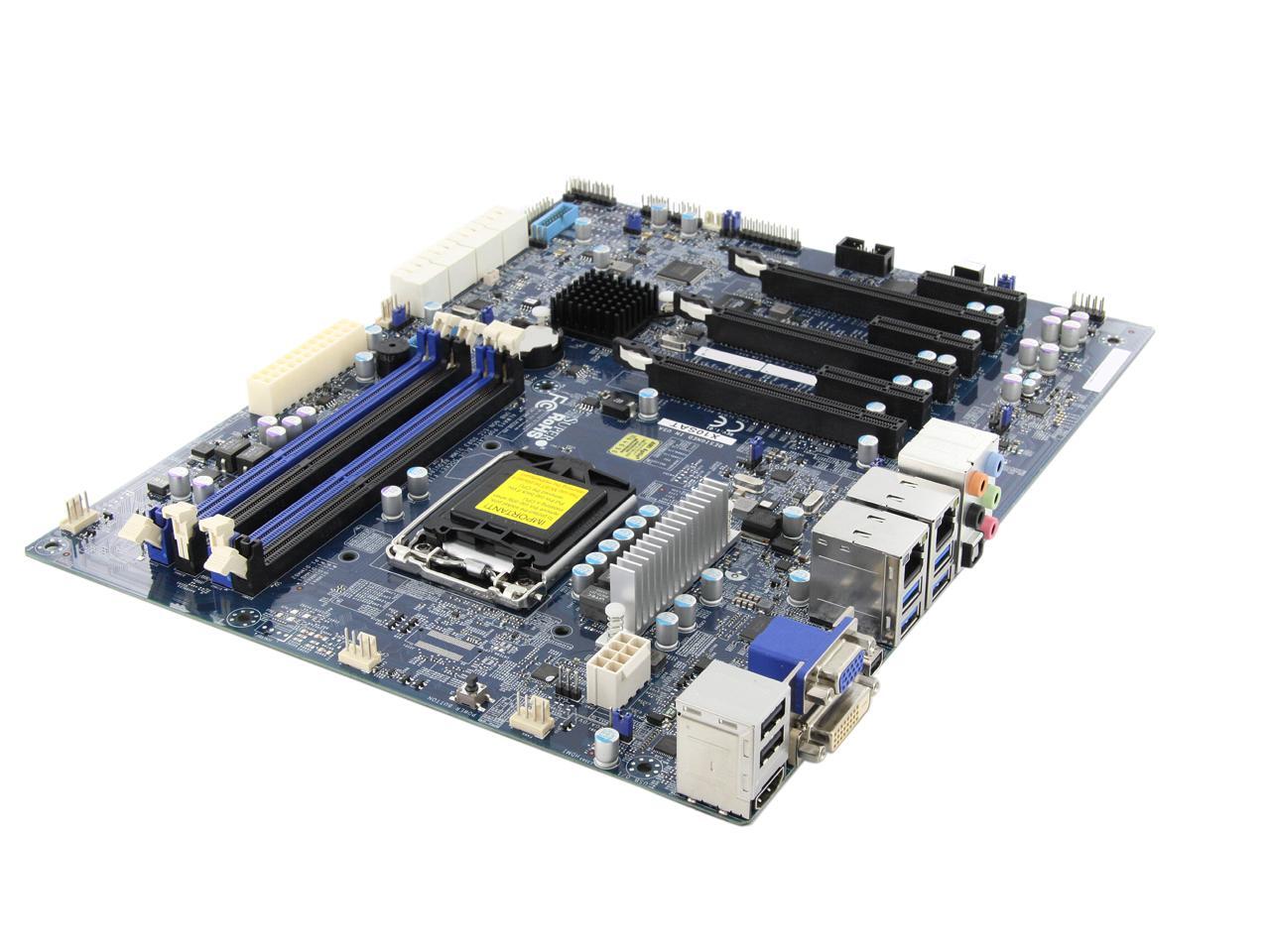

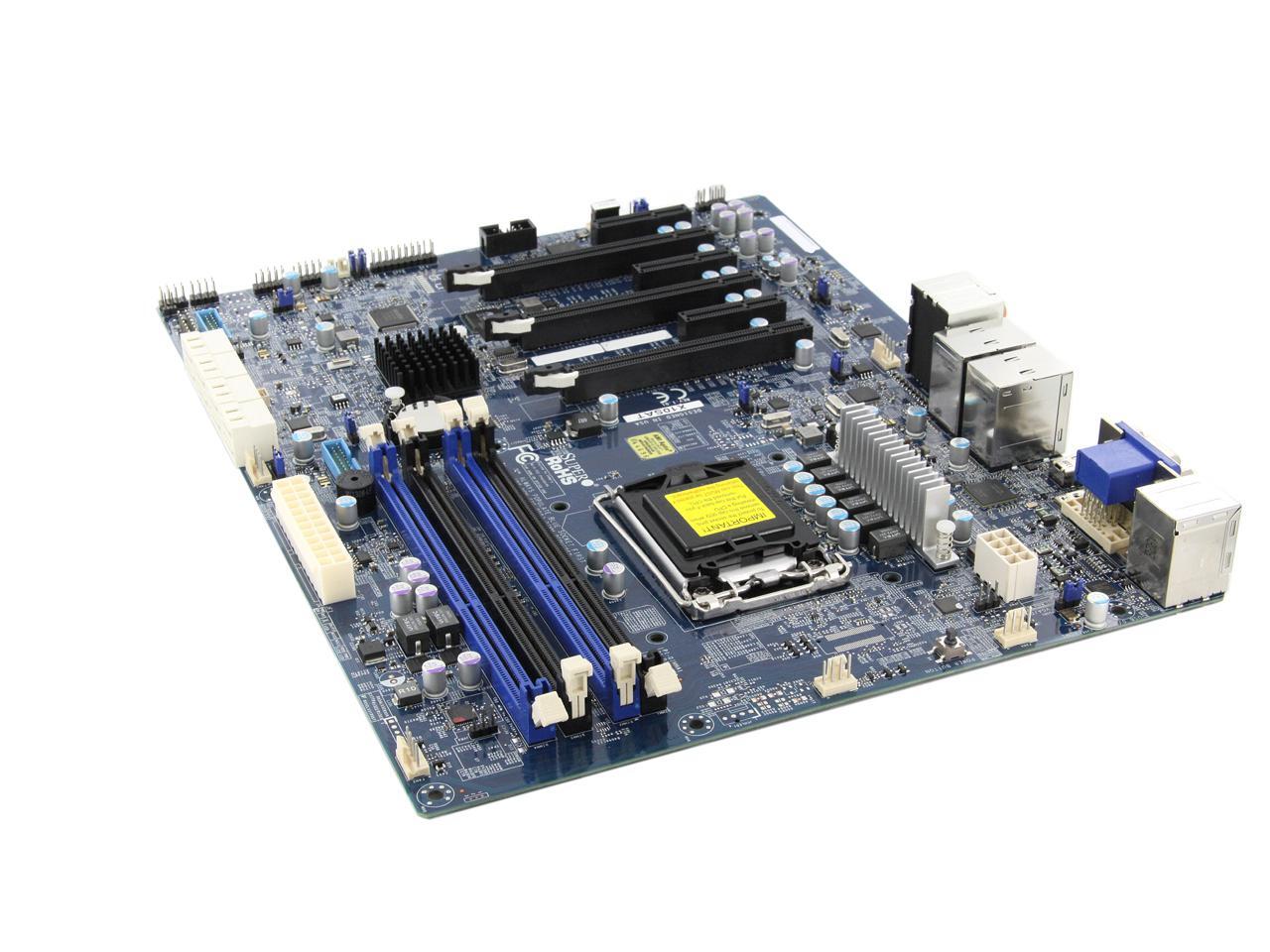

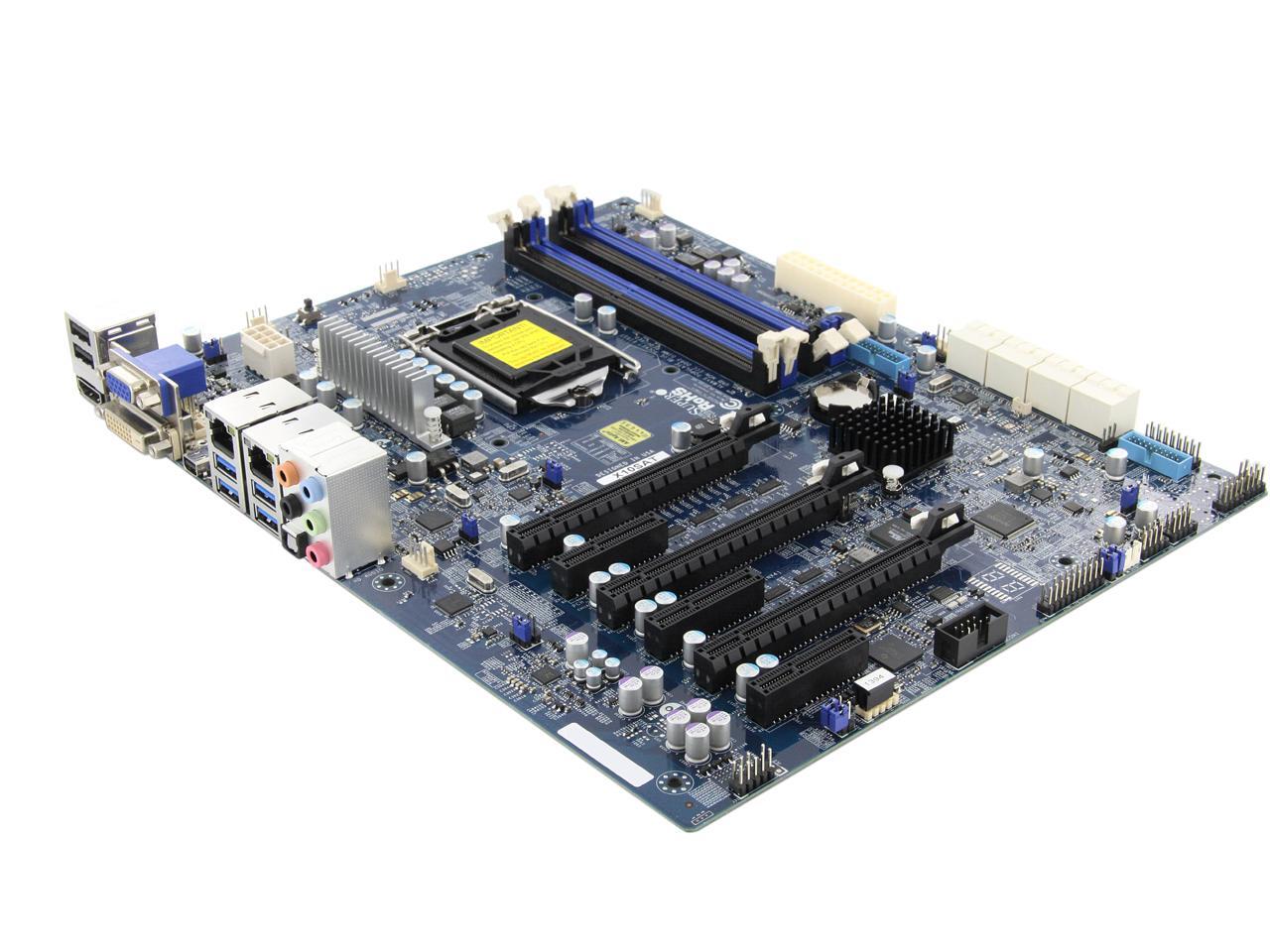

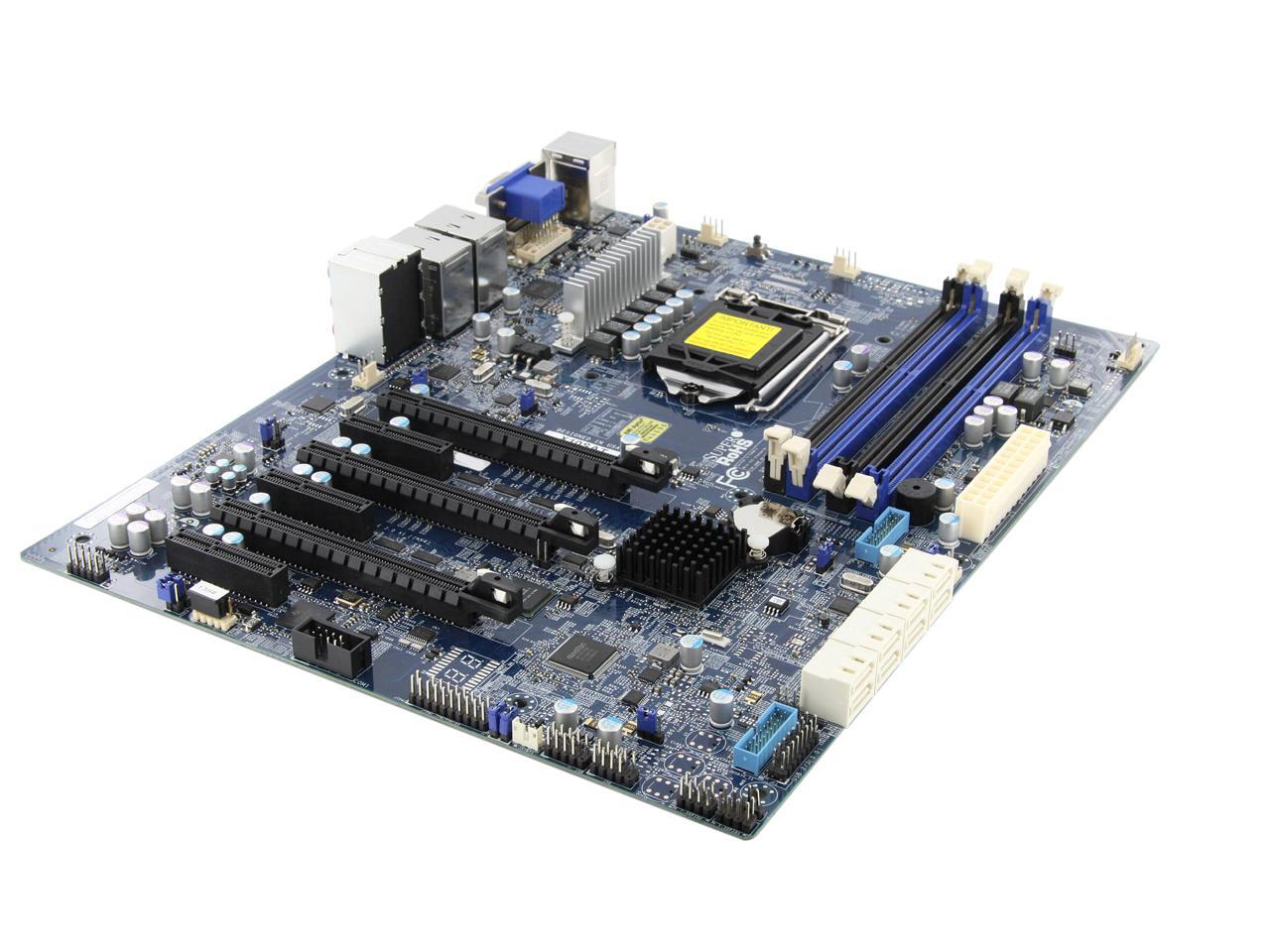

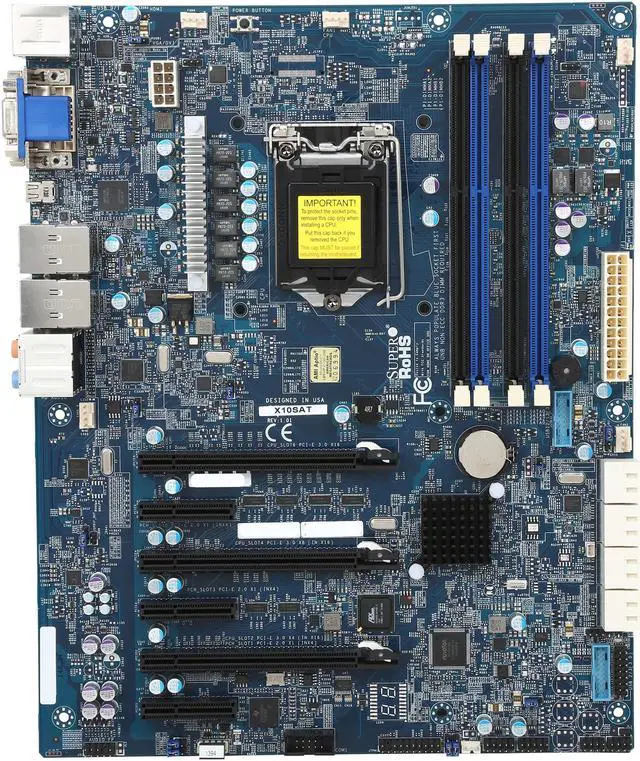

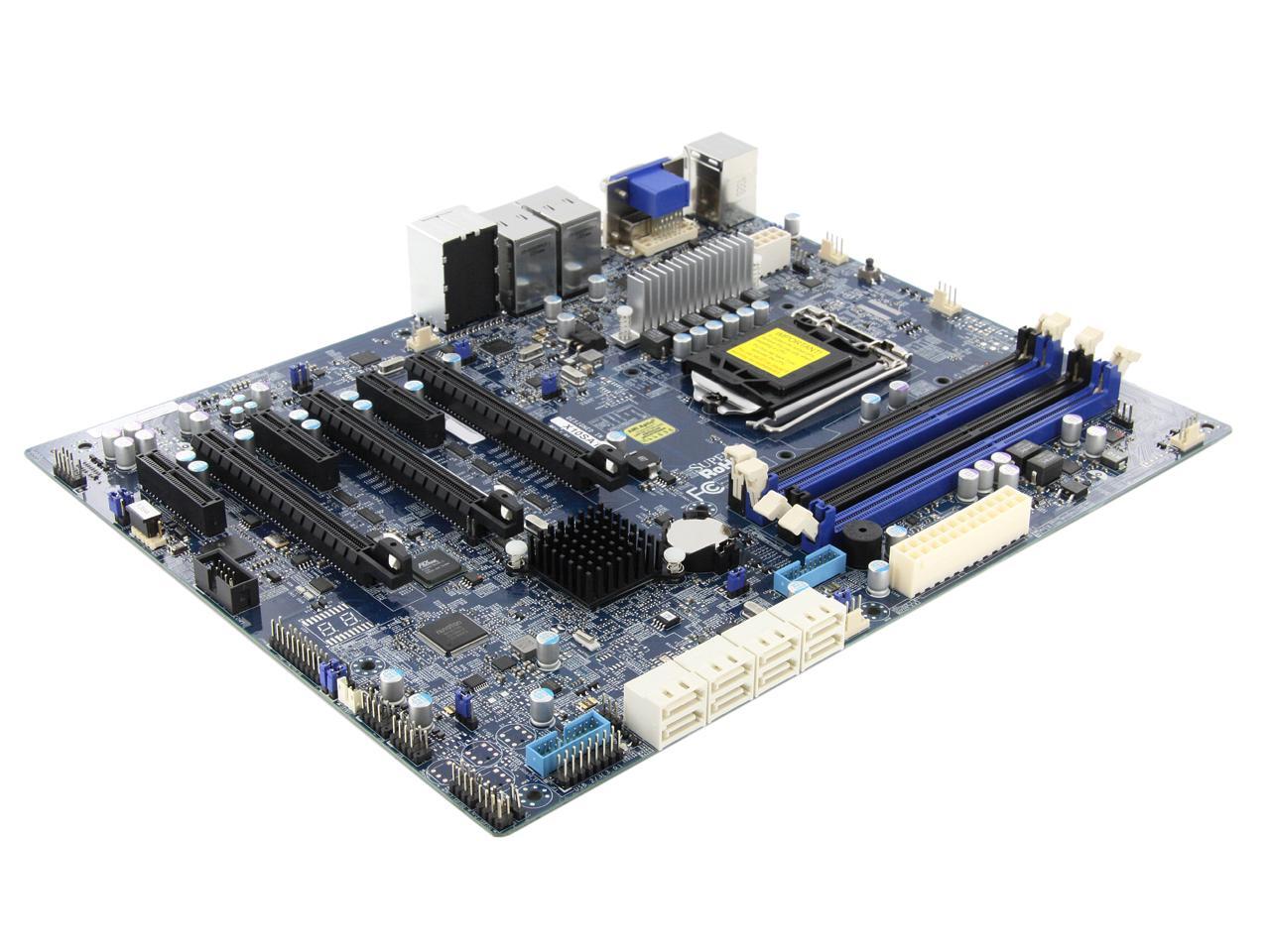

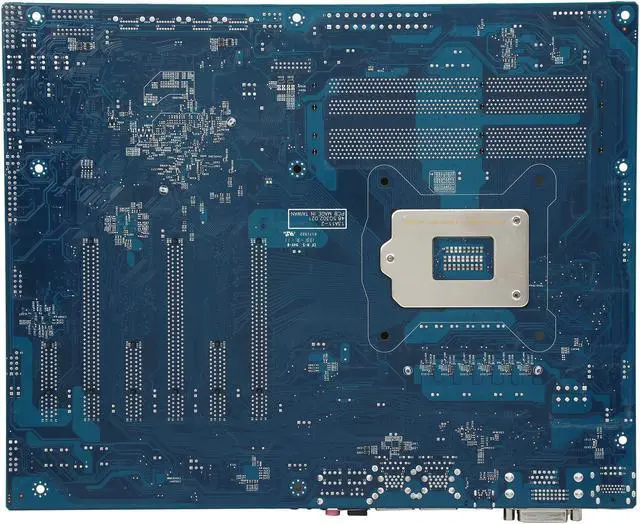

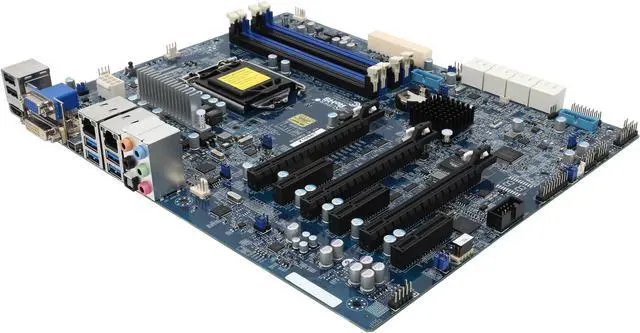

SUPERMICRO MBD-X10SAT-O ATX Server Motherboard LGA 1150 DDR3 1600/1333/1066
