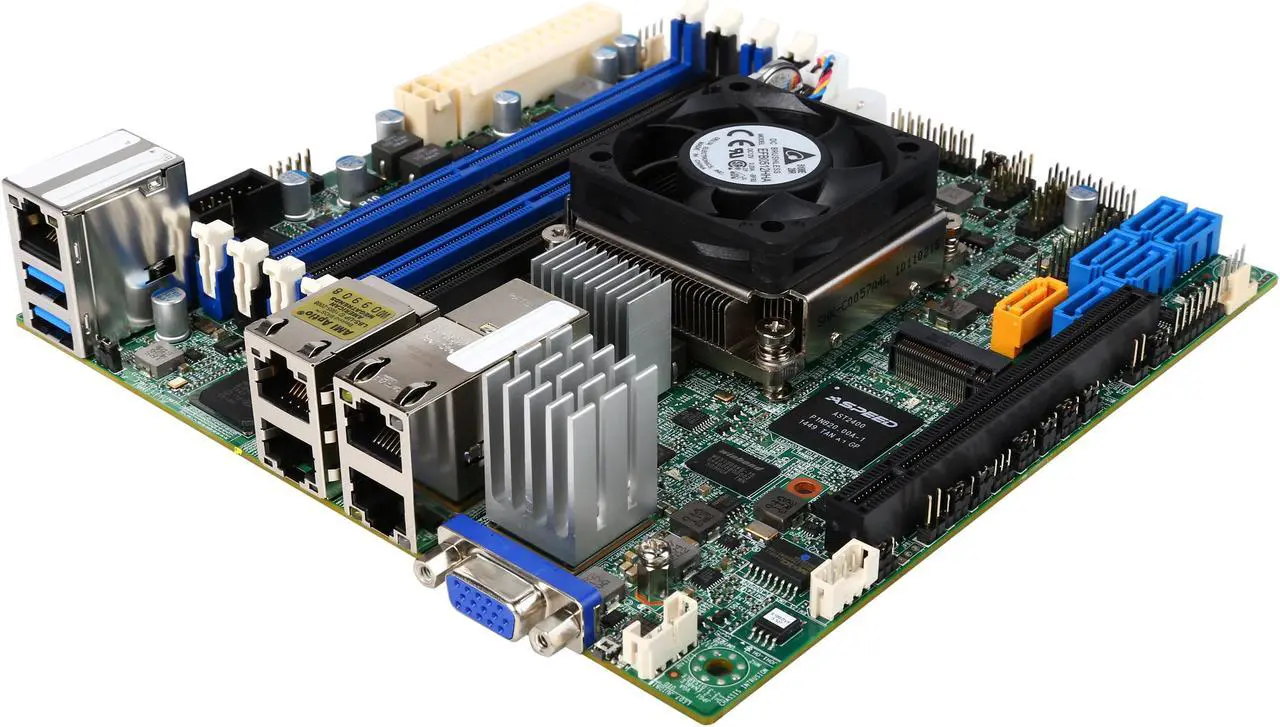

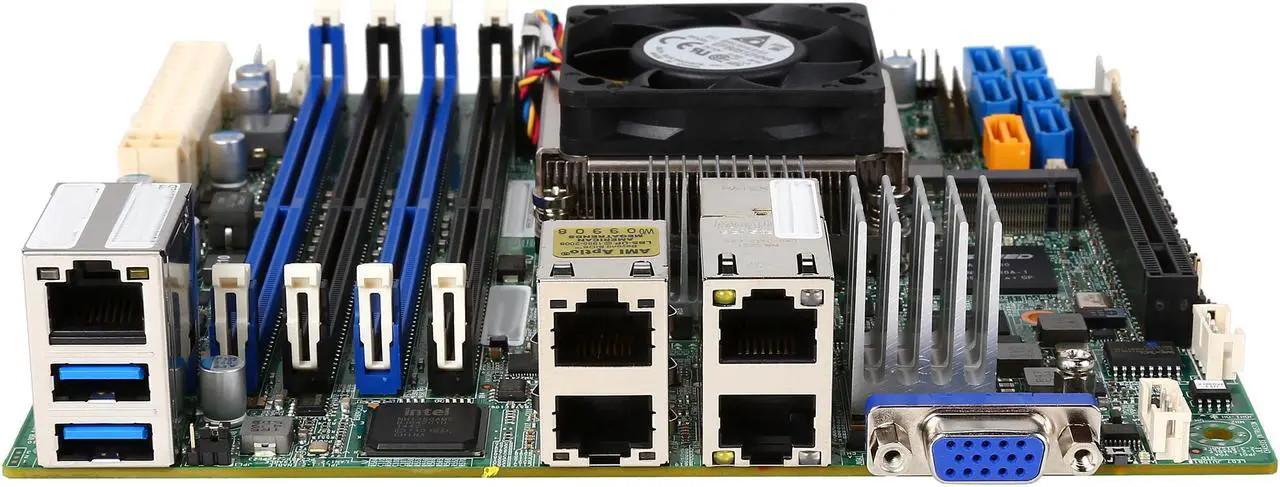

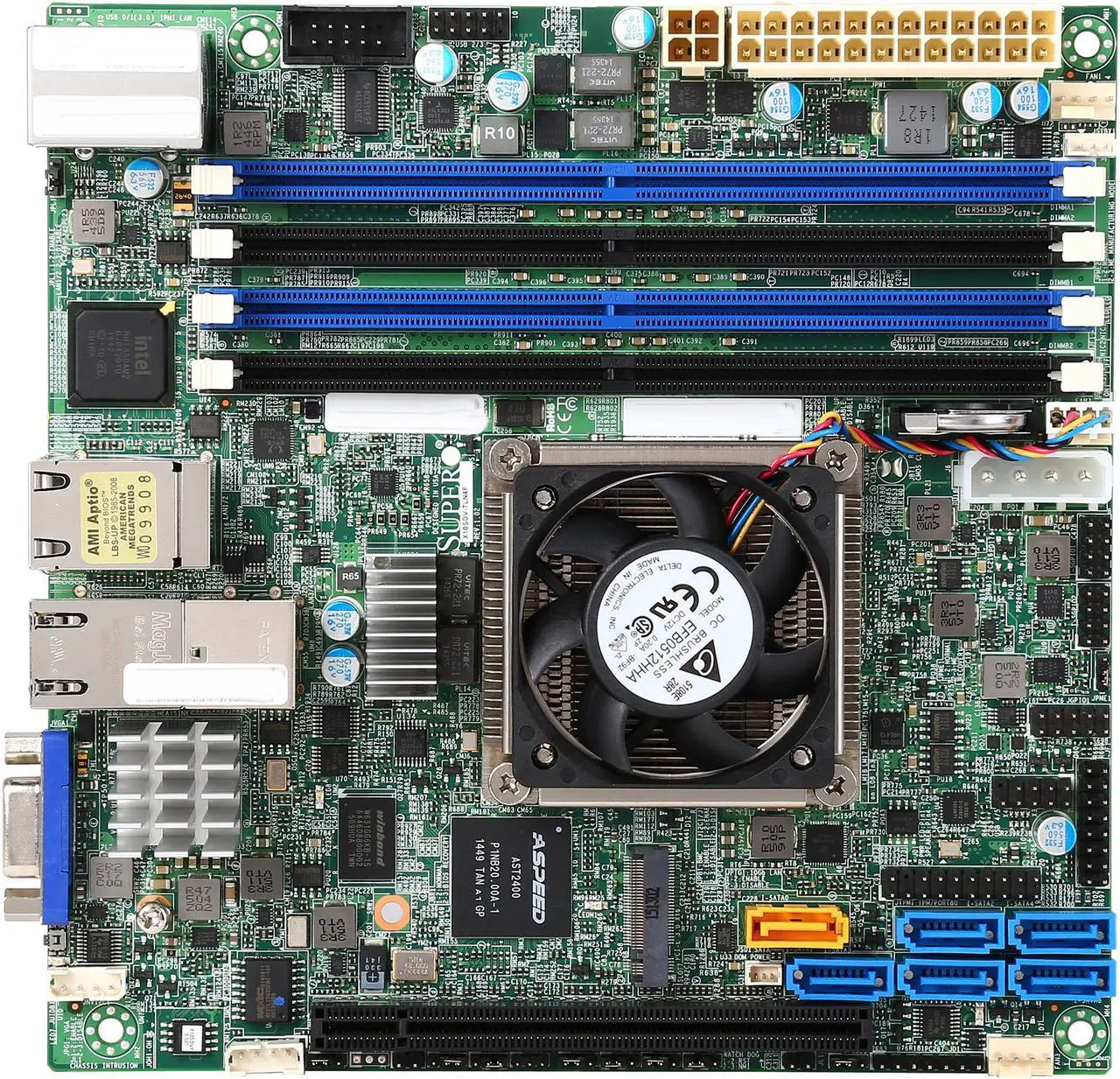

SUPERMICRO MBD-X10SDV-4C-TLN2F-O Intel Xeon D-1521 Mini ITX Server Motherboard

In stock.
Ships from United States.
Most customers receive within 3-8 days.
  • Intel Xeon D-1541
  • Intel Xeon D-1521
  • Intel Xeon processor D-1521
  • Up to 128GB ECC RDIMM DDR4 2133 MHz or 64GB ECC / non-ECC UDIMM in 4 sockets
  • 6 x SATA3 (6 Gbps) ports via SoC
  • 2 x USB 3.0 ports (rear) 4 x USB 2.0 ports (via headers)
  • 12V DC input and ATX Power Source

SUPERMICRO MBD-X10SDV-4C-TLN2F-O Mini ITX Server Motherboard


  • Intel® Xeon® processor D-1521, Single socket FCBGA 1667; 4-Core, 8 Threads, 45W
  • System on Chip
  • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
  • Expansion slot: 1x PCIe 3.0 x16 M.2 PCIe 3.0 x4, M Key 2242/2280
  • Dual 10GbE LAN
  • 6x SATA3 (6Gbps) ports via SoC
  • 2x USB 3.0 ports (rear) 4x USB 2.0 ports (via headers)
  • 1x SuperDOM, 1x COM, TPM 1.2 header, GPIO and SMbus headers
  • 12V DC input and ATX Power Source


Product SKUs
Motherboard X10SDV-4C-TLN2F (Bulk Pack)
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7", (17cm x 17cm)
  • Intel® Xeon® processor D-1521
  • FCBGA 1667
  • CPU TDP support 45W, 2.2-2.6GHz, 12MB, 4 Cores, 8 Threads
System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 128GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes 32GB, 16GB, 8GB, 4GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
SATA System on Chip
Network Controllers
  • Dual LAN via SoC 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video Aspeed AST2400
TPM TPM header
Input / Output
SATA 6x SATA3 (6Gbps) ports
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 2x USB 3.0 ports (rear)
  • 4x USB 2.0 ports (via headers)
Video 1x VGA port
Serial Port / Header 1x COM port (header)
DOM 1x SuperDOM (Disk on Module) power connector

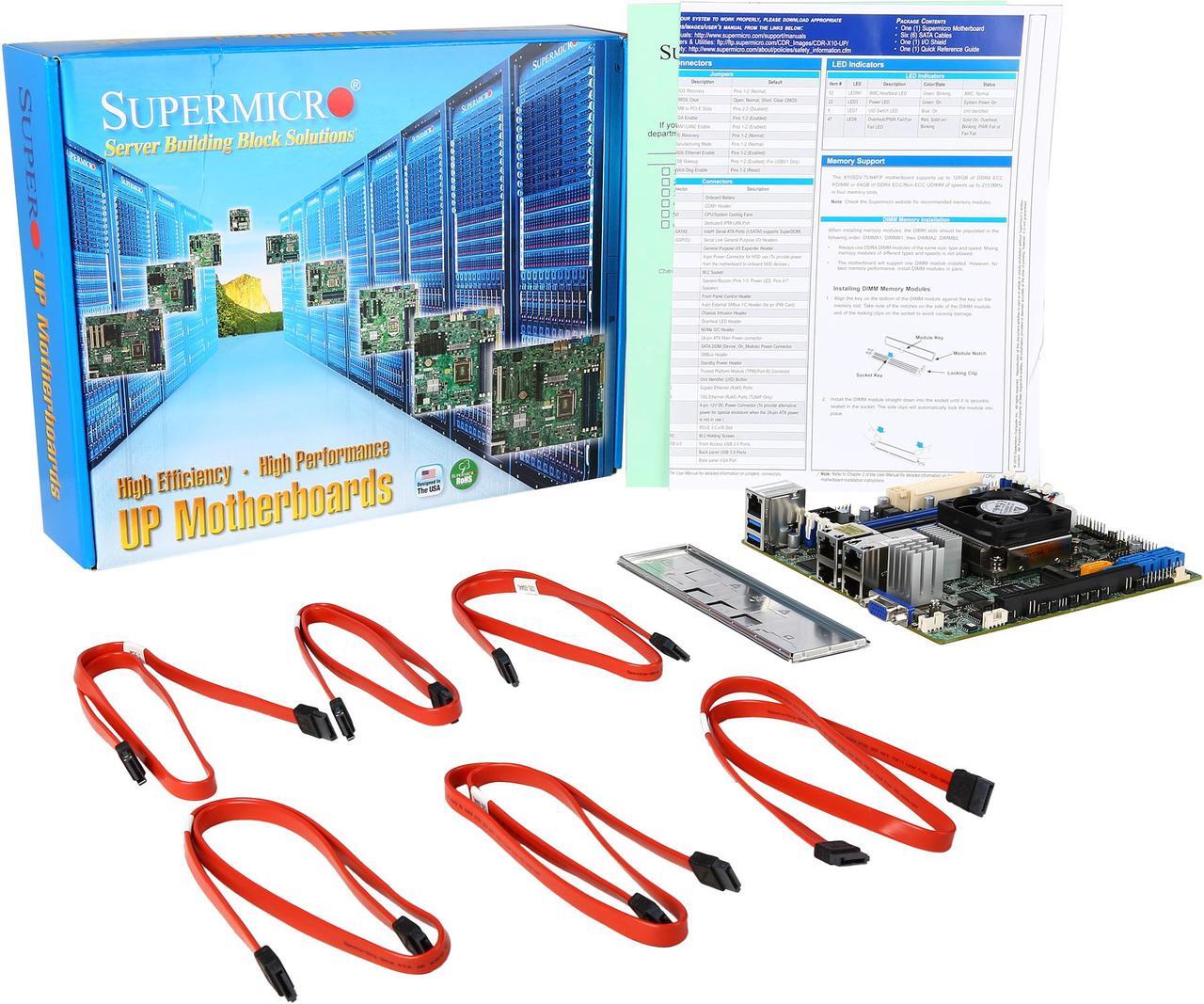

Whats in the Box
