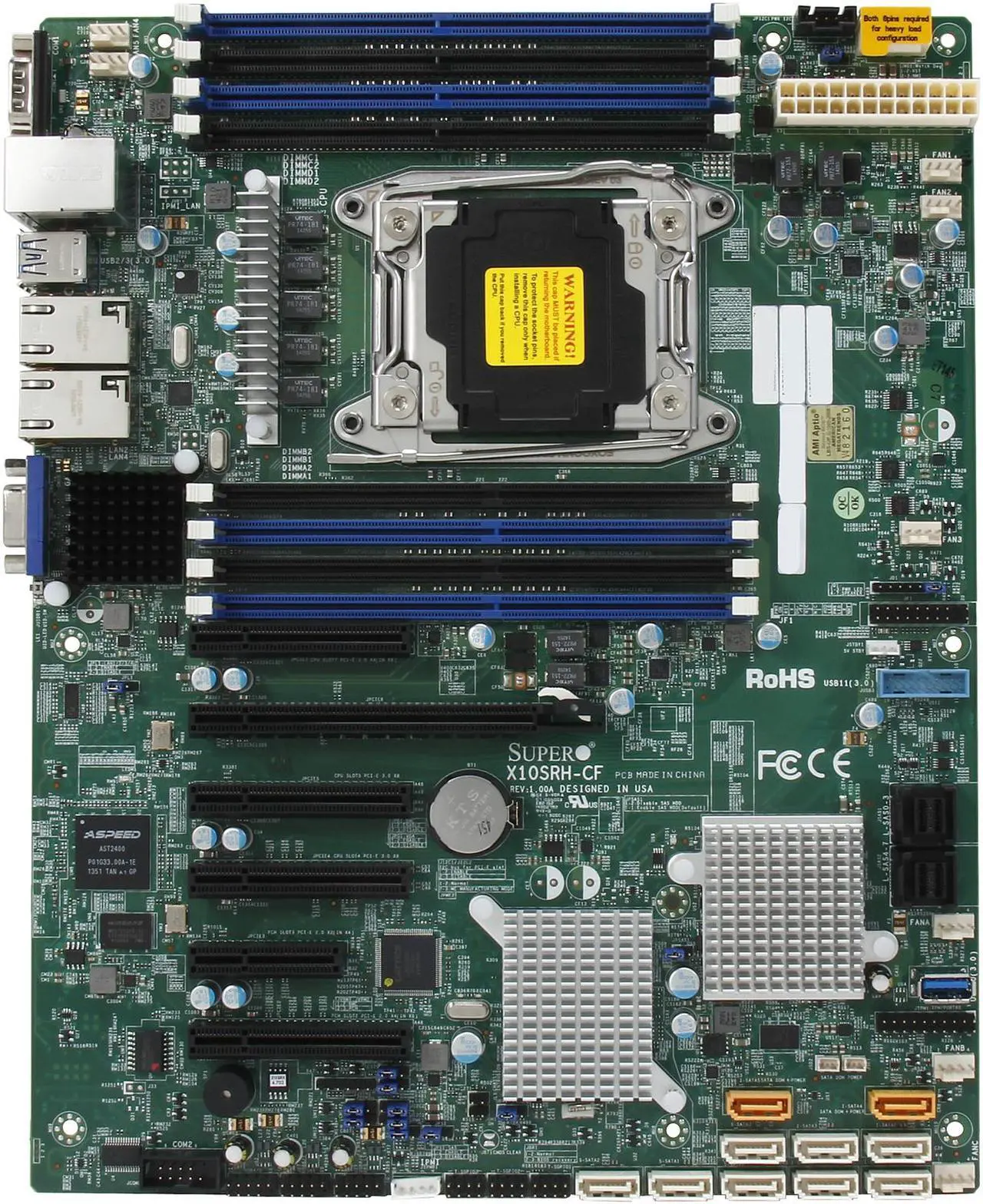

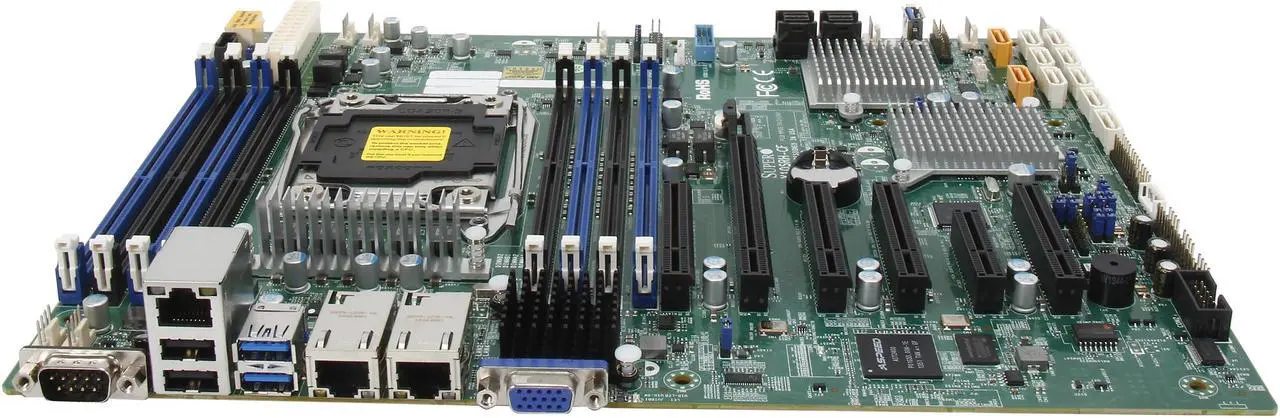

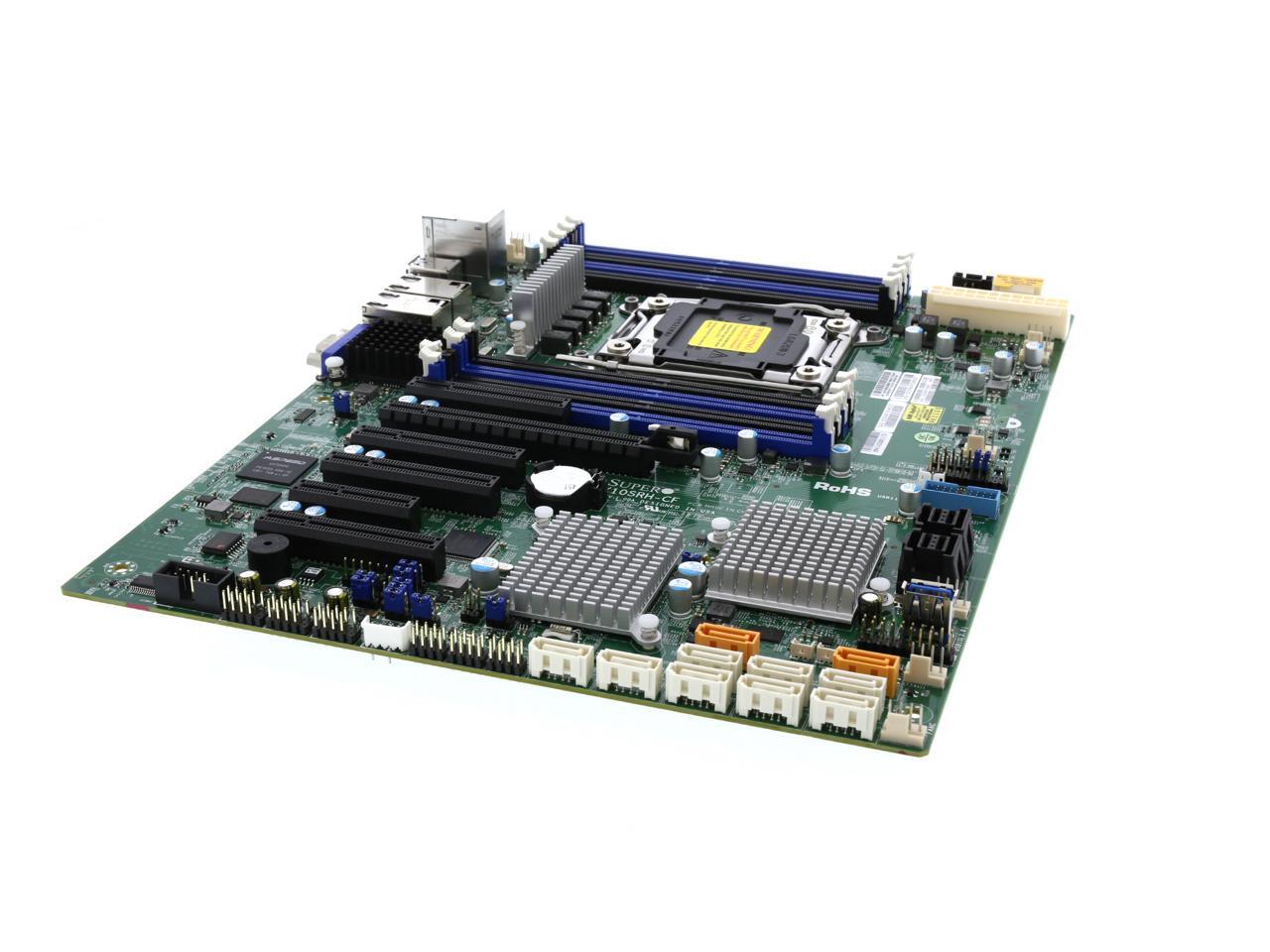

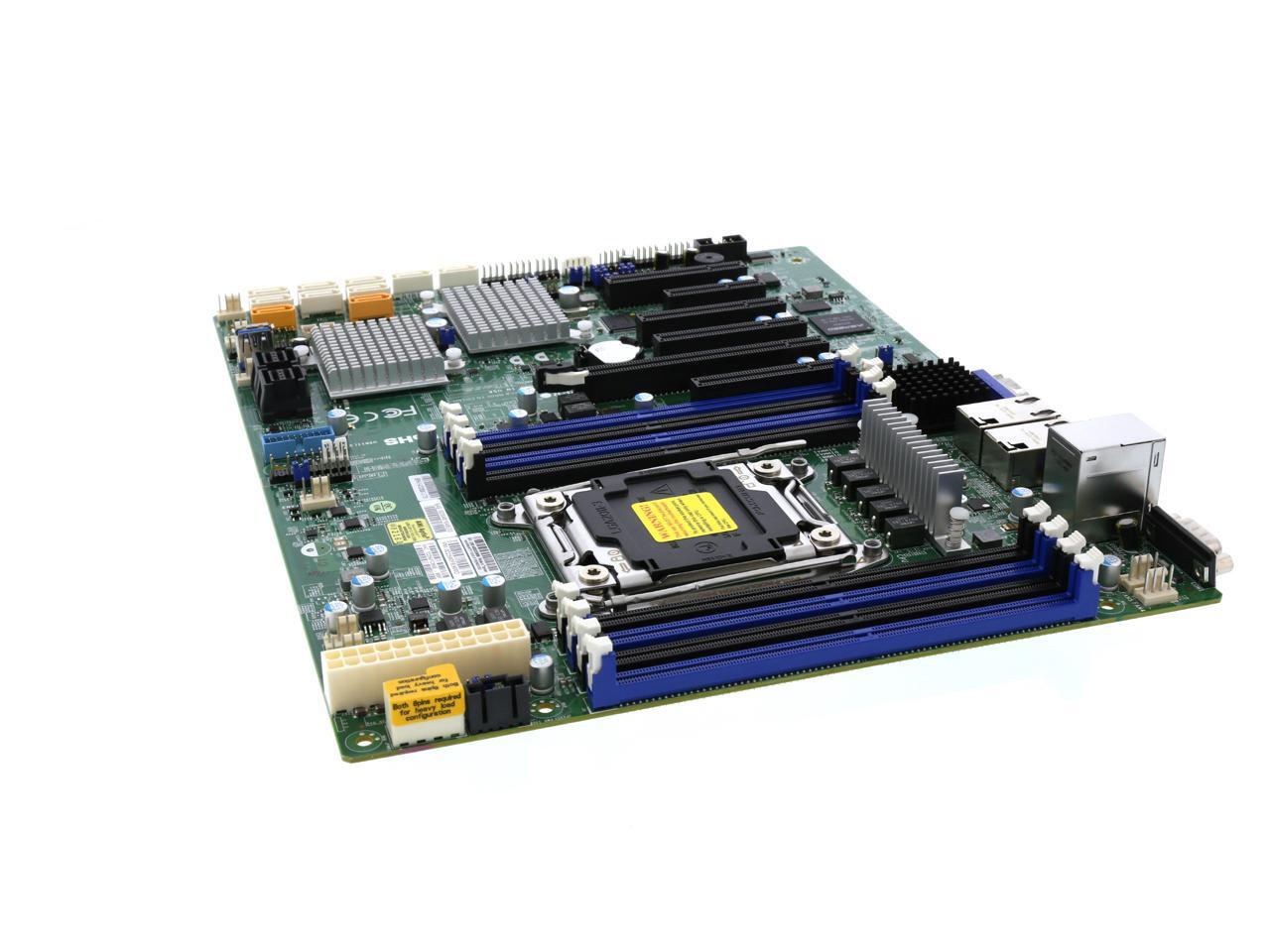

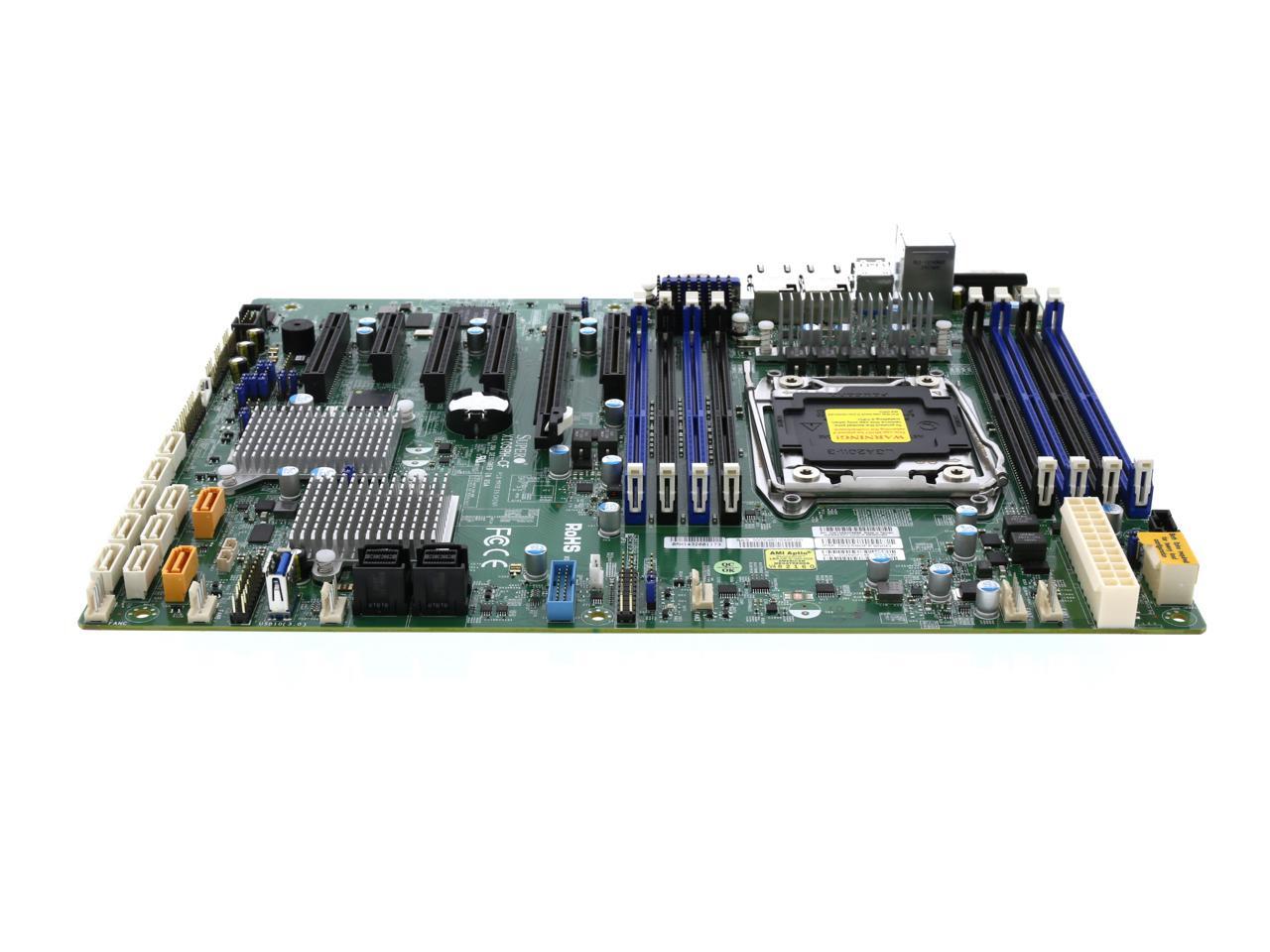

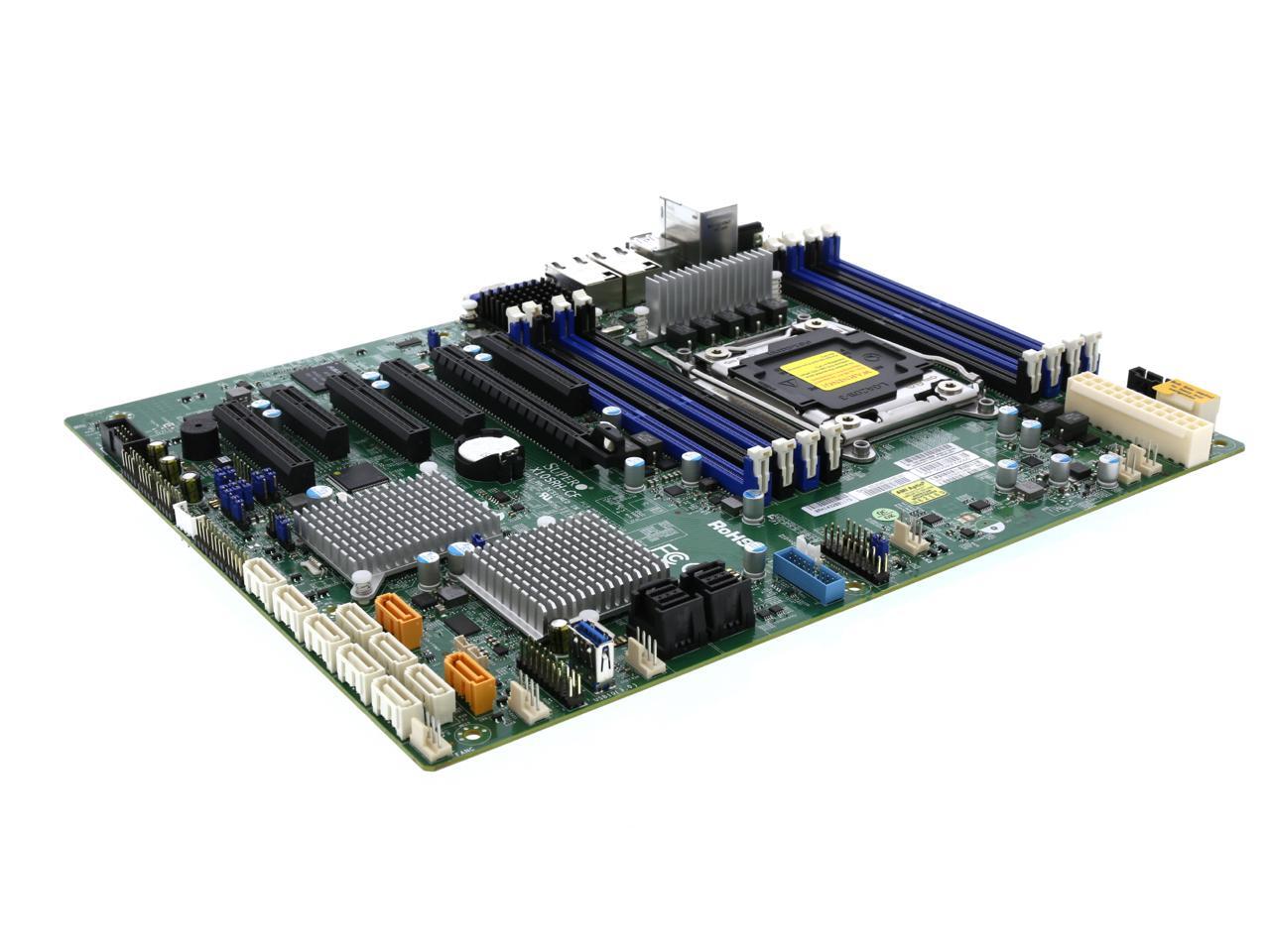

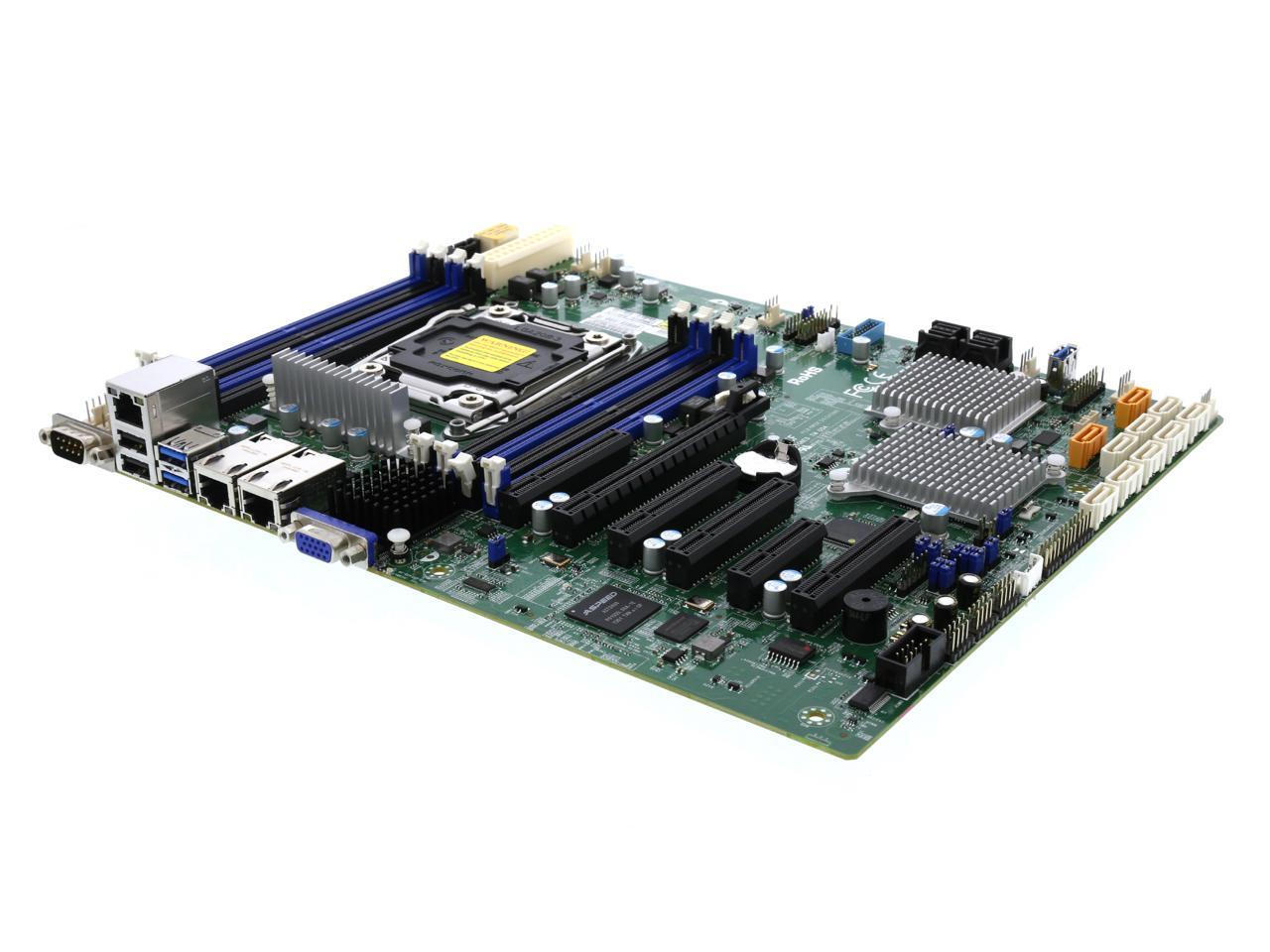

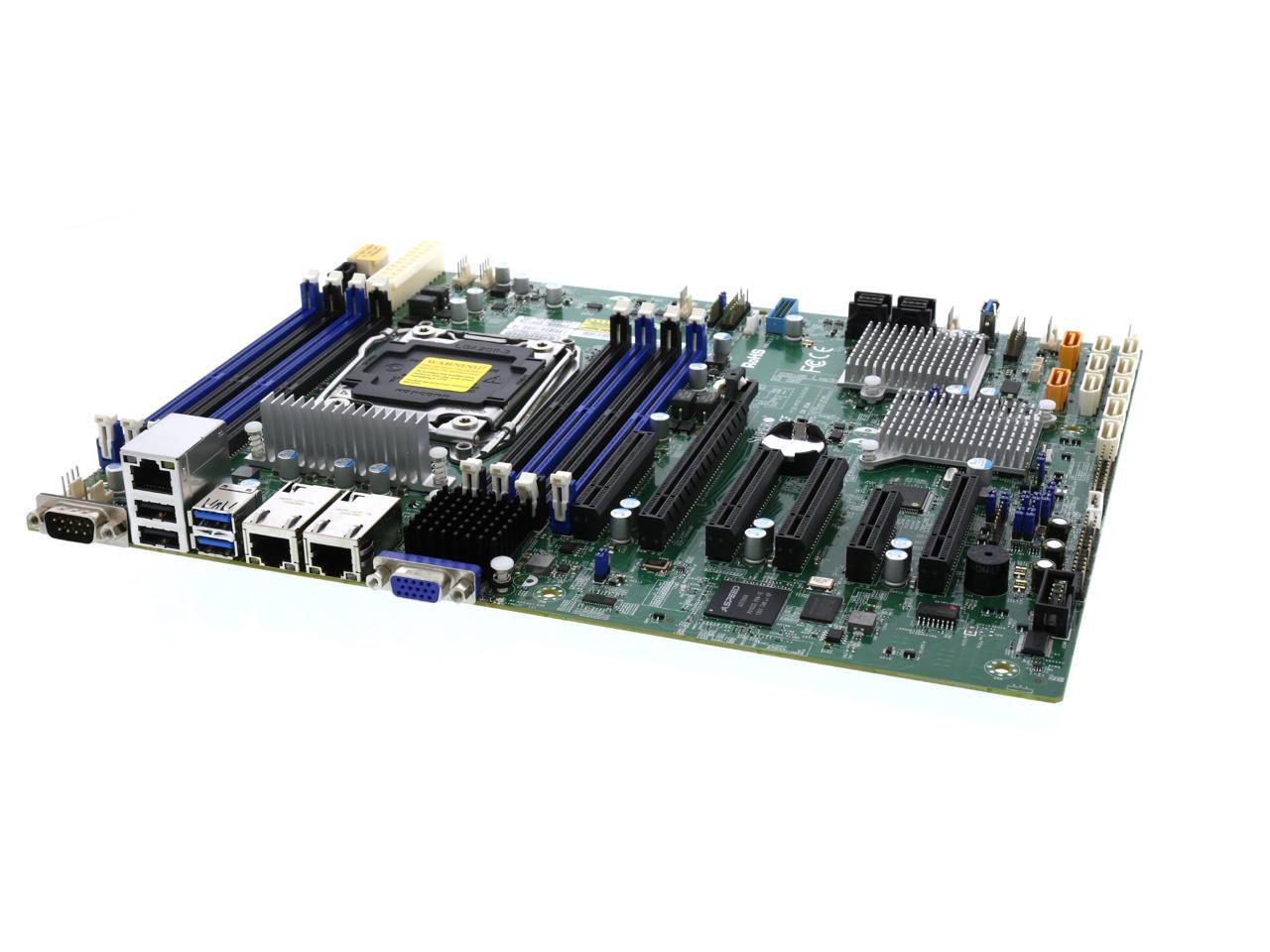

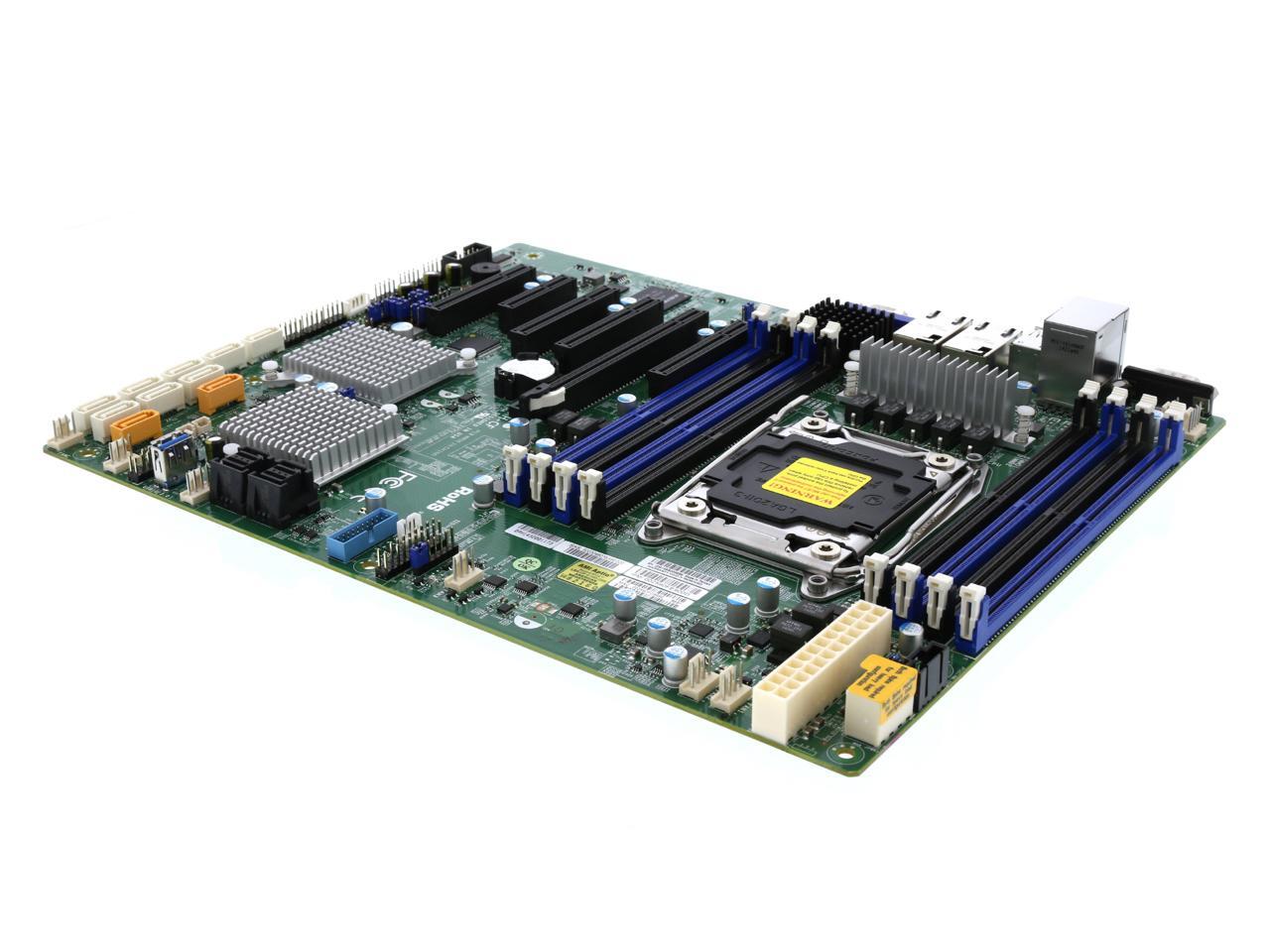

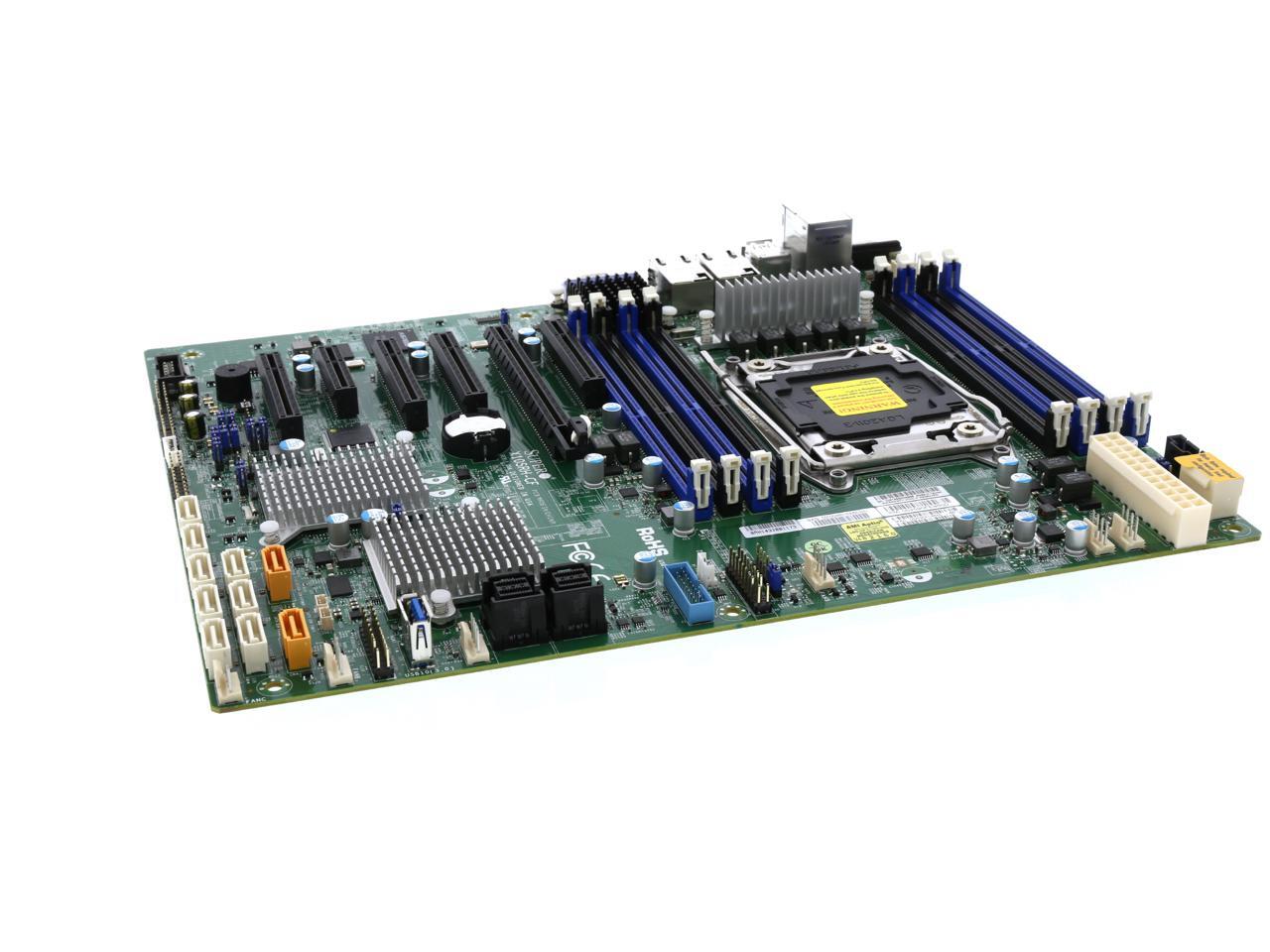

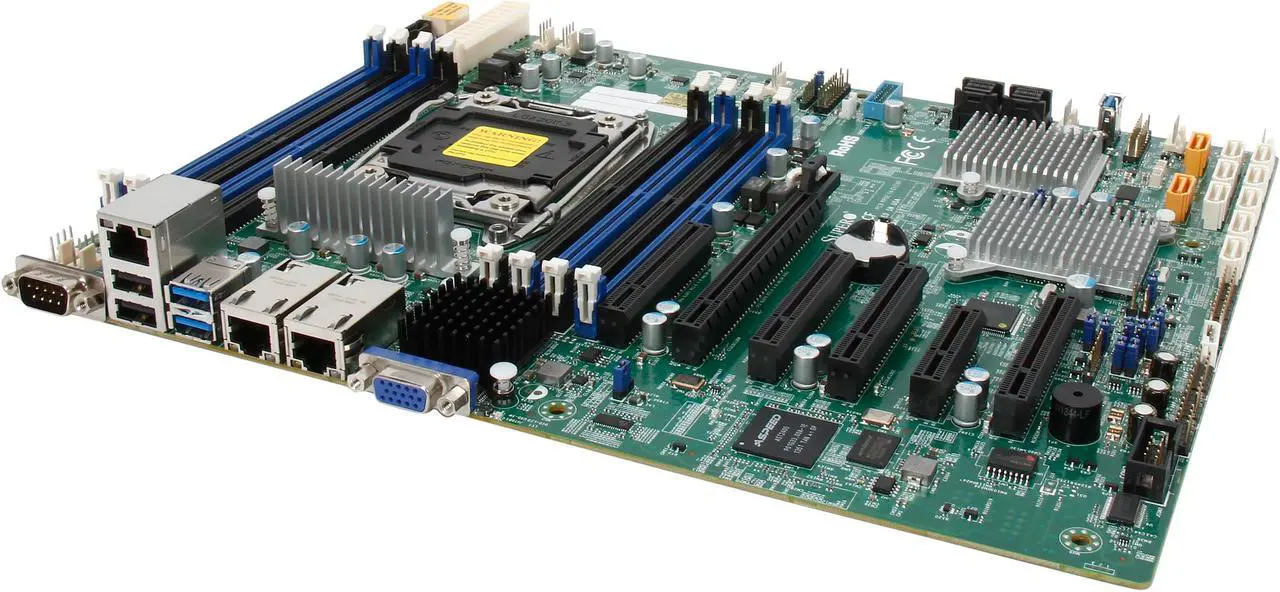

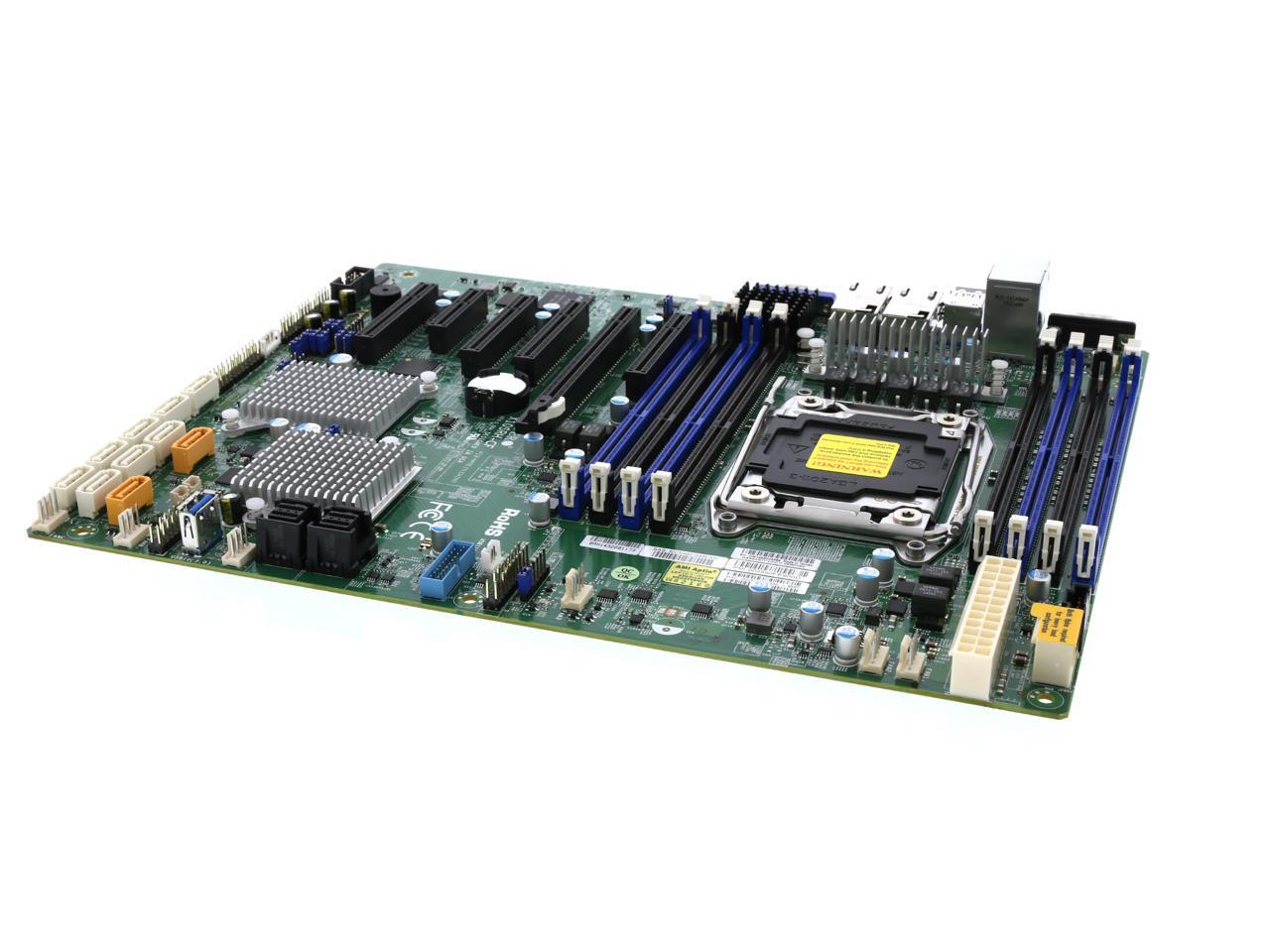

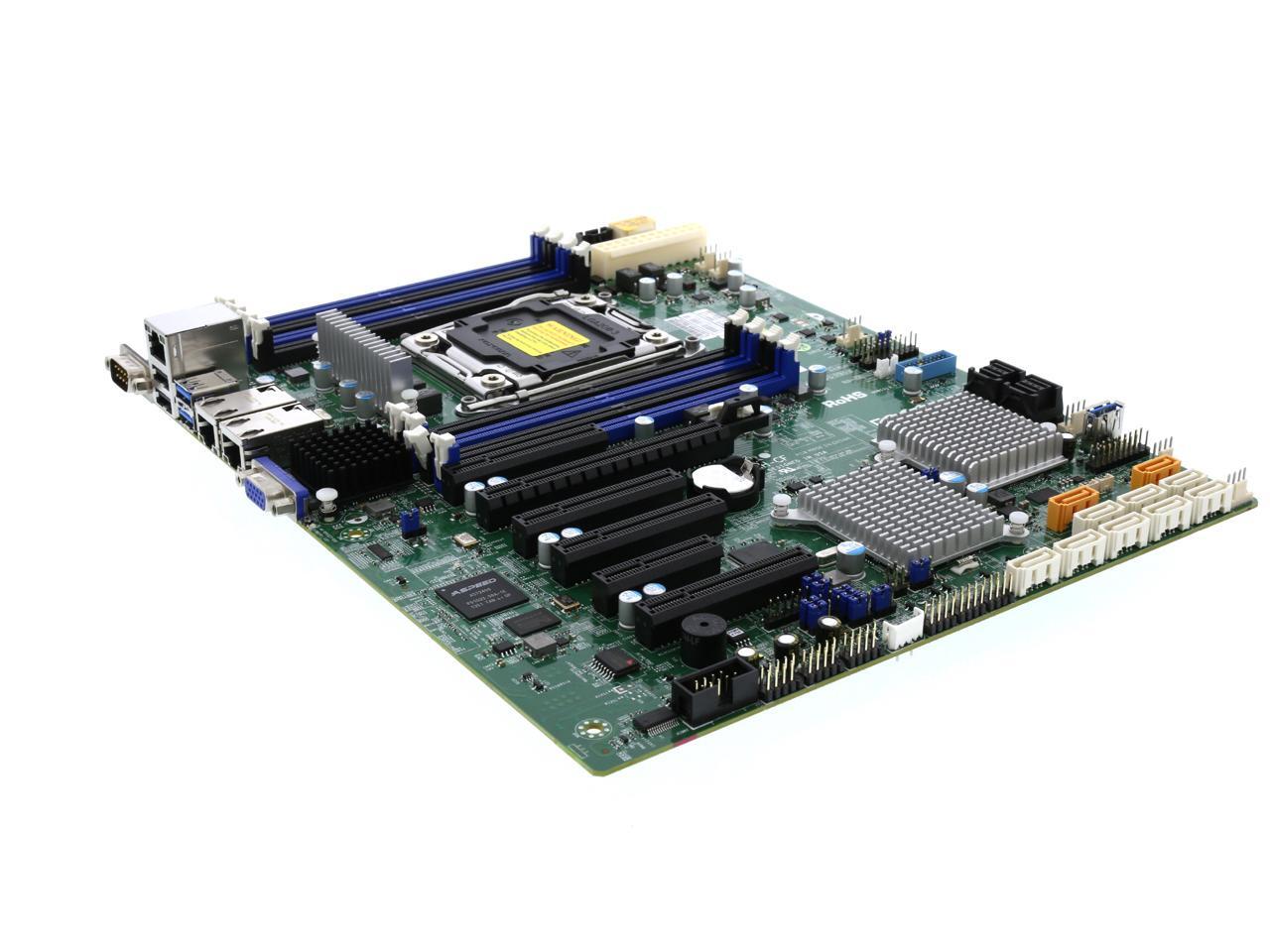

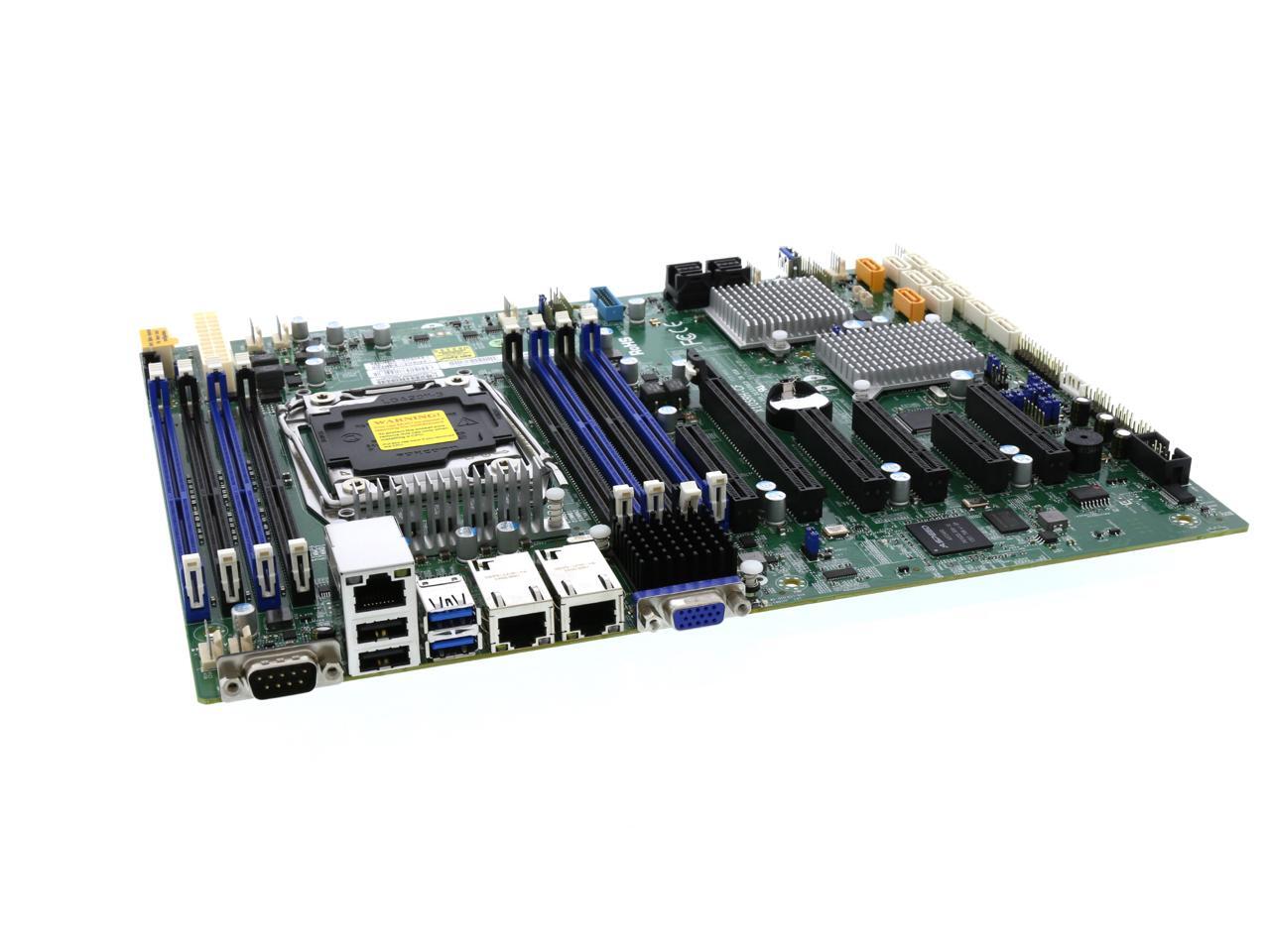

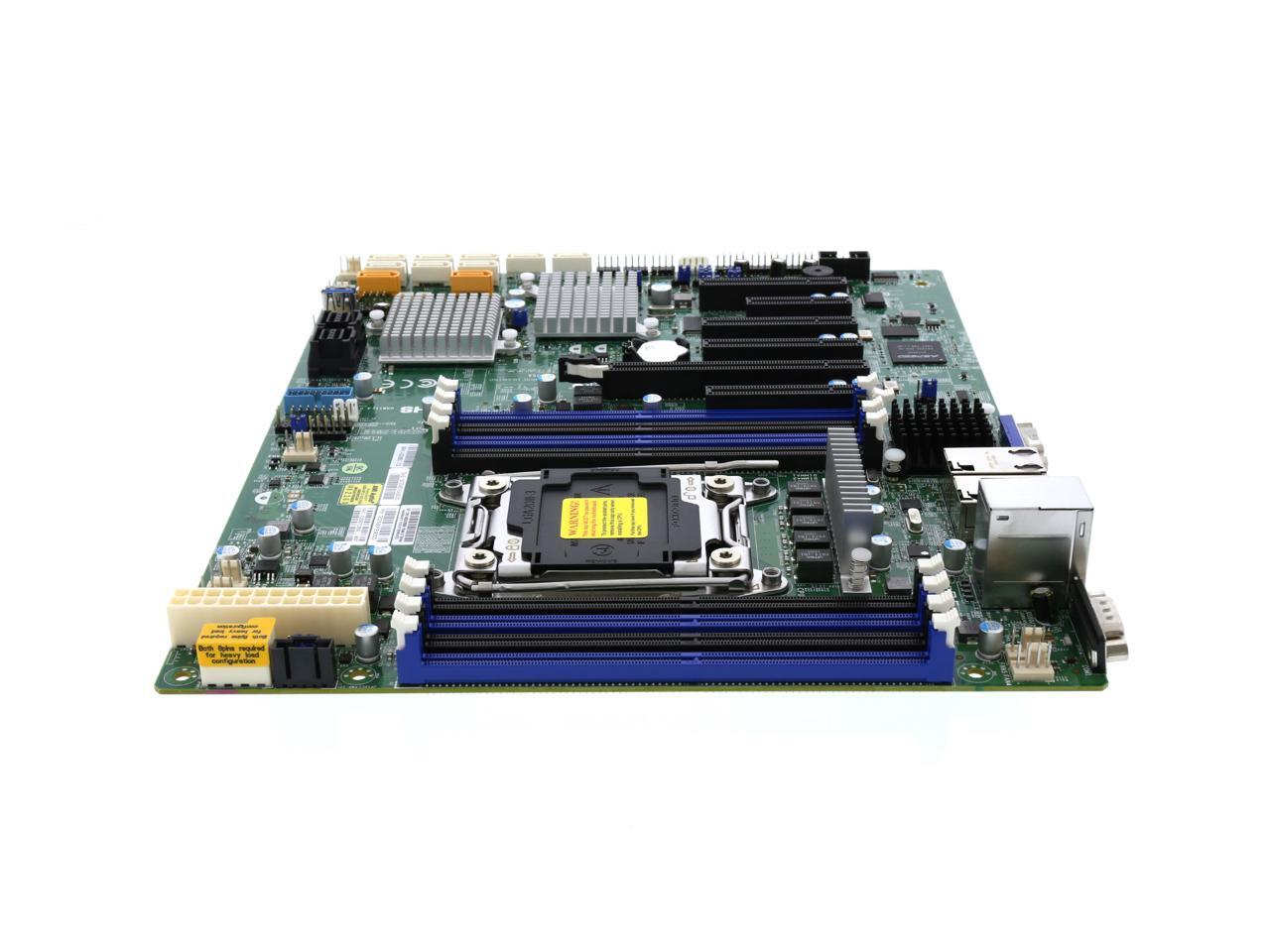

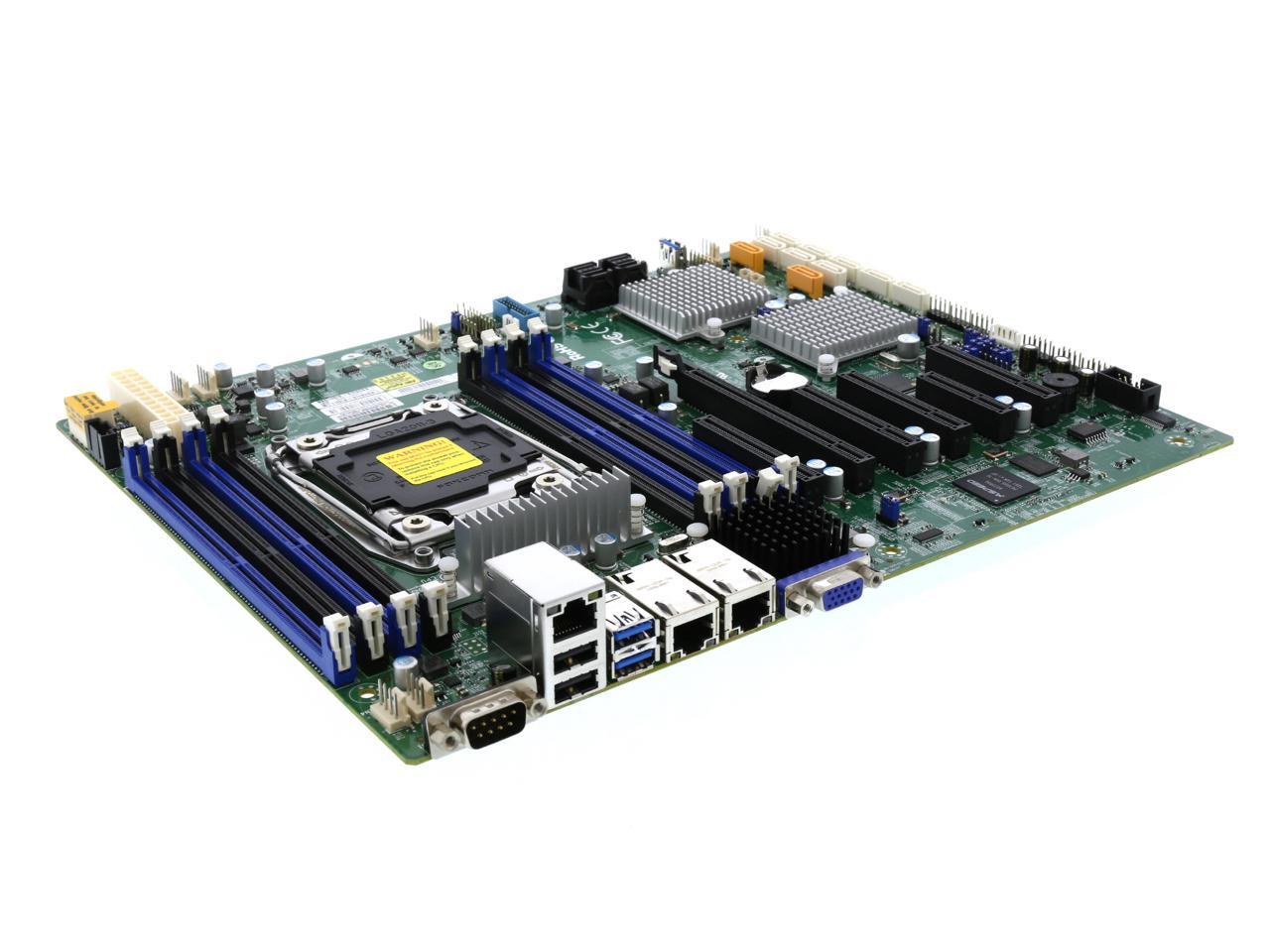

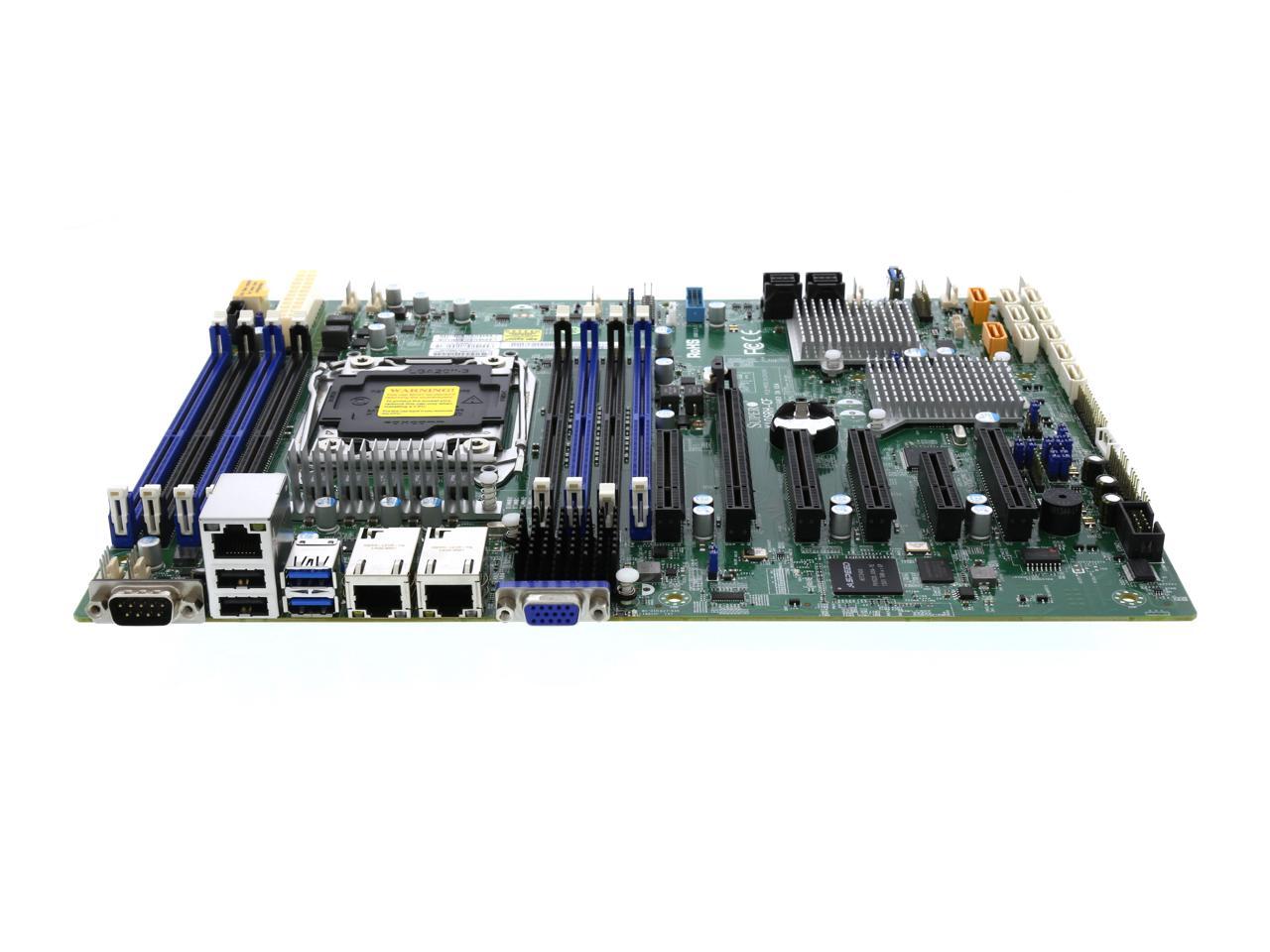

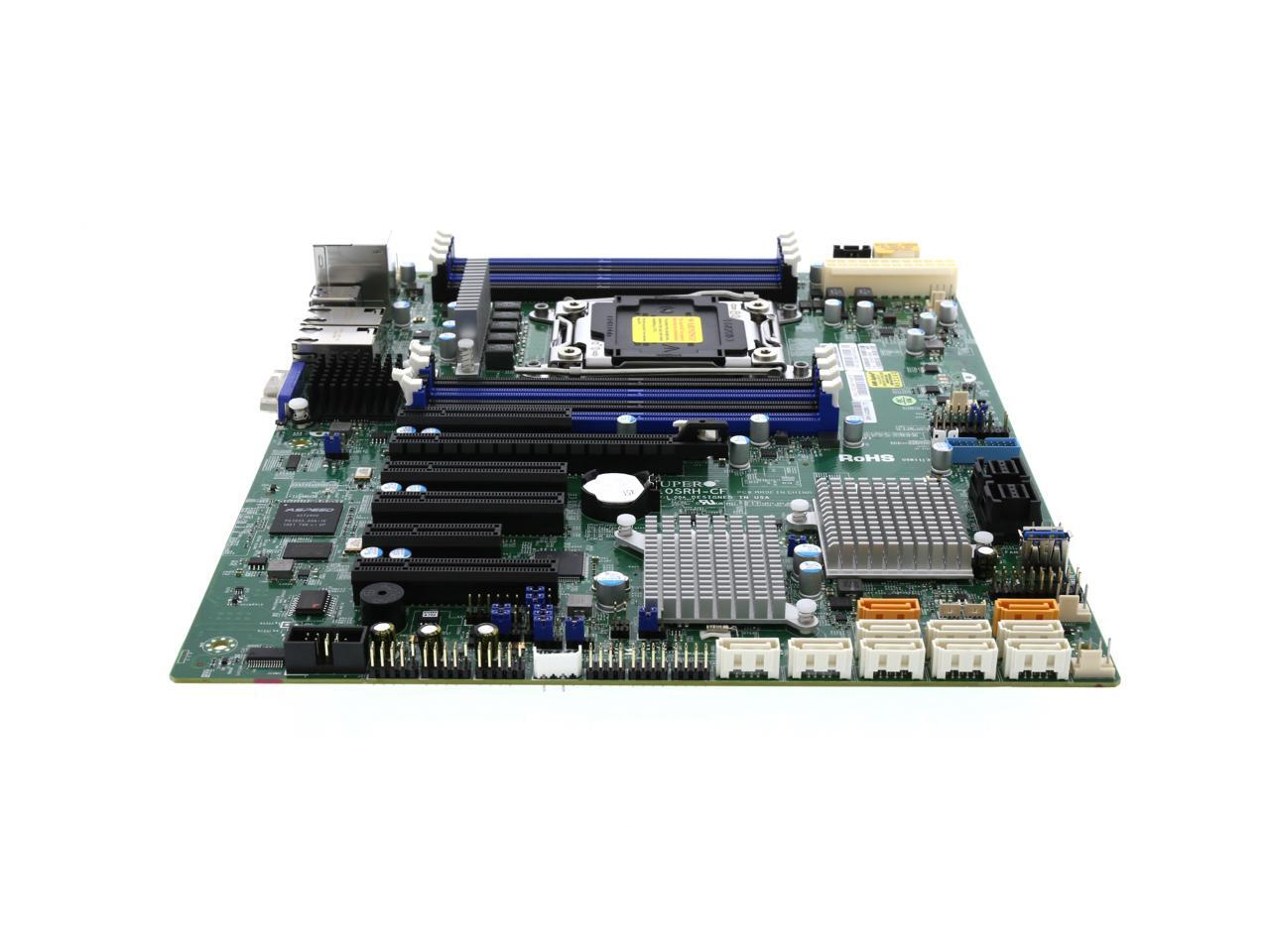

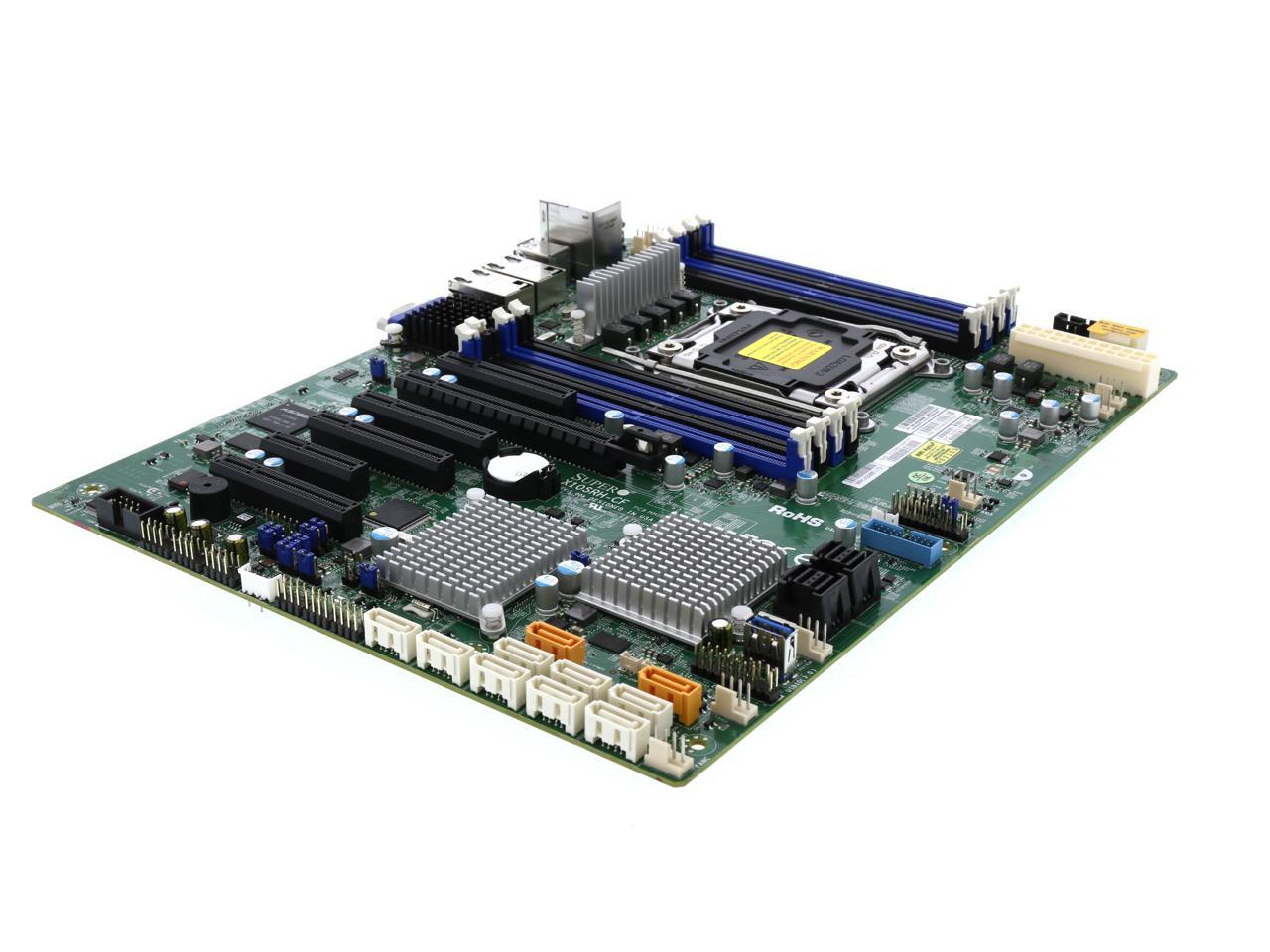

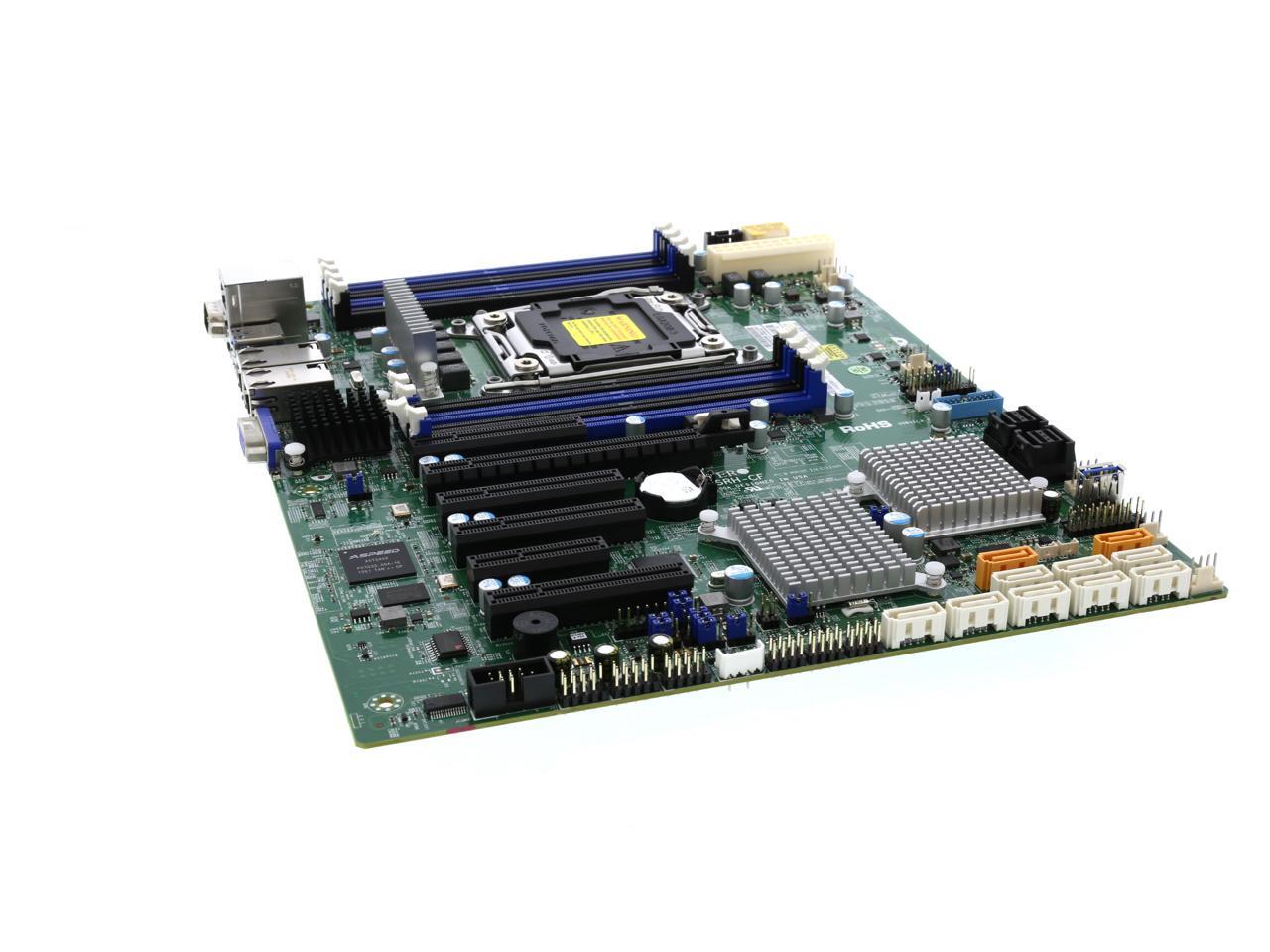

SUPERMICRO MBD-X10SRH-CF-O ATX Server Motherboard LGA 2011-3

Be the first to review this product...
  • LGA 2011
  • Intel C612
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES: Chipset Manufacturer: IntelTotal Processor Supported: 1Processor Socket: Socket LGA 2011-v3Processor Supported: XeonNumber of Memory Slots: 8Memory Form Factor: DIMM,RDIMM,LRDIMMMaximum Memory: 512 GBMemory Speed Supported: 2.13 GHz,1.87 GHz,1.60 GHzMemory Standard: DDR4-1866/PC4-14900,DDR4-1600/PC4-12800,DDR4-2133/PC4-17000Memory Technology: DDR4 SDRAMController Type: Serial ATA/600,12Gb/s SASRAID Supported: YesRAID Levels: 0,1,10Onboard Video: On-board Video ChipsetGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2400Gigabit Ethernet: YesNumber of Total Expansion Slots: 5Total Number of PCI Express Slots: 5Number of PCI Express x1 Slots: 1Number of PCI Express x8 Slots: 3Number of PCI Express x16 Slots: 1Total Number of USB Ports: 4Number of USB 2.0 Ports: 2Number of USB 3.0 Ports: 2VGA: YesNumber of Network (RJ-45) Ports: 3Number of SATA Interfaces: 10Number of SAS Interfaces: 8Total Number of Onboard USB Ports: 8Number of Onboard USB 2.0 Ports: 6Number of Onboard USB 3.0 Ports: 2Form Factor: ATXWidth: 12"Depth: 9.6"Compatibility: Supermicro SuperChassis 1U Chassis:CSE-813MFTQ-441CBCSE-813MFTQ-R400CB2U Chassis:CSE-213LT-600LPBCSE-823TQ-653LPBCSE-825TQ-563LPBCSE-825TQ-R600LPBCSE-826TQ-R500LPB3U Chassis:CSE-833T-653BCSE-836TQ-R500BMid-Tower:CSE-732D4F-903BCSE-732i-500BTower / 4U Rackmount:CSE-743T-665BCSE-842i-500BCSE-842TQ-665BCSE-842TQ-865BEnvironmentally Friendly: YesEnvironmental Certification: RoHS
MBD-X10SRH-CF-O

SUPERMICRO MBD-X10SRH-CF-O ATX Server Motherboard

Features

MBD-X10SRH-CF-O
  • Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v3 family
  • Intel® C612 chipset
  • Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
  • 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8)
  • Intel® i350-AM2 Dual port GbE LAN
  • 10x SATA3 (6Gbps) via C612
  • 8x SAS3 (12Gbps) via LSI 3008 SW controller; RAID 0, 1, 10
  • 1x VGA, 2x COM, 1x TPM
  • 4x USB 3.0 ports, 8x USB 2.0 ports
  • 2x SuperDOM with built-in power

Specifications

Product SKUs
MBD-X10SRH-CF -B X10SRH-CF (Bulk Pack)
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6", (30.5cm x 24.4cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v3 family (up to 145W TDP **)
  • Single Socket R3 (LGA 2011)
Cores / Cache Up to 22 Cores† / Up to 55MB† Cache
Note † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support
  • ** E5-1600 series CPU does not support LRDIMM type memory
System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM
  • Up to 512GB ECC LRDIMM
  • Up to 256GB ECC RDIMM
Memory Type 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • 3DS LRDIMM: 128GB
  • LRDIMM: 64GB, 32GB
  • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel C612 chipset
SAS
  • SAS3 (12Gbps) via LSI 3008
  • SW RAID 0, 1, 10
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics ASPEED AST2400 BMC
Input / Output
SAS 8x SAS3 (12Gbps) ports
SATA 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (2 rear + 1 via header + 1 Type A)
  • 8x USB 2.0 ports (2 rear + 6 via header)
Video 1x VGA port
Serial Port / Header 2x fast UART 16550 serial, 2 COM ports (1 rear, 1 header)
SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
TPM 1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x4 (in x8) slot
  • 1x PCI-E 3.0 x8 (in x16) slot
  • 2x PCI-E 3.0 x8 slots
  • 1x PCI-E 2.0 x2 (in x4) slot
  • 1x PCI-E 2.0 x4 (in x8) slot
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Management
Software
  • IPMI 2.0 with KVM support
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 6 fan headers supporting up to 6 fans
  • 6 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • Chipkill support
  • RoHS, Halogen Free

What's in the Box

MBD-X10SRH-CF-O
