SUPERMICRO MBD-X10SRH-CLN4F-O ATX Server Motherboard Single Socket R3 (LGA 2011) Intel C612

(2) Write a Review
  • LGA 2011
  • Intel C612
Overview
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
MBD-X10SRH-CLN4F-O

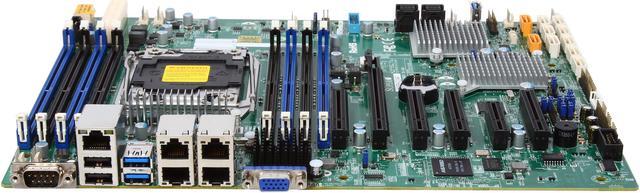

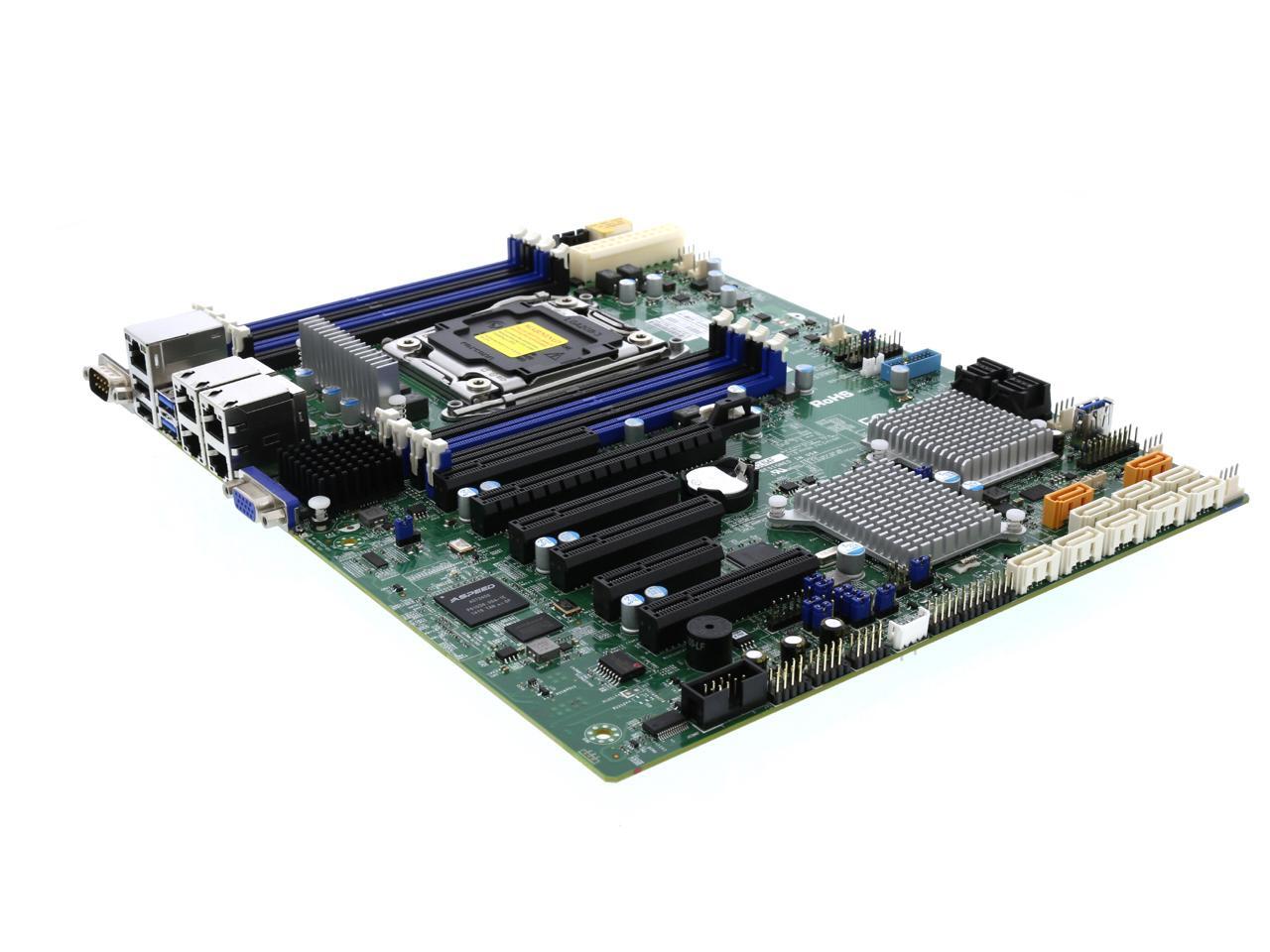

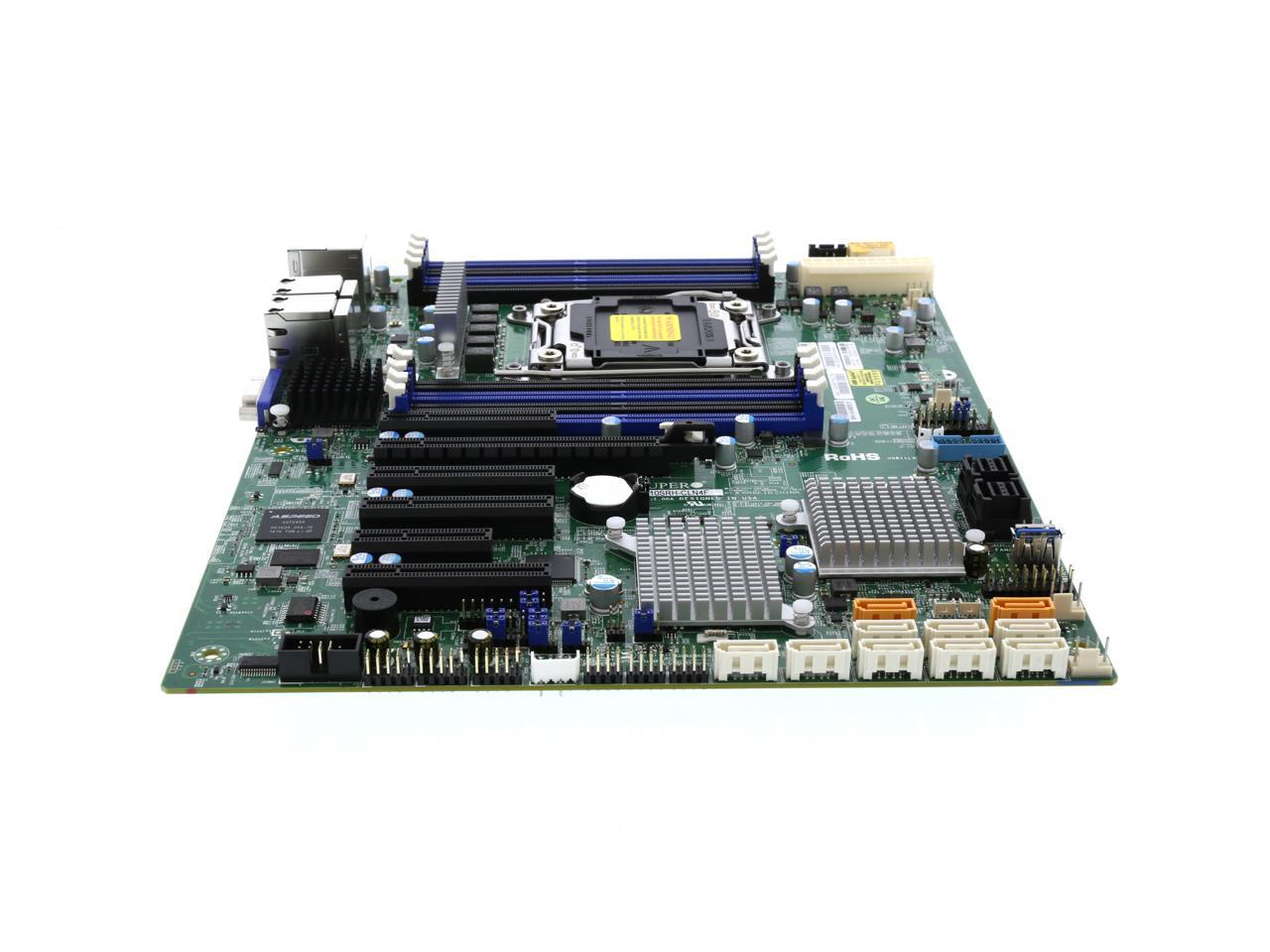

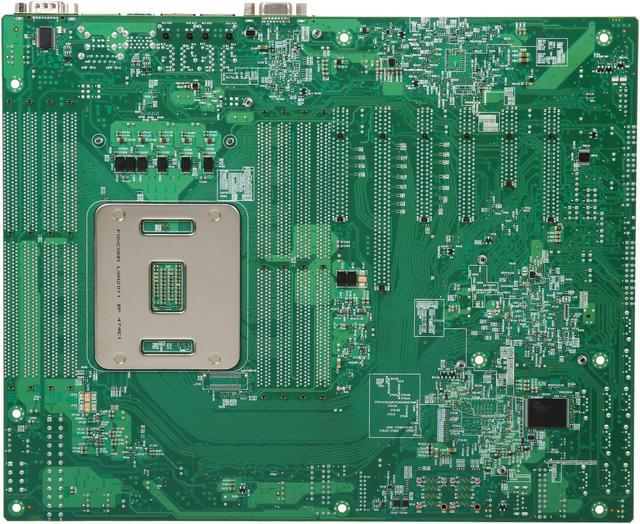

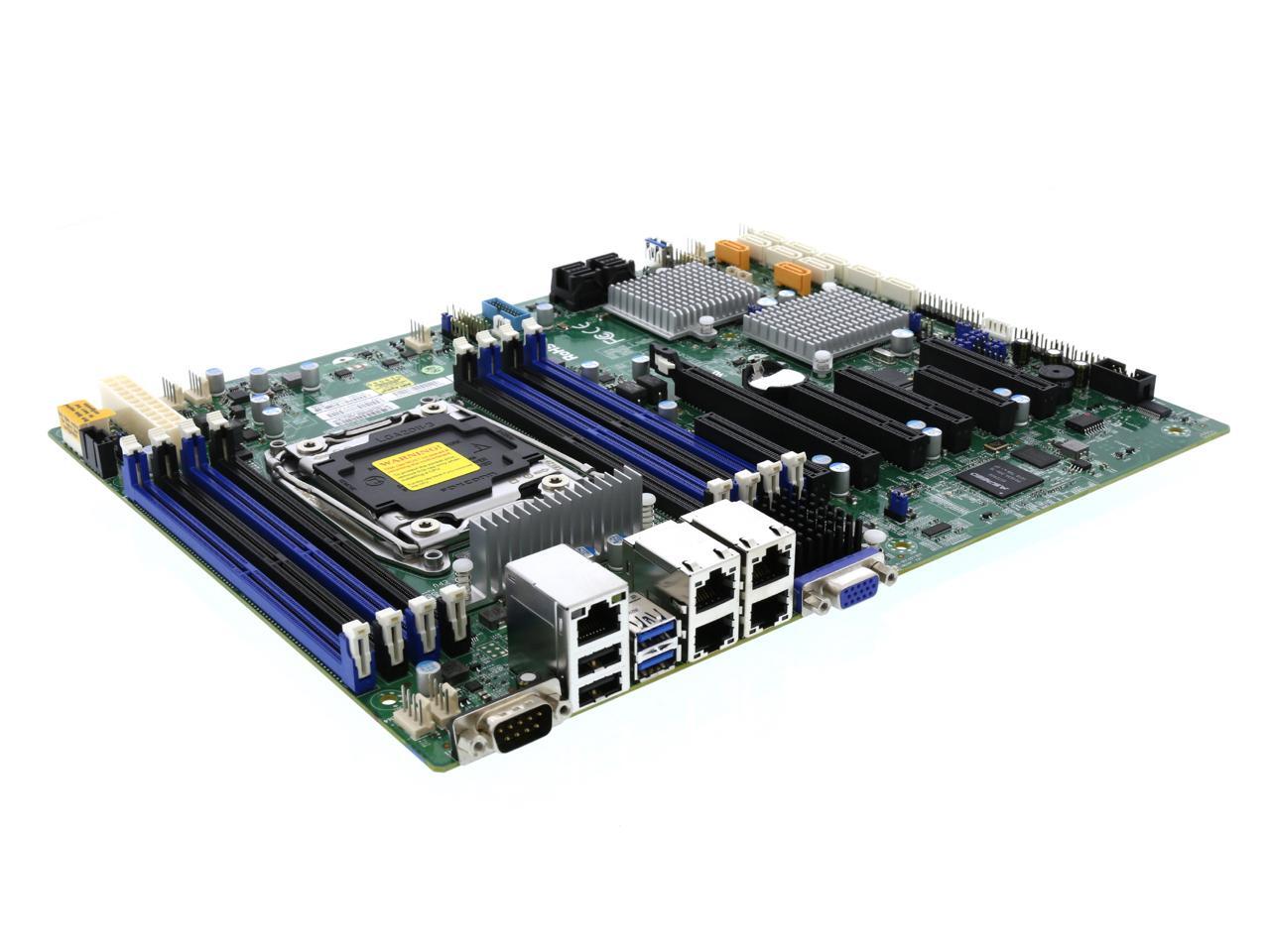

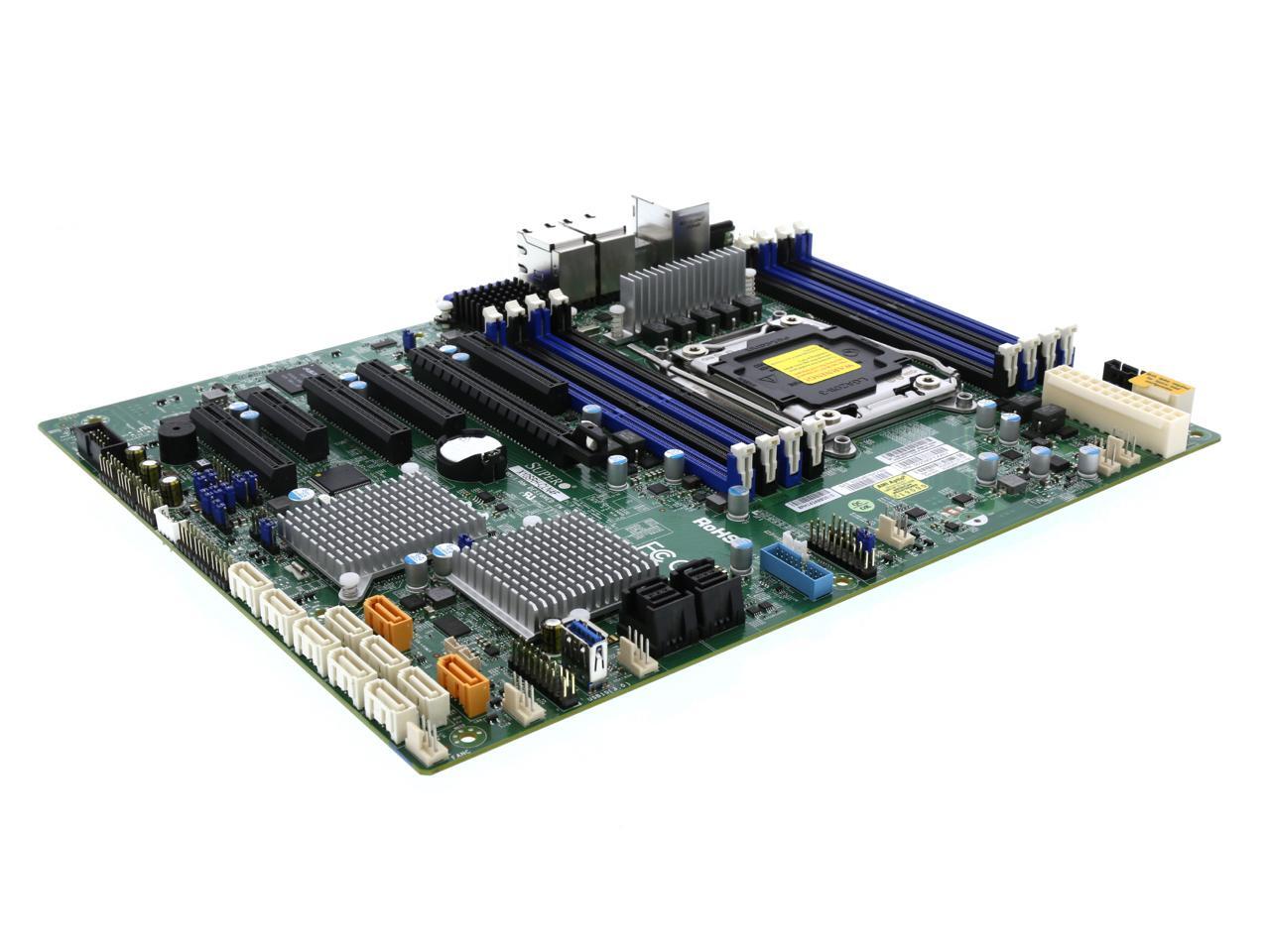

SUPERMICRO MBD-X10SRH-CLN4F-O ATX Server Motherboard

Features

MBD-X10SRH-CLN4F-O
  • Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 and E5-1600 v3 family
  • Intel® C612 chipset
  • Up to 512GB ECC DDR4 2133MHz LRDIMM; 8x DIMM slots
  • 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8)
  • Intel® i350-AM4 Quad port GbE LAN
  • 10x SATA3 (6Gbps) via C612
  • 8x SAS3 (12Gbps) via LSI 3008 SW controller; RAID 0, 1, 10
  • 1x VGA, 2x COM, 1x TPM
  • 4x USB 3.0 ports, 8x USB 2.0 ports
  • 2x SuperDOM with built-in power

Specifications

Product SKUs
MBD-X10SRH-CLN4F -B X10SRH-CLN4F (Bulk Pack)
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6", (30.5cm x 24.4cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, E5-1600 v3 family (up to 145W TDP **)
  • Single Socket R3 (LGA 2011)
Core / Cache Up to 18 Cores / Up to 45MB Cache
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support
  • ** E5-1600 series CPU does not support LRDIMM type memory
System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
Memory Type 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel C612 chipset
SAS
  • SAS3 (12Gbps) via LSI 3008
  • SW RAID 0, 1, 10
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350-AM4 Quad Port Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics ASPEED AST2400 BMC
Input / Output
SAS 8x SAS3 (12Gbps) ports
SATA 10x SATA3 (6Gbps) ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (2 rear + 1 via header + 1 Type A)
  • 8x USB 2.0 ports (2 rear + 6 via header)
Video 1x VGA port
Serial Port / Header 2x fast UART 16550 serial, 2 COM ports (1 rear, 1 header)
SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
TPM 1x TPM 1.2 20-pin Header
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

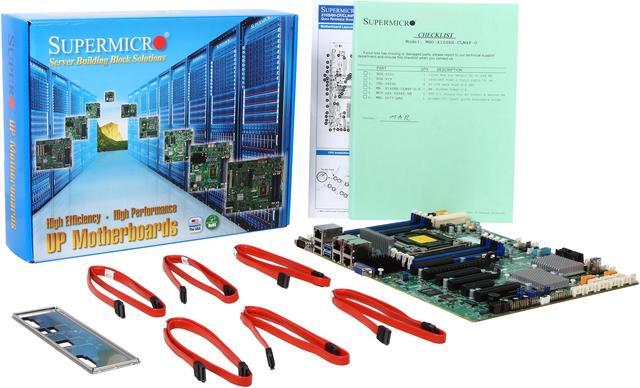

Whats in the Box

MBD-X10SRH-CLN4F-O
