    SUPERMICRO MBD-X10SRL-F Server Motherboard LGA 2011 R3

    (15) Write a Review
    • Sing socket R3 (LGA 2011)
    • 8 x 288Pin
    • DDR4 2133 MHz
    +
    +
    Overview
    Specs
    Reviews (15)
    Supermicro X10Srlf Motherboard Atx Lga2011V3 Socket C612
    MBD-X10SRL-F

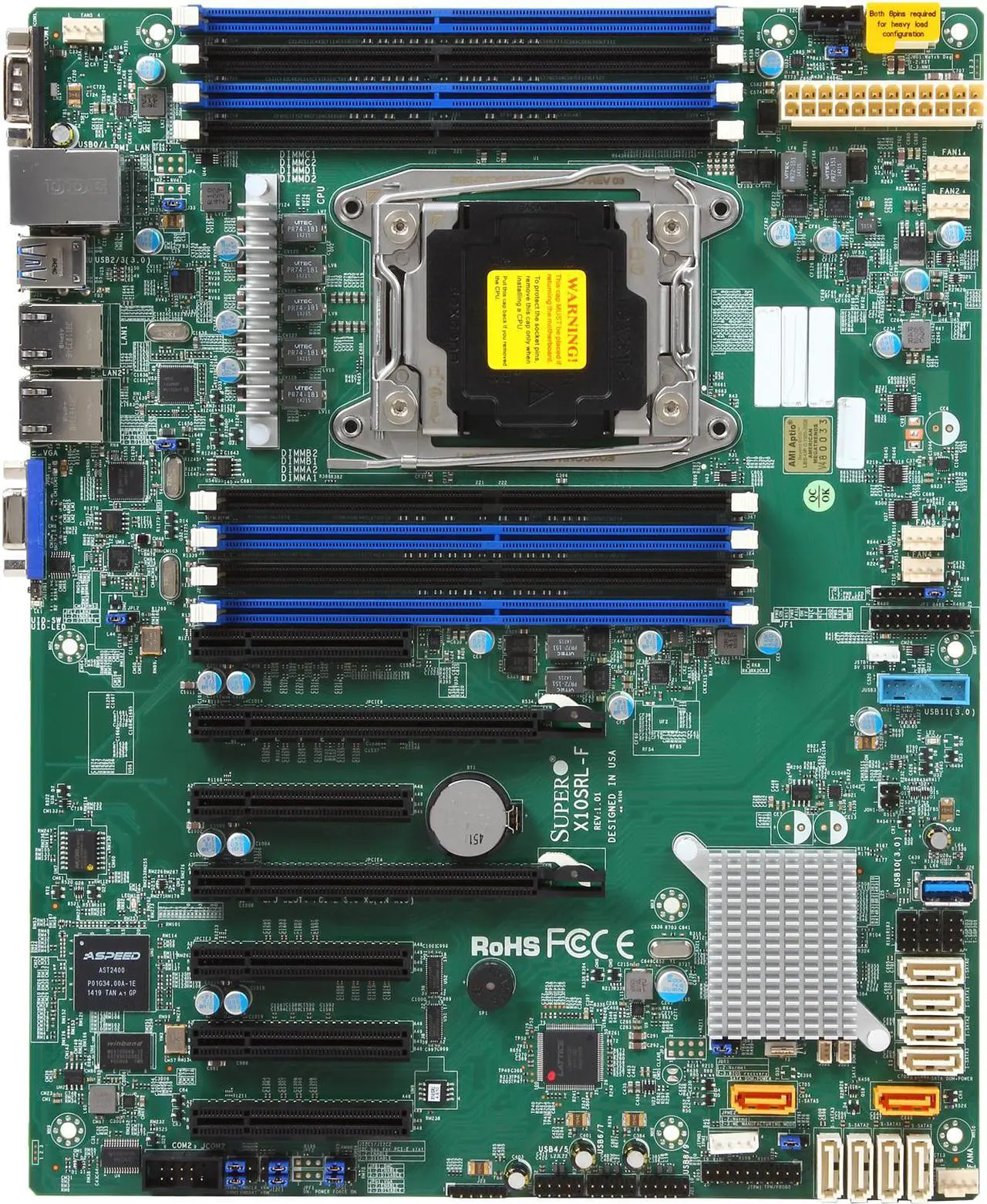

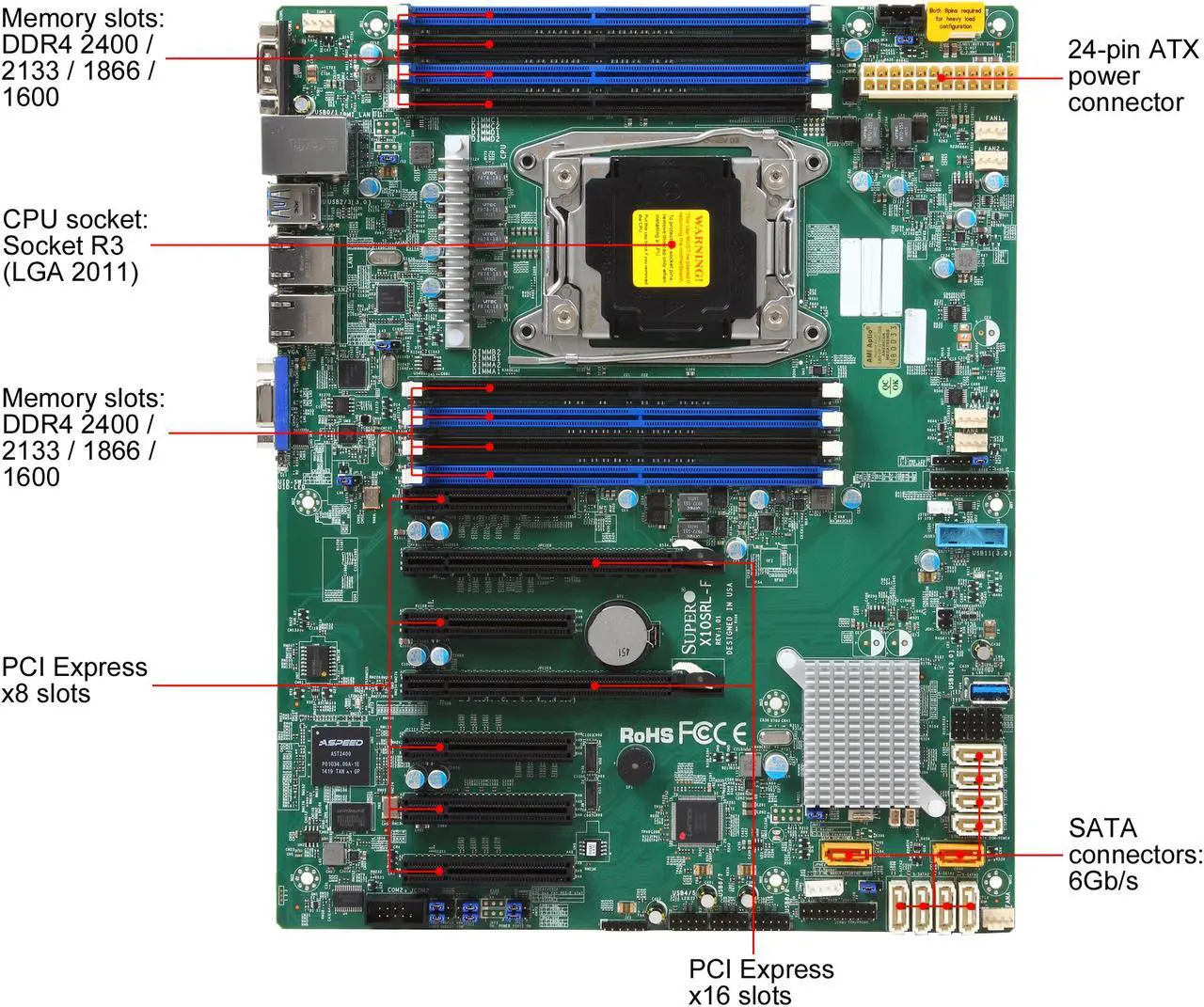

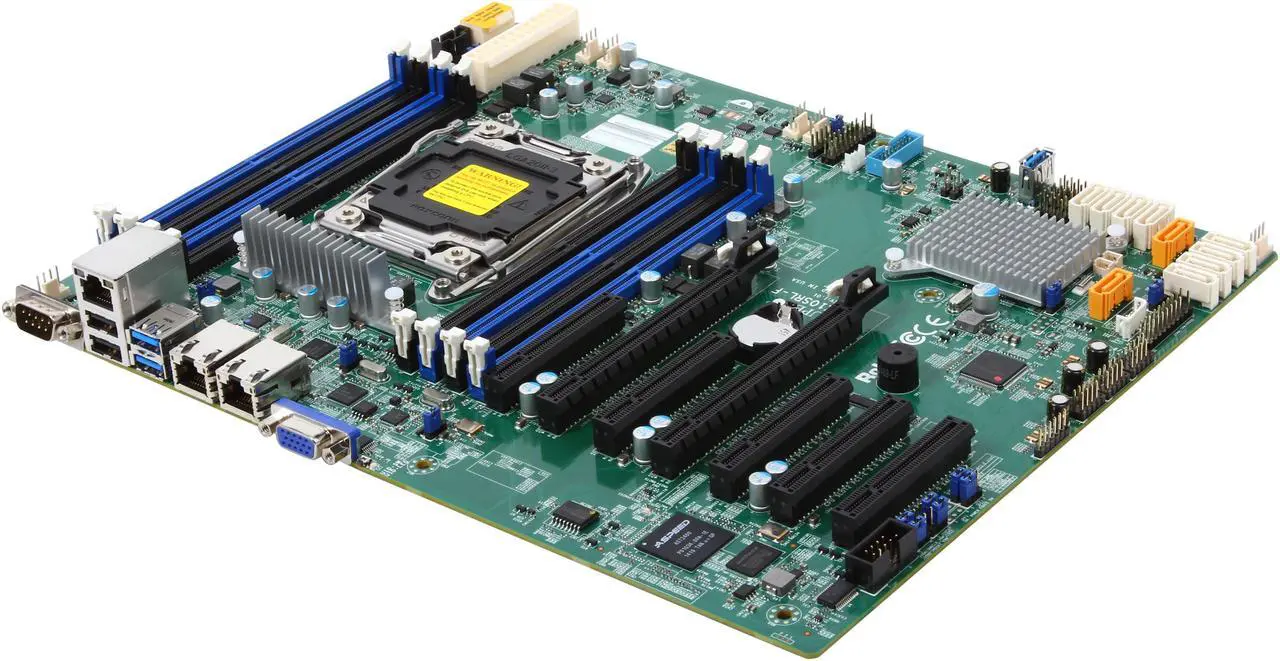

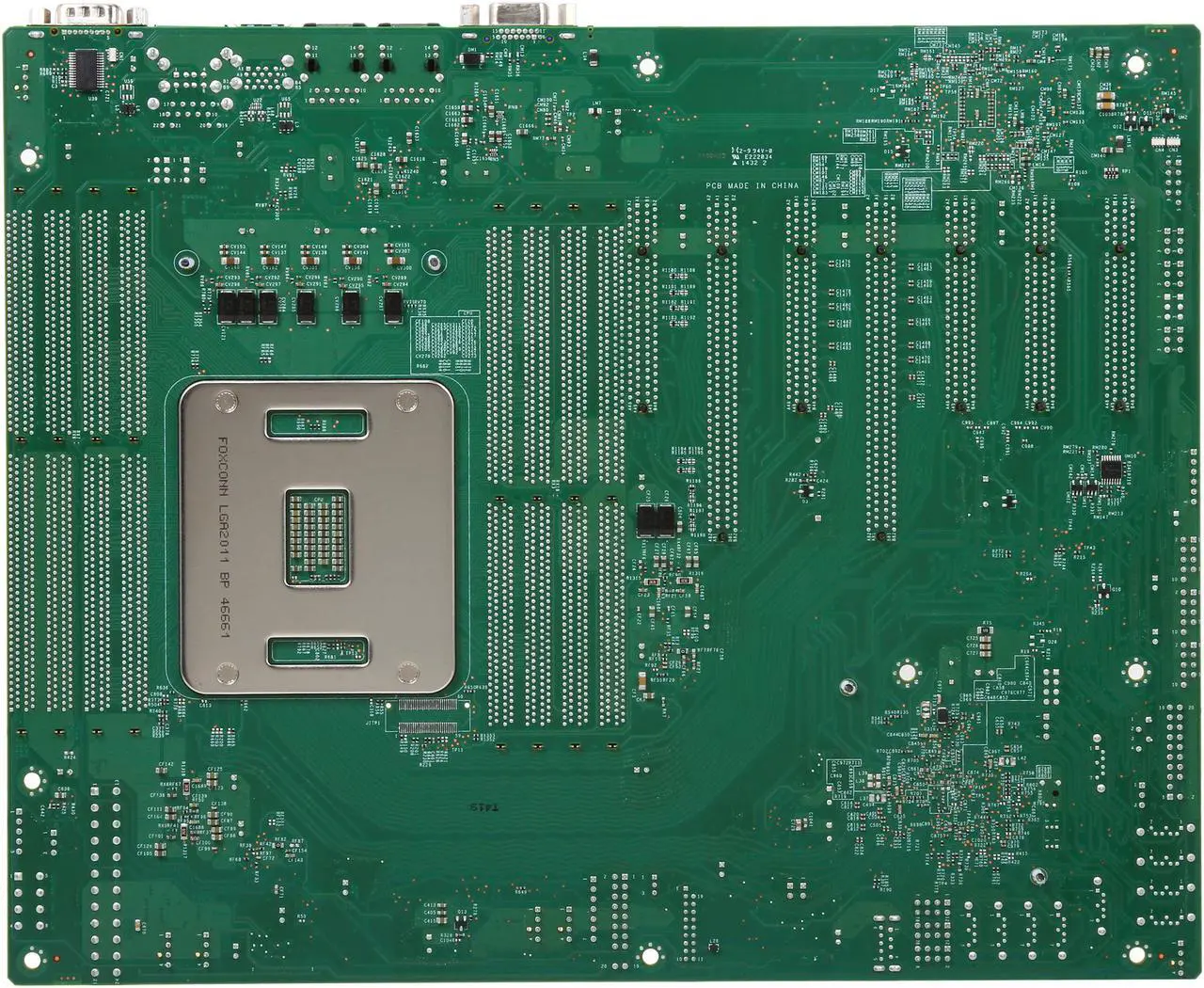

    SUPERMICRO MBD-X10SRL-F Server Motherboard

    Features

    MBD-X10SRL-F
    • Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 and E5-1600 v3 family
    • Intel® C612 chipset
    • Up to 512GB ECC DDR4 2133MHz LRDIMM; 8x DIMM slots
    • 7x PCI-E slots total: 2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0 (auto-switch), & 1 PCI-E 2.0 x4 (in x8)
    • Intel® i210 Dual port GbE LAN
    • 10x SATA3 (6Gbps) via C612
    • 1x VGA, 2x COM, 1x TPM
    • 4x USB 3.0 ports, 8x USB 2.0 ports
    • 2x SuperDOM with built-in power

    Specifications

    Product SKUs
    MBD-X10SRL-F -B X10SRL-F (Bulk Pack)
    Physical Stats
    Form Factor ATX

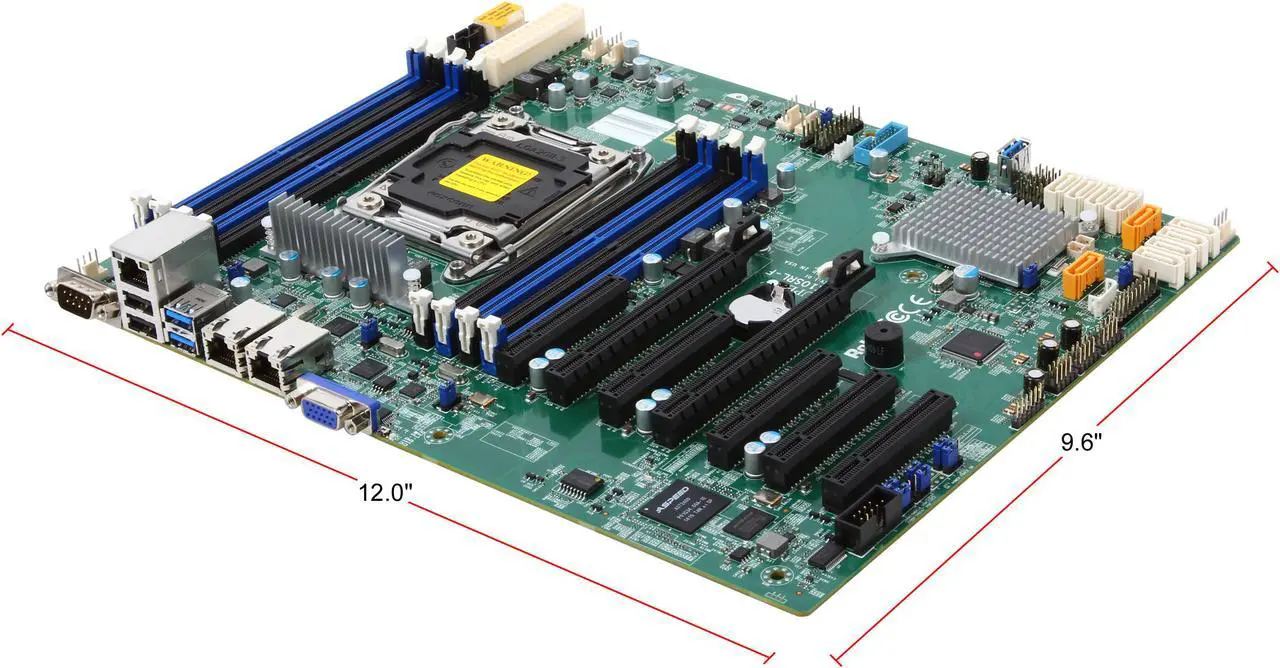

    Dimensions 12" x 9.6", (30.5cm x 24.4cm)
    Processor/Cache
    CPU
    • Intel® Xeon® processor E5-2600/1600 v3 family (up to 145W TDP **)
    • Single Socket R3 (LGA 2011)
    Core / Cache Up to 18 Cores / Up to 45MB Cache
    Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support
    ** E5-1600 series CPU does not support LRDIMM type memory
    System Memory
    Memory Capacity
    • 8x 288-pin DDR4 DIMM slots
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    Memory Type
    • 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
    DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB
    Memory Voltage 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset Intel C612 chipset
    SATA
    • SATA3 (6Gbps) via C612 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Intel® i210 Dual Port Gigabit Ethernet
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Graphics ASPEED AST2400 BMC

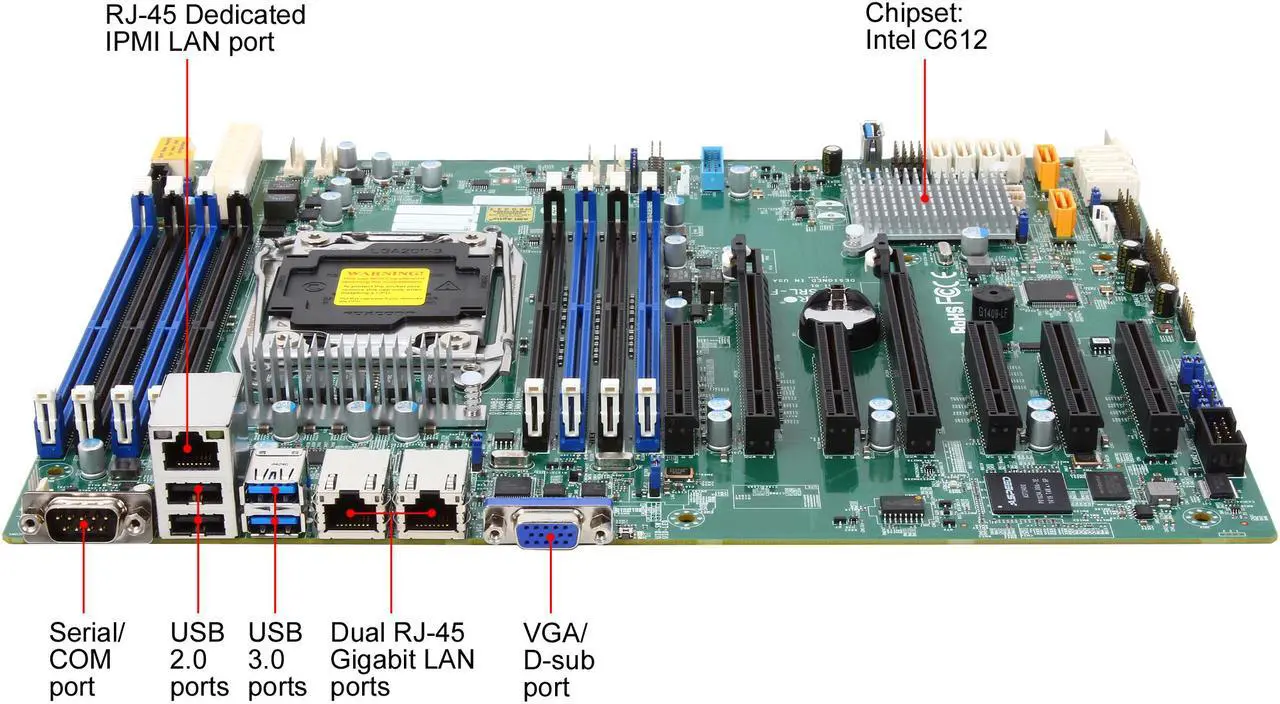

    Input / Output
    SATA
    • 10x SATA3 (6Gbps) ports
    LAN
    • 2x RJ45 Gigabit Ethernet LAN ports
    • 1x RJ45 Dedicated IPMI LAN port
    USB
    • 4x USB 3.0 ports (2 rear + 1 via header + 1 Type A)
    • 8x USB 2.0 ports (2 rear + 6 via header)
    Video
    • 1x VGA port
    Serial Port / Header 1x serial port, 1x header
    SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
    TPM 1x TPM 1.2 20-pin Header

    Gallery

    MBD-X10SRL-F MBD-X10SRL-F

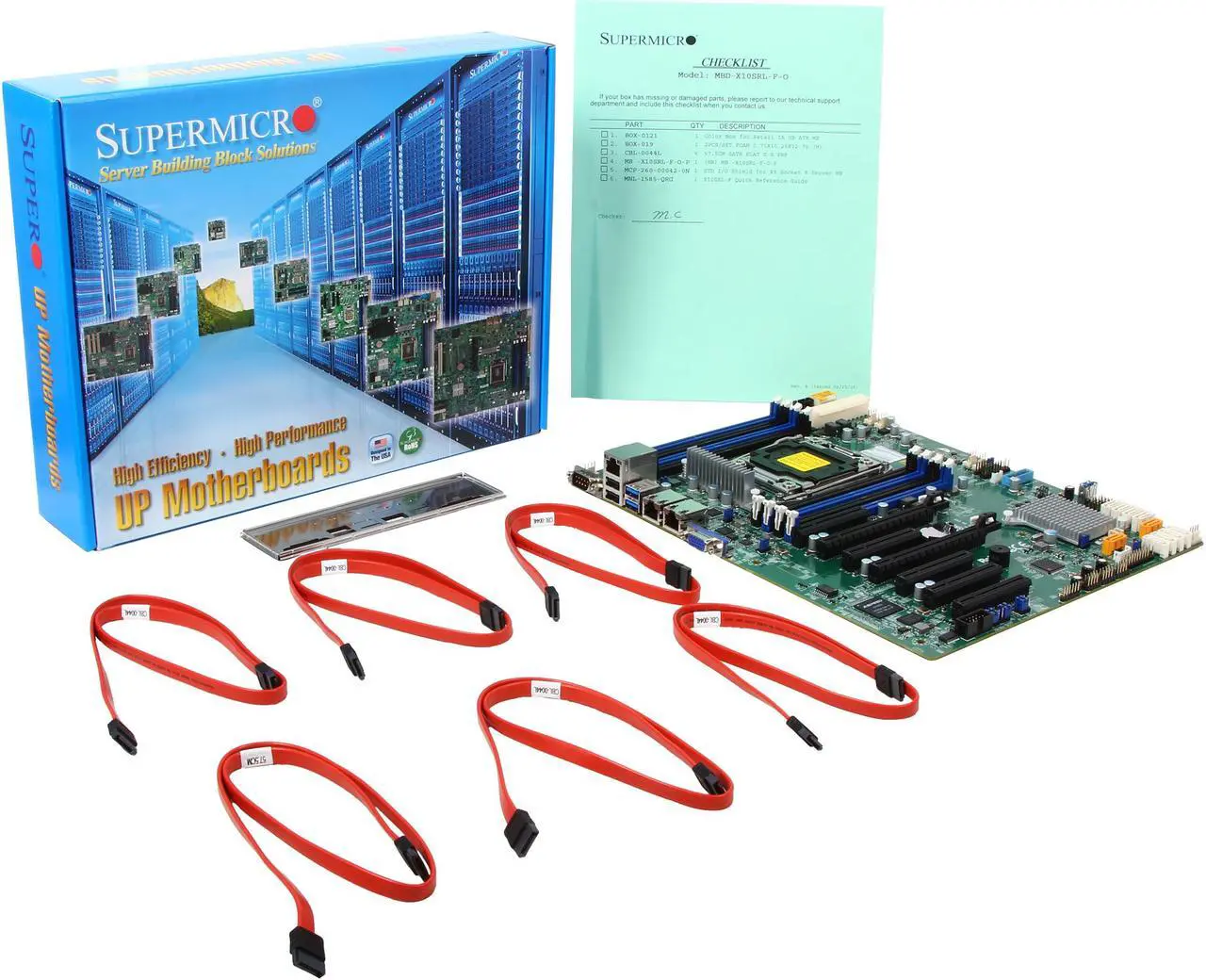

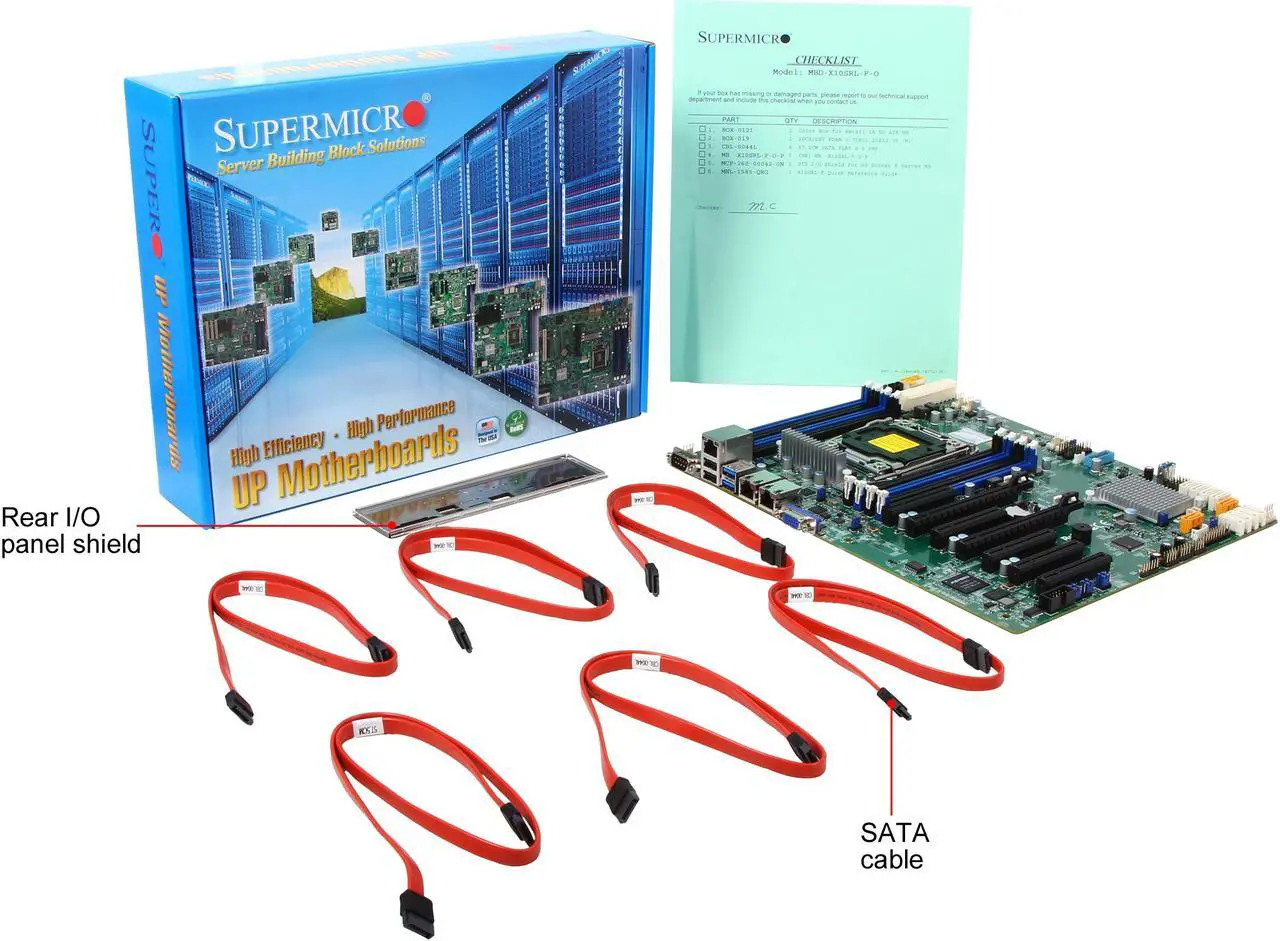

    Whats in the Box

    MBD-X10SRL-F
