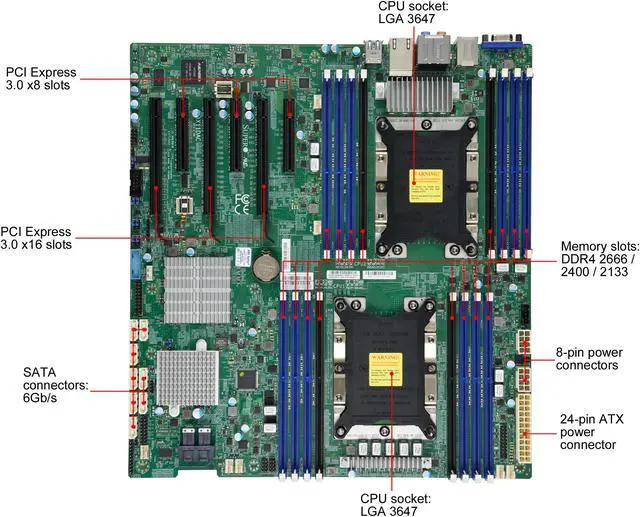

Main image of Supermicro MBD-X11DAC Dual Socket P DDR4 C621 Dual LAN E-ATX Server Motherboard (Retail Package)

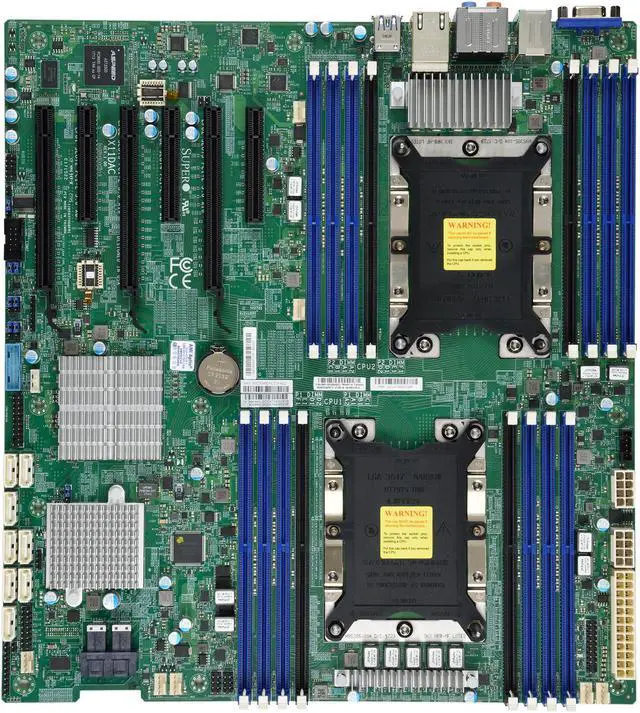

Alt view image 2 of 3 - Supermicro MBD-X11DAC Dual Socket P DDR4 C621 Dual LAN E-ATX Server Motherboard (Retail Package)

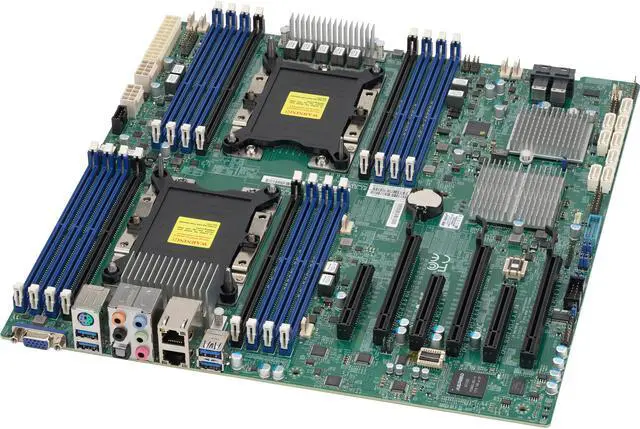

Alt view image 3 of 3 - Supermicro MBD-X11DAC Dual Socket P DDR4 C621 Dual LAN E-ATX Server Motherboard (Retail Package)

Shop All Supermicro Products

Supermicro MBD-X11DAC Dual Socket P DDR4 C621 Dual LAN E-ATX Server Motherboard (Retail Package)

Be the first to review this product...

2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Intel C621 controller for 8 x SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Dual LAN with GbE from C621
3 x PCI-E 3.0 x16 (in x16 slot) & 3 x PCI-E 3.0 x8

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supermicro MB MBD-X11DAC-O S3647 Xoen C621 2TB DDR4 SATA PCIE Retail

Model
Brand	SUPERMICRO
Model	MBD-X11DAC-O

Supported CPU
CPU Socket Type	Dual LGA 3647
CPU Type	Intel Xeon Scalable Processors Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s

Chipsets
North Bridge	Intel C621

Memory
DDR4 Standard	DDR4 2666 / 2400 / 2133 MHz ECC RDIMM, LRDIMM
Maximum Memory Supported	Up to 2TB 3DS ECC RDIMM, DDR4-2666 MHz, in 16 x DIMM slots
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	3 x PCI-E 3.0 x16 (in x16 slot)
PCI Express x8	3 x PCI-E 3.0 x8

Storage Devices
SATA	8 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
SAS	Broadcom 3008 SW RAID 8 ports SAS3 0, 1, 10

Onboard Video
Onboard Video Chipset	Aspeed AST2500 BMC

Onboard LAN
Number of LAN	Dual LAN with GbE from C621

Rear Panel Ports
USB 3.0	4 x USB 3.0

Features
Features	Intel Xeon Scalable Processors, Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s Intel C621 Up to 2TB 3DS ECC RDIMM, DDR4-2666 MHz, in 16 x DIMM slots 3 x PCI-E 3.0 x16 (in x16 slot), 3 x PCI-E 3.0 x8 1 x VGA D-Sub Connector port Intel C621 controller for 8 x SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 Dual LAN with GbE from C621

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 13.0"

Additional Information
First Listed on Newegg	March 15, 2019
