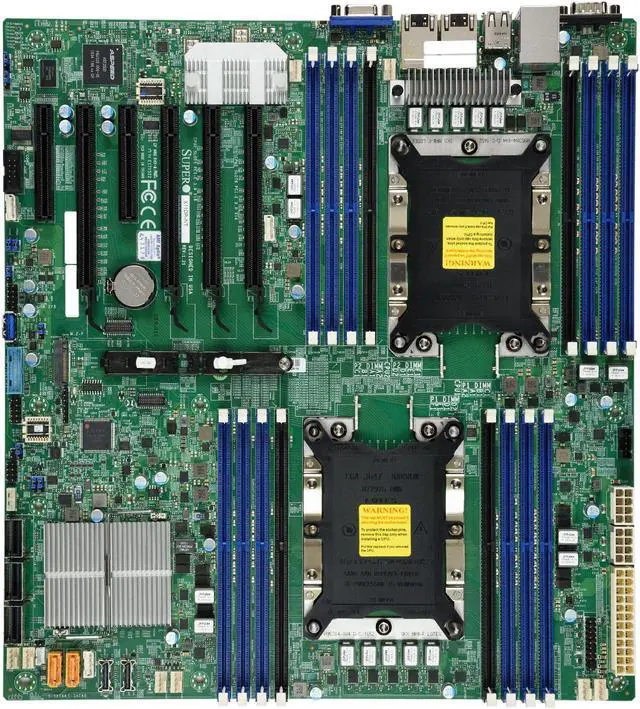

Supermicro MBD-X11DPI-N Server Motherboard
Packed with performance and features, the quality-built MBD-X11DPI-N serverboard offers a solid foundation to build a server or workstation for your mission-critical applications. Powered by Intel C621 chipset, this E-ATX board supports up to two 2nd/1st generation Intel Xeon Scalable processors, and has 16 DIMM memory slots, six PCI-E slots and an M.2 PCI-E slot, offering the infrastructure you need to build and expand your server. Two PCI-E 3.0 x4 NVMe internal ports are ideal for SSDs, and also serve as OCuLink connectors for Intel Virtual RAID on Chip (VROC). This model also has two GbE ports, two powered SATA connectors (colored in orange) with DOM support, and an internal USB port that facilitates plugging in a USB license dongle.
1. 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W TDP, two UPI up to 10.4 GT/s
2. Intel C621
3. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only);
4. Four PCI-E 3.0 x16, two PCI-E 3.0 x8
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key,
Two PCI-E 3.0 NVMe x4 Internal Port(s)
5. One VGA port
6. Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Dual LAN with 1GbE with Marvell 88E1512
| Product SKUs | |
|---|---|
| MBD-X11DPi-N | X11DPi-N |
| Physical Stats | |
| Form Factor | E-ATX |
| Dimensions | 12" x 13" (30.48cm x 33.02cm) |
| Processor/Cache | |
| CPU |
|
| Cores / Cache | Up to 28 cores |
| Note | BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP |
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
| DIMM Sizes |
|
| Memory Voltage | 1.2V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C621 |
| SATA | Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with 1GbE with Marvell® 88E1512 |
| Graphics | Aspeed AST2500 BMC |
| Input / Output | |
| SATA | 14 SATA3 (6Gbps) port |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB |
|
| Video Output | 1 VGA port |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) |
| TPM | 1 TPM Header |
| Expansion Slots | |
|---|---|
| PCI-E |
|
| M.2 |
|
| System BIOS | |
| BIOS Type | AMI UEFI |
| Management | |
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| PC Health Monitoring | |
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages |
| FAN | 8x 4-pin fan headers (up to 8 fans), PWM fan speed control |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| LED | CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED |
| Other Features | ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID |
| Operating Environment | |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
