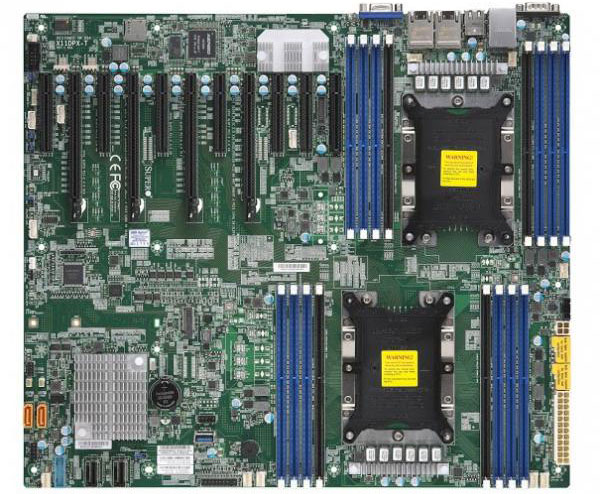

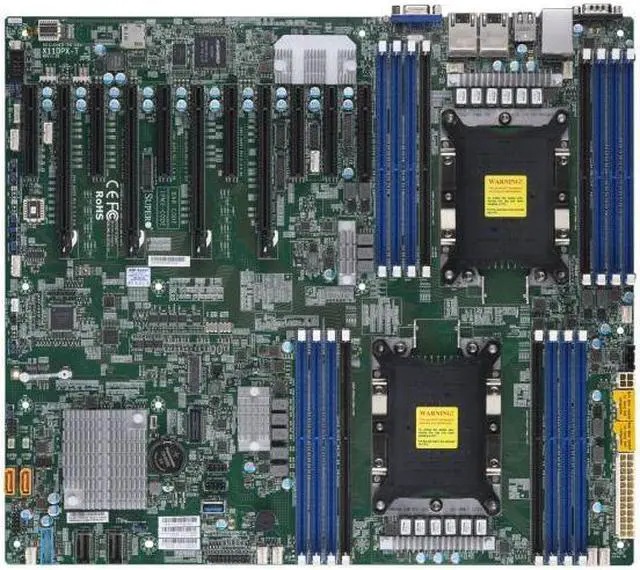

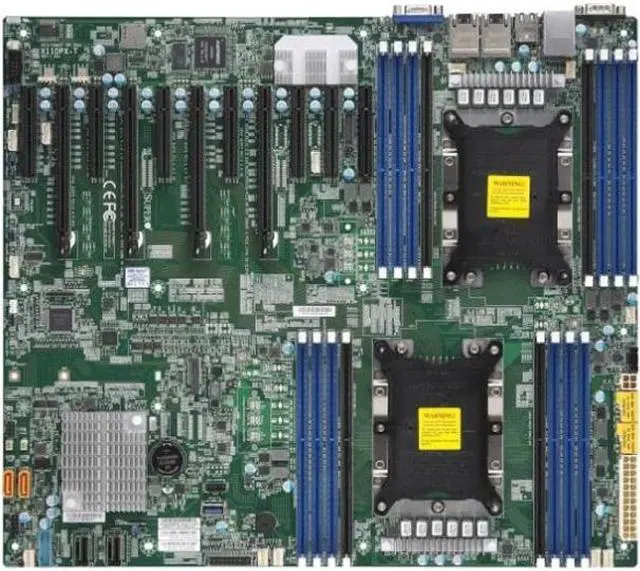

Supermicro X11DPX-T Server Motherboard
Powered by Intel C621 chipset, this board supports up to two Intel Scalable Processors and has 16 DIMM slots to meet the demands of today's complex computing workloads. With an amazing number of PCI-E slots at 11, this board is most advanced I/O platform, as high density I/O platforms require huge amounts of high performance connectivity which can only be provided through PCI-E expansion cards. The spacing of the x16 slots allows use of double-width PCI-E expansion cards, like graphics cards. This board also features dual 10GbE LAN ports, a M.2 PCI-E 3.0 x4 slot, and an internal USB port that's ideal for plugging in a software license dongle.
1. 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP, three UPI up to 10.4 GT/s
2. Intel C621
3. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
4. Two PCI-E 3.0 x16, eight PCI-E 3.0 x8, one PCI-E 3.0 x4 (in x8 slot) Or four PCI-E 3.0 x16 and four PCI-E 3.0 x8 and one PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: one PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
5. One VGA D-Sub Connector port
6. Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Dual LAN with Intel X550 10GBase-T Ethernet Controller
