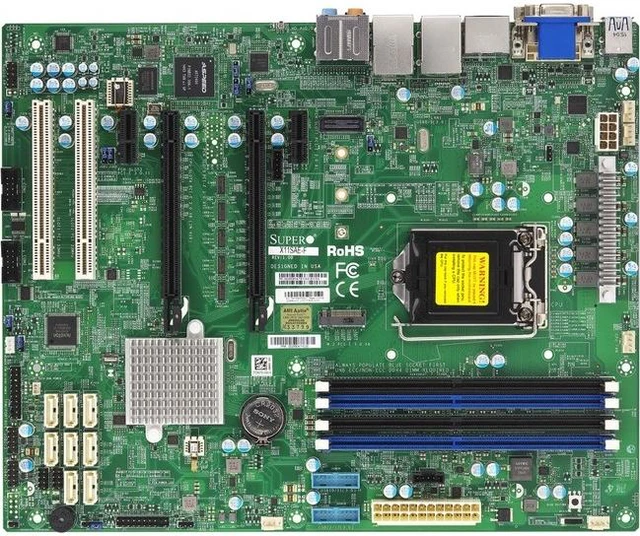

Supermicro Motherboard MBD-X11SAE-F-B Xeon E3-1200 v5 LGA1151 H4 C236 PCI Express SATA ATX Brown Box

Be the first to review this product...

LGA 1151
Intel C236

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Supermicro Motherboard MBD-X11SAE-F-B Xeon E3-1200 v5 LGA1151 H4 C236 PCI Express SATA ATX Brown Box

Model
Brand	SUPERMICRO
Model	MBD-X11SAE-F-B

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Intel 6th / 7th Generation Core i3 series, Intel 6th / 7th Generation Core i5 series, Intel 6th / 7th Generation Core i7 series, Intel Xeon Processor E3-1200 v6 / v5 series. Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3

Chipsets
North Bridge	Intel C236

Memory
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	DDR4 2400 / 2133 / 1866 / 1600 MHz ECC SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported	Up to 64GB Unbuffered ECC / non-ECC UDIMM, DDR4-2400 MHz, in 4 DIMM slots 4x 288-pin DDR4 DIMM slots, Up to 64GB DDR4 ECC UDIMM

Expansion Slots
PCI Express x16	2 x PCI-E 3.0 x16
Other Slots	2 PCI-E 3.0 x12 - 5V PCI 32bit

Storage Devices
SATA	8 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	Aspeed AST2400 BMC

Onboard Audio
Audio Chipset	ALC 888S HD Audio

Onboard LAN
LAN Chipset	Intel I210-AT
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I219LM
Second LAN Speed	10/100/1000Mbps

Rear Panel Ports
RJ45	RJ45 Shared IPMI LAN port
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Features
Features	Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5 / v6, Intel 6th / 7th Gen. Core i7 / i5 / i3 series, Intel Celeron and Intel Pentium Intel C236 chipset Up to 64GB Unbuffered ECC / non-ECC UDIMM DDR4 2400 MHz; 4 x DIMM slots 2 x PCI-E 3.0 x16 (run at 16/NA or 8/8), 2 x PCI-E 3.0 x1, and 2 5V PCI 32-bit slots Single GbE LAN with Intel i210-AT (Share with IPMI); single GbE LAN with Intel i219LM 8 SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280) I/O: 1 VGA, 2 COM, TPM header 6 x USB 3.0 (2 rear + 4 via header (s)), 6 x USB 2.0 (2 rear + 4 via header (s)), 2 x USB 3.1 (10 Gbps, rear)

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Additional Information
First Listed on Newegg	December 30, 2016
