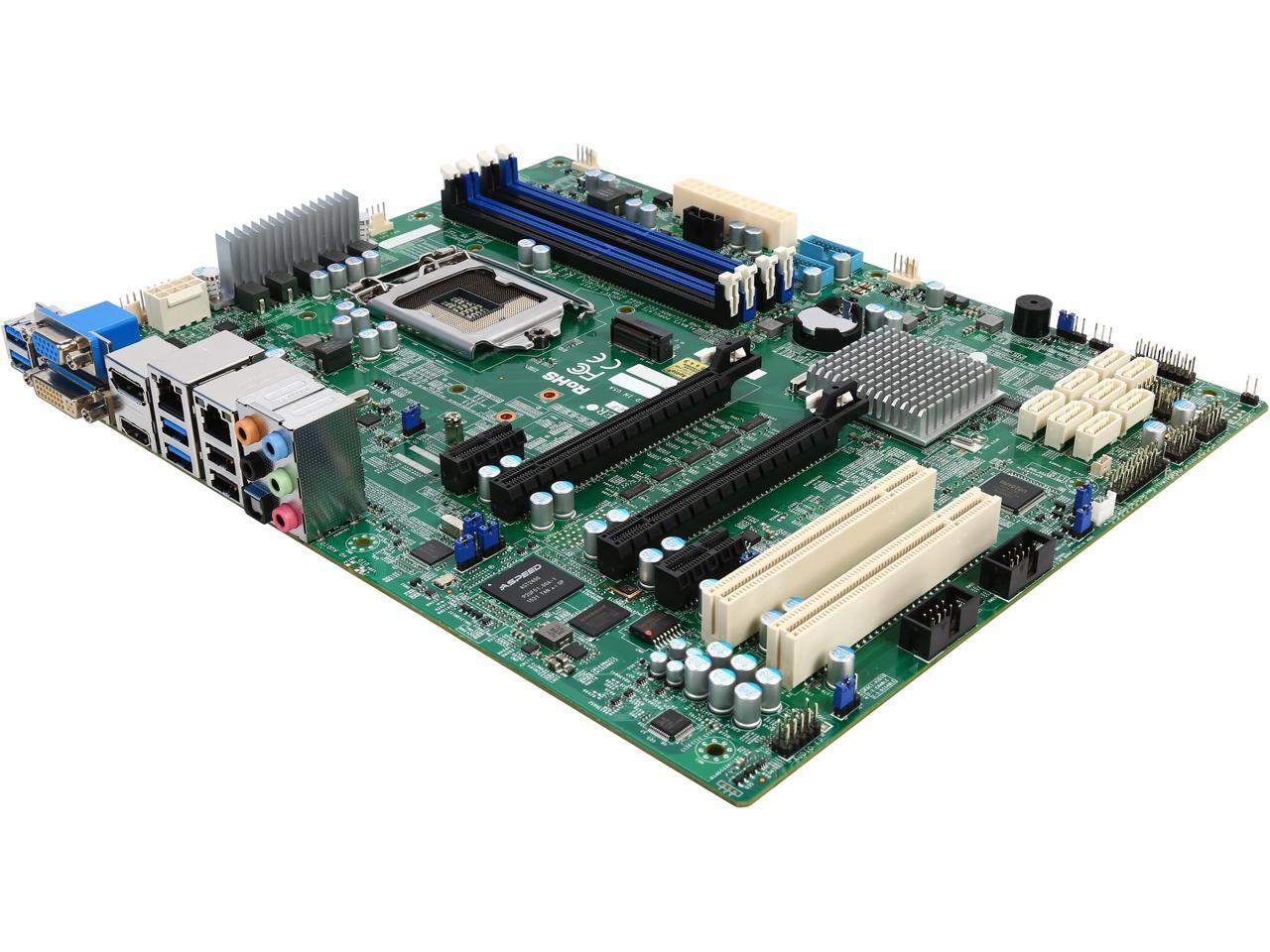

SUPERMICRO MBD-X11SAE-F-O ATX Server Motherboard

Features

Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset
Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
2x PCI-E 3.0 x16 (run at 16/NA or 8/8), 2x PCI-E 3.0 x1, and 2x 5V PCI 32-bit slots
Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM
8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
I/O: 1x VGA, 2x COM, TPM 1.2 header
2x SuperDOM with built-in power
6x USB 3.0 (2 rear + 4 via header) 6x USB 2.0 (2 rear + 6 via headers) 2x USB 3.1 (10Gbps, rear)

Specifications

Product SKUs
MBD-X11SAE-F -B	X11SAE-F (Bulk Pack)
Physical Stats
Form Factor	ATX

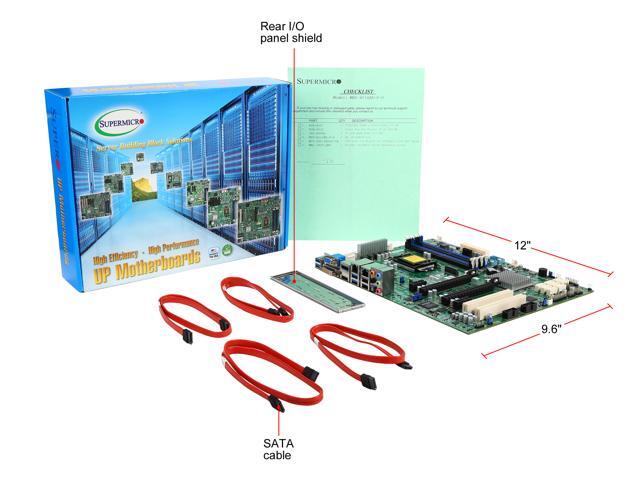

Dimensions	12" x 9.6", (30.5cm x 24.4cm)
Processor/Cache

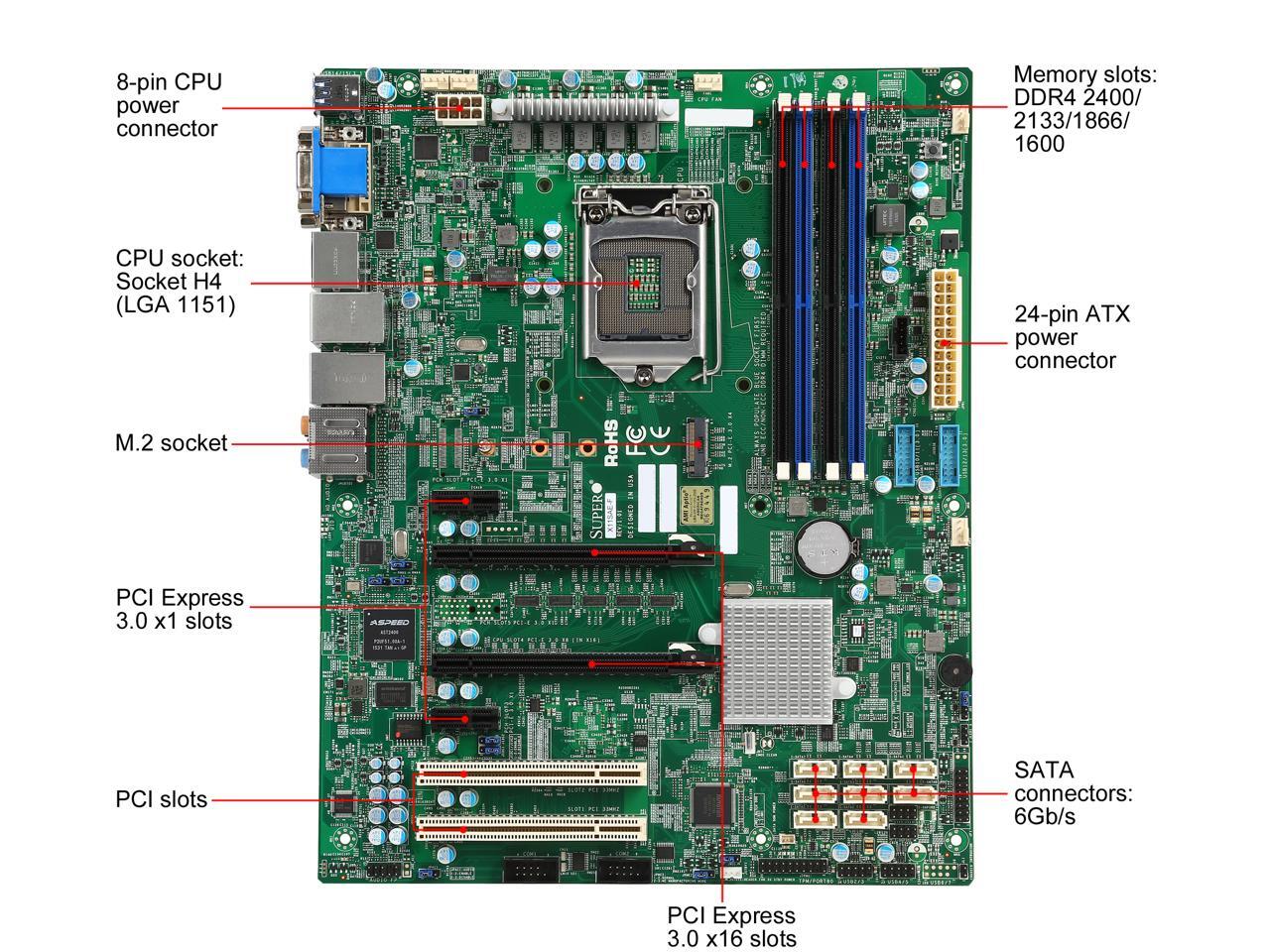

CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W
System Memory
Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C236 chipset
SATA	SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel I210-AT (share with IPMI) + Intel PHY i219LM Ethernet Controllers Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC

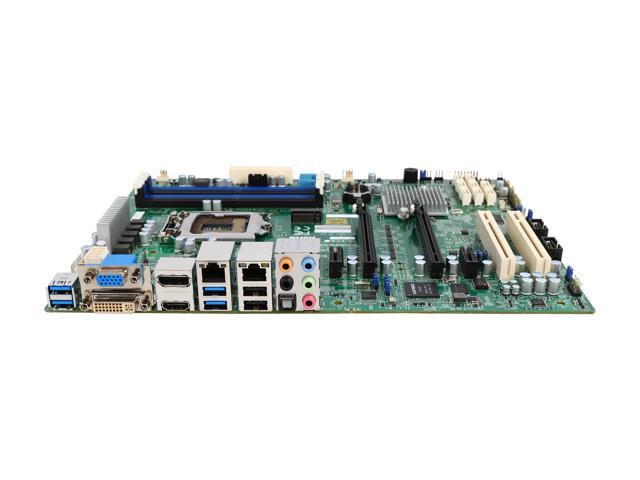

Input / Output
SATA	8x SATA3 (6Gbps) ports

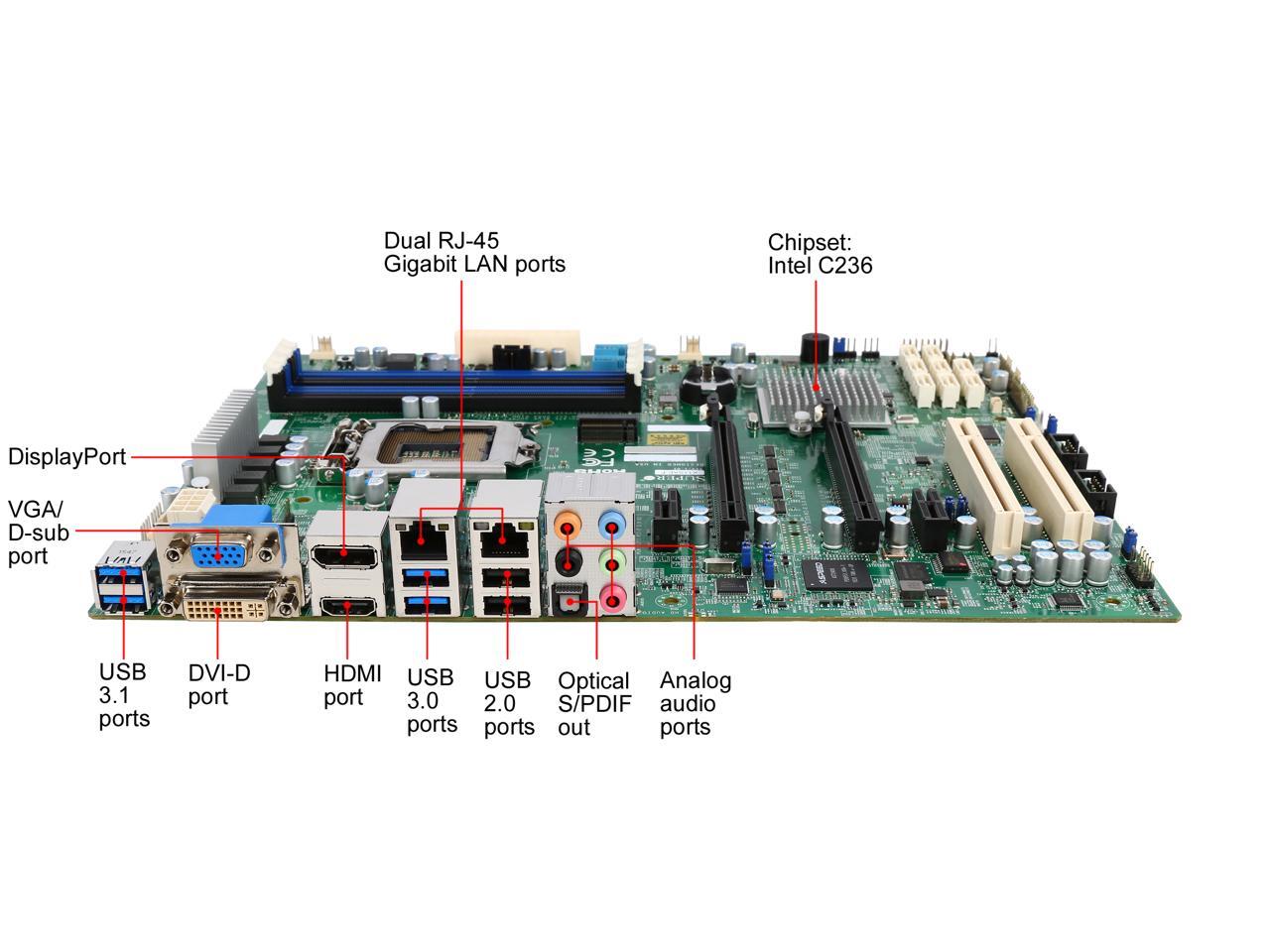

LAN	2x RJ45 Gigabit Ethernet LAN ports (1 shared with IPMI)
USB	6x USB 3.0 ports (2 rear + 4 via headers) 6x USB 2.0 ports (2 rear + 4 via headers) 2x USB 3.1 (rear)
Video	1 DVI - D, 1 DP (Display Port), 1 HDMI, 1 VGA (for IPMI only)
Audio	ALC 888S HD Audio
Serial Port / Header	2x COM ports (2 headers)
SuperDOM	2x SuperDOM (Disk on Module) ports with built-in power
TPM	1x TPM 1.2 20-pin Header
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup

SUPERMICRO MBD-X11SAE-F-O ATX Server Motherboard

Features

Specifications

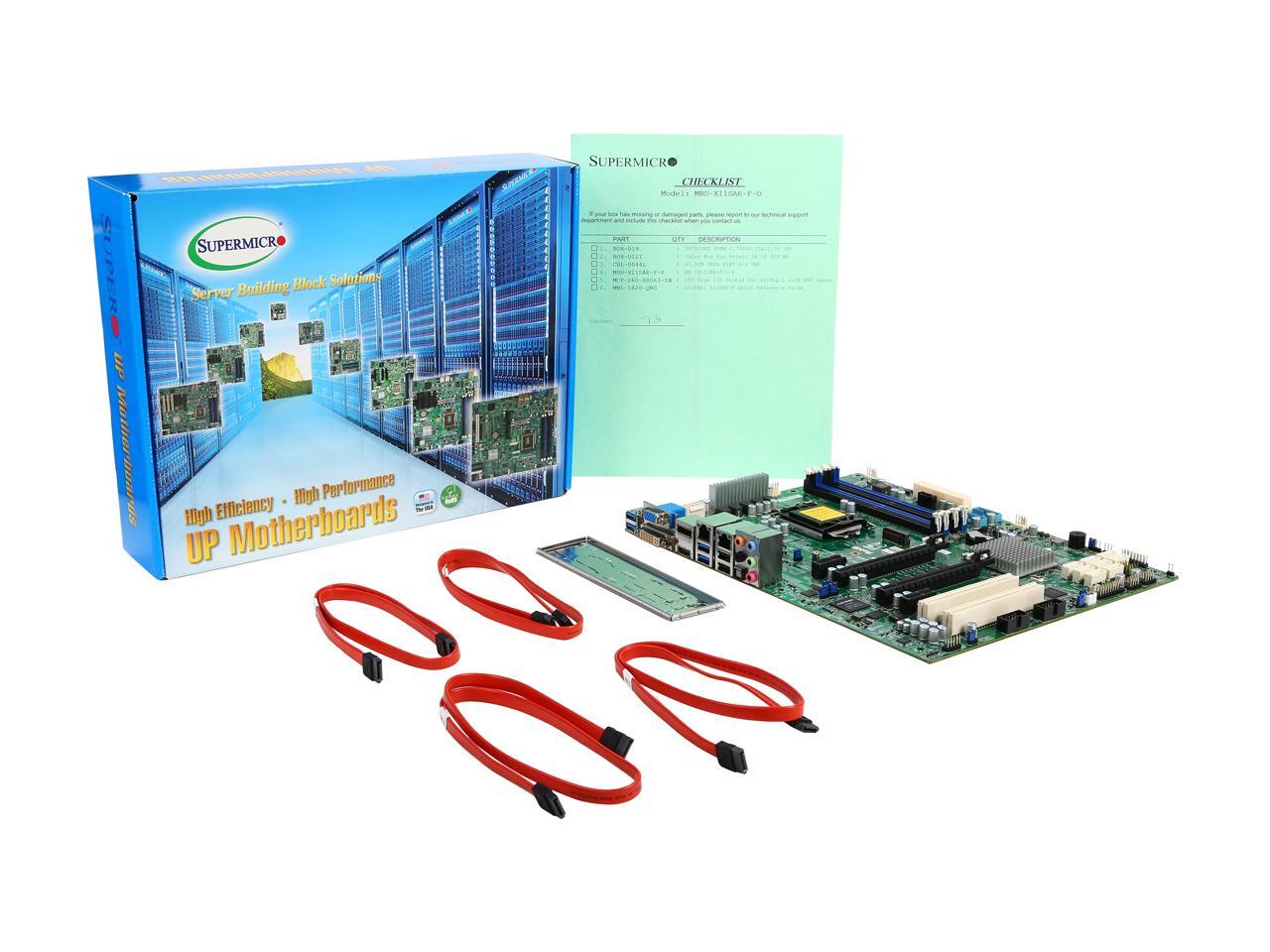

Whats in the Box
