SUPERMICRO MBD-X11SAT-O ATX Server Motherboard LGA 1151 Intel C236

Be the first to review this product...
  • LGA 1151
  • Intel C236
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
MBD-X11SAT-O

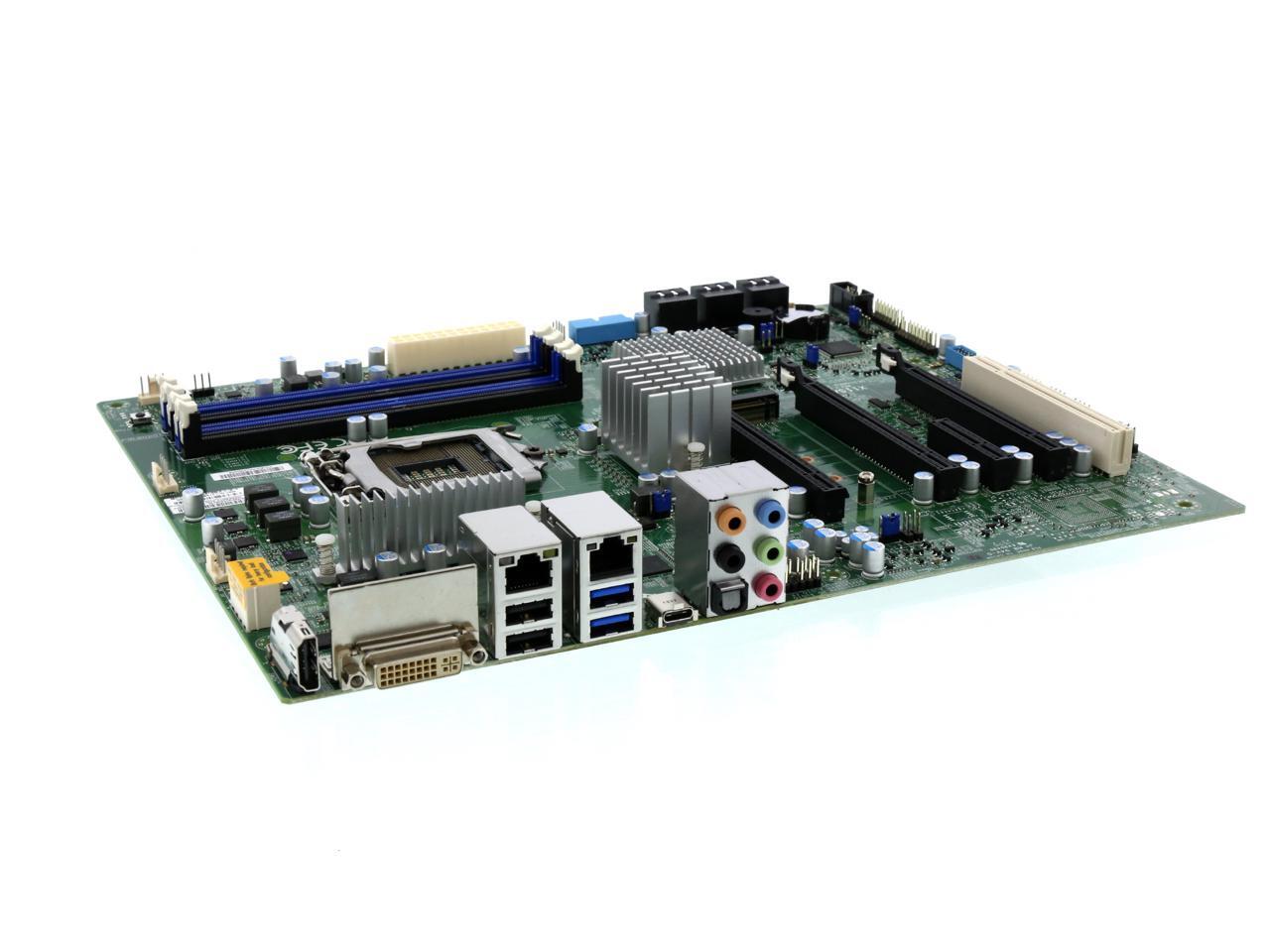

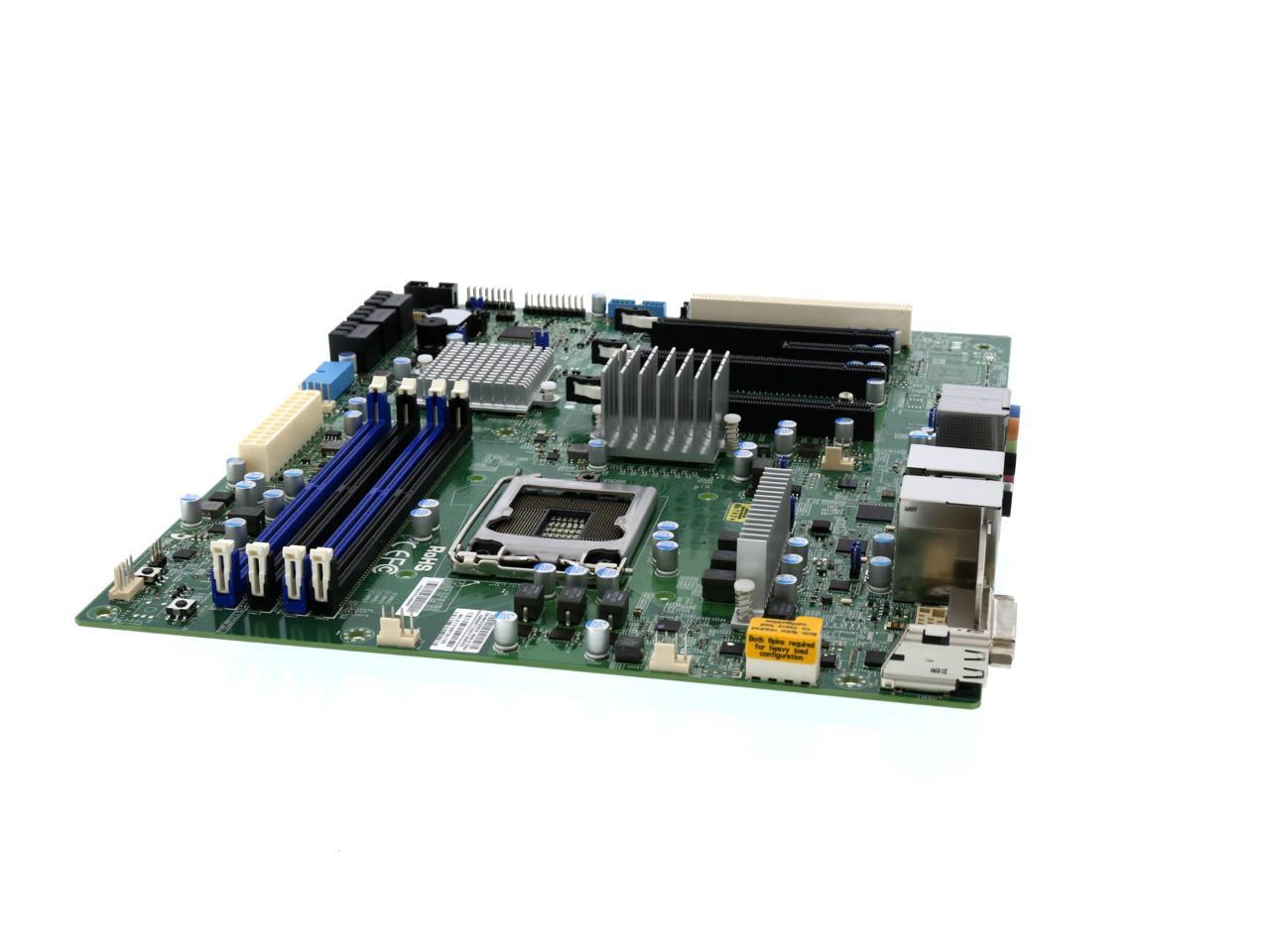

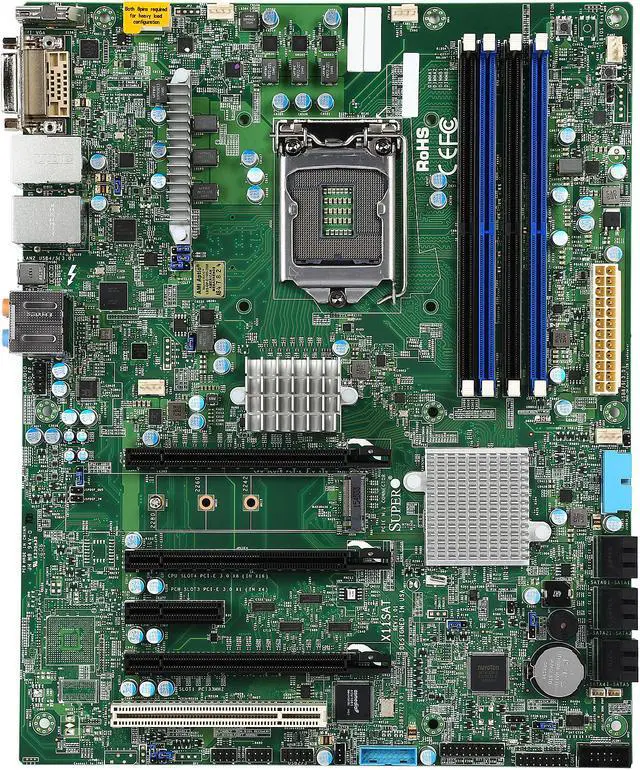

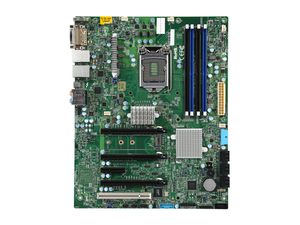

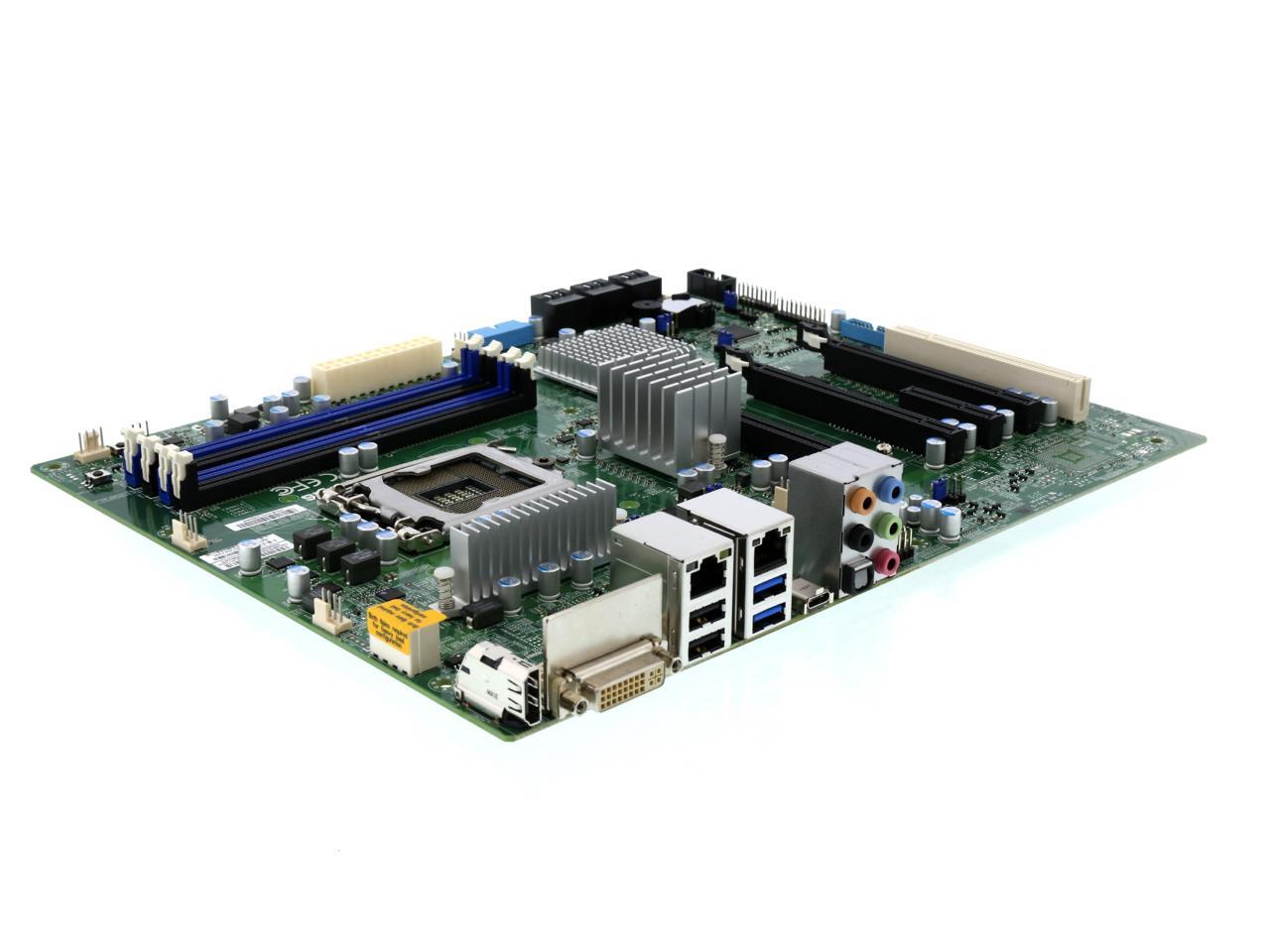

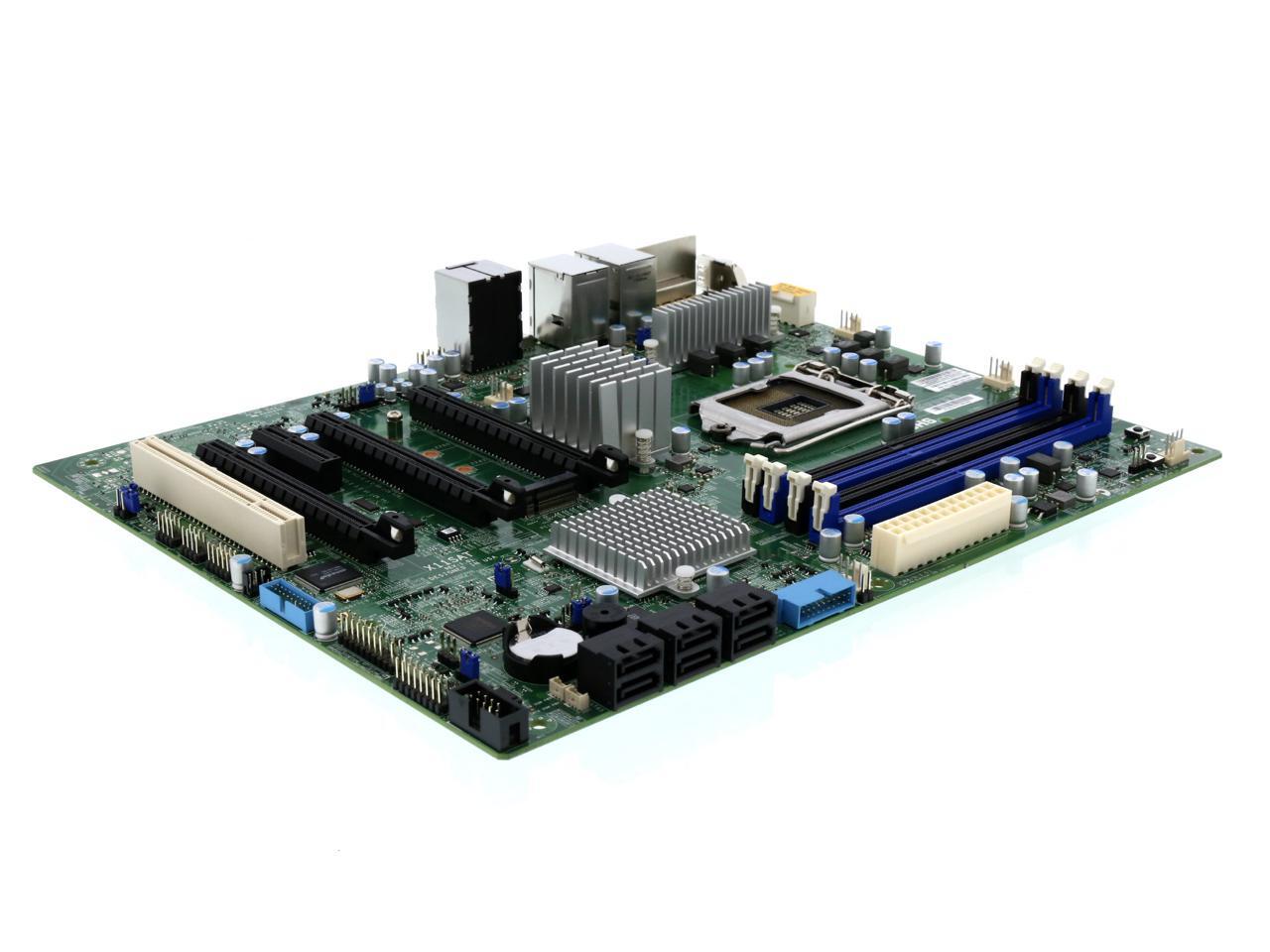

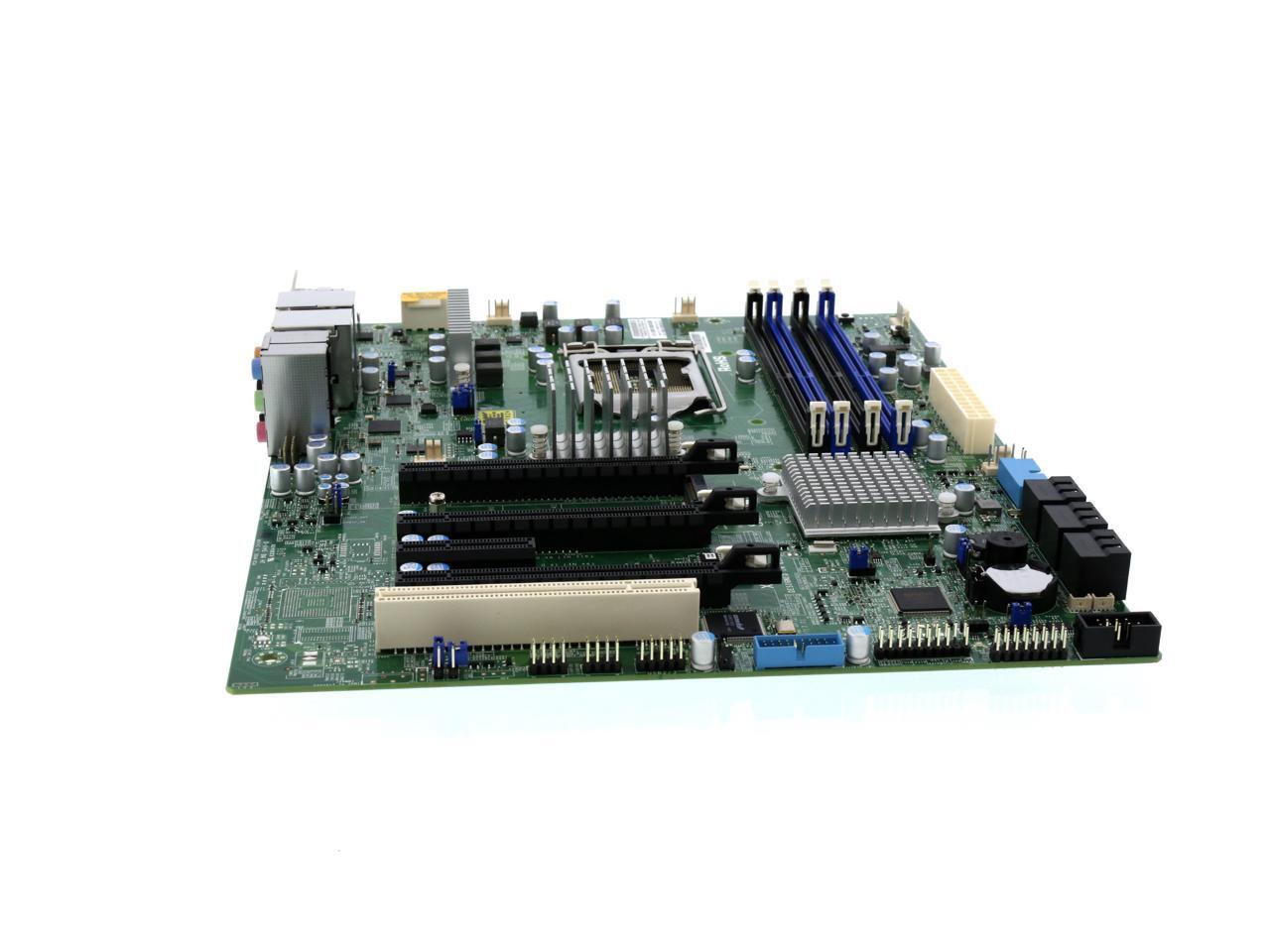

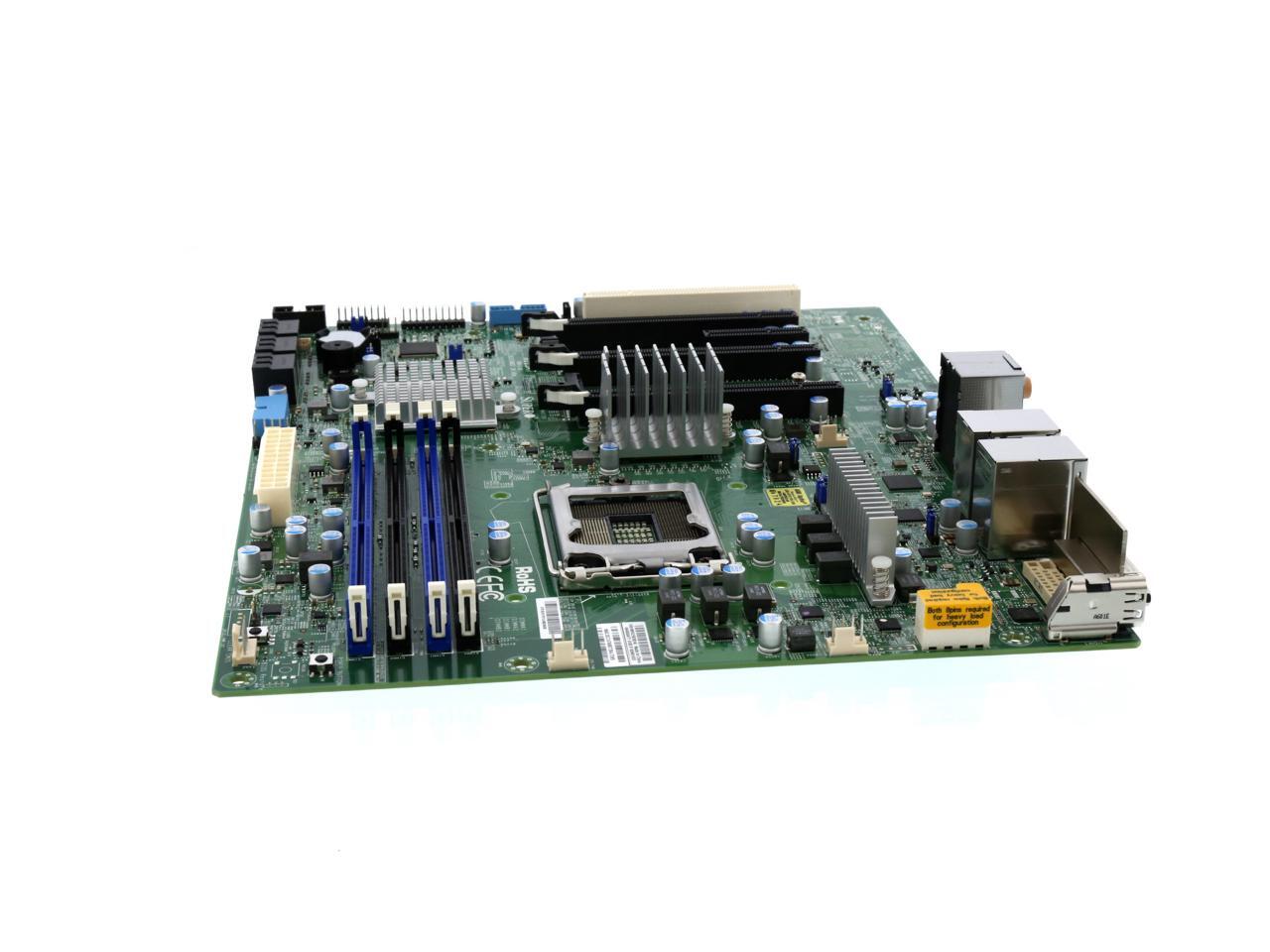

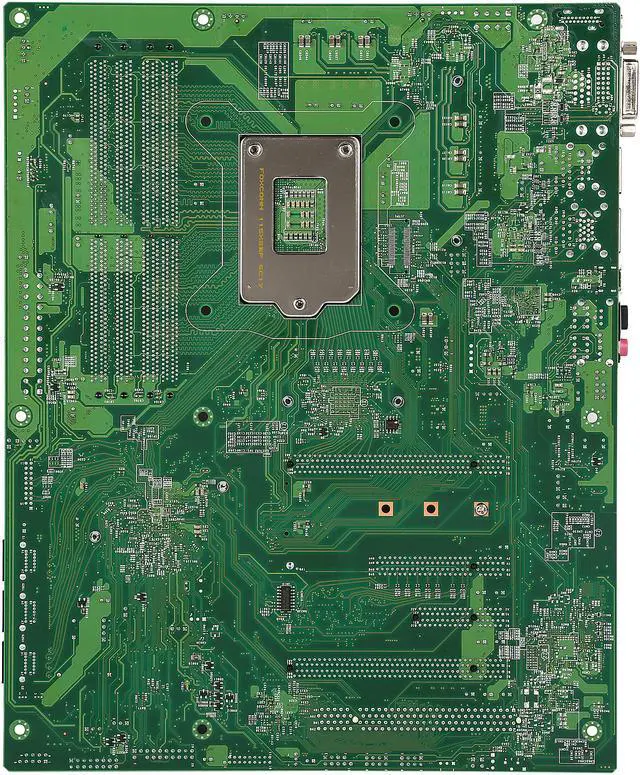

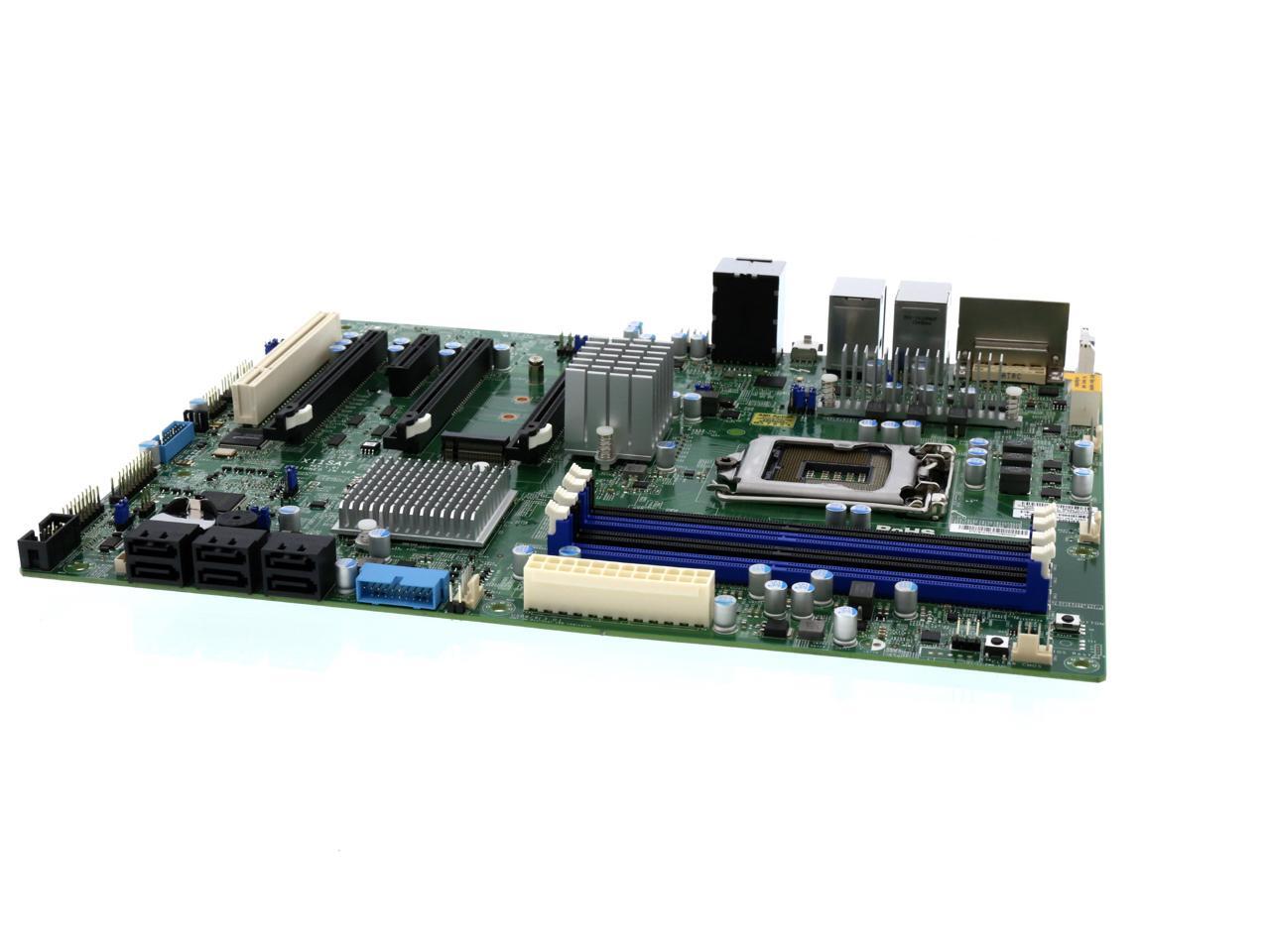

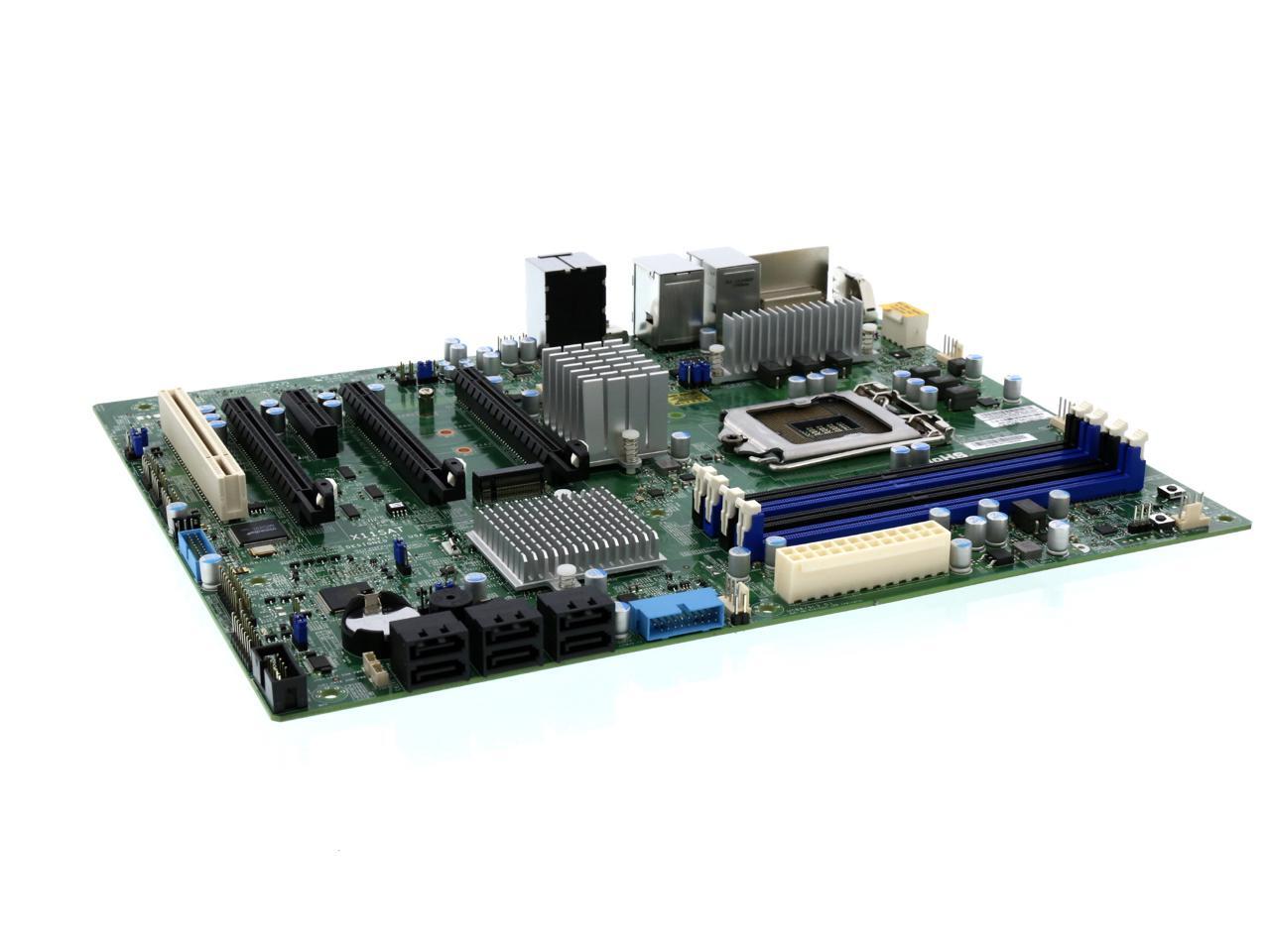

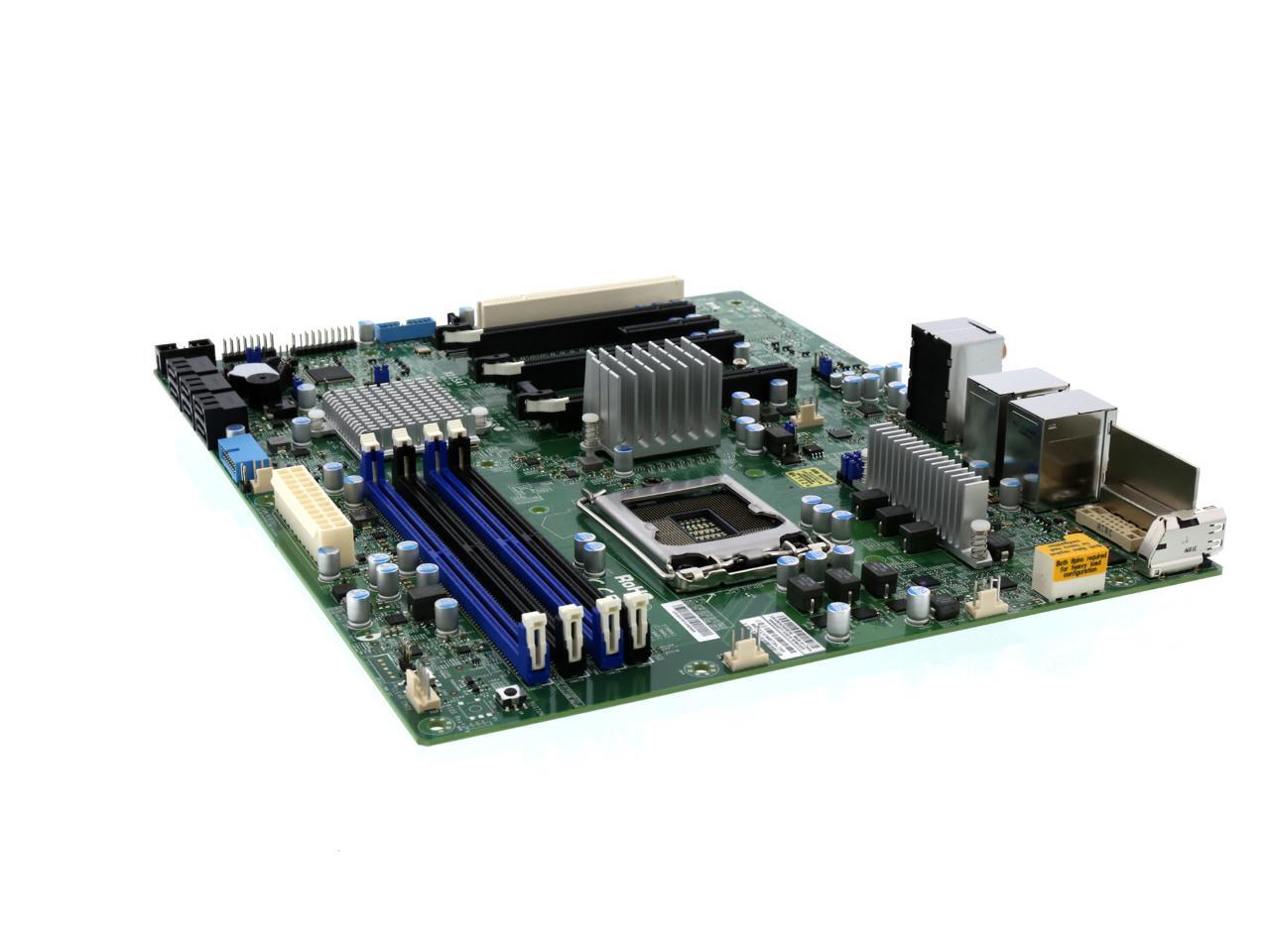

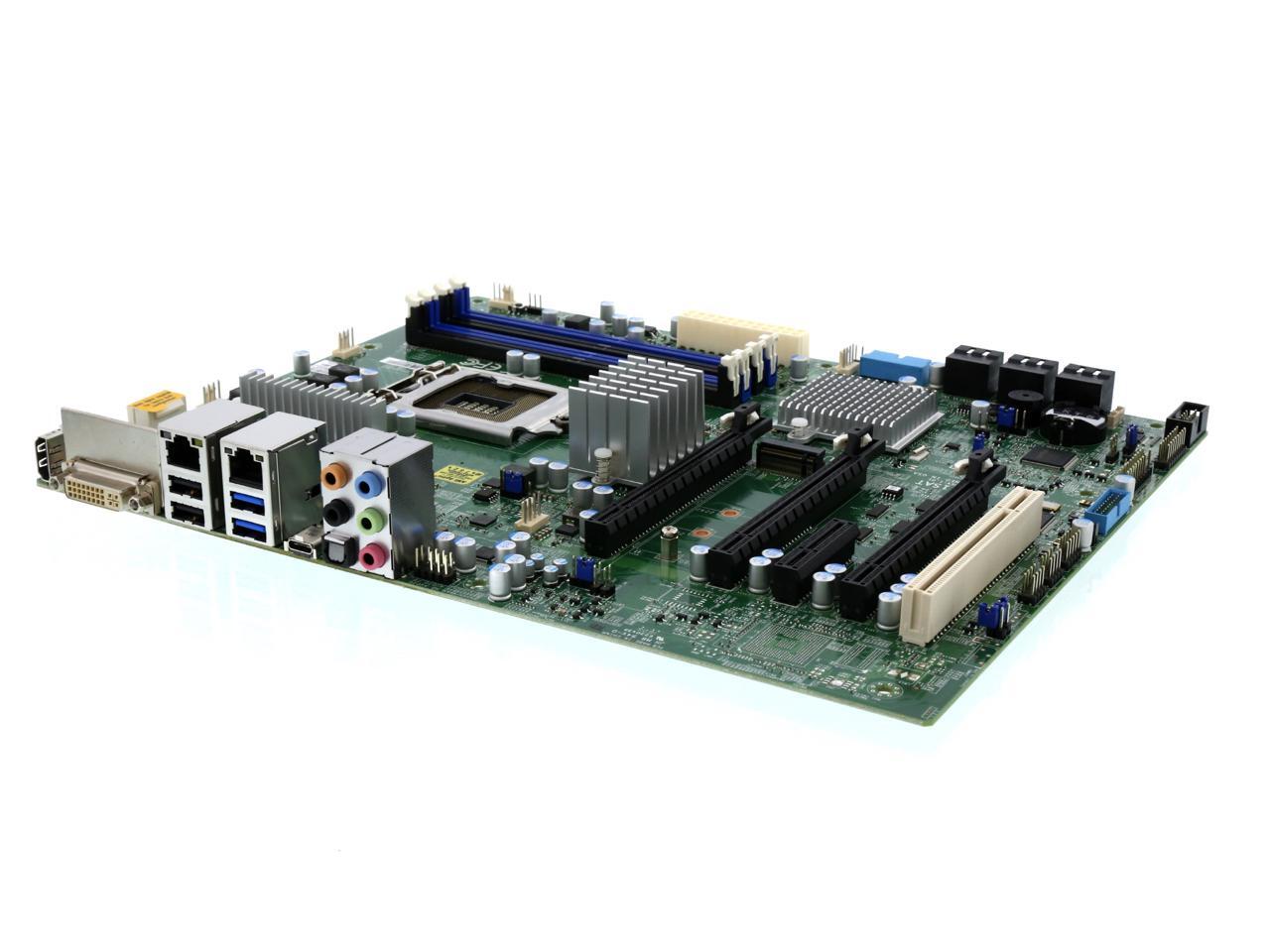

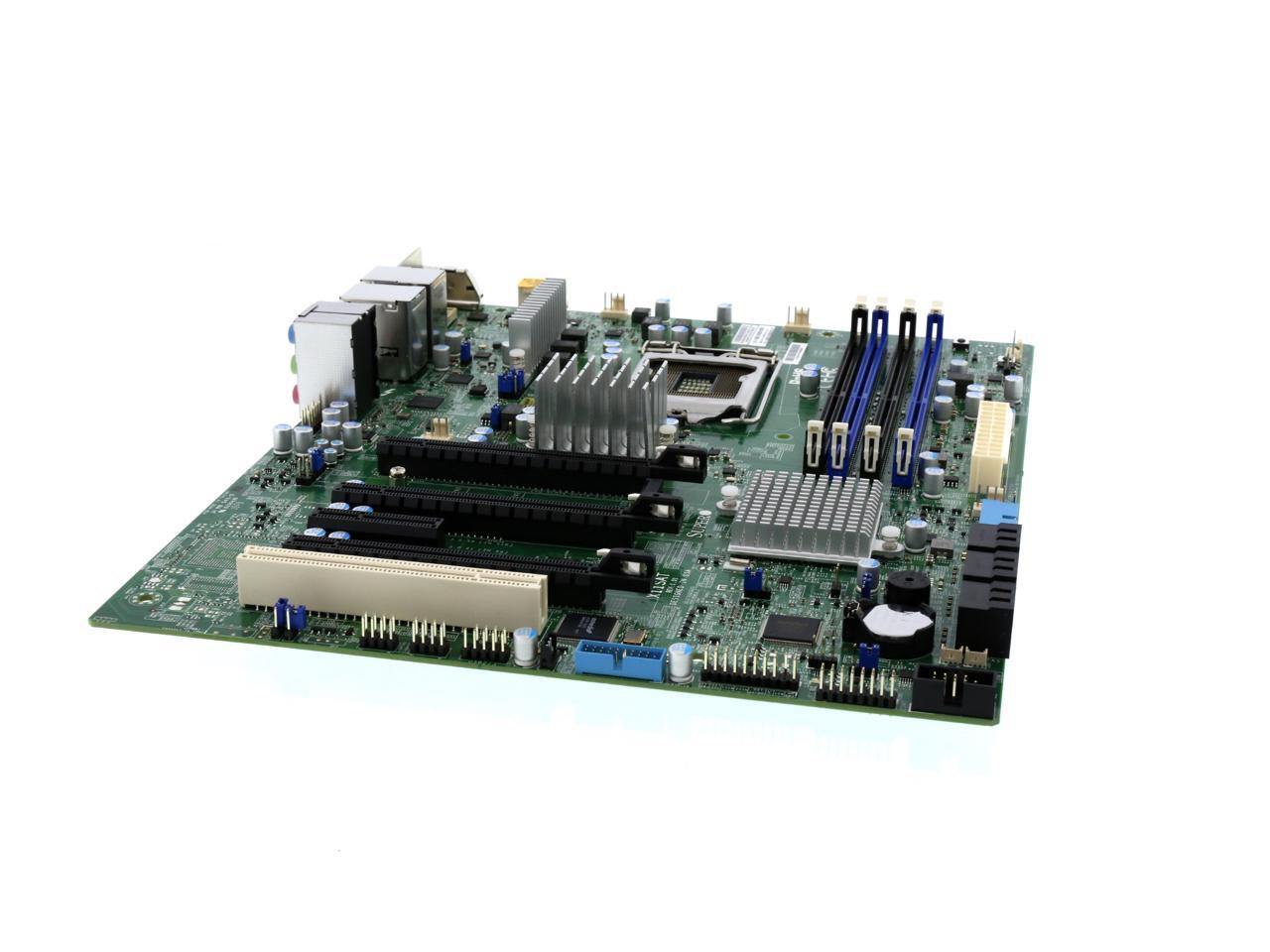

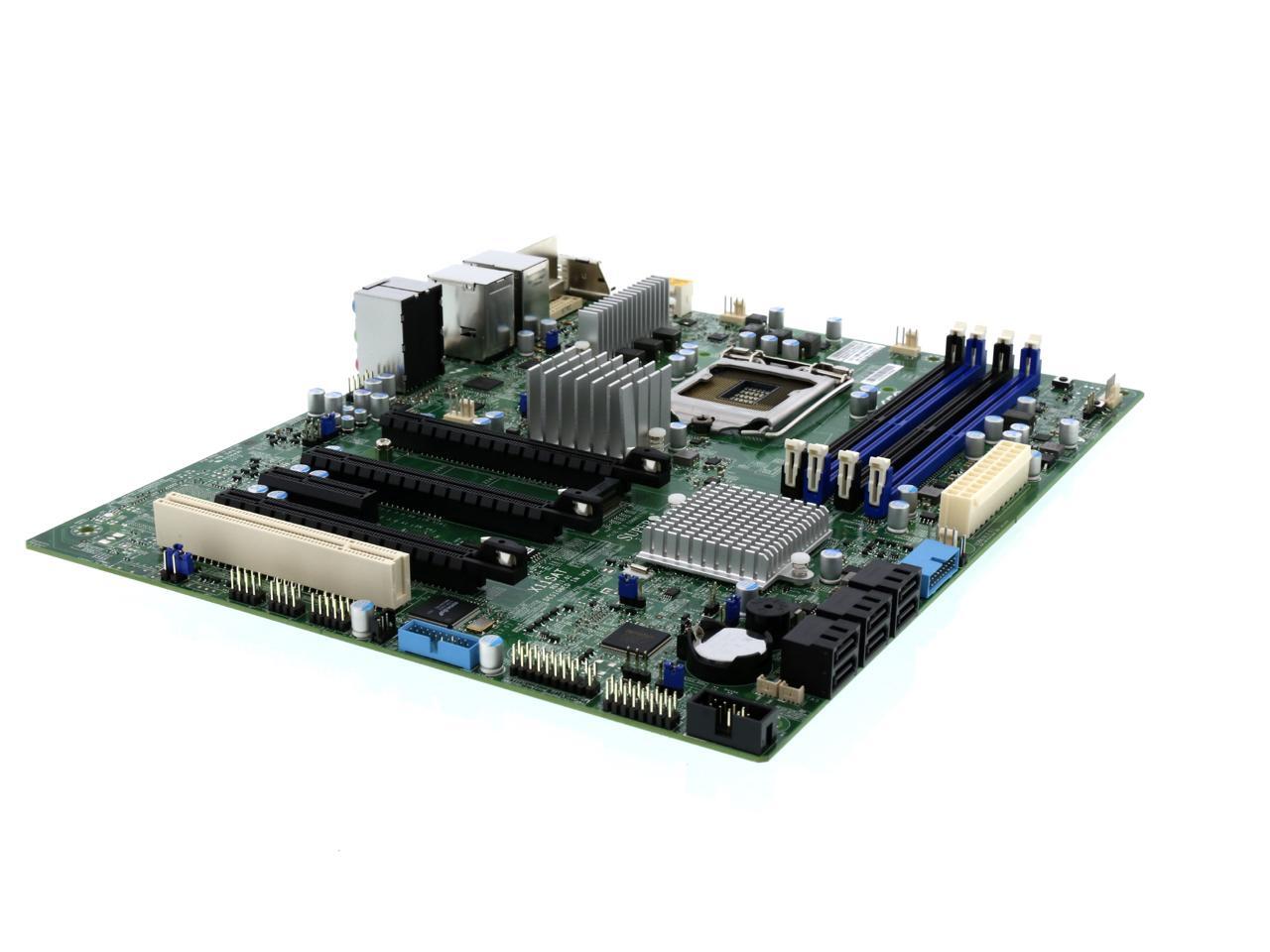

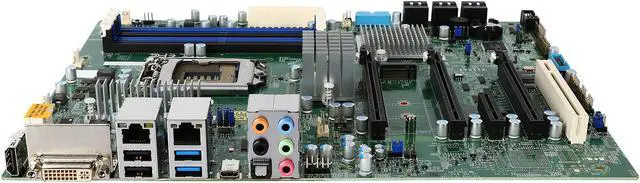

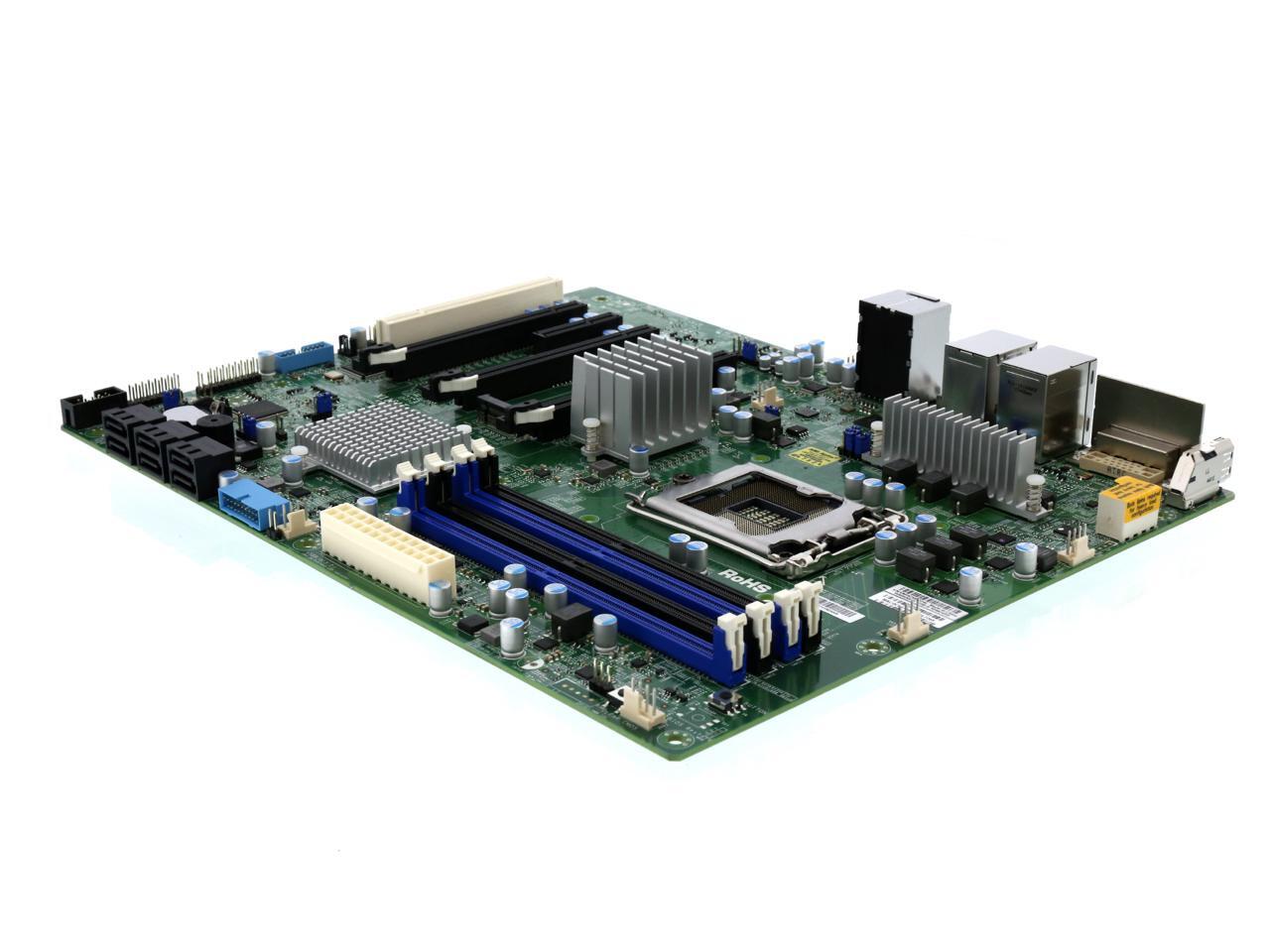

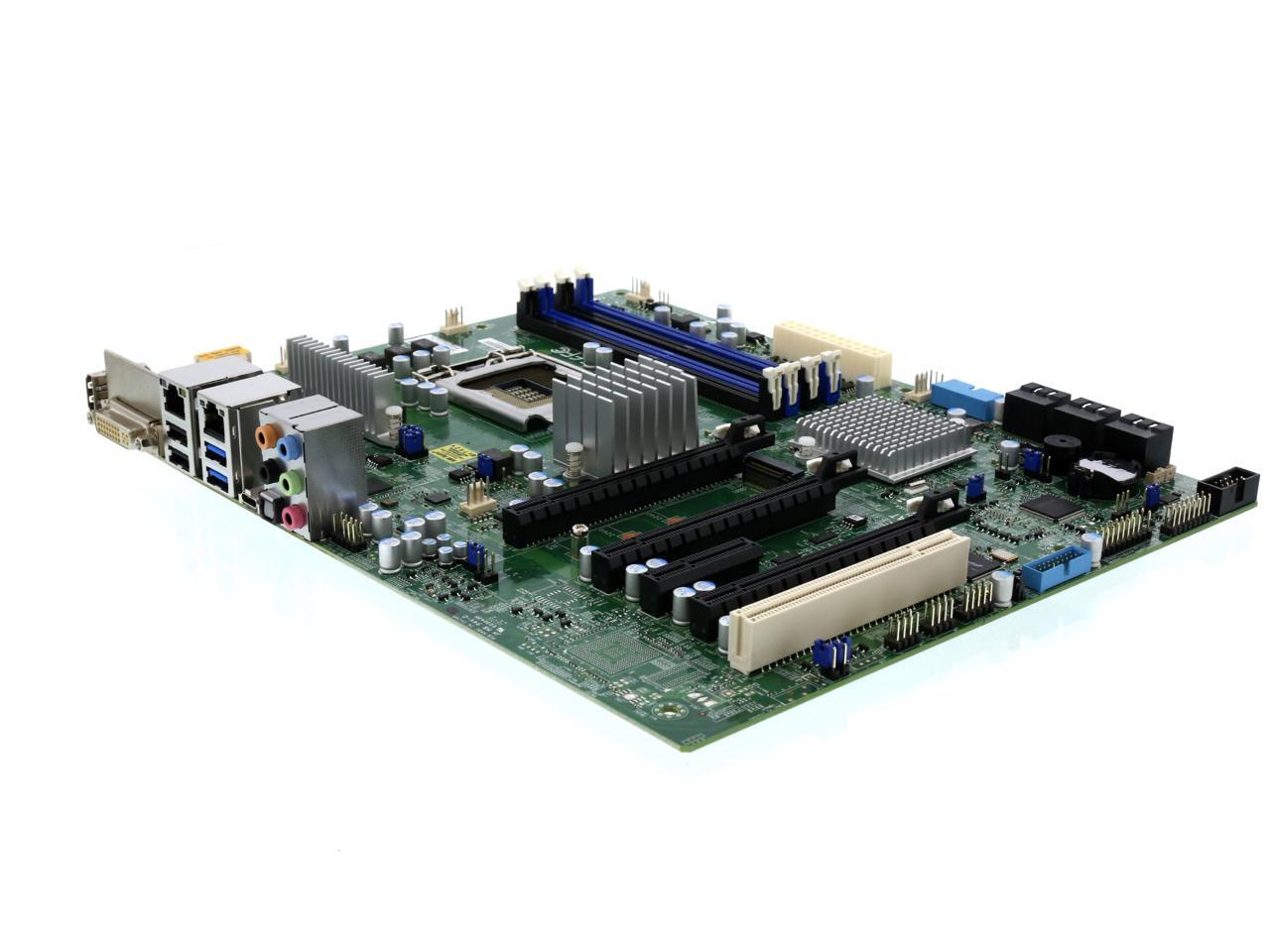

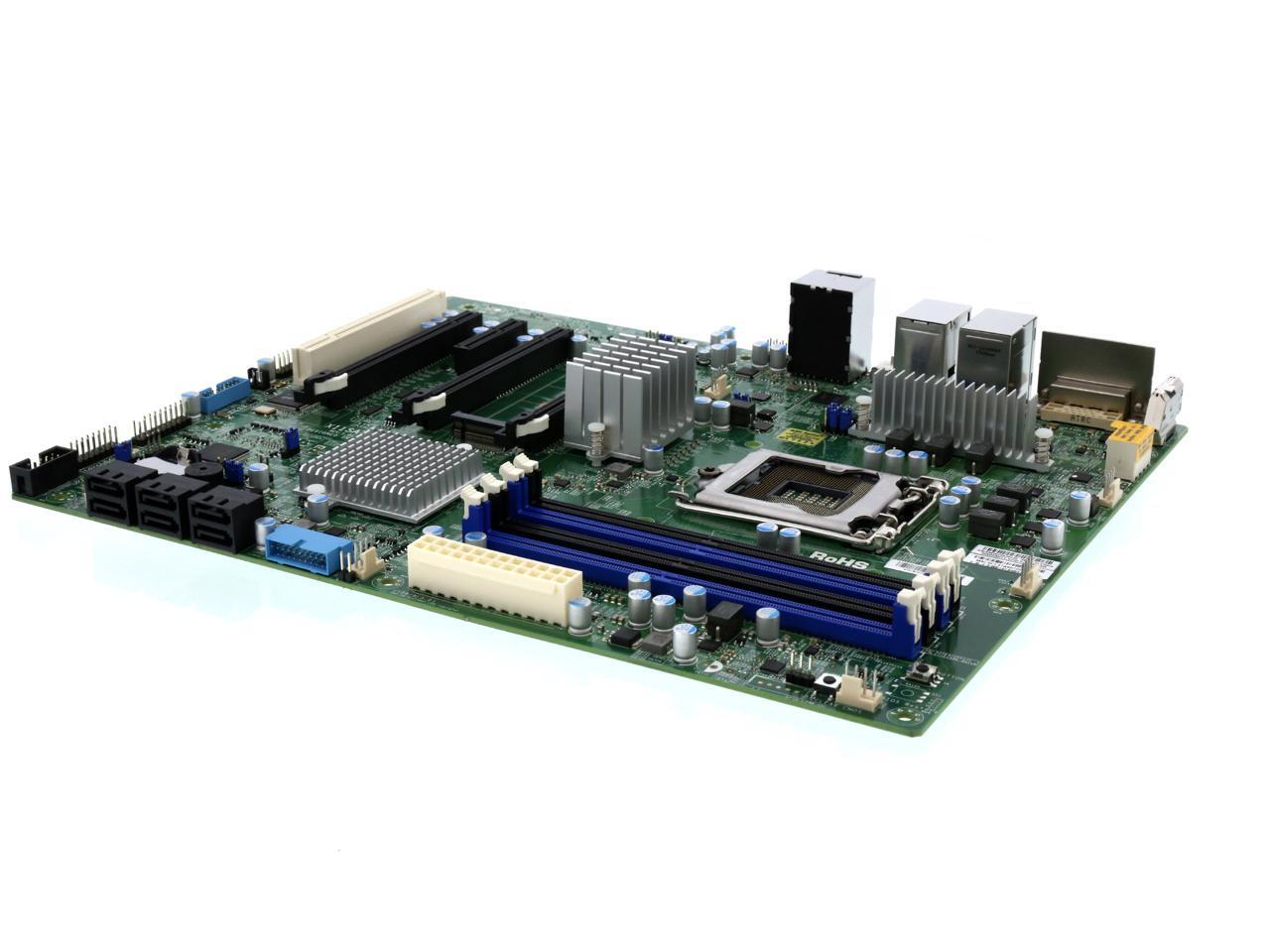

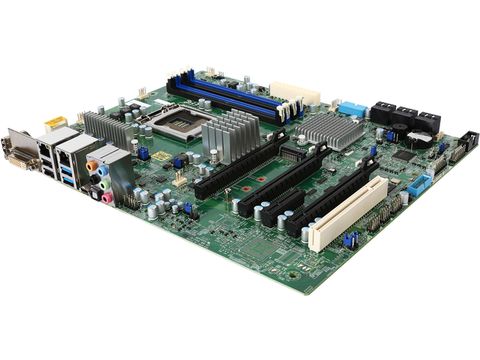

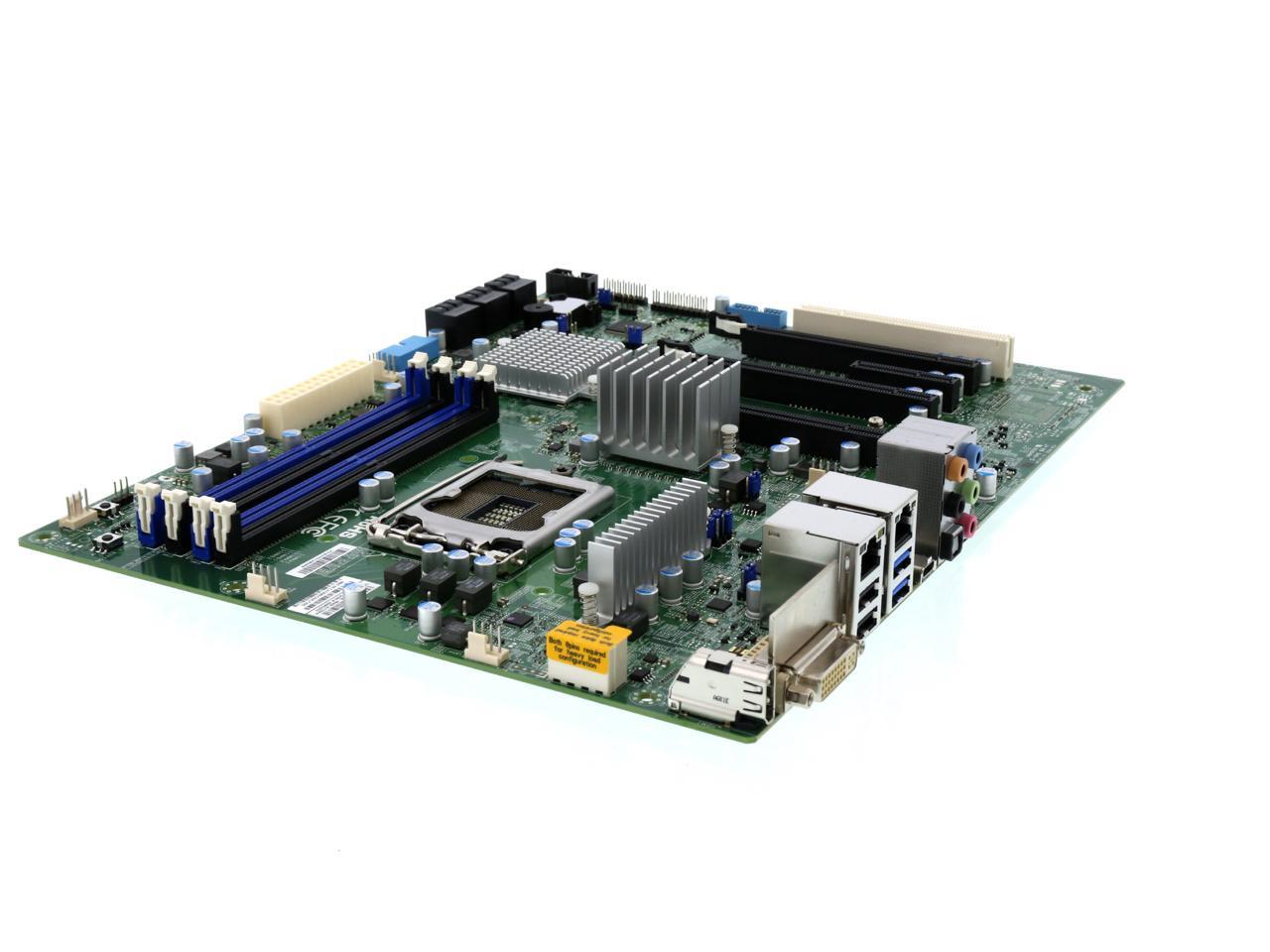

SUPERMICRO MBD-X11SAT-O ATX Server Motherboard

Features

MBD-X11SAT-O
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • 3x PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots
  • Single GbE LAN with Intel® i210-AT Single GbE LAN with Intel® i219LM
  • 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
  • I/O: 1x COM, TPM header
  • 2x SuperDOM with built-in power
  • 6x USB 3.0 (2 rear + 4 via header) 4x USB 2.0 (2 rear + 2 via header) 1x USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)
  • M.2 NGFF connector

Specifications

Product SKUs
MBD-X11SAT -B X11SAT (Bulk Pack)
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6", (30.5cm x 24.4cm)
Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i7/i5/i3 series processors
  • CPU TDP up to 95W
System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Intel I210-AT + Intel PHY i219LM Ethernet Controllers
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

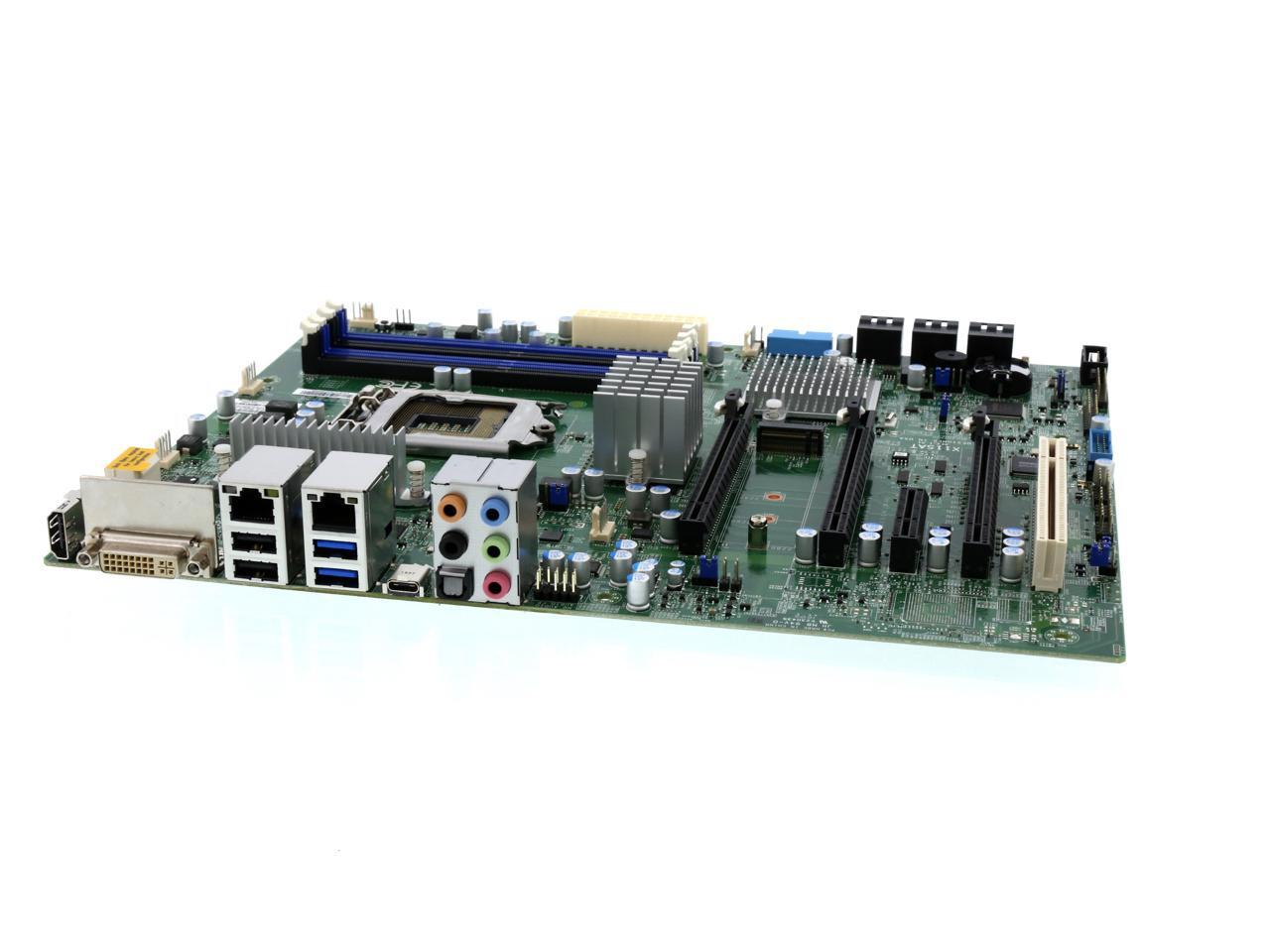

Input / Output
SATA 6x SATA3 (6Gbps) ports
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 6x USB 3.0 ports (2 rear + 4 via headers)
  • 4x USB 2.0 ports (2 rear + 2 via header)
  • 1 USB 3.1 (10 Gb/s) Type C ports (Rear, share with Thunderbolt and Display port)
Video 1 DVI - D, 1 DP (Display Port), 1 HDMI Display Port is Type C connector, support up to DP 1.2, HDMI support up to HDMI2.0
Audio ALC 888S HD Audio
Serial Port / Header 1x COM port (1 header)
SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
TPM 1x TPM 20-pin Header
Expansion Slots
PCI-Express
  • 3x PCI-E 3.0 x16 slots (run at 16/NA/16 or 16/8/8)
  • 1x PCI-E 3.0 x1 (in x4) slot
  • 1x 5V PCI 32bit slot
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Management
Software
  • AMT
  • SuperDoctor® 5
  • vPro
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • 5 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • Chipkill support
  • RoHS

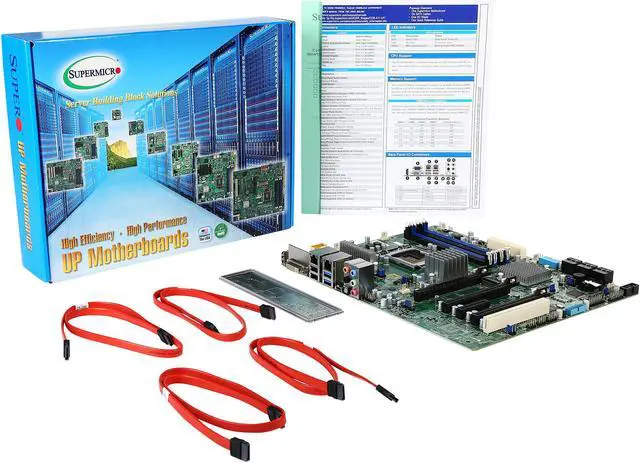

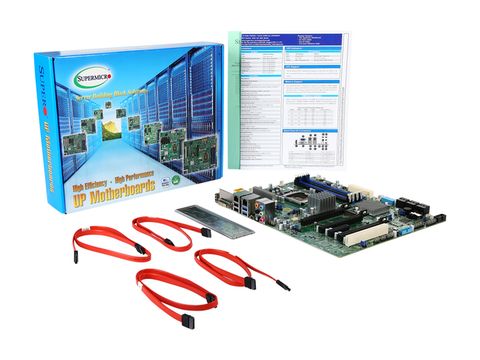

What's in the Box

MBD-X11SAT-O

Warranty & Returns

Warranty, Returns, And Additional Information
