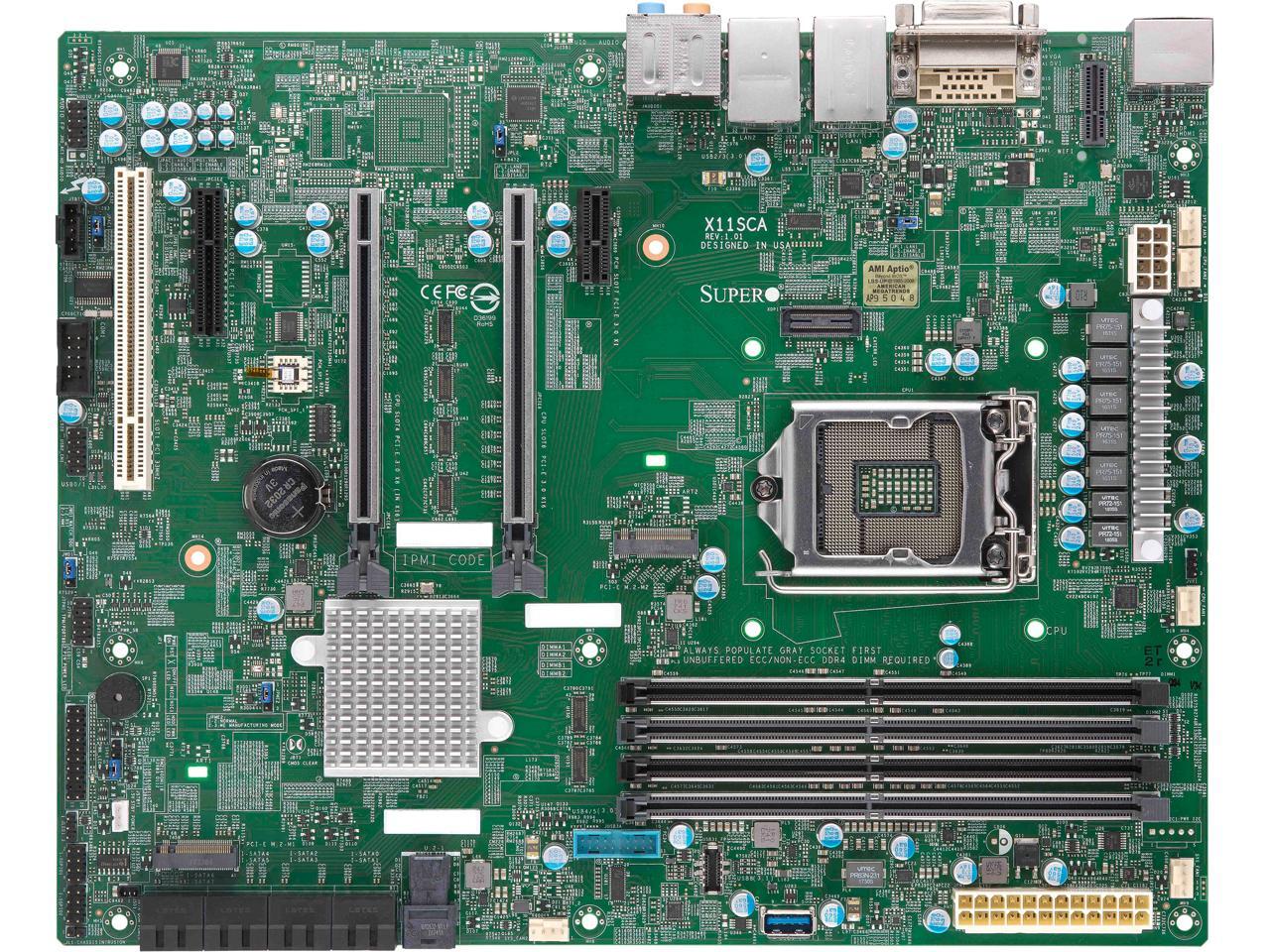

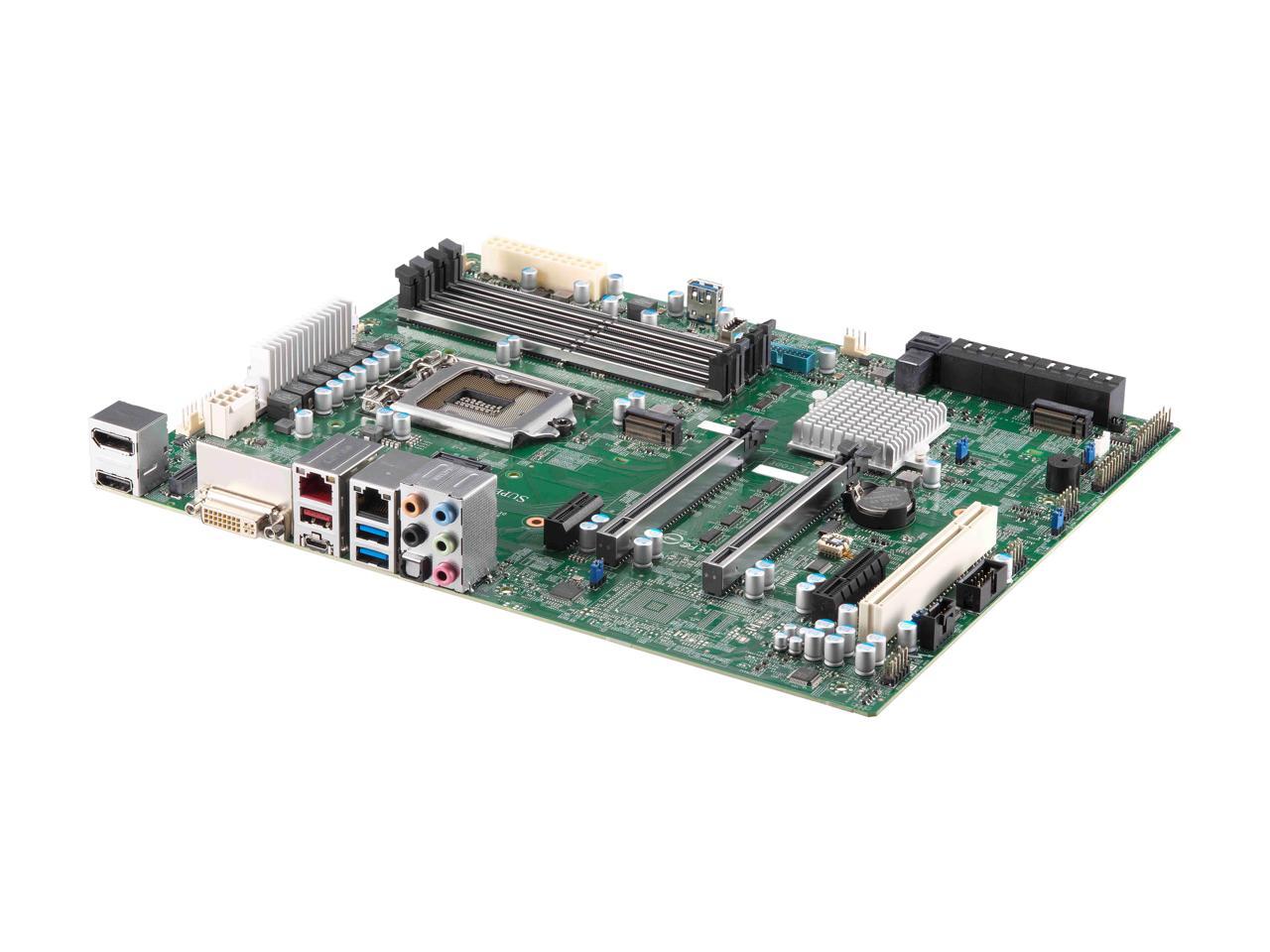

SUPERMICRO MBD-X11SCA-O LGA 1151 Intel C246 DDR4 U.2 M.2 DP HDMI DVI ATX Workstation Motherboard

8th/9th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Intel C246
Single LAN with Intel Ethernet Controller I210-AT
Single LAN with Intel PHY I219LM LAN controller
Support vPro
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key
M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4
1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only)
Intel C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
